Permanent load-lifting magnet FX-S

Permanent load-lifting magnet FX-S

Innovative, powerful, robust and durable permanent load-lifting magnet with convincing results in all standard applications. The non-recoiling, self-braking gear lever has an optimal shift travel of 90° (V-shift travel) and can therefore ideal for use even in confined spaces.

Technical data
Options
Safety instruction
Product variants
Downloads
Contact

Technical data

Design

Permanent load-lifting magnet

Standard

DIN EN 13155

Safety factor

3.5

Operating temperature

–10 °C to +80 °C

Magnet surface Coating

nickel-plated

Gear lever

Non-return, lever travel 90°
self-braking

Suspension

Rigid attachment eye

Range of application Magnets

Transport

load types Magnets

Standard

Options

Options on request

in special designs
with towing eye for vertical use

Safety instruction

Caution: the carrying capacity of permanent load-lifting magnets is influenced by the following factors, which need to be taken into account when making the right choice:- Contact surface (such as rust or paint) and the resulting air gap- Material thickness- Temperature (> 80° not permissible with standard models – permanent damage to the device!)- Workpiece dimensions or inherent stability- Material composition of the load to be liftedAll 5 factors can occur at the same time and affect the carrying capacity accordingly!Carrying capacity reductions in relation to the factors can be taken from the tables!
Use for parallel shear pull is forbidden – use magnets only to lift straight upwards, not at an inclination angle.
Persons with heart pacemakers are prohibited from using the device!
Observe the operating instructions!

Product variants

MPL-GMS-EN-FX-S-150-8MM

Reference no.	283296
Working load limit flat material max [kg]	150
Working load limit round and flat material max [kg]	75
Sheet thickness flat material min [mm]	8
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	200
Round and pipe material min. wall thickness [mm]	8
Load length max [mm]	1500

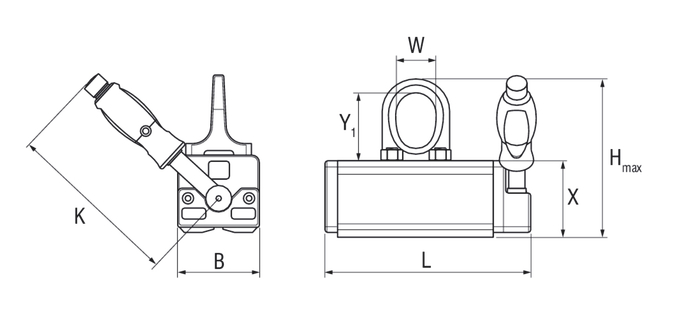

Overall length L [mm]	161
Overall height max H_max [mm]	124
Body width B	64
Body height X [mm]	60
Spacing body to suspension point Y₁	42
Lever length K	139
Clear span stirrup W [mm]	30
Weight approx. [kg]	3.6 [kg]

MPL-GMS-EN-FX-S-300-15MM

Reference no.	283297
Working load limit flat material max [kg]	300
Working load limit round and flat material max [kg]	150
Sheet thickness flat material min [mm]	15
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	300
Round and pipe material min. wall thickness [mm]	15
Load length max [mm]	2500
Overall length L [mm]	205
Overall height max H_max [mm]	158
Body width B	87
Body height X [mm]	78
Spacing body to suspension point Y₁	53
Lever length K	197
Clear span stirrup W [mm]	40
Weight approx. [kg]	8.4 [kg]

MPL-GMS-EN-FX-S-600-20MM

Reference no.	283298
Working load limit flat material max [kg]	600
Working load limit round and flat material max [kg]	300
Sheet thickness flat material min [mm]	20
Round and pipe material Ø min [mm]	80
Round and pipe material Ø max [mm]	400
Round and pipe material min. wall thickness [mm]	20
Load length max [mm]	3000
Overall length L [mm]	288
Overall height max H_max [mm]	189
Body width B	112
Body height X [mm]	94
Spacing body to suspension point Y₁	62
Lever length K	230
Clear span stirrup W [mm]	50
Weight approx. [kg]	19 [kg]

MPL-GMS-EN-FX-S-1000-25MM

Reference no.	283299
Working load limit flat material max [kg]	1000
Working load limit round and flat material max [kg]	500
Sheet thickness flat material min [mm]	25
Round and pipe material Ø min [mm]	100
Round and pipe material Ø max [mm]	450
Round and pipe material min. wall thickness [mm]	25
Load length max [mm]	3500
Overall length L [mm]	361
Overall height max H_max [mm]	240
Body width B	152
Body height X [mm]	120
Spacing body to suspension point Y₁	76
Lever length K	261
Clear span stirrup W [mm]	60
Weight approx. [kg]	42 [kg]

MPL-GMS-EN-FX-S-2000-50MM

Reference no.	283300
Working load limit flat material max [kg]	2000
Working load limit round and flat material max [kg]	1000
Sheet thickness flat material min [mm]	50
Round and pipe material Ø min [mm]	160
Round and pipe material Ø max [mm]	600
Round and pipe material min. wall thickness [mm]	50
Load length max [mm]	4000
Overall length L [mm]	472
Overall height max H_max [mm]	313
Body width B	228
Body height X [mm]	169
Spacing body to suspension point Y₁	89
Lever length K	409
Clear span stirrup W [mm]	68
Weight approx. [kg]	115 [kg]

MPL-GMS-EN-FX-S-3000-50MM

Reference no.	283301
Working load limit flat material max [kg]	3000
Working load limit round and flat material max [kg]	1500
Sheet thickness flat material min [mm]	50
Round and pipe material Ø min [mm]	250
Round and pipe material Ø max [mm]	600
Round and pipe material min. wall thickness [mm]	50
Load length max [mm]	4000
Overall length L [mm]	648
Overall height max H_max [mm]	313
Body width B	228
Body height X [mm]	169
Spacing body to suspension point Y₁	89
Lever length K	534
Clear span stirrup W [mm]	68
Weight approx. [kg]	166 [kg]

Working load limit flat material max [kg] 150

Working load limit round and flat material max [kg] 75

Reference no. 283296

MPL-GMS-EN-FX-S-150-8MM

Reference no.	283296
Working load limit flat material max [kg]	150
Working load limit round and flat material max [kg]	75
Sheet thickness flat material min [mm]	8
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	200
Round and pipe material min. wall thickness [mm]	8
Load length max [mm]	1500
Overall length L [mm]	161
Overall height max H_max [mm]	124
Body width B	64
Body height X [mm]	60
Spacing body to suspension point Y₁	42
Lever length K	139
Clear span stirrup W [mm]	30
Weight approx. [kg]	3.6 [kg]

Working load limit flat material max [kg] 300

Working load limit round and flat material max [kg] 150

Reference no. 283297

MPL-GMS-EN-FX-S-300-15MM

Reference no.	283297
Working load limit flat material max [kg]	300
Working load limit round and flat material max [kg]	150
Sheet thickness flat material min [mm]	15
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	300
Round and pipe material min. wall thickness [mm]	15
Load length max [mm]	2500
Overall length L [mm]	205
Overall height max H_max [mm]	158
Body width B	87
Body height X [mm]	78
Spacing body to suspension point Y₁	53
Lever length K	197
Clear span stirrup W [mm]	40
Weight approx. [kg]	8.4 [kg]

Working load limit flat material max [kg] 600

Working load limit round and flat material max [kg] 300

Reference no. 283298

MPL-GMS-EN-FX-S-600-20MM

Reference no.	283298
Working load limit flat material max [kg]	600
Working load limit round and flat material max [kg]	300
Sheet thickness flat material min [mm]	20
Round and pipe material Ø min [mm]	80
Round and pipe material Ø max [mm]	400
Round and pipe material min. wall thickness [mm]	20
Load length max [mm]	3000
Overall length L [mm]	288
Overall height max H_max [mm]	189
Body width B	112
Body height X [mm]	94
Spacing body to suspension point Y₁	62
Lever length K	230
Clear span stirrup W [mm]	50
Weight approx. [kg]	19 [kg]

Working load limit flat material max [kg] 1000

Working load limit round and flat material max [kg] 500

Reference no. 283299

MPL-GMS-EN-FX-S-1000-25MM

Reference no.	283299
Working load limit flat material max [kg]	1000
Working load limit round and flat material max [kg]	500
Sheet thickness flat material min [mm]	25
Round and pipe material Ø min [mm]	100
Round and pipe material Ø max [mm]	450
Round and pipe material min. wall thickness [mm]	25
Load length max [mm]	3500
Overall length L [mm]	361
Overall height max H_max [mm]	240
Body width B	152
Body height X [mm]	120
Spacing body to suspension point Y₁	76
Lever length K	261
Clear span stirrup W [mm]	60
Weight approx. [kg]	42 [kg]

Working load limit flat material max [kg] 2000

Working load limit round and flat material max [kg] 1000

Reference no. 283300

MPL-GMS-EN-FX-S-2000-50MM

Reference no.	283300
Working load limit flat material max [kg]	2000
Working load limit round and flat material max [kg]	1000
Sheet thickness flat material min [mm]	50
Round and pipe material Ø min [mm]	160
Round and pipe material Ø max [mm]	600
Round and pipe material min. wall thickness [mm]	50
Load length max [mm]	4000
Overall length L [mm]	472
Overall height max H_max [mm]	313
Body width B	228
Body height X [mm]	169
Spacing body to suspension point Y₁	89
Lever length K	409
Clear span stirrup W [mm]	68
Weight approx. [kg]	115 [kg]

Working load limit flat material max [kg] 3000

Working load limit round and flat material max [kg] 1500

Reference no. 283301

MPL-GMS-EN-FX-S-3000-50MM

Reference no.	283301
Working load limit flat material max [kg]	3000
Working load limit round and flat material max [kg]	1500
Sheet thickness flat material min [mm]	50
Round and pipe material Ø min [mm]	250
Round and pipe material Ø max [mm]	600
Round and pipe material min. wall thickness [mm]	50
Load length max [mm]	4000
Overall length L [mm]	648
Overall height max H_max [mm]	313
Body width B	228
Body height X [mm]	169
Spacing body to suspension point Y₁	89
Lever length K	534
Clear span stirrup W [mm]	68
Weight approx. [kg]	166 [kg]
