Permanent load-lifting magnet FX-R

Permanent load-lifting magnet FX-R

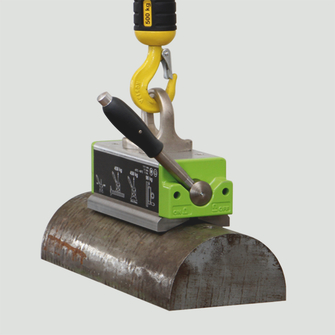

Innovative, powerful and sturdy permanent load-lifting magnet, which prevents the slipping of round materials due to the specially adapted shape of the magnet (deep and flat-angled prism of the pole shoes) and thus increases safety. The non-recoiling, self-braking gear lever has an optimal shift travel of 90° (V-shift travel) and can therefore ideal for use even in confined spaces.

Technical data
Options
Safety instruction
Product variants
Downloads
Contact

Technical data

Design

Permanent load-lifting magnet

Standard

DIN EN 13155

Safety factor

3.5

Operating temperature

–10 °C to +80 °C

Magnet surface Coating

nickel-plated

Gear lever

Non-return, lever travel 90°
self-braking

Suspension

Rigid attachment eye

Range of application Magnets

Transport

Options

Options on request

in special designs

Safety instruction

Caution: the carrying capacity of permanent load-lifting magnets is influenced by the following factors, which need to be taken into account when making the right choice:- Contact surface (such as rust or paint) and the resulting air gap- Material thickness- Temperature (> 80° not permissible with standard models – permanent damage to the device!)- Workpiece dimensions or inherent stability- Material composition of the load to be liftedAll 5 factors can occur at the same time and affect the carrying capacity accordingly!Carrying capacity reductions in relation to the factors can be taken from the tables!
Use for parallel shear pull is forbidden – use magnets only to lift straight upwards, not at an inclination angle.
Persons with heart pacemakers are prohibited from using the device!
Observe the operating instructions!

Product variants

MPL-GMR-EN-FX-R-100-8MM

Reference no.	283310
Working load limit flat material max [kg]	100
Working load limit round and flat material max [kg]	100
Sheet thickness flat material min [mm]	8
Round and pipe material Ø min [mm]	25
Round and pipe material Ø max [mm]	150
Round and pipe material min. wall thickness [mm]	8
Load length max [mm]	1500

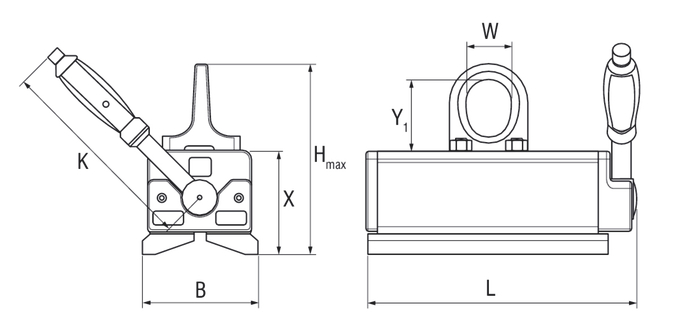

Overall length L [mm]	161
Overall height max H_max [mm]	135
Body width B	70
Body height X [mm]	71
Spacing body to suspension point Y₁	42
Lever length K	139
Clear span stirrup W [mm]	30
Weight approx. [kg]	4 [kg]

MPL-GMR-EN-FX-R-225-10MM

Reference no.	283312
Working load limit flat material max [kg]	225
Working load limit round and flat material max [kg]	225
Sheet thickness flat material min [mm]	10
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	205
Round and pipe material min. wall thickness [mm]	10
Load length max [mm]	2250
Overall length L [mm]	205
Overall height max H_max [mm]	172
Body width B	98
Body height X [mm]	92
Spacing body to suspension point Y₁	53
Lever length K	197
Clear span stirrup W [mm]	40
Weight approx. [kg]	9.5 [kg]

MPL-GMR-EN-FX-R-450-20MM

Reference no.	283313
Working load limit flat material max [kg]	450
Working load limit round and flat material max [kg]	450
Sheet thickness flat material min [mm]	20
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	270
Round and pipe material min. wall thickness [mm]	20
Load length max [mm]	3000
Overall length L [mm]	288
Overall height max H_max [mm]	206.5
Body width B	126
Body height X [mm]	111.5
Spacing body to suspension point Y₁	62
Lever length K	230
Clear span stirrup W [mm]	51
Weight approx. [kg]	22 [kg]

MPL-GMR-EN-FX-R-750-20MM

Reference no.	283314
Working load limit flat material max [kg]	750
Working load limit round and flat material max [kg]	750
Sheet thickness flat material min [mm]	20
Round and pipe material Ø min [mm]	70
Round and pipe material Ø max [mm]	370
Round and pipe material min. wall thickness [mm]	20
Load length max [mm]	3500
Overall length L [mm]	361
Overall height max H_max [mm]	264
Body width B	170
Body height X [mm]	144
Spacing body to suspension point Y₁	77
Lever length K	261
Clear span stirrup W [mm]	60
Weight approx. [kg]	49 [kg]

MPL-GMR-EN-FX-R-1200-40MM

Reference no.	283315
Working load limit flat material max [kg]	1200
Working load limit round and flat material max [kg]	1200
Sheet thickness flat material min [mm]	40
Round and pipe material Ø min [mm]	120
Round and pipe material Ø max [mm]	560
Round and pipe material min. wall thickness [mm]	40
Load length max [mm]	4000
Overall length L [mm]	472
Overall height max H_max [mm]	340
Body width B	248
Body height X [mm]	196
Spacing body to suspension point Y₁	88
Lever length K	409
Clear span stirrup W [mm]	68
Weight approx. [kg]	127 [kg]

MPL-GMR-EN-FX-R-1800-40MM

Reference no.	283316
Working load limit flat material max [kg]	1800
Working load limit round and flat material max [kg]	1800
Sheet thickness flat material min [mm]	40
Round and pipe material Ø min [mm]	120
Round and pipe material Ø max [mm]	560
Round and pipe material min. wall thickness [mm]	40
Load length max [mm]	4000
Overall length L [mm]	648
Overall height max H_max [mm]	334
Body width B	248
Body height X [mm]	190
Spacing body to suspension point Y₁	88
Lever length K	534
Clear span stirrup W [mm]	68
Weight approx. [kg]	182 [kg]

Working load limit flat material max [kg] 100

Working load limit round and flat material max [kg] 100

Reference no. 283310

MPL-GMR-EN-FX-R-100-8MM

Reference no.	283310
Working load limit flat material max [kg]	100
Working load limit round and flat material max [kg]	100
Sheet thickness flat material min [mm]	8
Round and pipe material Ø min [mm]	25
Round and pipe material Ø max [mm]	150
Round and pipe material min. wall thickness [mm]	8
Load length max [mm]	1500
Overall length L [mm]	161
Overall height max H_max [mm]	135
Body width B	70
Body height X [mm]	71
Spacing body to suspension point Y₁	42
Lever length K	139
Clear span stirrup W [mm]	30
Weight approx. [kg]	4 [kg]

Working load limit flat material max [kg] 225

Working load limit round and flat material max [kg] 225

Reference no. 283312

MPL-GMR-EN-FX-R-225-10MM

Reference no.	283312
Working load limit flat material max [kg]	225
Working load limit round and flat material max [kg]	225
Sheet thickness flat material min [mm]	10
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	205
Round and pipe material min. wall thickness [mm]	10
Load length max [mm]	2250
Overall length L [mm]	205
Overall height max H_max [mm]	172
Body width B	98
Body height X [mm]	92
Spacing body to suspension point Y₁	53
Lever length K	197
Clear span stirrup W [mm]	40
Weight approx. [kg]	9.5 [kg]

Working load limit flat material max [kg] 450

Working load limit round and flat material max [kg] 450

Reference no. 283313

MPL-GMR-EN-FX-R-450-20MM

Reference no.	283313
Working load limit flat material max [kg]	450
Working load limit round and flat material max [kg]	450
Sheet thickness flat material min [mm]	20
Round and pipe material Ø min [mm]	50
Round and pipe material Ø max [mm]	270
Round and pipe material min. wall thickness [mm]	20
Load length max [mm]	3000
Overall length L [mm]	288
Overall height max H_max [mm]	206.5
Body width B	126
Body height X [mm]	111.5
Spacing body to suspension point Y₁	62
Lever length K	230
Clear span stirrup W [mm]	51
Weight approx. [kg]	22 [kg]

Working load limit flat material max [kg] 750

Working load limit round and flat material max [kg] 750

Reference no. 283314

MPL-GMR-EN-FX-R-750-20MM

Reference no.	283314
Working load limit flat material max [kg]	750
Working load limit round and flat material max [kg]	750
Sheet thickness flat material min [mm]	20
Round and pipe material Ø min [mm]	70
Round and pipe material Ø max [mm]	370
Round and pipe material min. wall thickness [mm]	20
Load length max [mm]	3500
Overall length L [mm]	361
Overall height max H_max [mm]	264
Body width B	170
Body height X [mm]	144
Spacing body to suspension point Y₁	77
Lever length K	261
Clear span stirrup W [mm]	60
Weight approx. [kg]	49 [kg]

Working load limit flat material max [kg] 1200

Working load limit round and flat material max [kg] 1200

Reference no. 283315

MPL-GMR-EN-FX-R-1200-40MM

Reference no.	283315
Working load limit flat material max [kg]	1200
Working load limit round and flat material max [kg]	1200
Sheet thickness flat material min [mm]	40
Round and pipe material Ø min [mm]	120
Round and pipe material Ø max [mm]	560
Round and pipe material min. wall thickness [mm]	40
Load length max [mm]	4000
Overall length L [mm]	472
Overall height max H_max [mm]	340
Body width B	248
Body height X [mm]	196
Spacing body to suspension point Y₁	88
Lever length K	409
Clear span stirrup W [mm]	68
Weight approx. [kg]	127 [kg]

Working load limit flat material max [kg] 1800

Working load limit round and flat material max [kg] 1800

Reference no. 283316

MPL-GMR-EN-FX-R-1800-40MM

Reference no.	283316
Working load limit flat material max [kg]	1800
Working load limit round and flat material max [kg]	1800
Sheet thickness flat material min [mm]	40
Round and pipe material Ø min [mm]	120
Round and pipe material Ø max [mm]	560
Round and pipe material min. wall thickness [mm]	40
Load length max [mm]	4000
Overall length L [mm]	648
Overall height max H_max [mm]	334
Body width B	248
Body height X [mm]	190
Spacing body to suspension point Y₁	88
Lever length K	534
Clear span stirrup W [mm]	68
Weight approx. [kg]	182 [kg]

Downloads

Design / Engineering

CAD 3D

Download

Contact

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

E-Mail

verkauf-azs@pfeifer.de

Inquiry

please leave empty!

Mr Mrs

* Required fields

Send me a copy.

I consent to my data being processed in accordance with the data protection declaration.

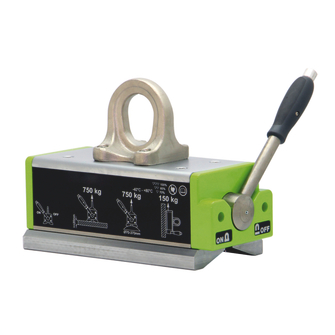

Pole shoe with deep, flat-angle prism for round material.
Retrieval of all information via NFC chip (Green Dot)
Non-return, lever travel 90°
Returnable / Recyclable
