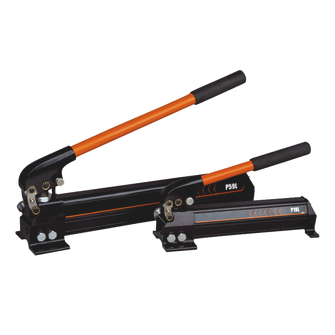

Lightweight pump for hydraulic cylinders
Lightweight pump for hydraulic cylinders
Technical data
Thread size NPT
- 3/8
Technical note
- 1 pressure stage: slow extension of the cylinder with a light load or idle stroke due to the low quantity of oil.
- 2 pressure stages (low and high pressure stage): faster extension of the cylinder with a light load or idle stroke due to the higher quantity of oil in the low pressure stage.
Product variants
Type
Usable volume oil [cm³]
Reference no.
Details
-
P19L443218310
WHP-HAND-P19L-LEICHTBAU-OELM-0.443L
Reference no. 218310 Type P19L Oil requirement [cm³] 475 Usable volume oil [cm³] 443 Lever pressure [kg] 37 Number of pressure levels [St] 2 Volume/stroke low pressure stage [cm³] 4.1 Volume/stroke high pressure stage [cm³] 0.9 Weight approx. [kg] 2.3 [kg] -
P59L1082218311
WHP-HAND-P59L-LEICHTBAU-OELM-1.082L
Reference no. 218311 Type P59L Oil requirement [cm³] 1131 Usable volume oil [cm³] 1082 Lever pressure [kg] 44 Number of pressure levels [St] 2 Volume/stroke low pressure stage [cm³] 12 Volume/stroke high pressure stage [cm³] 2.6 Weight approx. [kg] 4.1 [kg]
Type
P19L
Usable volume oil [cm³]
443
Reference no.
218310
-
Details
WHP-HAND-P19L-LEICHTBAU-OELM-0.443L
Reference no. 218310 Type P19L Oil requirement [cm³] 475 Usable volume oil [cm³] 443 Lever pressure [kg] 37 Number of pressure levels [St] 2 Volume/stroke low pressure stage [cm³] 4.1 Volume/stroke high pressure stage [cm³] 0.9 Weight approx. [kg] 2.3 [kg]
Type
P59L
Usable volume oil [cm³]
1082
Reference no.
218311
-
Details
WHP-HAND-P59L-LEICHTBAU-OELM-1.082L
Reference no. 218311 Type P59L Oil requirement [cm³] 1131 Usable volume oil [cm³] 1082 Lever pressure [kg] 44 Number of pressure levels [St] 2 Volume/stroke low pressure stage [cm³] 12 Volume/stroke high pressure stage [cm³] 2.6 Weight approx. [kg] 4.1 [kg]
A hydraulic tube and a coupling half for connection to the cylinder are required for all pumps.
Options
Options on request
- more pumps
Safety instruction
- When selecting a standard, hand or foot pump, note that the oil volume of the pump must be larger than that of the cylinder.
