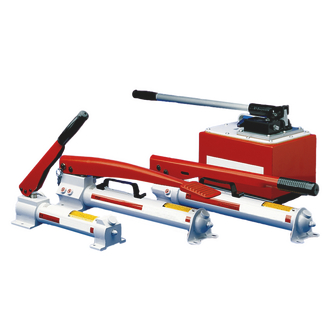

Standard, manual and foot pump cylinder

Standard, manual and foot pump cylinder
The single-action pump is suitable for series-C general-purpose cylinders, series-RH hollow piston cylinders, series-RLS flat cylinder and series-RSS short-stroke cylinders.
Technical data

Thread size NPT

  • 3/8

Technical note

  • 1 pressure stage: slow extension of the cylinder with a light load or idle stroke due to the low quantity of oil.
  • 2 pressure stages (low and high pressure stage): faster extension of the cylinder with a light load or idle stroke due to the higher quantity of oil in the low pressure stage.
Product variants
Type
Usable volume oil [cm³]
Reference no.
Details
  • P55
    738
    155975
    WHP-HAND-P55-OELM-0.738L
    Reference no. 155975
    Type P55
    Oil requirement [cm³] 902
    Usable volume oil [cm³] 738
    Lever pressure [kg] 66
    Number of pressure levels [St] 1
    Volume/stroke low pressure stage [cm³] 2.6
    Weight approx. [kg] 7.2 [kg]
  • P19
    328
    155976
    WHP-HAND-P19-OELM-0.328L
    Reference no. 155976
    Type P19
    Oil requirement [cm³] 400
    Usable volume oil [cm³] 328
    Lever pressure [kg] 45
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 5
    Volume/stroke high pressure stage [cm³] 1.2
    Weight approx. [kg] 3 [kg]
  • P59
    738
    155977
    WHP-HAND-P59-OELM-0.738L
    Reference no. 155977
    Type P59
    Oil requirement [cm³] 902
    Usable volume oil [cm³] 738
    Lever pressure [kg] 66
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 10.9
    Volume/stroke high pressure stage [cm³] 2.6
    Weight approx. [kg] 7.8 [kg]
  • P59F
    738
    218312
    WHP-FUSS-P59F-OELM-0.738L
    Reference no. 218312
    Type P59F
    Oil requirement [cm³] 902
    Usable volume oil [cm³] 738
    Lever pressure [kg] 55
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 9
    Volume/stroke high pressure stage [cm³] 2.1
    Weight approx. [kg] 6.4 [kg]
  • P159
    2245
    155978
    WHP-HAND-P159-OELM-2.245L
    Reference no. 155978
    Type P159
    Oil requirement [cm³] 2491
    Usable volume oil [cm³] 2245
    Lever pressure [kg] 64
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 42.6
    Volume/stroke high pressure stage [cm³] 2.6
    Weight approx. [kg] 11.9 [kg]
  • P460
    7539
    155979
    WHP-HAND-P460-OELM-7.539L
    Reference no. 155979
    Type P460
    Oil requirement [cm³] 9500
    Usable volume oil [cm³] 7539
    Lever pressure [kg] 41
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 120.5
    Volume/stroke high pressure stage [cm³] 4.6
    Weight approx. [kg] 24.9 [kg]
Type P55
Usable volume oil [cm³] 738
Reference no. 155975
  • Details
    WHP-HAND-P55-OELM-0.738L
    Reference no. 155975
    Type P55
    Oil requirement [cm³] 902
    Usable volume oil [cm³] 738
    Lever pressure [kg] 66
    Number of pressure levels [St] 1
    Volume/stroke low pressure stage [cm³] 2.6
    Weight approx. [kg] 7.2 [kg]
Type P19
Usable volume oil [cm³] 328
Reference no. 155976
  • Details
    WHP-HAND-P19-OELM-0.328L
    Reference no. 155976
    Type P19
    Oil requirement [cm³] 400
    Usable volume oil [cm³] 328
    Lever pressure [kg] 45
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 5
    Volume/stroke high pressure stage [cm³] 1.2
    Weight approx. [kg] 3 [kg]
Type P59
Usable volume oil [cm³] 738
Reference no. 155977
  • Details
    WHP-HAND-P59-OELM-0.738L
    Reference no. 155977
    Type P59
    Oil requirement [cm³] 902
    Usable volume oil [cm³] 738
    Lever pressure [kg] 66
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 10.9
    Volume/stroke high pressure stage [cm³] 2.6
    Weight approx. [kg] 7.8 [kg]
Type P59F
Usable volume oil [cm³] 738
Reference no. 218312
  • Details
    WHP-FUSS-P59F-OELM-0.738L
    Reference no. 218312
    Type P59F
    Oil requirement [cm³] 902
    Usable volume oil [cm³] 738
    Lever pressure [kg] 55
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 9
    Volume/stroke high pressure stage [cm³] 2.1
    Weight approx. [kg] 6.4 [kg]
Type P159
Usable volume oil [cm³] 2245
Reference no. 155978
  • Details
    WHP-HAND-P159-OELM-2.245L
    Reference no. 155978
    Type P159
    Oil requirement [cm³] 2491
    Usable volume oil [cm³] 2245
    Lever pressure [kg] 64
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 42.6
    Volume/stroke high pressure stage [cm³] 2.6
    Weight approx. [kg] 11.9 [kg]
Type P460
Usable volume oil [cm³] 7539
Reference no. 155979
  • Details
    WHP-HAND-P460-OELM-7.539L
    Reference no. 155979
    Type P460
    Oil requirement [cm³] 9500
    Usable volume oil [cm³] 7539
    Lever pressure [kg] 41
    Number of pressure levels [St] 2
    Volume/stroke low pressure stage [cm³] 120.5
    Volume/stroke high pressure stage [cm³] 4.6
    Weight approx. [kg] 24.9 [kg]
A hydraulic tube and a coupling half for connection to the cylinder are required for all pumps.
Options

Options on request

  • more pumps
Safety instruction
  • When selecting a standard, hand or foot pump, note that the oil volume of the pump must be larger than that of the cylinder.
