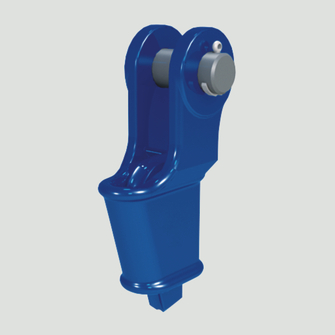

Open wedge socket OWS 31A

Open wedge socket OWS 31A
Open wedge sockets 31A are manufactured from quenched and tempered steel, and they can be used at temperatures down to –20 °C. Painted or hot-dip galvanised finish. On request with bolt and nut
Advantages
  • Flexible – detachable and reusable
  • Handy – simple attachment and uncomplicated detachment
technical infos

Material

  • Cast steel (cold resistant to –20 °C)

Surface bolt

  • galvanized

Surface housing

  • painted or galvanised

Nominal tensile strength

  • ≤ 2160 N/mm²

Loss factor

  • 0.8

Application area

  • Round strand ropes

Indication

  • On request with bolt and nut
  • Additional sizes on enquiry.
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
Length total L [mm]
Nominal size NG
Rope diameter range from [mm]
Rope diameter range to [mm]
Details
  • 128
    8
    7
    8

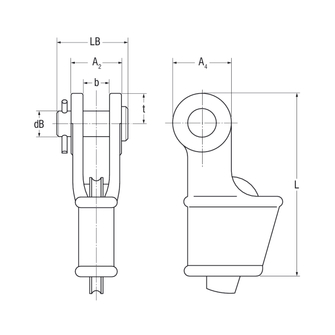

    Length total L [mm] 128
    Nominal size NG 8
    Fork width external A2 [mm] 36
    Fork Clearance b [mm] 18
    Eye Width A4 [mm] 36
    Rope diameter range from [mm] 7
    Rope diameter range to [mm] 8
    Pin Length LB [mm] 51
    Pin Diameter dB [mm] 16
    Length center of bolt to top edge of fork t [mm] 18
    Minimum breaking load MBL [kN] 78
    Weight m 0.8 [kg]
  • 168
    10
    9
    10
    Length total L [mm] 168
    Nominal size NG 10
    Fork width external A2 [mm] 42.5
    Fork Clearance b [mm] 20.5
    Eye Width A4 [mm] 46
    Rope diameter range from [mm] 9
    Rope diameter range to [mm] 10
    Pin Length LB [mm] 63
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of fork t [mm] 23
    Minimum breaking load MBL [kN] 117
    Weight m 1.7 [kg]
  • 174.5
    13
    11
    13
    Length total L [mm] 174.5
    Nominal size NG 13
    Fork width external A2 [mm] 49
    Fork Clearance b [mm] 25
    Eye Width A4 [mm] 57
    Rope diameter range from [mm] 11
    Rope diameter range to [mm] 13
    Pin Length LB [mm] 67
    Pin Diameter dB [mm] 25
    Length center of bolt to top edge of fork t [mm] 28.5
    Minimum breaking load MBL [kN] 196
    Weight m 2.1 [kg]
  • 211
    16
    14
    16
    Length total L [mm] 211
    Nominal size NG 16
    Fork width external A2 [mm] 61
    Fork Clearance b [mm] 31
    Eye Width A4 [mm] 70
    Rope diameter range from [mm] 14
    Rope diameter range to [mm] 16
    Pin Length LB [mm] 85
    Pin Diameter dB [mm] 30
    Length center of bolt to top edge of fork t [mm] 35
    Minimum breaking load MBL [kN] 245
    Weight m 4 [kg]
  • 250
    19
    18
    19
    Length total L [mm] 250
    Nominal size NG 19
    Fork width external A2 [mm] 70
    Fork Clearance b [mm] 38
    Eye Width A4 [mm] 80
    Rope diameter range from [mm] 18
    Rope diameter range to [mm] 19
    Pin Length LB [mm] 95
    Pin Diameter dB [mm] 35
    Length center of bolt to top edge of fork t [mm] 40
    Minimum breaking load MBL [kN] 392
    Weight m 7 [kg]
  • 300
    22
    20
    22
    Length total L [mm] 300
    Nominal size NG 22
    Fork width external A2 [mm] 80
    Fork Clearance b [mm] 44
    Eye Width A4 [mm] 95
    Rope diameter range from [mm] 20
    Rope diameter range to [mm] 22
    Pin Length LB [mm] 110
    Pin Diameter dB [mm] 41
    Length center of bolt to top edge of fork t [mm] 47.5
    Minimum breaking load MBL [kN] 539
    Weight m 10 [kg]
  • 330
    26
    24
    26
    Length total L [mm] 330
    Nominal size NG 26
    Fork width external A2 [mm] 95
    Fork Clearance b [mm] 51
    Eye Width A4 [mm] 110
    Rope diameter range from [mm] 24
    Rope diameter range to [mm] 26
    Pin Length LB [mm] 128
    Pin Diameter dB [mm] 51
    Length center of bolt to top edge of fork t [mm] 55
    Minimum breaking load MBL [kN] 735
    Weight m 15 [kg]
  • 375
    29
    27
    29
    Length total L [mm] 375
    Nominal size NG 29
    Fork width external A2 [mm] 107
    Fork Clearance b [mm] 57
    Eye Width A4 [mm] 130
    Rope diameter range from [mm] 27
    Rope diameter range to [mm] 29
    Pin Length LB [mm] 142
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of fork t [mm] 65
    Minimum breaking load MBL [kN] 882
    Weight m 21 [kg]
  • 423
    32
    30
    32
    Length total L [mm] 423
    Nominal size NG 32
    Fork width external A2 [mm] 119
    Fork Clearance b [mm] 63
    Eye Width A4 [mm] 146
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 32
    Pin Length LB [mm] 155
    Pin Diameter dB [mm] 63
    Length center of bolt to top edge of fork t [mm] 73
    Minimum breaking load MBL [kN] 1079
    Weight m 31 [kg]
  • 474
    36
    34
    36
    Length total L [mm] 474
    Nominal size NG 36
    Fork width external A2 [mm] 126
    Fork Clearance b [mm] 70
    Eye Width A4 [mm] 148
    Rope diameter range from [mm] 34
    Rope diameter range to [mm] 36
    Pin Length LB [mm] 160
    Pin Diameter dB [mm] 64
    Length center of bolt to top edge of fork t [mm] 74
    Minimum breaking load MBL [kN] 1226
    Weight m 37 [kg]
  • 530
    39
    37
    39
    Length total L [mm] 530
    Nominal size NG 39
    Fork width external A2 [mm] 137
    Fork Clearance b [mm] 77
    Eye Width A4 [mm] 142
    Rope diameter range from [mm] 37
    Rope diameter range to [mm] 39
    Pin Length LB [mm] 177
    Pin Diameter dB [mm] 70
    Length center of bolt to top edge of fork t [mm] 80
    Minimum breaking load MBL [kN] 1471
    Weight m 51 [kg]
  • 587
    42
    40
    42
    Length total L [mm] 587
    Nominal size NG 42
    Fork width external A2 [mm] 142
    Fork Clearance b [mm] 76
    Eye Width A4 [mm] 160
    Rope diameter range from [mm] 40
    Rope diameter range to [mm] 42
    Pin Length LB [mm] 187
    Pin Diameter dB [mm] 76
    Length center of bolt to top edge of fork t [mm] 87
    Minimum breaking load MBL [kN] 1667
    Weight m 64 [kg]
  • 650
    48
    43
    48
    Length total L [mm] 650
    Nominal size NG 48
    Fork width external A2 [mm] 167
    Fork Clearance b [mm] 89
    Eye Width A4 [mm] 186
    Rope diameter range from [mm] 43
    Rope diameter range to [mm] 48
    Pin Length LB [mm] 215
    Pin Diameter dB [mm] 89
    Length center of bolt to top edge of fork t [mm] 100
    Minimum breaking load MBL [kN] 2207
    Weight m 96 [kg]
  • 745
    52
    49
    52
    Length total L [mm] 745
    Nominal size NG 52
    Fork width external A2 [mm] 203
    Fork Clearance b [mm] 101
    Eye Width A4 [mm] 205
    Rope diameter range from [mm] 49
    Rope diameter range to [mm] 52
    Pin Length LB [mm] 244
    Pin Diameter dB [mm] 95
    Length center of bolt to top edge of fork t [mm] 105
    Minimum breaking load MBL [kN] 2746
    Weight m 130 [kg]
