Wedge socket PSH 95A

Wedge socket PSH 95A

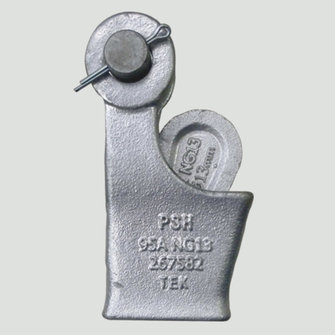

The open wedge socket PSH 95A is manufactured from high-strength cast steel and can be used at temperatures down to –40 °C. Optimised weight for ergonomic operation and reduction of costs. Galvanised finish.
Advantages
  • Flexible – detachable and reusable
  • Handy – simple attachment and uncomplicated detachment
  • Temperature-resistant – cold resistant to –40 °C
  • Handy – on-site repair by our mobile service is possible
technical infos

Material bolt

  • Quenched and tempered steel

Material housing

  • Cast steel (cold resistant to –40 °C)

Surface housing

  • hot-dip galvanised

Material wedge

  • Cast steel (cold resistant to –40 °C)

Surface wedge

  • hot-dip galvanised

Loss factor

  • 0.8

Application area

  • Round strand ropes up to and including rope strength class 2160

Indication

  • Additional sizes on enquiry.
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
WLL WLL [kN]
Length total L [mm]
Nominal size NG
Nominal size wedge NG
Rope diameter range from [mm]
Rope diameter range to [mm]
Reference no.
Details
  • 20
    130
    8
    7
    6
    7
    289721
    Keilschloss PSH kpl 6,0-7,0 NG8 tZn
    Reference no. 289721
    WLL WLL [kN] 20
    Length total L [mm] 130
    Nominal size NG 8
    Nominal size wedge NG 7

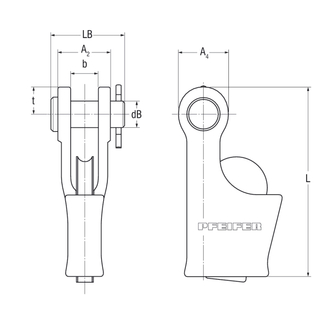

    Fork width external A2 [mm] 36
    Fork Clearance b [mm] 18
    Eye Width A4 [mm] 36
    Rope diameter range from [mm] 6
    Rope diameter range to [mm] 7
    Pin Length LB [mm] 52
    Pin Diameter dB [mm] 16
    Length center of bolt to top edge of fork t [mm] 18
    Minimum breaking load MBL [kN] 70
    Weight approx. [kg] 0.8
  • 20
    130
    8
    8
    8
    289720
    Keilschloss PSH kpl 8,0 NG8 tzn
    Reference no. 289720
    WLL WLL [kN] 20
    Length total L [mm] 130
    Nominal size NG 8
    Nominal size wedge NG 8
    Fork width external A2 [mm] 36
    Fork Clearance b [mm] 18
    Eye Width A4 [mm] 36
    Rope diameter range from [mm] 8
    Pin Length LB [mm] 52
    Pin Diameter dB [mm] 16
    Length center of bolt to top edge of fork t [mm] 18
    Minimum breaking load MBL [kN] 70
    Weight approx. [kg] 0.8
  • 35
    145
    10
    9
    9
    270717
    Keilschloss PSH kpl 9,0 NG10 tzn
    Reference no. 270717
    WLL WLL [kN] 35
    Length total L [mm] 145
    Nominal size NG 10
    Nominal size wedge NG 9
    Fork width external A2 [mm] 42.5
    Fork Clearance b [mm] 20.5
    Eye Width A4 [mm] 40
    Rope diameter range from [mm] 9
    Pin Length LB [mm] 59.5
    Pin Diameter dB [mm] 21
    Length center of bolt to top edge of fork t [mm] 22
    Minimum breaking load MBL [kN] 110
    Weight approx. [kg] 1.2
  • 35
    145
    10
    10
    10
    270733
    Keilschloss PSH kpl 10,0 NG10 tzn
    Reference no. 270733
    WLL WLL [kN] 35
    Length total L [mm] 145
    Nominal size NG 10
    Nominal size wedge NG 10
    Fork width external A2 [mm] 42.5
    Fork Clearance b [mm] 20.5
    Eye Width A4 [mm] 40
    Rope diameter range from [mm] 10
    Pin Length LB [mm] 59.5
    Pin Diameter dB [mm] 21
    Length center of bolt to top edge of fork t [mm] 22
    Minimum breaking load MBL [kN] 110
    Weight approx. [kg] 1.2
  • 55
    180
    13
    11
    11
    270718
    Keilschloss PSH kpl 11,0 NG13 tzn
    Reference no. 270718
    WLL WLL [kN] 55
    Length total L [mm] 180
    Nominal size NG 13
    Nominal size wedge NG 11
    Fork width external A2 [mm] 50
    Fork Clearance b [mm] 25
    Eye Width A4 [mm] 50
    Rope diameter range from [mm] 11
    Pin Length LB [mm] 71
    Pin Diameter dB [mm] 26
    Length center of bolt to top edge of fork t [mm] 27
    Minimum breaking load MBL [kN] 185
    Weight approx. [kg] 2.6
  • 55
    180
    13
    12
    12
    270734
    Keilschloss PSH kpl 12,0 NG13 tzn
    Reference no. 270734
    WLL WLL [kN] 55
    Length total L [mm] 180
    Nominal size NG 13
    Nominal size wedge NG 12
    Fork width external A2 [mm] 50
    Fork Clearance b [mm] 25
    Eye Width A4 [mm] 50
    Rope diameter range from [mm] 12
    Pin Length LB [mm] 71
    Pin Diameter dB [mm] 26
    Length center of bolt to top edge of fork t [mm] 27
    Minimum breaking load MBL [kN] 185
    Weight approx. [kg] 2.6
  • 55
    180
    13
    13
    13
    270735
    Keilschloss PSH kpl 13,0 NG13 tzn
    Reference no. 270735
    WLL WLL [kN] 55
    Length total L [mm] 180
    Nominal size NG 13
    Nominal size wedge NG 13
    Fork width external A2 [mm] 50
    Fork Clearance b [mm] 25
    Eye Width A4 [mm] 50
    Rope diameter range from [mm] 13
    Pin Length LB [mm] 71
    Pin Diameter dB [mm] 26
    Length center of bolt to top edge of fork t [mm] 27
    Minimum breaking load MBL [kN] 185
    Weight approx. [kg] 2.6
  • 95
    225
    17
    13
    13
    14
    270719
    Keilschloss PSH kpl 13,0-14,0 NG17 tzn
    Reference no. 270719
    WLL WLL [kN] 95
    Length total L [mm] 225
    Nominal size NG 17
    Nominal size wedge NG 13
    Fork width external A2 [mm] 60
    Fork Clearance b [mm] 32
    Eye Width A4 [mm] 58
    Rope diameter range from [mm] 13
    Rope diameter range to [mm] 14
    Pin Length LB [mm] 85
    Pin Diameter dB [mm] 30
    Length center of bolt to top edge of fork t [mm] 31
    Minimum breaking load MBL [kN] 316
    Weight approx. [kg] 4.7
  • 95
    225
    17
    15
    15
    16
    270736
    Keilschloss PSH kpl 15,0-16,0 NG17 tzn
    Reference no. 270736
    WLL WLL [kN] 95
    Length total L [mm] 225
    Nominal size NG 17
    Nominal size wedge NG 15
    Fork width external A2 [mm] 60
    Fork Clearance b [mm] 32
    Eye Width A4 [mm] 58
    Rope diameter range from [mm] 15
    Rope diameter range to [mm] 16
    Pin Length LB [mm] 85
    Pin Diameter dB [mm] 30
    Length center of bolt to top edge of fork t [mm] 31
    Minimum breaking load MBL [kN] 316
    Weight approx. [kg] 4.7
  • 95
    225
    17
    17
    17
    270737
    Keilschloss PSH kpl 17,0 NG17 tzn
    Reference no. 270737
    WLL WLL [kN] 95
    Length total L [mm] 225
    Nominal size NG 17
    Nominal size wedge NG 17
    Fork width external A2 [mm] 60
    Fork Clearance b [mm] 32
    Eye Width A4 [mm] 58
    Rope diameter range from [mm] 17
    Pin Length LB [mm] 85
    Pin Diameter dB [mm] 30
    Length center of bolt to top edge of fork t [mm] 31
    Minimum breaking load MBL [kN] 316
    Weight approx. [kg] 4.7
  • 120
    255
    19
    16
    16
    17
    270720
    Keilschloss PSH kpl 16,0-17,0 NG19 tzn
    Reference no. 270720
    WLL WLL [kN] 120
    Length total L [mm] 255
    Nominal size NG 19
    Nominal size wedge NG 16
    Fork width external A2 [mm] 72
    Fork Clearance b [mm] 38
    Eye Width A4 [mm] 67
    Rope diameter range from [mm] 16
    Rope diameter range to [mm] 17
    Pin Length LB [mm] 99
    Pin Diameter dB [mm] 35
    Length center of bolt to top edge of fork t [mm] 36.5
    Minimum breaking load MBL [kN] 395
    Weight approx. [kg] 6.5
  • 120
    255
    19
    18
    18
    19
    270738
    Keilschloss PSH kpl 18,0-19,0 NG19 tzn
    Reference no. 270738
    WLL WLL [kN] 120
    Length total L [mm] 255
    Nominal size NG 19
    Nominal size wedge NG 18
    Fork width external A2 [mm] 72
    Fork Clearance b [mm] 38
    Eye Width A4 [mm] 67
    Rope diameter range from [mm] 18
    Rope diameter range to [mm] 19
    Pin Length LB [mm] 99
    Pin Diameter dB [mm] 35
    Length center of bolt to top edge of fork t [mm] 36.5
    Minimum breaking load MBL [kN] 395
    Weight approx. [kg] 6.5
  • 170
    300
    23
    19
    19
    20
    270721
    Keilschloss PSH kpl 19,0-20,0 NG23 tzn
    Reference no. 270721
    WLL WLL [kN] 170
    Length total L [mm] 300
    Nominal size NG 23
    Nominal size wedge NG 19
    Fork width external A2 [mm] 83
    Fork Clearance b [mm] 45
    Eye Width A4 [mm] 80
    Rope diameter range from [mm] 19
    Rope diameter range to [mm] 20
    Pin Length LB [mm] 115
    Pin Diameter dB [mm] 41
    Length center of bolt to top edge of fork t [mm] 44
    Minimum breaking load MBL [kN] 580
    Weight approx. [kg] 9.8
  • 170
    300
    23
    21
    21
    23
    270739
    Keilschloss PSH kpl 21,0-23,0 NG23 tzn
    Reference no. 270739
    WLL WLL [kN] 170
    Length total L [mm] 300
    Nominal size NG 23
    Nominal size wedge NG 21
    Fork width external A2 [mm] 83
    Fork Clearance b [mm] 45
    Eye Width A4 [mm] 80
    Rope diameter range from [mm] 21
    Rope diameter range to [mm] 23
    Pin Length LB [mm] 115
    Pin Diameter dB [mm] 41
    Length center of bolt to top edge of fork t [mm] 44
    Minimum breaking load MBL [kN] 580
    Weight approx. [kg] 9.8
  • 220
    330
    26
    23
    23
    24
    270722
    Keilschloss PSH kpl 23,0-24,0 NG26 tzn
    Reference no. 270722
    WLL WLL [kN] 220
    Length total L [mm] 330
    Nominal size NG 26
    Nominal size wedge NG 23
    Fork width external A2 [mm] 96
    Fork Clearance b [mm] 51
    Eye Width A4 [mm] 96
    Rope diameter range from [mm] 23
    Rope diameter range to [mm] 24
    Pin Length LB [mm] 129
    Pin Diameter dB [mm] 50
    Length center of bolt to top edge of fork t [mm] 53
    Minimum breaking load MBL [kN] 740
    Weight approx. [kg] 14.5
  • 220
    330
    26
    25
    25
    26
    270741
    Keilschloss PSH kpl 25,0-26,0 NG26 tzn
    Reference no. 270741
    WLL WLL [kN] 220
    Length total L [mm] 330
    Nominal size NG 26
    Nominal size wedge NG 25
    Fork width external A2 [mm] 96
    Fork Clearance b [mm] 51
    Eye Width A4 [mm] 96
    Rope diameter range from [mm] 25
    Rope diameter range to [mm] 26
    Pin Length LB [mm] 129
    Pin Diameter dB [mm] 50
    Length center of bolt to top edge of fork t [mm] 53
    Minimum breaking load MBL [kN] 740
    Weight approx. [kg] 14.5
  • 275
    375
    29
    27
    27
    29
    270724
    Keilschloss PSH kpl 27,0-29,0 NG29 tzn
    Reference no. 270724
    WLL WLL [kN] 275
    Length total L [mm] 375
    Nominal size NG 29
    Nominal size wedge NG 27
    Fork width external A2 [mm] 107
    Fork Clearance b [mm] 57
    Eye Width A4 [mm] 108
    Rope diameter range from [mm] 27
    Rope diameter range to [mm] 29
    Pin Length LB [mm] 145
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of fork t [mm] 59
    Minimum breaking load MBL [kN] 920
    Weight approx. [kg] 20
  • 355
    425
    33
    30
    30
    31
    270726
    Keilschloss PSH kpl 30,0-31,0 NG33 tzn
    Reference no. 270726
    WLL WLL [kN] 355
    Length total L [mm] 425
    Nominal size NG 33
    Nominal size wedge NG 30
    Fork width external A2 [mm] 120
    Fork Clearance b [mm] 63
    Eye Width A4 [mm] 115
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 31
    Pin Length LB [mm] 159
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of fork t [mm] 63.5
    Minimum breaking load MBL [kN] 1190
    Weight approx. [kg] 31
  • 355
    425
    33
    32
    32
    33
    270728
    Keilschloss PSH kpl 32,0-33,0 NG33 tzn
    Reference no. 270728
    WLL WLL [kN] 355
    Length total L [mm] 425
    Nominal size NG 33
    Nominal size wedge NG 32
    Fork width external A2 [mm] 120
    Fork Clearance b [mm] 63
    Eye Width A4 [mm] 115
    Rope diameter range from [mm] 32
    Rope diameter range to [mm] 33
    Pin Length LB [mm] 159
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of fork t [mm] 63.5
    Minimum breaking load MBL [kN] 1190
    Weight approx. [kg] 31
WLL WLL [kN] 20
Length total L [mm] 130
Nominal size NG 8
Nominal size wedge NG 7
Rope diameter range from [mm] 6
Rope diameter range to [mm] 7
Reference no. 289721
  • Details
    Keilschloss PSH kpl 6,0-7,0 NG8 tZn
    Reference no. 289721
    WLL WLL [kN] 20
    Length total L [mm] 130
    Nominal size NG 8
    Nominal size wedge NG 7
    Fork width external A2 [mm] 36
    Fork Clearance b [mm] 18
    Eye Width A4 [mm] 36
    Rope diameter range from [mm] 6
    Rope diameter range to [mm] 7
    Pin Length LB [mm] 52
    Pin Diameter dB [mm] 16
    Length center of bolt to top edge of fork t [mm] 18
    Minimum breaking load MBL [kN] 70
    Weight approx. [kg] 0.8
WLL WLL [kN] 20
Length total L [mm] 130
Nominal size NG 8
Nominal size wedge NG 8
Rope diameter range from [mm] 8
Reference no. 289720
  • Details
    Keilschloss PSH kpl 8,0 NG8 tzn
    Reference no. 289720
    WLL WLL [kN] 20
    Length total L [mm] 130
    Nominal size NG 8
    Nominal size wedge NG 8
    Fork width external A2 [mm] 36
    Fork Clearance b [mm] 18
    Eye Width A4 [mm] 36
    Rope diameter range from [mm] 8
    Pin Length LB [mm] 52
    Pin Diameter dB [mm] 16
    Length center of bolt to top edge of fork t [mm] 18
    Minimum breaking load MBL [kN] 70
    Weight approx. [kg] 0.8
WLL WLL [kN] 35
Length total L [mm] 145
Nominal size NG 10
Nominal size wedge NG 9
Rope diameter range from [mm] 9
Reference no. 270717
  • Details
    Keilschloss PSH kpl 9,0 NG10 tzn
    Reference no. 270717
    WLL WLL [kN] 35
    Length total L [mm] 145
    Nominal size NG 10
    Nominal size wedge NG 9
    Fork width external A2 [mm] 42.5
    Fork Clearance b [mm] 20.5
    Eye Width A4 [mm] 40
    Rope diameter range from [mm] 9
    Pin Length LB [mm] 59.5
    Pin Diameter dB [mm] 21
    Length center of bolt to top edge of fork t [mm] 22
    Minimum breaking load MBL [kN] 110
    Weight approx. [kg] 1.2
WLL WLL [kN] 35
Length total L [mm] 145
Nominal size NG 10
Nominal size wedge NG 10
Rope diameter range from [mm] 10
Reference no. 270733
  • Details
    Keilschloss PSH kpl 10,0 NG10 tzn
    Reference no. 270733
    WLL WLL [kN] 35
    Length total L [mm] 145
    Nominal size NG 10
    Nominal size wedge NG 10
    Fork width external A2 [mm] 42.5
    Fork Clearance b [mm] 20.5
    Eye Width A4 [mm] 40
    Rope diameter range from [mm] 10
    Pin Length LB [mm] 59.5
    Pin Diameter dB [mm] 21
    Length center of bolt to top edge of fork t [mm] 22
    Minimum breaking load MBL [kN] 110
    Weight approx. [kg] 1.2
WLL WLL [kN] 55
Length total L [mm] 180
Nominal size NG 13
Nominal size wedge NG 11
Rope diameter range from [mm] 11
Reference no. 270718
  • Details
    Keilschloss PSH kpl 11,0 NG13 tzn
    Reference no. 270718
    WLL WLL [kN] 55
    Length total L [mm] 180
    Nominal size NG 13
    Nominal size wedge NG 11
    Fork width external A2 [mm] 50
    Fork Clearance b [mm] 25
    Eye Width A4 [mm] 50
    Rope diameter range from [mm] 11
    Pin Length LB [mm] 71
    Pin Diameter dB [mm] 26
    Length center of bolt to top edge of fork t [mm] 27
    Minimum breaking load MBL [kN] 185
    Weight approx. [kg] 2.6
WLL WLL [kN] 55
Length total L [mm] 180
Nominal size NG 13
Nominal size wedge NG 12
Rope diameter range from [mm] 12
Reference no. 270734
  • Details
    Keilschloss PSH kpl 12,0 NG13 tzn
    Reference no. 270734
    WLL WLL [kN] 55
    Length total L [mm] 180
    Nominal size NG 13
    Nominal size wedge NG 12
    Fork width external A2 [mm] 50
    Fork Clearance b [mm] 25
    Eye Width A4 [mm] 50
    Rope diameter range from [mm] 12
    Pin Length LB [mm] 71
    Pin Diameter dB [mm] 26
    Length center of bolt to top edge of fork t [mm] 27
    Minimum breaking load MBL [kN] 185
    Weight approx. [kg] 2.6
WLL WLL [kN] 55
Length total L [mm] 180
Nominal size NG 13
Nominal size wedge NG 13
Rope diameter range from [mm] 13
Reference no. 270735
  • Details
    Keilschloss PSH kpl 13,0 NG13 tzn
    Reference no. 270735
    WLL WLL [kN] 55
    Length total L [mm] 180
    Nominal size NG 13
    Nominal size wedge NG 13
    Fork width external A2 [mm] 50
    Fork Clearance b [mm] 25
    Eye Width A4 [mm] 50
    Rope diameter range from [mm] 13
    Pin Length LB [mm] 71
    Pin Diameter dB [mm] 26
    Length center of bolt to top edge of fork t [mm] 27
    Minimum breaking load MBL [kN] 185
    Weight approx. [kg] 2.6
WLL WLL [kN] 95
Length total L [mm] 225
Nominal size NG 17
Nominal size wedge NG 13
Rope diameter range from [mm] 13
Rope diameter range to [mm] 14
Reference no. 270719
  • Details
    Keilschloss PSH kpl 13,0-14,0 NG17 tzn
    Reference no. 270719
    WLL WLL [kN] 95
    Length total L [mm] 225
    Nominal size NG 17
    Nominal size wedge NG 13
    Fork width external A2 [mm] 60
    Fork Clearance b [mm] 32
    Eye Width A4 [mm] 58
    Rope diameter range from [mm] 13
    Rope diameter range to [mm] 14
    Pin Length LB [mm] 85
    Pin Diameter dB [mm] 30
    Length center of bolt to top edge of fork t [mm] 31
    Minimum breaking load MBL [kN] 316
    Weight approx. [kg] 4.7
WLL WLL [kN] 95
Length total L [mm] 225
Nominal size NG 17
Nominal size wedge NG 15
Rope diameter range from [mm] 15
Rope diameter range to [mm] 16
Reference no. 270736
  • Details
    Keilschloss PSH kpl 15,0-16,0 NG17 tzn
    Reference no. 270736
    WLL WLL [kN] 95
    Length total L [mm] 225
    Nominal size NG 17
    Nominal size wedge NG 15
    Fork width external A2 [mm] 60
    Fork Clearance b [mm] 32
    Eye Width A4 [mm] 58
    Rope diameter range from [mm] 15
    Rope diameter range to [mm] 16
    Pin Length LB [mm] 85
    Pin Diameter dB [mm] 30
    Length center of bolt to top edge of fork t [mm] 31
    Minimum breaking load MBL [kN] 316
    Weight approx. [kg] 4.7
WLL WLL [kN] 95
Length total L [mm] 225
Nominal size NG 17
Nominal size wedge NG 17
Rope diameter range from [mm] 17
Reference no. 270737
  • Details
    Keilschloss PSH kpl 17,0 NG17 tzn
    Reference no. 270737
    WLL WLL [kN] 95
    Length total L [mm] 225
    Nominal size NG 17
    Nominal size wedge NG 17
    Fork width external A2 [mm] 60
    Fork Clearance b [mm] 32
    Eye Width A4 [mm] 58
    Rope diameter range from [mm] 17
    Pin Length LB [mm] 85
    Pin Diameter dB [mm] 30
    Length center of bolt to top edge of fork t [mm] 31
    Minimum breaking load MBL [kN] 316
    Weight approx. [kg] 4.7
WLL WLL [kN] 120
Length total L [mm] 255
Nominal size NG 19
Nominal size wedge NG 16
Rope diameter range from [mm] 16
Rope diameter range to [mm] 17
Reference no. 270720
  • Details
    Keilschloss PSH kpl 16,0-17,0 NG19 tzn
    Reference no. 270720
    WLL WLL [kN] 120
    Length total L [mm] 255
    Nominal size NG 19
    Nominal size wedge NG 16
    Fork width external A2 [mm] 72
    Fork Clearance b [mm] 38
    Eye Width A4 [mm] 67
    Rope diameter range from [mm] 16
    Rope diameter range to [mm] 17
    Pin Length LB [mm] 99
    Pin Diameter dB [mm] 35
    Length center of bolt to top edge of fork t [mm] 36.5
    Minimum breaking load MBL [kN] 395
    Weight approx. [kg] 6.5
WLL WLL [kN] 120
Length total L [mm] 255
Nominal size NG 19
Nominal size wedge NG 18
Rope diameter range from [mm] 18
Rope diameter range to [mm] 19
Reference no. 270738
  • Details
    Keilschloss PSH kpl 18,0-19,0 NG19 tzn
    Reference no. 270738
    WLL WLL [kN] 120
    Length total L [mm] 255
    Nominal size NG 19
    Nominal size wedge NG 18
    Fork width external A2 [mm] 72
    Fork Clearance b [mm] 38
    Eye Width A4 [mm] 67
    Rope diameter range from [mm] 18
    Rope diameter range to [mm] 19
    Pin Length LB [mm] 99
    Pin Diameter dB [mm] 35
    Length center of bolt to top edge of fork t [mm] 36.5
    Minimum breaking load MBL [kN] 395
    Weight approx. [kg] 6.5
WLL WLL [kN] 170
Length total L [mm] 300
Nominal size NG 23
Nominal size wedge NG 19
Rope diameter range from [mm] 19
Rope diameter range to [mm] 20
Reference no. 270721
  • Details
    Keilschloss PSH kpl 19,0-20,0 NG23 tzn
    Reference no. 270721
    WLL WLL [kN] 170
    Length total L [mm] 300
    Nominal size NG 23
    Nominal size wedge NG 19
    Fork width external A2 [mm] 83
    Fork Clearance b [mm] 45
    Eye Width A4 [mm] 80
    Rope diameter range from [mm] 19
    Rope diameter range to [mm] 20
    Pin Length LB [mm] 115
    Pin Diameter dB [mm] 41
    Length center of bolt to top edge of fork t [mm] 44
    Minimum breaking load MBL [kN] 580
    Weight approx. [kg] 9.8
WLL WLL [kN] 170
Length total L [mm] 300
Nominal size NG 23
Nominal size wedge NG 21
Rope diameter range from [mm] 21
Rope diameter range to [mm] 23
Reference no. 270739
  • Details
    Keilschloss PSH kpl 21,0-23,0 NG23 tzn
    Reference no. 270739
    WLL WLL [kN] 170
    Length total L [mm] 300
    Nominal size NG 23
    Nominal size wedge NG 21
    Fork width external A2 [mm] 83
    Fork Clearance b [mm] 45
    Eye Width A4 [mm] 80
    Rope diameter range from [mm] 21
    Rope diameter range to [mm] 23
    Pin Length LB [mm] 115
    Pin Diameter dB [mm] 41
    Length center of bolt to top edge of fork t [mm] 44
    Minimum breaking load MBL [kN] 580
    Weight approx. [kg] 9.8
WLL WLL [kN] 220
Length total L [mm] 330
Nominal size NG 26
Nominal size wedge NG 23
Rope diameter range from [mm] 23
Rope diameter range to [mm] 24
Reference no. 270722
  • Details
    Keilschloss PSH kpl 23,0-24,0 NG26 tzn
    Reference no. 270722
    WLL WLL [kN] 220
    Length total L [mm] 330
    Nominal size NG 26
    Nominal size wedge NG 23
    Fork width external A2 [mm] 96
    Fork Clearance b [mm] 51
    Eye Width A4 [mm] 96
    Rope diameter range from [mm] 23
    Rope diameter range to [mm] 24
    Pin Length LB [mm] 129
    Pin Diameter dB [mm] 50
    Length center of bolt to top edge of fork t [mm] 53
    Minimum breaking load MBL [kN] 740
    Weight approx. [kg] 14.5
WLL WLL [kN] 220
Length total L [mm] 330
Nominal size NG 26
Nominal size wedge NG 25
Rope diameter range from [mm] 25
Rope diameter range to [mm] 26
Reference no. 270741
  • Details
    Keilschloss PSH kpl 25,0-26,0 NG26 tzn
    Reference no. 270741
    WLL WLL [kN] 220
    Length total L [mm] 330
    Nominal size NG 26
    Nominal size wedge NG 25
    Fork width external A2 [mm] 96
    Fork Clearance b [mm] 51
    Eye Width A4 [mm] 96
    Rope diameter range from [mm] 25
    Rope diameter range to [mm] 26
    Pin Length LB [mm] 129
    Pin Diameter dB [mm] 50
    Length center of bolt to top edge of fork t [mm] 53
    Minimum breaking load MBL [kN] 740
    Weight approx. [kg] 14.5
WLL WLL [kN] 275
Length total L [mm] 375
Nominal size NG 29
Nominal size wedge NG 27
Rope diameter range from [mm] 27
Rope diameter range to [mm] 29
Reference no. 270724
  • Details
    Keilschloss PSH kpl 27,0-29,0 NG29 tzn
    Reference no. 270724
    WLL WLL [kN] 275
    Length total L [mm] 375
    Nominal size NG 29
    Nominal size wedge NG 27
    Fork width external A2 [mm] 107
    Fork Clearance b [mm] 57
    Eye Width A4 [mm] 108
    Rope diameter range from [mm] 27
    Rope diameter range to [mm] 29
    Pin Length LB [mm] 145
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of fork t [mm] 59
    Minimum breaking load MBL [kN] 920
    Weight approx. [kg] 20
WLL WLL [kN] 355
Length total L [mm] 425
Nominal size NG 33
Nominal size wedge NG 30
Rope diameter range from [mm] 30
Rope diameter range to [mm] 31
Reference no. 270726
  • Details
    Keilschloss PSH kpl 30,0-31,0 NG33 tzn
    Reference no. 270726
    WLL WLL [kN] 355
    Length total L [mm] 425
    Nominal size NG 33
    Nominal size wedge NG 30
    Fork width external A2 [mm] 120
    Fork Clearance b [mm] 63
    Eye Width A4 [mm] 115
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 31
    Pin Length LB [mm] 159
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of fork t [mm] 63.5
    Minimum breaking load MBL [kN] 1190
    Weight approx. [kg] 31
WLL WLL [kN] 355
Length total L [mm] 425
Nominal size NG 33
Nominal size wedge NG 32
Rope diameter range from [mm] 32
Rope diameter range to [mm] 33
Reference no. 270728
  • Details
    Keilschloss PSH kpl 32,0-33,0 NG33 tzn
    Reference no. 270728
    WLL WLL [kN] 355
    Length total L [mm] 425
    Nominal size NG 33
    Nominal size wedge NG 32
    Fork width external A2 [mm] 120
    Fork Clearance b [mm] 63
    Eye Width A4 [mm] 115
    Rope diameter range from [mm] 32
    Rope diameter range to [mm] 33
    Pin Length LB [mm] 159
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of fork t [mm] 63.5
    Minimum breaking load MBL [kN] 1190
    Weight approx. [kg] 31
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
