Wedge socket S421T/388

Wedge socket S421T/388

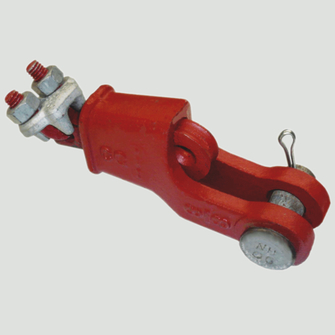

The open wedge socket S421T/388 has a special wedge that allows the matching cable diameter to be determined quickly and easily. The open wedge socket S421T/388 meets the requirements of EN 13411-6. Painted version.
Advantages
  • Flexible – detachable and reusable
  • Handy – simple attachment and uncomplicated detachment
technical infos

Material

  • Cast steel (cold resistant to –40 °C)

Surface bolt

  • painted or galvanised

Surface housing

  • coated

Nominal tensile strength

  • ≤ 2160 N/mm²

Loss factor

  • 0.8

Application area

  • Round strand ropes

Indication

  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants
Length total L [mm]
Nominal size wedge NG
Rope diameter range from [mm]
Rope diameter range to [mm]
Reference no.
Details
  • 145
    10
    9
    10
    110920
    Keilschloss S421T 9,0-10,0 NG3/8"
    Reference no. 110920

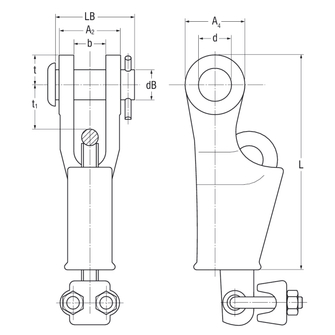

    Length total L [mm] 145
    Nominal size wedge NG 10
    Fork width external A2 [mm] 43
    Fork Clearance b [mm] 20.6
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 39.6
    Rope diameter range from [mm] 9
    Rope diameter range to [mm] 10
    Diameter drilled hole d [mm] 22.6
    Diameter drilled hole Tolerance d Tol [mm] ± 0.4
    Pin Length LB [mm] 54.1
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of fork t [mm] 22.4
    Length center of bolt to top edge of rope t1 [mm] 47.8
    Minimum breaking load MBL [kN] 127
    Weight approx. [kg] 1.44
  • 175
    13
    11
    13
    135631
    Keilschloss S421T 11,0-13,0
    Reference no. 135631
    Length total L [mm] 175
    Nominal size wedge NG 13
    Fork width external A2 [mm] 50.8
    Fork Clearance b [mm] 25.4
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 49.3
    Rope diameter range from [mm] 11
    Rope diameter range to [mm] 13
    Diameter drilled hole d [mm] 27.5
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 65
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of fork t [mm] 26.9
    Length center of bolt to top edge of rope t1 [mm] 32
    Minimum breaking load MBL [kN] 206
    Weight approx. [kg] 2.79
  • 210
    16
    14
    16
    110922
    Keilschloss S421T 14,0-16,0 NG5/8"
    Reference no. 110922
    Length total L [mm] 210
    Nominal size wedge NG 16
    Fork width external A2 [mm] 60.2
    Fork Clearance b [mm] 31.8
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 57.2
    Rope diameter range from [mm] 14
    Rope diameter range to [mm] 16
    Diameter drilled hole d [mm] 32.5
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 82.6
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of fork t [mm] 31
    Length center of bolt to top edge of rope t1 [mm] 50.5
    Minimum breaking load MBL [kN] 324
    Weight approx. [kg] 4.56
  • 251
    19
    18
    19
    110926
    Keilschloss S421T 18,0-19,0 NG3/4"
    Reference no. 110926
    Length total L [mm] 251
    Nominal size wedge NG 19
    Fork width external A2 [mm] 71.7
    Fork Clearance b [mm] 38.1
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 66.8
    Rope diameter range from [mm] 18
    Rope diameter range to [mm] 19
    Diameter drilled hole d [mm] 37.4
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 92.2
    Pin Diameter dB [mm] 35.1
    Length center of bolt to top edge of fork t [mm] 35.6
    Length center of bolt to top edge of rope t1 [mm] 61.2
    Minimum breaking load MBL [kN] 422
    Weight approx. [kg] 6.58
  • 286
    22
    20
    22
    110928
    Keilschloss S421T 20,0-22,0 NG7/8"
    Reference no. 110928
    Length total L [mm] 286
    Nominal size wedge NG 22
    Fork width external A2 [mm] 82.7
    Fork Clearance b [mm] 44.5
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 79.5
    Rope diameter range from [mm] 20
    Rope diameter range to [mm] 22
    Diameter drilled hole d [mm] 43.7
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 109
    Pin Diameter dB [mm] 41.4
    Length center of bolt to top edge of fork t [mm] 42.4
    Length center of bolt to top edge of rope t1 [mm] 63
    Minimum breaking load MBL [kN] 608
    Weight approx. [kg] 11.25
  • 325
    26
    24
    26
    110932
    Keilschloss S421T 24,0-26,0 NG1"
    Reference no. 110932
    Length total L [mm] 325
    Nominal size wedge NG 26
    Fork width external A2 [mm] 95.8
    Fork Clearance b [mm] 51
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 95.5
    Rope diameter range from [mm] 24
    Rope diameter range to [mm] 26
    Diameter drilled hole d [mm] 53.6
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 119
    Pin Diameter dB [mm] 50.8
    Length center of bolt to top edge of fork t [mm] 51
    Length center of bolt to top edge of rope t1 [mm] 77.2
    Minimum breaking load MBL [kN] 833
    Weight approx. [kg] 15.8
  • 365
    28
    28
    28
    110935
    Keilschloss S421T 28,0 NG1 1/8"
    Reference no. 110935
    Length total L [mm] 365
    Nominal size wedge NG 28
    Fork width external A2 [mm] 107.8
    Fork Clearance b [mm] 57
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 108
    Rope diameter range from [mm] 28
    Rope diameter range to [mm] 28
    Diameter drilled hole d [mm] 60.5
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 138
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of fork t [mm] 57
    Length center of bolt to top edge of rope t1 [mm] 65
    Minimum breaking load MBL [kN] 1079
    Weight approx. [kg] 20.5
  • 415
    32
    30
    32
    110937
    Keilschloss S421T 30,0-32,0 NG1 1/4"
    Reference no. 110937
    Length total L [mm] 415
    Nominal size wedge NG 32
    Fork width external A2 [mm] 120.3
    Fork Clearance b [mm] 66.5
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 114
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 32
    Diameter drilled hole d [mm] 66.8
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 156
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of fork t [mm] 59.5
    Length center of bolt to top edge of rope t1 [mm] 74.7
    Minimum breaking load MBL [kN] 1275
    Weight approx. [kg] 29.4
Length total L [mm] 145
Nominal size wedge NG 10
Rope diameter range from [mm] 9
Rope diameter range to [mm] 10
Reference no. 110920
  • Details
    Keilschloss S421T 9,0-10,0 NG3/8"
    Reference no. 110920
    Length total L [mm] 145
    Nominal size wedge NG 10
    Fork width external A2 [mm] 43
    Fork Clearance b [mm] 20.6
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 39.6
    Rope diameter range from [mm] 9
    Rope diameter range to [mm] 10
    Diameter drilled hole d [mm] 22.6
    Diameter drilled hole Tolerance d Tol [mm] ± 0.4
    Pin Length LB [mm] 54.1
    Pin Diameter dB [mm] 20.6
    Length center of bolt to top edge of fork t [mm] 22.4
    Length center of bolt to top edge of rope t1 [mm] 47.8
    Minimum breaking load MBL [kN] 127
    Weight approx. [kg] 1.44
Length total L [mm] 175
Nominal size wedge NG 13
Rope diameter range from [mm] 11
Rope diameter range to [mm] 13
Reference no. 135631
  • Details
    Keilschloss S421T 11,0-13,0
    Reference no. 135631
    Length total L [mm] 175
    Nominal size wedge NG 13
    Fork width external A2 [mm] 50.8
    Fork Clearance b [mm] 25.4
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 49.3
    Rope diameter range from [mm] 11
    Rope diameter range to [mm] 13
    Diameter drilled hole d [mm] 27.5
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 65
    Pin Diameter dB [mm] 25.4
    Length center of bolt to top edge of fork t [mm] 26.9
    Length center of bolt to top edge of rope t1 [mm] 32
    Minimum breaking load MBL [kN] 206
    Weight approx. [kg] 2.79
Length total L [mm] 210
Nominal size wedge NG 16
Rope diameter range from [mm] 14
Rope diameter range to [mm] 16
Reference no. 110922
  • Details
    Keilschloss S421T 14,0-16,0 NG5/8"
    Reference no. 110922
    Length total L [mm] 210
    Nominal size wedge NG 16
    Fork width external A2 [mm] 60.2
    Fork Clearance b [mm] 31.8
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 57.2
    Rope diameter range from [mm] 14
    Rope diameter range to [mm] 16
    Diameter drilled hole d [mm] 32.5
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 82.6
    Pin Diameter dB [mm] 30.2
    Length center of bolt to top edge of fork t [mm] 31
    Length center of bolt to top edge of rope t1 [mm] 50.5
    Minimum breaking load MBL [kN] 324
    Weight approx. [kg] 4.56
Length total L [mm] 251
Nominal size wedge NG 19
Rope diameter range from [mm] 18
Rope diameter range to [mm] 19
Reference no. 110926
  • Details
    Keilschloss S421T 18,0-19,0 NG3/4"
    Reference no. 110926
    Length total L [mm] 251
    Nominal size wedge NG 19
    Fork width external A2 [mm] 71.7
    Fork Clearance b [mm] 38.1
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 66.8
    Rope diameter range from [mm] 18
    Rope diameter range to [mm] 19
    Diameter drilled hole d [mm] 37.4
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 92.2
    Pin Diameter dB [mm] 35.1
    Length center of bolt to top edge of fork t [mm] 35.6
    Length center of bolt to top edge of rope t1 [mm] 61.2
    Minimum breaking load MBL [kN] 422
    Weight approx. [kg] 6.58
Length total L [mm] 286
Nominal size wedge NG 22
Rope diameter range from [mm] 20
Rope diameter range to [mm] 22
Reference no. 110928
  • Details
    Keilschloss S421T 20,0-22,0 NG7/8"
    Reference no. 110928
    Length total L [mm] 286
    Nominal size wedge NG 22
    Fork width external A2 [mm] 82.7
    Fork Clearance b [mm] 44.5
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 79.5
    Rope diameter range from [mm] 20
    Rope diameter range to [mm] 22
    Diameter drilled hole d [mm] 43.7
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 109
    Pin Diameter dB [mm] 41.4
    Length center of bolt to top edge of fork t [mm] 42.4
    Length center of bolt to top edge of rope t1 [mm] 63
    Minimum breaking load MBL [kN] 608
    Weight approx. [kg] 11.25
Length total L [mm] 325
Nominal size wedge NG 26
Rope diameter range from [mm] 24
Rope diameter range to [mm] 26
Reference no. 110932
  • Details
    Keilschloss S421T 24,0-26,0 NG1"
    Reference no. 110932
    Length total L [mm] 325
    Nominal size wedge NG 26
    Fork width external A2 [mm] 95.8
    Fork Clearance b [mm] 51
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 95.5
    Rope diameter range from [mm] 24
    Rope diameter range to [mm] 26
    Diameter drilled hole d [mm] 53.6
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 119
    Pin Diameter dB [mm] 50.8
    Length center of bolt to top edge of fork t [mm] 51
    Length center of bolt to top edge of rope t1 [mm] 77.2
    Minimum breaking load MBL [kN] 833
    Weight approx. [kg] 15.8
Length total L [mm] 365
Nominal size wedge NG 28
Rope diameter range from [mm] 28
Rope diameter range to [mm] 28
Reference no. 110935
  • Details
    Keilschloss S421T 28,0 NG1 1/8"
    Reference no. 110935
    Length total L [mm] 365
    Nominal size wedge NG 28
    Fork width external A2 [mm] 107.8
    Fork Clearance b [mm] 57
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 108
    Rope diameter range from [mm] 28
    Rope diameter range to [mm] 28
    Diameter drilled hole d [mm] 60.5
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 138
    Pin Diameter dB [mm] 57
    Length center of bolt to top edge of fork t [mm] 57
    Length center of bolt to top edge of rope t1 [mm] 65
    Minimum breaking load MBL [kN] 1079
    Weight approx. [kg] 20.5
Length total L [mm] 415
Nominal size wedge NG 32
Rope diameter range from [mm] 30
Rope diameter range to [mm] 32
Reference no. 110937
  • Details
    Keilschloss S421T 30,0-32,0 NG1 1/4"
    Reference no. 110937
    Length total L [mm] 415
    Nominal size wedge NG 32
    Fork width external A2 [mm] 120.3
    Fork Clearance b [mm] 66.5
    Fork Clearance Tolerance b Tol [mm] ± 2.29
    Eye Width A4 [mm] 114
    Rope diameter range from [mm] 30
    Rope diameter range to [mm] 32
    Diameter drilled hole d [mm] 66.8
    Diameter drilled hole Tolerance d Tol [mm] ± 0.75
    Pin Length LB [mm] 156
    Pin Diameter dB [mm] 63.5
    Length center of bolt to top edge of fork t [mm] 59.5
    Length center of bolt to top edge of rope t1 [mm] 74.7
    Minimum breaking load MBL [kN] 1275
    Weight approx. [kg] 29.4
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
