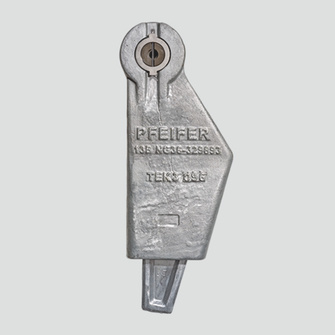

Wedge socket for special civil engineering 13B

Wedge socket for special civil engineering 13B
Designed for maximum service life and safe operation in accordance with the requirements of DIN EN 474-12:2010-05. The constructive reduction of interfering edges significantly reduces wear caused by external influences.
Advantages
  • Flexible – detachable and reusable
  • Handy – simple attachment and uncomplicated detachment
  • Handy – concealed bolts
technical infos

Material bolt

  • Quenched and tempered steel

Surface bolt

  • Improx oxidized

Material housing

  • Cast steel (cold resistant to –40 °C)

Surface housing

  • hot-dip galvanised

Material wedge

  • Cast steel (cold resistant to –40 °C)

Surface wedge

  • hot-dip galvanised

Loss factor

  • 0.8

Application area

  • Round strand ropes

Indication

  • WLL = maximum payload
  • Different spare bolts on demand
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

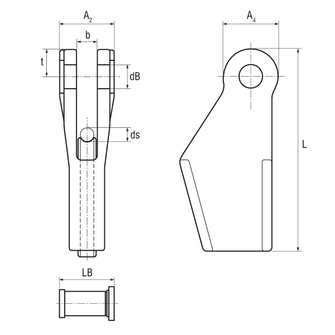

WLL WLL [kN]
Length total L [mm]
Nominal size NG
Nominal size wedge NG
Rope diameter ds [mm]
Reference no.
Details
  • 385
    515
    36
    34
    34
    332400
    Keilschloss Tiefbau PSH 34,0 NG36 tzn
    Reference no. 332400
    WLL WLL 385
    Length total L 515
    Nominal size NG 36
    Nominal size wedge NG 34
    Rope diameter ds 34
    Width total A 235
    bracket Width A4 140
    Fork width external A2 137
    Fork Clearance b 53
    Socket body Width A 90
    Socket body t6 231
    Pin Length LB 133
    Pin Diameter dB 62
    Length center of bolt to top edge of fork t 70
    Minimum breaking load MBL 1366
    Weight m 53.7 [kg]
    Weight approx. 53.7
  • 385
    515
    36
    36
    36
    332337
    Keilschloss Tiefbau PSH 36,0 NG36 tzn
    Reference no. 332337
    WLL WLL 385
    Length total L 515
    Nominal size NG 36
    Nominal size wedge NG 36
    Rope diameter ds 36
    Width total A 235
    bracket Width A4 140
    Fork width external A2 137
    Fork Clearance b 53
    Socket body Width A 90
    Socket body t6 231
    Pin Length LB 133
    Pin Diameter dB 62
    Length center of bolt to top edge of fork t 70
    Minimum breaking load MBL 1366
    Weight m 53.7 [kg]
    Weight approx. 53.7
WLL WLL 385
Length total L 515
Nominal size NG 36
Nominal size wedge NG 34
Rope diameter ds 34
Reference no. 332400
  • Details
    Keilschloss Tiefbau PSH 36,0 NG36 tzn
    Reference no. 332337
    WLL WLL 385
    Length total L 515
    Nominal size NG 36
    Nominal size wedge NG 36
    Rope diameter ds 36
    Width total A 235
    bracket Width A4 140
    Fork width external A2 137
    Fork Clearance b 53
    Socket body Width A 90
    Socket body t6 231
    Pin Length LB 133
    Pin Diameter dB 62
    Length center of bolt to top edge of fork t 70
    Minimum breaking load MBL 1366
    Weight m 53.7 [kg]
    Weight approx. 53.7
WLL WLL 385
Length total L 515
Nominal size NG 36
Nominal size wedge NG 36
Rope diameter ds 36
Reference no. 332337
  • Details
    Keilschloss Tiefbau PSH 36,0 NG36 tzn
    Reference no. 332337
    WLL WLL 385
    Length total L 515
    Nominal size NG 36
    Nominal size wedge NG 36
    Rope diameter ds 36
    Width total A 235
    bracket Width A4 140
    Fork width external A2 137
    Fork Clearance b 53
    Socket body Width A 90
    Socket body t6 231
    Pin Length LB 133
    Pin Diameter dB 62
    Length center of bolt to top edge of fork t 70
    Minimum breaking load MBL 1366
    Weight m 53.7 [kg]
    Weight approx. 53.7
Safety

Don’t use non-rotation resistant ropes with a turnable fixing point (e. g. swivel). The end termination has to be fixed against rotation as well. If this is not observed considerable damage, serious injury or death may occur.
