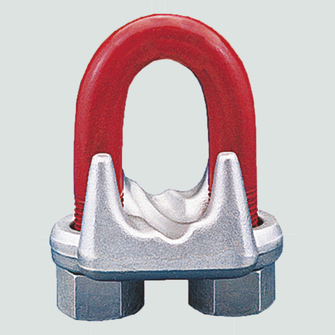

Wire rope clamps 508

Wire rope clamps 508
The Wire Rope Clamp 508 meets or exceeds all requirements of the ASME B30.26 standard. Corrosion protection thanks to a galvanised surface.
Advantages
  • Uncomplicated – simple and fast fixing of rope ends
  • Robust – rustproof and resistant to corrosion through galvanizing
technical infos

Material clamp

  • forged steel

Surface clamp

  • galvanized

Material screw

  • heat treatable steel

Application area

  • Round strand ropes

Indication

  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

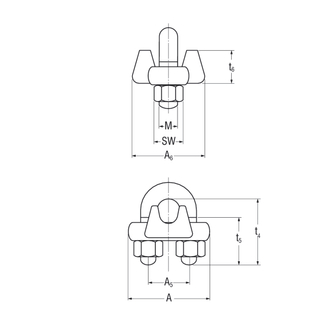

Nominal size NG
Rope Ø ds [mm]
Reference no.
Details
  • 4
    4
    136526
    Drahtseilklemme hochf G-450 NG1/8" 3,00-4,00 zn
    Reference no. 136526
    Nominal size NG 4
    Rope Ø ds [mm] 4
    Width total A [mm] 24
    Clear length t4 [mm] 18.5
    bracket width A5 [mm] 12
    Thread Diameter metric M [mm] 5.5
    Thread Length t5 [mm] 11
    Clamping jaw Width A6 [mm] 20.5
    Clamping jaw Height t6 [mm] 10.5
    nut Wrench size AF [mm] 9.5
    Weight m 0.03 [kg]
    Weight approx. [kg] 0.027
  • 5
    5
    136517
    Drahtseilklemme hochf G-450 NG3/16" 5,00-5,00 zn
    Reference no. 136517
    Nominal size NG 5
    Rope Ø ds [mm] 5
    Width total A [mm] 29.5
    Clear length t4 [mm] 24.5
    bracket width A5 [mm] 15
    Thread Diameter metric M [mm] 6.5
    Thread Length t5 [mm] 14
    Clamping jaw Width A6 [mm] 24
    Clamping jaw Height t6 [mm] 12.5
    nut Wrench size AF [mm] 11
    Weight m 0.05 [kg]
    Weight approx. [kg] 0.045
  • 7
    7
    136518
    Drahtseilklemme hochf G-450 NG1/4" 6,00-7,00 zn
    Reference no. 136518
    Nominal size NG 7
    Rope Ø ds [mm] 7
    Width total A [mm] 36.5
    Clear length t4 [mm] 26
    bracket width A5 [mm] 19
    Thread Diameter metric M [mm] 8
    Thread Length t5 [mm] 12.5
    Clamping jaw Width A6 [mm] 30
    Clamping jaw Height t6 [mm] 17
    nut Wrench size AF [mm] 14
    Weight m 0.09 [kg]
    Weight approx. [kg] 0.086
  • 8
    8
    136519
    Drahtseilklemme hochf G-450 NG5/16" 8,00-8,00 zn
    Reference no. 136519
    Nominal size NG 8
    Rope Ø ds [mm] 8
    Width total A [mm] 43
    Clear length t4 [mm] 35
    bracket width A5 [mm] 22.5
    Thread Diameter metric M [mm] 9.5
    Thread Length t5 [mm] 19
    Clamping jaw Width A6 [mm] 33.5
    Clamping jaw Height t6 [mm] 18.5
    nut Wrench size AF [mm] 17.5
    Weight m 0.13 [kg]
    Weight approx. [kg] 0.127
  • 10
    10
    136520
    Drahtseilklemme hochf G-450 NG3/8" 9,00-10,00 zn
    Reference no. 136520
    Nominal size NG 10
    Rope Ø ds [mm] 10
    Width total A [mm] 495
    Clear length t4 [mm] 38
    bracket width A5 [mm] 25.5
    Thread Diameter metric M [mm] 11
    Thread Length t5 [mm] 19
    Clamping jaw Width A6 [mm] 41.5
    Clamping jaw Height t6 [mm] 23
    nut Wrench size AF [mm] 19
    Weight m 0.22 [kg]
    Weight approx. [kg] 0.218
  • 11
    11
    -
    Nominal size NG 11
    Rope Ø ds [mm] 11
    Width total A [mm] 58
    Clear length t4 [mm] 48
    bracket width A5 [mm] 30
    Thread Diameter metric M [mm] 12.5
    Thread Length t5 [mm] 25.5
    Clamping jaw Width A6 [mm] 46
    Clamping jaw Height t6 [mm] 26
    nut Wrench size AF [mm] 22.5
    Weight m 0.35 [kg]
  • 13
    13
    136522
    Drahtseilklemme hochf G-450 NG1/2" 11,00-13,00 zn
    Reference no. 136522
    Nominal size NG 13
    Rope Ø ds [mm] 13
    Width total A [mm] 58
    Clear length t4 [mm] 48
    bracket width A5 [mm] 30
    Thread Diameter metric M [mm] 12.5
    Thread Length t5 [mm] 25.5
    Clamping jaw Width A6 [mm] 48.5
    Clamping jaw Height t6 [mm] 28.5
    nut Wrench size AF [mm] 22.5
    Weight m 0.34 [kg]
    Weight approx. [kg] 0.34
  • 15
    15
    136523
    Drahtseilklemme hochf G-450 NG9/16" 14,00-15,00 zn
    Reference no. 136523
    Nominal size NG 15
    Rope Ø ds [mm] 15
    Width total A [mm] 63.5
    Clear length t4 [mm] 57
    bracket width A5 [mm] 33.5
    Thread Diameter metric M [mm] 14
    Thread Length t5 [mm] 32
    Clamping jaw Width A6 [mm] 52.5
    Clamping jaw Height t6 [mm] 31
    nut Wrench size AF [mm] 24
    Weight m 0.49 [kg]
    Weight approx. [kg] 0.494
  • 16
    16
    136524
    Drahtseilklemme hochf G-450 NG5/8" 16,00-16,00 zn
    Reference no. 136524
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Width total A [mm] 63.5
    Clear length t4 [mm] 60.5
    bracket width A5 [mm] 33.5
    Thread Diameter metric M [mm] 14
    Thread Length t5 [mm] 32
    Clamping jaw Width A6 [mm] 52.5
    Clamping jaw Height t6 [mm] 34
    nut Wrench size AF [mm] 24
    Weight m 0.48 [kg]
    Weight approx. [kg] 0.5
  • 20
    20
    133525
    Seil 5,00 P500 1960 B sZ TK10
    Reference no. 133525
    Nominal size NG 20
    Rope Ø ds [mm] 20
    Width total A [mm] 72
    Clear length t4 [mm] 70
    bracket width A5 [mm] 38
    Thread Diameter metric M [mm] 15.5
    Thread Length t5 [mm] 36.5
    Clamping jaw Width A6 [mm] 57
    Clamping jaw Height t6 [mm] 36
    nut Wrench size AF [mm] 27
    Weight m 0.64 [kg]
  • 22
    22
    136513
    Drahtseilklemme hochf G-450 NG7/8" 22,00-22,00 zn
    Reference no. 136513
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Width total A [mm] 80.5
    Clear length t4 [mm] 79
    bracket width A5 [mm] 44.5
    Thread Diameter metric M [mm] 19
    Thread Length t5 [mm] 41
    Clamping jaw Width A6 [mm] 62
    Clamping jaw Height t6 [mm] 40.5
    nut Wrench size AF [mm] 32
    Weight m 1.08 [kg]
    Weight approx. [kg] 1.08
  • 26
    26
    136514
    Drahtseilklemme hochf G-450 NG1" 24,00-26,00 zn
    Reference no. 136514
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Width total A [mm] 88
    Clear length t4 [mm] 89
    bracket width A5 [mm] 48
    Thread Diameter metric M [mm] 19
    Thread Length t5 [mm] 46
    Clamping jaw Width A6 [mm] 67
    Clamping jaw Height t6 [mm] 45
    nut Wrench size AF [mm] 32
    Weight m 1.18 [kg]
    Weight approx. [kg] 1.14
  • 30
    30
    136515
    Drahtseilklemme hochf. G-450 1 1/8" 30,00 zn
    Reference no. 136515
    Nominal size NG 30
    Rope Ø ds [mm] 30
    Width total A [mm] 91
    Clear length t4 [mm] 98.5
    bracket width A5 [mm] 51
    Thread Diameter metric M [mm] 19
    Thread Length t5 [mm] 51
    Clamping jaw Width A6 [mm] 71.5
    Clamping jaw Height t6 [mm] 48.5
    nut Wrench size AF [mm] 32
    Weight m 1.32 [kg]
    Weight approx. [kg] 1.28
  • 34
    34
    136516
    Drahtseilklemme hochf G-450 NG1 1/4" 32,00-34,00 zn
    Reference no. 136516
    Nominal size NG 34
    Rope Ø ds [mm] 34
    Width total A [mm] 105
    Clear length t4 [mm] 108
    bracket width A5 [mm] 58.5
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 54
    Clamping jaw Width A6 [mm] 79.5
    Clamping jaw Height t6 [mm] 55.5
    nut Wrench size AF [mm] 36.5
    Weight m 1.95 [kg]
    Weight approx. [kg] 1.99
  • 36
    36
    235675
    Drahtseilklemme hochf G-450 NG1 3/8" 36,00-36,00 zn
    Reference no. 235675
    Nominal size NG 36
    Rope Ø ds [mm] 36
    Width total A [mm] 106
    Clear length t4 [mm] 118
    bracket width A5 [mm] 60.5
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 58.5
    Clamping jaw Width A6 [mm] 79.5
    Clamping jaw Height t6 [mm] 58.5
    nut Wrench size AF [mm] 36.5
    Weight m 2.09 [kg]
    Weight approx. [kg] 2
  • 38
    38
    -
    Nominal size NG 38
    Rope Ø ds [mm] 38
    Width total A [mm] 113
    Clear length t4 [mm] 125
    bracket width A5 [mm] 66.5
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 60.5
    Clamping jaw Width A6 [mm] 86.5
    Clamping jaw Height t6 [mm] 62
    nut Wrench size AF [mm] 36.5
    Weight m 2.47 [kg]
  • 42
    42
    241445
    Drahtseilklemme hochf G-450 NG1 5/8" 41,00-42,00 zn
    Reference no. 241445
    Nominal size NG 42
    Rope Ø ds [mm] 42
    Width total A [mm] 121
    Clear length t4 [mm] 135
    bracket width A5 [mm] 70
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 66.5
    Clamping jaw Width A6 [mm] 92
    Clamping jaw Height t6 [mm] 67.5
    nut Wrench size AF [mm] 41.5
    Weight m 3.19 [kg]
    Weight approx. [kg] 3.19
  • 46
    46
    267570
    Drahtseilklemme hochf G-450 NG1 3/4" 44,00-46,00 zn
    Reference no. 267570
    Nominal size NG 46
    Rope Ø ds [mm] 46
    Width total A [mm] 134
    Clear length t4 [mm] 146
    bracket width A5 [mm] 77.5
    Thread Diameter metric M [mm] 28.5
    Thread Length t5 [mm] 70
    Clamping jaw Width A6 [mm] 97
    Clamping jaw Height t6 [mm] 74.5
    nut Wrench size AF [mm] 46
    Weight m 4.24 [kg]
    Weight approx. [kg] 4.24
  • 52
    52
    -
    Nominal size NG 52
    Rope Ø ds [mm] 52
    Width total A [mm] 149
    Clear length t4 [mm] 164
    bracket width A5 [mm] 86
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 76
    Clamping jaw Width A6 [mm] 113
    Clamping jaw Height t6 [mm] 83.5
    nut Wrench size AF [mm] 51
    Weight m 5.9 [kg]
  • 58
    58
    -
    Nominal size NG 58
    Rope Ø ds [mm] 58
    Width total A [mm] 162
    Clear length t4 [mm] 181
    bracket width A5 [mm] 98.5
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 81
    Clamping jaw Width A6 [mm] 114
    Clamping jaw Height t6 [mm] 81
    nut Wrench size AF [mm] 51
    Weight m 7.26 [kg]
  • 65
    65
    -
    Nominal size NG 65
    Rope Ø ds [mm] 65
    Width total A [mm] 168
    Clear length t4 [mm] 195
    bracket width A5 [mm] 105
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 87.5
    Clamping jaw Width A6 [mm] 103
    Clamping jaw Height t6 [mm] 93.5
    nut Wrench size AF [mm] 51
    Weight m 8.62 [kg]
  • 72
    72
    -
    Nominal size NG 72
    Rope Ø ds [mm] 72
    Width total A [mm] 175
    Clear length t4 [mm] 211
    bracket width A5 [mm] 111
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 90.5
    Clamping jaw Width A6 [mm] 127
    Clamping jaw Height t6 [mm] 124
    nut Wrench size AF [mm] 51
    Weight m 10.43 [kg]
  • 78
    78
    -
    Nominal size NG 78
    Rope Ø ds [mm] 78
    Width total A [mm] 194
    Clear length t4 [mm] 233
    bracket width A5 [mm] 121
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 98.5
    Clamping jaw Width A6 [mm] 149
    Clamping jaw Height t6 [mm] 119
    nut Wrench size AF [mm] 60.5
    Weight m 14.06 [kg]
  • 90
    90
    -
    Nominal size NG 90
    Rope Ø ds [mm] 90
    Width total A [mm] 213
    Clear length t4 [mm] 273
    bracket width A5 [mm] 140
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 114
    Clamping jaw Width A6 [mm] 157
    Clamping jaw Height t6 [mm] 152
    nut Wrench size AF [mm] 60.5
    Weight m 18.14 [kg]
Nominal size NG 4
Rope Ø ds [mm] 4
Reference no. 136526
  • Details
    Drahtseilklemme hochf G-450 NG1/8" 3,00-4,00 zn
    Reference no. 136526
    Nominal size NG 4
    Rope Ø ds [mm] 4
    Width total A [mm] 24
    Clear length t4 [mm] 18.5
    bracket width A5 [mm] 12
    Thread Diameter metric M [mm] 5.5
    Thread Length t5 [mm] 11
    Clamping jaw Width A6 [mm] 20.5
    Clamping jaw Height t6 [mm] 10.5
    nut Wrench size AF [mm] 9.5
    Weight m 0.03 [kg]
    Weight approx. [kg] 0.027
Nominal size NG 5
Rope Ø ds [mm] 5
Reference no. 136517
  • Details
    Drahtseilklemme hochf G-450 NG3/16" 5,00-5,00 zn
    Reference no. 136517
    Nominal size NG 5
    Rope Ø ds [mm] 5
    Width total A [mm] 29.5
    Clear length t4 [mm] 24.5
    bracket width A5 [mm] 15
    Thread Diameter metric M [mm] 6.5
    Thread Length t5 [mm] 14
    Clamping jaw Width A6 [mm] 24
    Clamping jaw Height t6 [mm] 12.5
    nut Wrench size AF [mm] 11
    Weight m 0.05 [kg]
    Weight approx. [kg] 0.045
Nominal size NG 7
Rope Ø ds [mm] 7
Reference no. 136518
  • Details
    Drahtseilklemme hochf G-450 NG1/4" 6,00-7,00 zn
    Reference no. 136518
    Nominal size NG 7
    Rope Ø ds [mm] 7
    Width total A [mm] 36.5
    Clear length t4 [mm] 26
    bracket width A5 [mm] 19
    Thread Diameter metric M [mm] 8
    Thread Length t5 [mm] 12.5
    Clamping jaw Width A6 [mm] 30
    Clamping jaw Height t6 [mm] 17
    nut Wrench size AF [mm] 14
    Weight m 0.09 [kg]
    Weight approx. [kg] 0.086
Nominal size NG 8
Rope Ø ds [mm] 8
Reference no. 136519
  • Details
    Drahtseilklemme hochf G-450 NG5/16" 8,00-8,00 zn
    Reference no. 136519
    Nominal size NG 8
    Rope Ø ds [mm] 8
    Width total A [mm] 43
    Clear length t4 [mm] 35
    bracket width A5 [mm] 22.5
    Thread Diameter metric M [mm] 9.5
    Thread Length t5 [mm] 19
    Clamping jaw Width A6 [mm] 33.5
    Clamping jaw Height t6 [mm] 18.5
    nut Wrench size AF [mm] 17.5
    Weight m 0.13 [kg]
    Weight approx. [kg] 0.127
Nominal size NG 10
Rope Ø ds [mm] 10
Reference no. 136520
  • Details
    Drahtseilklemme hochf G-450 NG3/8" 9,00-10,00 zn
    Reference no. 136520
    Nominal size NG 10
    Rope Ø ds [mm] 10
    Width total A [mm] 495
    Clear length t4 [mm] 38
    bracket width A5 [mm] 25.5
    Thread Diameter metric M [mm] 11
    Thread Length t5 [mm] 19
    Clamping jaw Width A6 [mm] 41.5
    Clamping jaw Height t6 [mm] 23
    nut Wrench size AF [mm] 19
    Weight m 0.22 [kg]
    Weight approx. [kg] 0.218
Nominal size NG 11
Rope Ø ds [mm] 11
Reference no. -
  • Details
    Nominal size NG 11
    Rope Ø ds [mm] 11
    Width total A [mm] 58
    Clear length t4 [mm] 48
    bracket width A5 [mm] 30
    Thread Diameter metric M [mm] 12.5
    Thread Length t5 [mm] 25.5
    Clamping jaw Width A6 [mm] 46
    Clamping jaw Height t6 [mm] 26
    nut Wrench size AF [mm] 22.5
    Weight m 0.35 [kg]
Nominal size NG 13
Rope Ø ds [mm] 13
Reference no. 136522
  • Details
    Drahtseilklemme hochf G-450 NG1/2" 11,00-13,00 zn
    Reference no. 136522
    Nominal size NG 13
    Rope Ø ds [mm] 13
    Width total A [mm] 58
    Clear length t4 [mm] 48
    bracket width A5 [mm] 30
    Thread Diameter metric M [mm] 12.5
    Thread Length t5 [mm] 25.5
    Clamping jaw Width A6 [mm] 48.5
    Clamping jaw Height t6 [mm] 28.5
    nut Wrench size AF [mm] 22.5
    Weight m 0.34 [kg]
    Weight approx. [kg] 0.34
Nominal size NG 15
Rope Ø ds [mm] 15
Reference no. 136523
  • Details
    Drahtseilklemme hochf G-450 NG9/16" 14,00-15,00 zn
    Reference no. 136523
    Nominal size NG 15
    Rope Ø ds [mm] 15
    Width total A [mm] 63.5
    Clear length t4 [mm] 57
    bracket width A5 [mm] 33.5
    Thread Diameter metric M [mm] 14
    Thread Length t5 [mm] 32
    Clamping jaw Width A6 [mm] 52.5
    Clamping jaw Height t6 [mm] 31
    nut Wrench size AF [mm] 24
    Weight m 0.49 [kg]
    Weight approx. [kg] 0.494
Nominal size NG 16
Rope Ø ds [mm] 16
Reference no. 136524
  • Details
    Drahtseilklemme hochf G-450 NG5/8" 16,00-16,00 zn
    Reference no. 136524
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Width total A [mm] 63.5
    Clear length t4 [mm] 60.5
    bracket width A5 [mm] 33.5
    Thread Diameter metric M [mm] 14
    Thread Length t5 [mm] 32
    Clamping jaw Width A6 [mm] 52.5
    Clamping jaw Height t6 [mm] 34
    nut Wrench size AF [mm] 24
    Weight m 0.48 [kg]
    Weight approx. [kg] 0.5
Nominal size NG 20
Rope Ø ds [mm] 20
Reference no. 133525
  • Details
    Seil 5,00 P500 1960 B sZ TK10
    Reference no. 133525
    Nominal size NG 20
    Rope Ø ds [mm] 20
    Width total A [mm] 72
    Clear length t4 [mm] 70
    bracket width A5 [mm] 38
    Thread Diameter metric M [mm] 15.5
    Thread Length t5 [mm] 36.5
    Clamping jaw Width A6 [mm] 57
    Clamping jaw Height t6 [mm] 36
    nut Wrench size AF [mm] 27
    Weight m 0.64 [kg]
Nominal size NG 22
Rope Ø ds [mm] 22
Reference no. 136513
  • Details
    Drahtseilklemme hochf G-450 NG7/8" 22,00-22,00 zn
    Reference no. 136513
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Width total A [mm] 80.5
    Clear length t4 [mm] 79
    bracket width A5 [mm] 44.5
    Thread Diameter metric M [mm] 19
    Thread Length t5 [mm] 41
    Clamping jaw Width A6 [mm] 62
    Clamping jaw Height t6 [mm] 40.5
    nut Wrench size AF [mm] 32
    Weight m 1.08 [kg]
    Weight approx. [kg] 1.08
Nominal size NG 26
Rope Ø ds [mm] 26
Reference no. 136514
  • Details
    Drahtseilklemme hochf G-450 NG1" 24,00-26,00 zn
    Reference no. 136514
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Width total A [mm] 88
    Clear length t4 [mm] 89
    bracket width A5 [mm] 48
    Thread Diameter metric M [mm] 19
    Thread Length t5 [mm] 46
    Clamping jaw Width A6 [mm] 67
    Clamping jaw Height t6 [mm] 45
    nut Wrench size AF [mm] 32
    Weight m 1.18 [kg]
    Weight approx. [kg] 1.14
Nominal size NG 30
Rope Ø ds [mm] 30
Reference no. 136515
  • Details
    Drahtseilklemme hochf. G-450 1 1/8" 30,00 zn
    Reference no. 136515
    Nominal size NG 30
    Rope Ø ds [mm] 30
    Width total A [mm] 91
    Clear length t4 [mm] 98.5
    bracket width A5 [mm] 51
    Thread Diameter metric M [mm] 19
    Thread Length t5 [mm] 51
    Clamping jaw Width A6 [mm] 71.5
    Clamping jaw Height t6 [mm] 48.5
    nut Wrench size AF [mm] 32
    Weight m 1.32 [kg]
    Weight approx. [kg] 1.28
Nominal size NG 34
Rope Ø ds [mm] 34
Reference no. 136516
  • Details
    Drahtseilklemme hochf G-450 NG1 1/4" 32,00-34,00 zn
    Reference no. 136516
    Nominal size NG 34
    Rope Ø ds [mm] 34
    Width total A [mm] 105
    Clear length t4 [mm] 108
    bracket width A5 [mm] 58.5
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 54
    Clamping jaw Width A6 [mm] 79.5
    Clamping jaw Height t6 [mm] 55.5
    nut Wrench size AF [mm] 36.5
    Weight m 1.95 [kg]
    Weight approx. [kg] 1.99
Nominal size NG 36
Rope Ø ds [mm] 36
Reference no. 235675
  • Details
    Drahtseilklemme hochf G-450 NG1 3/8" 36,00-36,00 zn
    Reference no. 235675
    Nominal size NG 36
    Rope Ø ds [mm] 36
    Width total A [mm] 106
    Clear length t4 [mm] 118
    bracket width A5 [mm] 60.5
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 58.5
    Clamping jaw Width A6 [mm] 79.5
    Clamping jaw Height t6 [mm] 58.5
    nut Wrench size AF [mm] 36.5
    Weight m 2.09 [kg]
    Weight approx. [kg] 2
Nominal size NG 38
Rope Ø ds [mm] 38
Reference no. -
  • Details
    Nominal size NG 38
    Rope Ø ds [mm] 38
    Width total A [mm] 113
    Clear length t4 [mm] 125
    bracket width A5 [mm] 66.5
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 60.5
    Clamping jaw Width A6 [mm] 86.5
    Clamping jaw Height t6 [mm] 62
    nut Wrench size AF [mm] 36.5
    Weight m 2.47 [kg]
Nominal size NG 42
Rope Ø ds [mm] 42
Reference no. 241445
  • Details
    Drahtseilklemme hochf G-450 NG1 5/8" 41,00-42,00 zn
    Reference no. 241445
    Nominal size NG 42
    Rope Ø ds [mm] 42
    Width total A [mm] 121
    Clear length t4 [mm] 135
    bracket width A5 [mm] 70
    Thread Diameter metric M [mm] 22.5
    Thread Length t5 [mm] 66.5
    Clamping jaw Width A6 [mm] 92
    Clamping jaw Height t6 [mm] 67.5
    nut Wrench size AF [mm] 41.5
    Weight m 3.19 [kg]
    Weight approx. [kg] 3.19
Nominal size NG 46
Rope Ø ds [mm] 46
Reference no. 267570
  • Details
    Drahtseilklemme hochf G-450 NG1 3/4" 44,00-46,00 zn
    Reference no. 267570
    Nominal size NG 46
    Rope Ø ds [mm] 46
    Width total A [mm] 134
    Clear length t4 [mm] 146
    bracket width A5 [mm] 77.5
    Thread Diameter metric M [mm] 28.5
    Thread Length t5 [mm] 70
    Clamping jaw Width A6 [mm] 97
    Clamping jaw Height t6 [mm] 74.5
    nut Wrench size AF [mm] 46
    Weight m 4.24 [kg]
    Weight approx. [kg] 4.24
Nominal size NG 52
Rope Ø ds [mm] 52
Reference no. -
  • Details
    Nominal size NG 52
    Rope Ø ds [mm] 52
    Width total A [mm] 149
    Clear length t4 [mm] 164
    bracket width A5 [mm] 86
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 76
    Clamping jaw Width A6 [mm] 113
    Clamping jaw Height t6 [mm] 83.5
    nut Wrench size AF [mm] 51
    Weight m 5.9 [kg]
Nominal size NG 58
Rope Ø ds [mm] 58
Reference no. -
  • Details
    Nominal size NG 58
    Rope Ø ds [mm] 58
    Width total A [mm] 162
    Clear length t4 [mm] 181
    bracket width A5 [mm] 98.5
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 81
    Clamping jaw Width A6 [mm] 114
    Clamping jaw Height t6 [mm] 81
    nut Wrench size AF [mm] 51
    Weight m 7.26 [kg]
Nominal size NG 65
Rope Ø ds [mm] 65
Reference no. -
  • Details
    Nominal size NG 65
    Rope Ø ds [mm] 65
    Width total A [mm] 168
    Clear length t4 [mm] 195
    bracket width A5 [mm] 105
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 87.5
    Clamping jaw Width A6 [mm] 103
    Clamping jaw Height t6 [mm] 93.5
    nut Wrench size AF [mm] 51
    Weight m 8.62 [kg]
Nominal size NG 72
Rope Ø ds [mm] 72
Reference no. -
  • Details
    Nominal size NG 72
    Rope Ø ds [mm] 72
    Width total A [mm] 175
    Clear length t4 [mm] 211
    bracket width A5 [mm] 111
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 90.5
    Clamping jaw Width A6 [mm] 127
    Clamping jaw Height t6 [mm] 124
    nut Wrench size AF [mm] 51
    Weight m 10.43 [kg]
Nominal size NG 78
Rope Ø ds [mm] 78
Reference no. -
  • Details
    Nominal size NG 78
    Rope Ø ds [mm] 78
    Width total A [mm] 194
    Clear length t4 [mm] 233
    bracket width A5 [mm] 121
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 98.5
    Clamping jaw Width A6 [mm] 149
    Clamping jaw Height t6 [mm] 119
    nut Wrench size AF [mm] 60.5
    Weight m 14.06 [kg]
Nominal size NG 90
Rope Ø ds [mm] 90
Reference no. -
  • Details
    Nominal size NG 90
    Rope Ø ds [mm] 90
    Width total A [mm] 213
    Clear length t4 [mm] 273
    bracket width A5 [mm] 140
    Thread Diameter metric M [mm] 32
    Thread Length t5 [mm] 114
    Clamping jaw Width A6 [mm] 157
    Clamping jaw Height t6 [mm] 152
    nut Wrench size AF [mm] 60.5
    Weight m 18.14 [kg]
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
