Wire rope clamps Stainless steel 498

Wire rope clamps Stainless steel 498

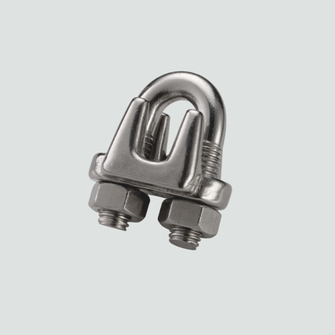

The stainless steel wire rope clamp impresses with its high-quality finish and attractive appearance. Rust-free thanks to stainless steel construction.
technical infos

Material clamping jaw

  • Stainless steel

Application area

  • Round strand ropes

Indication

  • The nominal size of the wire rope clamp corresponds to the maximum rope diameter. For intermediate sizes of the nominal rope diameter, the next larger clamp size is to be used. The nominal size 5 is valid only for nominal rope diameter 5 mm.
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

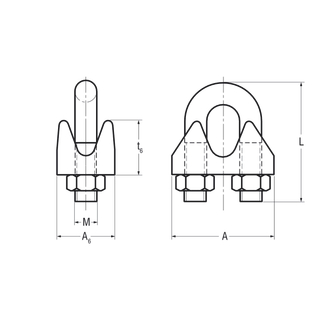

Length total L [mm]
Nominal size NG
Rope Ø ds [mm]
Reference no.
Details
  • 17
    2
    2
    110946
    Drahtseilklemme rostfrei SA NG2 1,80-2,00 ER
    Reference no. 110946
    Length total L [mm] 17
    Nominal size NG 2
    Rope Ø ds [mm] 2
    Width total A [mm] 14
    Thread M 3
    Clamping jaw Width A6 [mm] 15
    Clamping jaw Height t6 [mm] 10
    Weight approx. [kg] 0.008
  • 21
    3
    3
    110947
    Drahtseilklemme rostfrei SA NG3 2,10-3,00 ER
    Reference no. 110947
    Length total L [mm] 21
    Nominal size NG 3
    Rope Ø ds [mm] 3
    Width total A [mm] 16
    Thread M 3
    Clamping jaw Width A6 [mm] 15
    Clamping jaw Height t6 [mm] 12
    Weight approx. [kg] 0.01
  • 23
    4
    4
    110948
    Drahtseilklemme rostfrei SA NG4 3,10-4,00 ER
    Reference no. 110948
    Length total L [mm] 23
    Nominal size NG 4
    Rope Ø ds [mm] 4
    Width total A [mm] 18
    Thread M 4
    Clamping jaw Width A6 [mm] 18
    Clamping jaw Height t6 [mm] 13
    Weight approx. [kg] 0.012
  • 27
    5
    5
    110949
    Drahtseilklemme rostfrei SA NG5 4,10-5,00 ER
    Reference no. 110949
    Length total L [mm] 27
    Nominal size NG 5
    Rope Ø ds [mm] 5
    Width total A [mm] 20
    Thread M 5
    Clamping jaw Width A6 [mm] 21
    Clamping jaw Height t6 [mm] 16
    Weight approx. [kg] 0.016
  • 32
    6
    6
    110950
    Drahtseilklemme rostfrei SA NG6 5,10-6,00 ER
    Reference no. 110950
    Length total L [mm] 32
    Nominal size NG 6
    Rope Ø ds [mm] 6
    Width total A [mm] 27
    Thread M 6
    Clamping jaw Width A6 [mm] 23
    Clamping jaw Height t6 [mm] 18
    Weight approx. [kg] 0.038
  • 41
    8
    8
    110951
    Drahtseilklemme rostfrei SA NG8 6,10-8,00 ER
    Reference no. 110951
    Length total L [mm] 41
    Nominal size NG 8
    Rope Ø ds [mm] 8
    Width total A [mm] 34
    Thread M 8
    Clamping jaw Width A6 [mm] 28
    Clamping jaw Height t6 [mm] 20
    Weight approx. [kg] 0.035
  • 51
    10
    10
    110952
    Drahtseilklemme rostfrei SA NG10 8,10-10,00 ER
    Reference no. 110952
    Length total L [mm] 51
    Nominal size NG 10
    Rope Ø ds [mm] 10
    Width total A [mm] 44
    Thread M 10
    Clamping jaw Width A6 [mm] 36
    Clamping jaw Height t6 [mm] 23
    Weight approx. [kg] 0.093
  • 62
    12
    12
    110953
    Drahtseilklemme rostfrei SA NG12 10,10-12,00 ER
    Reference no. 110953
    Length total L [mm] 62
    Nominal size NG 12
    Rope Ø ds [mm] 12
    Width total A [mm] 50
    Thread M 12
    Clamping jaw Width A6 [mm] 38
    Clamping jaw Height t6 [mm] 27
    Weight approx. [kg] 0.238
  • 79
    16
    16
    110956
    Drahtseilklemme rostfrei SA NG16 14,10-16,00 ER
    Reference no. 110956
    Length total L [mm] 79
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Width total A [mm] 59
    Thread M 14
    Clamping jaw Width A6 [mm] 47
    Clamping jaw Height t6 [mm] 35
    Weight approx. [kg] 0.222
  • 81
    19
    19
    110957
    Drahtseilklemme rostfrei SA NG19 16,10-19,00 ER
    Reference no. 110957
    Length total L [mm] 81
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Width total A [mm] 61
    Thread M 14
    Clamping jaw Width A6 [mm] 52
    Clamping jaw Height t6 [mm] 38
    Weight approx. [kg] 0.48
  • 98
    22
    22
    110958
    Drahtseilklemme rostfrei SA NG22 19,10-22,00 ER
    Reference no. 110958
    Length total L [mm] 98
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Width total A [mm] 72
    Thread M 16
    Clamping jaw Width A6 [mm] 61
    Clamping jaw Height t6 [mm] 45
    Weight approx. [kg] 0.892
Length total L [mm] 17
Nominal size NG 2
Rope Ø ds [mm] 2
Reference no. 110946
  • Details
    Drahtseilklemme rostfrei SA NG2 1,80-2,00 ER
    Reference no. 110946
    Length total L [mm] 17
    Nominal size NG 2
    Rope Ø ds [mm] 2
    Width total A [mm] 14
    Thread M 3
    Clamping jaw Width A6 [mm] 15
    Clamping jaw Height t6 [mm] 10
    Weight approx. [kg] 0.008
Length total L [mm] 21
Nominal size NG 3
Rope Ø ds [mm] 3
Reference no. 110947
  • Details
    Drahtseilklemme rostfrei SA NG3 2,10-3,00 ER
    Reference no. 110947
    Length total L [mm] 21
    Nominal size NG 3
    Rope Ø ds [mm] 3
    Width total A [mm] 16
    Thread M 3
    Clamping jaw Width A6 [mm] 15
    Clamping jaw Height t6 [mm] 12
    Weight approx. [kg] 0.01
Length total L [mm] 23
Nominal size NG 4
Rope Ø ds [mm] 4
Reference no. 110948
  • Details
    Drahtseilklemme rostfrei SA NG4 3,10-4,00 ER
    Reference no. 110948
    Length total L [mm] 23
    Nominal size NG 4
    Rope Ø ds [mm] 4
    Width total A [mm] 18
    Thread M 4
    Clamping jaw Width A6 [mm] 18
    Clamping jaw Height t6 [mm] 13
    Weight approx. [kg] 0.012
Length total L [mm] 27
Nominal size NG 5
Rope Ø ds [mm] 5
Reference no. 110949
  • Details
    Drahtseilklemme rostfrei SA NG5 4,10-5,00 ER
    Reference no. 110949
    Length total L [mm] 27
    Nominal size NG 5
    Rope Ø ds [mm] 5
    Width total A [mm] 20
    Thread M 5
    Clamping jaw Width A6 [mm] 21
    Clamping jaw Height t6 [mm] 16
    Weight approx. [kg] 0.016
Length total L [mm] 32
Nominal size NG 6
Rope Ø ds [mm] 6
Reference no. 110950
  • Details
    Drahtseilklemme rostfrei SA NG6 5,10-6,00 ER
    Reference no. 110950
    Length total L [mm] 32
    Nominal size NG 6
    Rope Ø ds [mm] 6
    Width total A [mm] 27
    Thread M 6
    Clamping jaw Width A6 [mm] 23
    Clamping jaw Height t6 [mm] 18
    Weight approx. [kg] 0.038
Length total L [mm] 41
Nominal size NG 8
Rope Ø ds [mm] 8
Reference no. 110951
  • Details
    Drahtseilklemme rostfrei SA NG8 6,10-8,00 ER
    Reference no. 110951
    Length total L [mm] 41
    Nominal size NG 8
    Rope Ø ds [mm] 8
    Width total A [mm] 34
    Thread M 8
    Clamping jaw Width A6 [mm] 28
    Clamping jaw Height t6 [mm] 20
    Weight approx. [kg] 0.035
Length total L [mm] 51
Nominal size NG 10
Rope Ø ds [mm] 10
Reference no. 110952
  • Details
    Drahtseilklemme rostfrei SA NG10 8,10-10,00 ER
    Reference no. 110952
    Length total L [mm] 51
    Nominal size NG 10
    Rope Ø ds [mm] 10
    Width total A [mm] 44
    Thread M 10
    Clamping jaw Width A6 [mm] 36
    Clamping jaw Height t6 [mm] 23
    Weight approx. [kg] 0.093
Length total L [mm] 62
Nominal size NG 12
Rope Ø ds [mm] 12
Reference no. 110953
  • Details
    Drahtseilklemme rostfrei SA NG12 10,10-12,00 ER
    Reference no. 110953
    Length total L [mm] 62
    Nominal size NG 12
    Rope Ø ds [mm] 12
    Width total A [mm] 50
    Thread M 12
    Clamping jaw Width A6 [mm] 38
    Clamping jaw Height t6 [mm] 27
    Weight approx. [kg] 0.238
Length total L [mm] 79
Nominal size NG 16
Rope Ø ds [mm] 16
Reference no. 110956
  • Details
    Drahtseilklemme rostfrei SA NG16 14,10-16,00 ER
    Reference no. 110956
    Length total L [mm] 79
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Width total A [mm] 59
    Thread M 14
    Clamping jaw Width A6 [mm] 47
    Clamping jaw Height t6 [mm] 35
    Weight approx. [kg] 0.222
Length total L [mm] 81
Nominal size NG 19
Rope Ø ds [mm] 19
Reference no. 110957
  • Details
    Drahtseilklemme rostfrei SA NG19 16,10-19,00 ER
    Reference no. 110957
    Length total L [mm] 81
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Width total A [mm] 61
    Thread M 14
    Clamping jaw Width A6 [mm] 52
    Clamping jaw Height t6 [mm] 38
    Weight approx. [kg] 0.48
Length total L [mm] 98
Nominal size NG 22
Rope Ø ds [mm] 22
Reference no. 110958
  • Details
    Drahtseilklemme rostfrei SA NG22 19,10-22,00 ER
    Reference no. 110958
    Length total L [mm] 98
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Width total A [mm] 72
    Thread M 16
    Clamping jaw Width A6 [mm] 61
    Clamping jaw Height t6 [mm] 45
    Weight approx. [kg] 0.892
