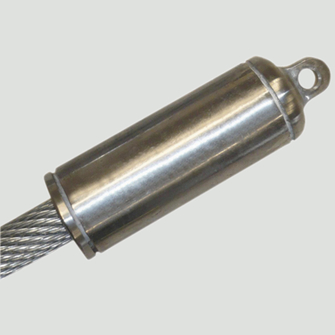

Swaged Sleeve PSH 11A

Swaged Sleeve PSH 11A
The swaged sleeve 11A has been developed and is manufactured in-house. Cold resistant to –45 °C and with a stainless steel construction. It is often used in combination with the pouch socket PSH 22A.
Advantages
  • Temperature-resistant – cold resistant to –45 °C
  • Robust – made of stainless steel
  • Robust – very small reduction in the minimum breaking load (10%)
technical infos

Material

  • Stainless steel (rustproof, cold resistant to –45 °C)

Surface

  • bright

Nominal tensile strength

  • ≤ 2160 N/mm²

Loss factor

  • 0.9

Fill factor f

  • 0,64...0,78

Application area

  • High performance rotation-resistant ropes

Indication

  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

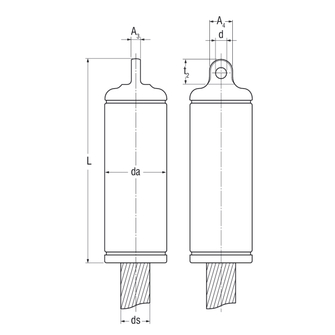

Length total L [mm]
Nominal size NG
Rope Ø ds [mm]
Reference no.
Details
  • 116
    16
    14
    214369
    Schlossklemme PSH 14,00 ER bk
    Reference no. 214369
    Length total L [mm] 116
    Nominal size NG 16
    Rope Ø ds [mm] 14
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 0.66
  • 116
    16
    15
    214372
    Schlossklemme PSH 15,00 ER bk
    Reference no. 214372
    Length total L [mm] 116
    Nominal size NG 16
    Rope Ø ds [mm] 15
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 0.6
  • 116
    16
    16
    214286
    Schlossklemme PSH 16,00 ER bk
    Reference no. 214286
    Length total L [mm] 116
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 0.5
  • 135
    19
    17
    214374
    Schlossklemme PSH 17,00 ER bk
    Reference no. 214374
    Length total L [mm] 135
    Nominal size NG 19
    Rope Ø ds [mm] 17
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 1.2
  • 135
    19
    18
    214377
    Schlossklemme PSH 18,00 ER bk
    Reference no. 214377
    Length total L [mm] 135
    Nominal size NG 19
    Rope Ø ds [mm] 18
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 1.1
  • 135
    19
    19
    214386
    Schlossklemme PSH 19,00 ER bk
    Reference no. 214386
    Length total L [mm] 135
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 1
  • 154
    22
    20
    214388
    Schlossklemme PSH 20,00 ER bk
    Reference no. 214388
    Length total L [mm] 154
    Nominal size NG 22
    Rope Ø ds [mm] 20
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 3
    Weight approx. [kg] 1.6
  • 154
    22
    21
    214398
    Schlossklemme PSH 21,00 ER bk
    Reference no. 214398
    Length total L [mm] 154
    Nominal size NG 22
    Rope Ø ds [mm] 21
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 3
    Weight approx. [kg] 1.5
  • 154
    22
    22
    214400
    Schlossklemme PSH 22,00 ER bk
    Reference no. 214400
    Length total L [mm] 154
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 3
    Weight approx. [kg] 1.4
  • 181
    26
    23
    214409
    Schlossklemme PSH 23,00 ER bk
    Reference no. 214409
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 23
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.6
  • 181
    26
    24
    214408
    Schlossklemme PSH 24,00 ER bk
    Reference no. 214408
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 24
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.6
  • 181
    26
    25
    214405
    Schlossklemme PSH 25,00 ER bk
    Reference no. 214405
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 25
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.5
  • 181
    26
    26
    214148
    Schlossklemme PSH 26,00 ER bk
    Reference no. 214148
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.5
  • 202
    29
    27
    214410
    Schlossklemme PSH 27,00 ER bk
    Reference no. 214410
    Length total L [mm] 202
    Nominal size NG 29
    Rope Ø ds [mm] 27
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 3.6
  • 202
    29
    28
    214128
    Schlossklemme PSH 28,00 ER bk
    Reference no. 214128
    Length total L [mm] 202
    Nominal size NG 29
    Rope Ø ds [mm] 28
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 3.4
  • 202
    29
    29
    213983
    Schlossklemme PSH 29,00 ER bk
    Reference no. 213983
    Length total L [mm] 202
    Nominal size NG 29
    Rope Ø ds [mm] 29
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 3.2
  • 220
    32
    30
    214417
    Schlossklemme PSH 30,00 ER bk
    Reference no. 214417
    Length total L [mm] 220
    Nominal size NG 32
    Rope Ø ds [mm] 30
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 4.9
  • 220
    32
    31
    214413
    Schlossklemme PSH 31,00 ER bk
    Reference no. 214413
    Length total L [mm] 220
    Nominal size NG 32
    Rope Ø ds [mm] 31
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 4.7
  • 220
    32
    32
    212709
    Schlossklemme PSH 32,00 ER bk
    Reference no. 212709
    Length total L [mm] 220
    Nominal size NG 32
    Rope Ø ds [mm] 32
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 4.5
  • 252
    36
    33
    214421
    Schlossklemme PSH 33,00 ER bk
    Reference no. 214421
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 33
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 7.7
  • 252
    36
    34
    214420
    Schlossklemme PSH 34,00 ER bk
    Reference no. 214420
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 34
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 7.4
  • 252
    36
    35
    214419
    Schlossklemme PSH 35,00 ER bk
    Reference no. 214419
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 35
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 7.1
  • 252
    36
    36
    213984
    Schlossklemme PSH 36,00 ER bk
    Reference no. 213984
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 36
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 6.8
  • 280
    40
    37
    229694
    Schlossklemme PSH 37,00 ER bk
    Reference no. 229694
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 37
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 9.3
  • 280
    40
    38
    229695
    Schlossklemme PSH 38,00 ER bk
    Reference no. 229695
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 38
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 9
  • 280
    40
    39
    229696
    Schlossklemme PSH 39,00 ER bk
    Reference no. 229696
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 39
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 8.7
  • 280
    40
    40
    229697
    Schlossklemme PSH 40,00 ER bk
    Reference no. 229697
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 8.4
Length total L [mm] 116
Nominal size NG 16
Rope Ø ds [mm] 14
Reference no. 214369
  • Details
    Schlossklemme PSH 14,00 ER bk
    Reference no. 214369
    Length total L [mm] 116
    Nominal size NG 16
    Rope Ø ds [mm] 14
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 0.66
Length total L [mm] 116
Nominal size NG 16
Rope Ø ds [mm] 15
Reference no. 214372
  • Details
    Schlossklemme PSH 15,00 ER bk
    Reference no. 214372
    Length total L [mm] 116
    Nominal size NG 16
    Rope Ø ds [mm] 15
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 0.6
Length total L [mm] 116
Nominal size NG 16
Rope Ø ds [mm] 16
Reference no. 214286
  • Details
    Schlossklemme PSH 16,00 ER bk
    Reference no. 214286
    Length total L [mm] 116
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 0.5
Length total L [mm] 135
Nominal size NG 19
Rope Ø ds [mm] 17
Reference no. 214374
  • Details
    Schlossklemme PSH 17,00 ER bk
    Reference no. 214374
    Length total L [mm] 135
    Nominal size NG 19
    Rope Ø ds [mm] 17
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 1.2
Length total L [mm] 135
Nominal size NG 19
Rope Ø ds [mm] 18
Reference no. 214377
  • Details
    Schlossklemme PSH 18,00 ER bk
    Reference no. 214377
    Length total L [mm] 135
    Nominal size NG 19
    Rope Ø ds [mm] 18
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 1.1
Length total L [mm] 135
Nominal size NG 19
Rope Ø ds [mm] 19
Reference no. 214386
  • Details
    Schlossklemme PSH 19,00 ER bk
    Reference no. 214386
    Length total L [mm] 135
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 2
    Weight approx. [kg] 1
Length total L [mm] 154
Nominal size NG 22
Rope Ø ds [mm] 20
Reference no. 214388
  • Details
    Schlossklemme PSH 20,00 ER bk
    Reference no. 214388
    Length total L [mm] 154
    Nominal size NG 22
    Rope Ø ds [mm] 20
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 3
    Weight approx. [kg] 1.6
Length total L [mm] 154
Nominal size NG 22
Rope Ø ds [mm] 21
Reference no. 214398
  • Details
    Schlossklemme PSH 21,00 ER bk
    Reference no. 214398
    Length total L [mm] 154
    Nominal size NG 22
    Rope Ø ds [mm] 21
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 3
    Weight approx. [kg] 1.5
Length total L [mm] 154
Nominal size NG 22
Rope Ø ds [mm] 22
Reference no. 214400
  • Details
    Schlossklemme PSH 22,00 ER bk
    Reference no. 214400
    Length total L [mm] 154
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 0.4
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 3
    Weight approx. [kg] 1.4
Length total L [mm] 181
Nominal size NG 26
Rope Ø ds [mm] 23
Reference no. 214409
  • Details
    Schlossklemme PSH 23,00 ER bk
    Reference no. 214409
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 23
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.6
Length total L [mm] 181
Nominal size NG 26
Rope Ø ds [mm] 24
Reference no. 214408
  • Details
    Schlossklemme PSH 24,00 ER bk
    Reference no. 214408
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 24
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.6
Length total L [mm] 181
Nominal size NG 26
Rope Ø ds [mm] 25
Reference no. 214405
  • Details
    Schlossklemme PSH 25,00 ER bk
    Reference no. 214405
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 25
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.5
Length total L [mm] 181
Nominal size NG 26
Rope Ø ds [mm] 26
Reference no. 214148
  • Details
    Schlossklemme PSH 26,00 ER bk
    Reference no. 214148
    Length total L [mm] 181
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 2.5
Length total L [mm] 202
Nominal size NG 29
Rope Ø ds [mm] 27
Reference no. 214410
  • Details
    Schlossklemme PSH 27,00 ER bk
    Reference no. 214410
    Length total L [mm] 202
    Nominal size NG 29
    Rope Ø ds [mm] 27
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 3.6
Length total L [mm] 202
Nominal size NG 29
Rope Ø ds [mm] 28
Reference no. 214128
  • Details
    Schlossklemme PSH 28,00 ER bk
    Reference no. 214128
    Length total L [mm] 202
    Nominal size NG 29
    Rope Ø ds [mm] 28
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 3.4
Length total L [mm] 202
Nominal size NG 29
Rope Ø ds [mm] 29
Reference no. 213983
  • Details
    Schlossklemme PSH 29,00 ER bk
    Reference no. 213983
    Length total L [mm] 202
    Nominal size NG 29
    Rope Ø ds [mm] 29
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 3.2
Length total L [mm] 220
Nominal size NG 32
Rope Ø ds [mm] 30
Reference no. 214417
  • Details
    Schlossklemme PSH 30,00 ER bk
    Reference no. 214417
    Length total L [mm] 220
    Nominal size NG 32
    Rope Ø ds [mm] 30
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 4.9
Length total L [mm] 220
Nominal size NG 32
Rope Ø ds [mm] 31
Reference no. 214413
  • Details
    Schlossklemme PSH 31,00 ER bk
    Reference no. 214413
    Length total L [mm] 220
    Nominal size NG 32
    Rope Ø ds [mm] 31
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 4.7
Length total L [mm] 220
Nominal size NG 32
Rope Ø ds [mm] 32
Reference no. 212709
  • Details
    Schlossklemme PSH 32,00 ER bk
    Reference no. 212709
    Length total L [mm] 220
    Nominal size NG 32
    Rope Ø ds [mm] 32
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.6
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 4.5
Length total L [mm] 252
Nominal size NG 36
Rope Ø ds [mm] 33
Reference no. 214421
  • Details
    Schlossklemme PSH 33,00 ER bk
    Reference no. 214421
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 33
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 7.7
Length total L [mm] 252
Nominal size NG 36
Rope Ø ds [mm] 34
Reference no. 214420
  • Details
    Schlossklemme PSH 34,00 ER bk
    Reference no. 214420
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 34
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 7.4
Length total L [mm] 252
Nominal size NG 36
Rope Ø ds [mm] 35
Reference no. 214419
  • Details
    Schlossklemme PSH 35,00 ER bk
    Reference no. 214419
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 35
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 7.1
Length total L [mm] 252
Nominal size NG 36
Rope Ø ds [mm] 36
Reference no. 213984
  • Details
    Schlossklemme PSH 36,00 ER bk
    Reference no. 213984
    Length total L [mm] 252
    Nominal size NG 36
    Rope Ø ds [mm] 36
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length total Tolerance L Tol [mm] + 4
    Weight approx. [kg] 6.8
Length total L [mm] 280
Nominal size NG 40
Rope Ø ds [mm] 37
Reference no. 229694
  • Details
    Schlossklemme PSH 37,00 ER bk
    Reference no. 229694
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 37
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 9.3
Length total L [mm] 280
Nominal size NG 40
Rope Ø ds [mm] 38
Reference no. 229695
  • Details
    Schlossklemme PSH 38,00 ER bk
    Reference no. 229695
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 38
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 9
Length total L [mm] 280
Nominal size NG 40
Rope Ø ds [mm] 39
Reference no. 229696
  • Details
    Schlossklemme PSH 39,00 ER bk
    Reference no. 229696
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 39
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 8.7
Length total L [mm] 280
Nominal size NG 40
Rope Ø ds [mm] 40
Reference no. 229697
  • Details
    Schlossklemme PSH 40,00 ER bk
    Reference no. 229697
    Length total L [mm] 280
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 20
    Length total Tolerance L Tol [mm] + 5
    Weight approx. [kg] 8.4
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
