Swaged sleeve rotary locked PSH 12A

Swaged sleeve rotary locked PSH 12A

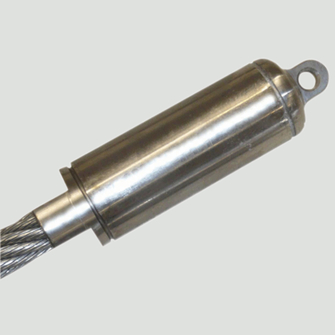

An anti-twist version of the swaged sleeve 12A is available. Cold resistant to –45 °C and with a stainless steel construction. It is often used in combination with the pouch socket PSH 22A.
Advantages
  • Temperature-resistant – cold resistant to –45 °C
  • Robust – made of stainless steel
  • Robust – very small reduction in the minimum breaking load (10%)
  • Safe – anti-twist stop
technical infos

Material

  • Stainless steel (rustproof, cold resistant to –45 °C)

Surface

  • bright

Nominal tensile strength

  • ≤ 2160 N/mm²

Loss factor

  • 0.9

Fill factor f

  • 0,64...0,78

Application area

  • Rotation-resistant and non-rotation-resistant ropes

Indication

  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

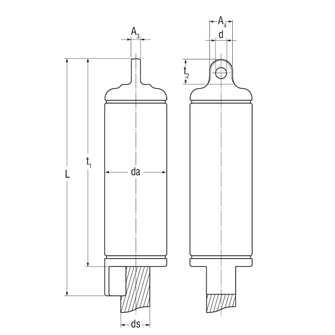

Length total L [mm]
Nominal size NG
Rope Ø ds [mm]
Reference no.
Details
  • 127
    16
    14
    214426
    Schlossklemme PSH VDS 14,00 ER bk
    Reference no. 214426
    Length total L [mm] 127
    Nominal size NG 16
    Rope Ø ds [mm] 14
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 116
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 0.7
  • 127
    16
    15
    214429
    Schlossklemme PSH VDS 15,00 ER bk
    Reference no. 214429
    Length total L [mm] 127
    Nominal size NG 16
    Rope Ø ds [mm] 15
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 116
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 0.7
  • 127
    16
    16
    214290
    Schlossklemme PSH VDS 16,00 ER bk
    Reference no. 214290
    Length total L [mm] 127
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 116
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 0.6
  • 148
    19
    17
    214434
    Schlossklemme PSH VDS 17,00 ER bk
    Reference no. 214434
    Length total L [mm] 148
    Nominal size NG 19
    Rope Ø ds [mm] 17
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 135
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 1.3
  • 148
    19
    18
    214435
    Schlossklemme PSH VDS 18,00 ER bk
    Reference no. 214435
    Length total L [mm] 148
    Nominal size NG 19
    Rope Ø ds [mm] 18
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 135
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 1.2
  • 148
    19
    19
    214437
    Schlossklemme PSH VDS 19,00 ER bk
    Reference no. 214437
    Length total L [mm] 148
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 135
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 1
  • 172
    22
    20
    214439
    Schlossklemme PSH VDS 20,00 ER bk
    Reference no. 214439
    Length total L [mm] 172
    Nominal size NG 22
    Rope Ø ds [mm] 20
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 157
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 1.7
  • 172
    22
    21
    214440
    Schlossklemme PSH VDS 21,00 ER bk
    Reference no. 214440
    Length total L [mm] 172
    Nominal size NG 22
    Rope Ø ds [mm] 21
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 157
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 1.6
  • 172
    22
    22
    214441
    Schlossklemme PSH VDS 22,00 ER bk
    Reference no. 214441
    Length total L [mm] 172
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 157
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 1.6
  • 199
    26
    23
    214446
    Schlossklemme PSH VDS 23,00 ER bk
    Reference no. 214446
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 23
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 2.8
  • 199
    26
    24
    214450
    Schlossklemme PSH VDS 24,00 ER bk
    Reference no. 214450
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 24
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 2.7
  • 199
    26
    25
    214451
    Schlossklemme PSH VDS 25,00 ER bk
    Reference no. 214451
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 25
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 2.6
  • 199
    26
    26
    214156
    Schlossklemme PSH VDS 26,00 ER bk
    Reference no. 214156
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 2.6
  • 222
    29
    27
    214452
    Schlossklemme PSH VDS 27,00 ER bk
    Reference no. 214452
    Length total L [mm] 222
    Nominal size NG 29
    Rope Ø ds [mm] 27
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 1.2
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 202
    Length without rotation lock Tolerance t1 Tol [mm] + 5
    Weight approx. [kg] 3.8
  • 222
    29
    28
    214125
    Schlossklemme PSH VDS 28,00 ER bk
    Reference no. 214125
    Length total L [mm] 222
    Nominal size NG 29
    Rope Ø ds [mm] 28
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 202
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 3.5
  • 222
    29
    29
    213981
    Schlossklemme PSH VDS 29,00 ER bk
    Reference no. 213981
    Length total L [mm] 222
    Nominal size NG 29
    Rope Ø ds [mm] 29
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 202
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 3.3
  • 242
    32
    30
    214453
    Schlossklemme PSH VDS 30,00 ER bk
    Reference no. 214453
    Length total L [mm] 242
    Nominal size NG 32
    Rope Ø ds [mm] 30
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 220
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 5
  • 242
    32
    31
    214461
    Schlossklemme PSH VDS 31,00 ER bk
    Reference no. 214461
    Length total L [mm] 242
    Nominal size NG 32
    Rope Ø ds [mm] 31
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 220
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 4.8
  • 242
    32
    32
    212710
    Schlossklemme PSH VDS 32,00 ER bk
    Reference no. 212710
    Length total L [mm] 242
    Nominal size NG 32
    Rope Ø ds [mm] 32
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 220
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 4.6
  • 276
    36
    33
    214462
    Schlossklemme PSH VDS 33,00 ER bk
    Reference no. 214462
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 33
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 7.7
  • 276
    36
    34
    214463
    Schlossklemme PSH VDS 34,00 ER bk
    Reference no. 214463
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 34
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 7.4
  • 276
    36
    35
    214464
    Schlossklemme PSH VDS 35,00 ER bk
    Reference no. 214464
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 35
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 7.1
  • 276
    36
    36
    213982
    Schlossklemme PSH VDS 36,00 ER bk
    Reference no. 213982
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 36
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 6.8
  • 307
    40
    37
    229698
    Schlossklemme PSH VDS 37,00 ER bk
    Reference no. 229698
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 37
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 9.3
  • 307
    40
    38
    229699
    Schlossklemme PSH VDS 38,00 ER bk
    Reference no. 229699
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 38
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 9
  • 307
    40
    39
    229700
    Schlossklemme PSH VDS 39,00 ER bk
    Reference no. 229700
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 39
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 8.7
  • 307
    40
    40
    229701
    Schlossklemme PSH VDS 40,00 ER bk
    Reference no. 229701
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 8.4
Length total L [mm] 127
Nominal size NG 16
Rope Ø ds [mm] 14
Reference no. 214426
  • Details
    Schlossklemme PSH VDS 14,00 ER bk
    Reference no. 214426
    Length total L [mm] 127
    Nominal size NG 16
    Rope Ø ds [mm] 14
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 116
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 0.7
Length total L [mm] 127
Nominal size NG 16
Rope Ø ds [mm] 15
Reference no. 214429
  • Details
    Schlossklemme PSH VDS 15,00 ER bk
    Reference no. 214429
    Length total L [mm] 127
    Nominal size NG 16
    Rope Ø ds [mm] 15
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 116
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 0.7
Length total L [mm] 127
Nominal size NG 16
Rope Ø ds [mm] 16
Reference no. 214290
  • Details
    Schlossklemme PSH VDS 16,00 ER bk
    Reference no. 214290
    Length total L [mm] 127
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 36
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 116
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 0.6
Length total L [mm] 148
Nominal size NG 19
Rope Ø ds [mm] 17
Reference no. 214434
  • Details
    Schlossklemme PSH VDS 17,00 ER bk
    Reference no. 214434
    Length total L [mm] 148
    Nominal size NG 19
    Rope Ø ds [mm] 17
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 135
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 1.3
Length total L [mm] 148
Nominal size NG 19
Rope Ø ds [mm] 18
Reference no. 214435
  • Details
    Schlossklemme PSH VDS 18,00 ER bk
    Reference no. 214435
    Length total L [mm] 148
    Nominal size NG 19
    Rope Ø ds [mm] 18
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 135
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 1.2
Length total L [mm] 148
Nominal size NG 19
Rope Ø ds [mm] 19
Reference no. 214437
  • Details
    Schlossklemme PSH VDS 19,00 ER bk
    Reference no. 214437
    Length total L [mm] 148
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 24
    Diameter external da [mm] 44
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 135
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 1
Length total L [mm] 172
Nominal size NG 22
Rope Ø ds [mm] 20
Reference no. 214439
  • Details
    Schlossklemme PSH VDS 20,00 ER bk
    Reference no. 214439
    Length total L [mm] 172
    Nominal size NG 22
    Rope Ø ds [mm] 20
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 157
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 1.7
Length total L [mm] 172
Nominal size NG 22
Rope Ø ds [mm] 21
Reference no. 214440
  • Details
    Schlossklemme PSH VDS 21,00 ER bk
    Reference no. 214440
    Length total L [mm] 172
    Nominal size NG 22
    Rope Ø ds [mm] 21
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 157
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 1.6
Length total L [mm] 172
Nominal size NG 22
Rope Ø ds [mm] 22
Reference no. 214441
  • Details
    Schlossklemme PSH VDS 22,00 ER bk
    Reference no. 214441
    Length total L [mm] 172
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 48
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 157
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 1.6
Length total L [mm] 199
Nominal size NG 26
Rope Ø ds [mm] 23
Reference no. 214446
  • Details
    Schlossklemme PSH VDS 23,00 ER bk
    Reference no. 214446
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 23
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 2.8
Length total L [mm] 199
Nominal size NG 26
Rope Ø ds [mm] 24
Reference no. 214450
  • Details
    Schlossklemme PSH VDS 24,00 ER bk
    Reference no. 214450
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 24
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 2.7
Length total L [mm] 199
Nominal size NG 26
Rope Ø ds [mm] 25
Reference no. 214451
  • Details
    Schlossklemme PSH VDS 25,00 ER bk
    Reference no. 214451
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 25
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 2.6
Length total L [mm] 199
Nominal size NG 26
Rope Ø ds [mm] 26
Reference no. 214156
  • Details
    Schlossklemme PSH VDS 26,00 ER bk
    Reference no. 214156
    Length total L [mm] 199
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 26
    Diameter external da [mm] 56
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 181
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 2.6
Length total L [mm] 222
Nominal size NG 29
Rope Ø ds [mm] 27
Reference no. 214452
  • Details
    Schlossklemme PSH VDS 27,00 ER bk
    Reference no. 214452
    Length total L [mm] 222
    Nominal size NG 29
    Rope Ø ds [mm] 27
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 1.2
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 202
    Length without rotation lock Tolerance t1 Tol [mm] + 5
    Weight approx. [kg] 3.8
Length total L [mm] 222
Nominal size NG 29
Rope Ø ds [mm] 28
Reference no. 214125
  • Details
    Schlossklemme PSH VDS 28,00 ER bk
    Reference no. 214125
    Length total L [mm] 222
    Nominal size NG 29
    Rope Ø ds [mm] 28
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 202
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 3.5
Length total L [mm] 222
Nominal size NG 29
Rope Ø ds [mm] 29
Reference no. 213981
  • Details
    Schlossklemme PSH VDS 29,00 ER bk
    Reference no. 213981
    Length total L [mm] 222
    Nominal size NG 29
    Rope Ø ds [mm] 29
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 62
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 202
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 3.3
Length total L [mm] 242
Nominal size NG 32
Rope Ø ds [mm] 30
Reference no. 214453
  • Details
    Schlossklemme PSH VDS 30,00 ER bk
    Reference no. 214453
    Length total L [mm] 242
    Nominal size NG 32
    Rope Ø ds [mm] 30
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 220
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 5
Length total L [mm] 242
Nominal size NG 32
Rope Ø ds [mm] 31
Reference no. 214461
  • Details
    Schlossklemme PSH VDS 31,00 ER bk
    Reference no. 214461
    Length total L [mm] 242
    Nominal size NG 32
    Rope Ø ds [mm] 31
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 220
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 4.8
Length total L [mm] 242
Nominal size NG 32
Rope Ø ds [mm] 32
Reference no. 212710
  • Details
    Schlossklemme PSH VDS 32,00 ER bk
    Reference no. 212710
    Length total L [mm] 242
    Nominal size NG 32
    Rope Ø ds [mm] 32
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 68
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 220
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 4.6
Length total L [mm] 276
Nominal size NG 36
Rope Ø ds [mm] 33
Reference no. 214462
  • Details
    Schlossklemme PSH VDS 33,00 ER bk
    Reference no. 214462
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 33
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 7.7
Length total L [mm] 276
Nominal size NG 36
Rope Ø ds [mm] 34
Reference no. 214463
  • Details
    Schlossklemme PSH VDS 34,00 ER bk
    Reference no. 214463
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 34
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 7.4
Length total L [mm] 276
Nominal size NG 36
Rope Ø ds [mm] 35
Reference no. 214464
  • Details
    Schlossklemme PSH VDS 35,00 ER bk
    Reference no. 214464
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 35
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 7.1
Length total L [mm] 276
Nominal size NG 36
Rope Ø ds [mm] 36
Reference no. 213982
  • Details
    Schlossklemme PSH VDS 36,00 ER bk
    Reference no. 213982
    Length total L [mm] 276
    Nominal size NG 36
    Rope Ø ds [mm] 36
    Eye size A3 [mm] 10
    Eye Width A4 [mm] 24
    Eye Length t2 [mm] 28
    Diameter external da [mm] 78
    Diameter external Tolerance da Tol [mm] + 0.8
    Diameter drilled hole d [mm] 12
    Length without rotation lock t1 [mm] 252
    Length without rotation lock Tolerance t1 Tol [mm] + 3
    Weight approx. [kg] 6.8
Length total L [mm] 307
Nominal size NG 40
Rope Ø ds [mm] 37
Reference no. 229698
  • Details
    Schlossklemme PSH VDS 37,00 ER bk
    Reference no. 229698
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 37
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 9.3
Length total L [mm] 307
Nominal size NG 40
Rope Ø ds [mm] 38
Reference no. 229699
  • Details
    Schlossklemme PSH VDS 38,00 ER bk
    Reference no. 229699
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 38
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 9
Length total L [mm] 307
Nominal size NG 40
Rope Ø ds [mm] 39
Reference no. 229700
  • Details
    Schlossklemme PSH VDS 39,00 ER bk
    Reference no. 229700
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 39
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 8.7
Length total L [mm] 307
Nominal size NG 40
Rope Ø ds [mm] 40
Reference no. 229701
  • Details
    Schlossklemme PSH VDS 40,00 ER bk
    Reference no. 229701
    Length total L [mm] 307
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Eye size A3 [mm] 16
    Eye Width A4 [mm] 40
    Eye Length t2 [mm] 40
    Diameter external da [mm] 86
    Diameter external Tolerance da Tol [mm] + 1
    Diameter drilled hole d [mm] 20
    Length without rotation lock t1 [mm] 280
    Length without rotation lock Tolerance t1 Tol [mm] + 4
    Weight approx. [kg] 8.4
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
