Eyebolt, high-tensile 8.8 / C803

Eyebolt, high-tensile 8.8 / C803
Extremely economic rigid eye bolt for single-leg attachment. Multi-leg attachment not recommended.
Technical data

Quality grade

  • 8

Operating temperature

  • –20 °C to +100 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • rigid

Tilting

  • rigid

Load angle

  • ±45°
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • with fixable eye nut for alignment

Labelling options

  • with individual serial number or labelling
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 400
    M 6
    201658
    ARS RHF-C803-0.4T-M6X1-EL13MM
    Reference no. 201658
    Working load limit [kg] 400

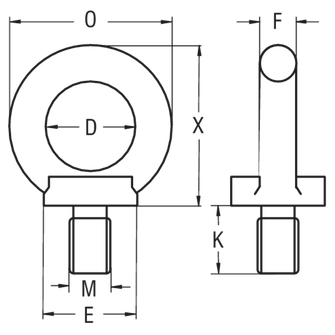

    Thread length K [mm] 13
    Body height X [mm] 45
    Ø of contact surface E 25
    Ring section diameter F 10
    Outer ring Ø O [mm] 45
    Inner ring Ø D [mm] 25
    Weight approx. [kg] 0.09
    Thread diameter metric M M 6
    Working load limit single-leg with cross bar 0° [t] 0.4
    Working load limit 2-leg with cross bar 0° [t] 0.8
    Working load limit 2-leg symmetrical 0°–45° [t] 0.14
    Working load limit 2-leg symmetrical 45°–60° [t] 0.1
  • 800
    M 8
    201659
    ARS RHF-C803-0.8T-M8X1.25-EL13MM
    Reference no. 201659
    Working load limit [kg] 800
    Thread length K [mm] 13
    Body height X [mm] 45
    Ø of contact surface E 25
    Ring section diameter F 10
    Outer ring Ø O [mm] 45
    Inner ring Ø D [mm] 25
    Weight approx. [kg] 0.09
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.8
    Working load limit 2-leg with cross bar 0° [t] 1.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.28
    Working load limit 2-leg symmetrical 45°–60° [t] 0.2
  • 1000
    M 10
    201660
    ARS RHF-C803-1T-M10X1.5-EL17MM
    Reference no. 201660
    Working load limit [kg] 1000
    Thread length K [mm] 17
    Body height X [mm] 45
    Ø of contact surface E 25
    Ring section diameter F 10
    Outer ring Ø O [mm] 45
    Inner ring Ø D [mm] 25
    Weight approx. [kg] 0.11
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 0.35
    Working load limit 2-leg symmetrical 45°–60° [t] 0.25
  • 1600
    M 12
    201661
    ARS RHF-C803-1.6T-M12X1.75-EL21MM
    Reference no. 201661
    Working load limit [kg] 1600
    Thread length K [mm] 21
    Body height X [mm] 62
    Ø of contact surface E 35
    Ring section diameter F 14
    Outer ring Ø O [mm] 63
    Inner ring Ø D [mm] 35
    Weight approx. [kg] 0.27
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1.6
    Working load limit 2-leg with cross bar 0° [t] 3.2
    Working load limit 2-leg symmetrical 0°–45° [t] 0.56
    Working load limit 2-leg symmetrical 45°–60° [t] 0.4
  • 3000
    M 14
    201662
    ARS RHF-C803-3T-M14X2-EL21MM
    Reference no. 201662
    Working load limit [kg] 3000
    Thread length K [mm] 21
    Body height X [mm] 62
    Ø of contact surface E 35
    Ring section diameter F 14
    Outer ring Ø O [mm] 63
    Inner ring Ø D [mm] 35
    Weight approx. [kg] 0.29
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 0° [t] 6
    Working load limit 2-leg symmetrical 0°–45° [t] 1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.75
  • 4000
    M 16
    201663
    ARS RHF-C803-4T-M16X2-EL27MM
    Reference no. 201663
    Working load limit [kg] 4000
    Thread length K [mm] 27
    Body height X [mm] 62
    Ø of contact surface E 35
    Ring section diameter F 14
    Outer ring Ø O [mm] 63
    Inner ring Ø D [mm] 35
    Weight approx. [kg] 0.31
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
  • 5000
    M 18
    201664
    ARS RHF-C803-5T-M18X2.5-EL27MM
    Reference no. 201664
    Working load limit [kg] 5000
    Thread length K [mm] 27
    Body height X [mm] 90
    Ø of contact surface E 50
    Ring section diameter F 20
    Outer ring Ø O [mm] 90
    Inner ring Ø D [mm] 50
    Weight approx. [kg] 0.84
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 1.8
    Working load limit 2-leg symmetrical 45°–60° [t] 1.25
  • 6000
    M 20
    201665
    ARS RHF-C803-6T-M20X2.5-EL30MM
    Reference no. 201665
    Working load limit [kg] 6000
    Thread length K [mm] 30
    Body height X [mm] 90
    Ø of contact surface E 50
    Ring section diameter F 20
    Outer ring Ø O [mm] 90
    Inner ring Ø D [mm] 50
    Weight approx. [kg] 0.86
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 2.1
    Working load limit 2-leg symmetrical 45°–60° [t] 1.5
  • 7000
    M 22
    248593
    ARS RHF-C801-7.0/1.75T-M22X2.5-EL36MM
    Reference no. 248593
    Working load limit [kg] 7000
    Thread length K [mm] 36
    Body height X [mm] 90
    Ø of contact surface E 50
    Ring section diameter F 20
    Outer ring Ø O [mm] 90
    Inner ring Ø D [mm] 50
    Weight approx. [kg] 1
    Thread diameter metric M M 22
    Working load limit single-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 0° [t] 14
    Working load limit 2-leg symmetrical 0°–45° [t] 2.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1.75
  • 8000
    M 24
    201666
    ARS RHF-C803-8T-M24X3-EL36MM
    Reference no. 201666
    Working load limit [kg] 8000
    Thread length K [mm] 36
    Body height X [mm] 90
    Ø of contact surface E 50
    Ring section diameter F 20
    Outer ring Ø O [mm] 90
    Inner ring Ø D [mm] 50
    Weight approx. [kg] 0.9
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
  • 10000
    M 27
    201667
    ARS RHF-C803-10T-M27X3-EL45MM
    Reference no. 201667
    Working load limit [kg] 10000
    Thread length K [mm] 45
    Body height X [mm] 109
    Ø of contact surface E 65
    Ring section diameter F 24
    Outer ring Ø O [mm] 108
    Inner ring Ø D [mm] 60
    Weight approx. [kg] 1.66
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 3.5
    Working load limit 2-leg symmetrical 45°–60° [t] 2.5
  • 12000
    M 30
    201668
    ARS RHF-C803-12T-M30X3.5-EL45MM
    Reference no. 201668
    Working load limit [kg] 12000
    Thread length K [mm] 45
    Body height X [mm] 109
    Ø of contact surface E 65
    Ring section diameter F 24
    Outer ring Ø O [mm] 108
    Inner ring Ø D [mm] 60
    Weight approx. [kg] 1.62
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg symmetrical 0°–45° [t] 4.2
    Working load limit 2-leg symmetrical 45°–60° [t] 3
