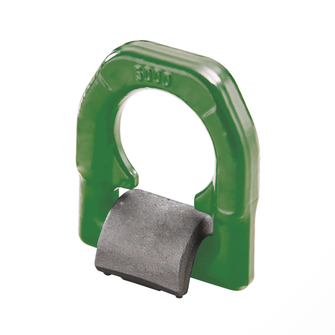

G10 weld-on eye
G10 weld-on eye
Technical data
Quality grade
- 10
Operating temperature
- –40 °C to +200 °C
- reduced carrying capacities outside this range
Standard
- EN 1677-1
Marking
- Batch number
Safety factor
- 4
Rotation
- rigid
Tilting
- 180°
Load angle
- ±90°
Safety
Please note the admissible load angle.
Options
- A selection of the options available on request can be found below. Please contact us for your individual offer!
Labelling options
- with individual serial number or labelling
Product variants
Working load limit [kg]
Reference no.
Details
-
1500255593
AWO AW1 SFA-1.5T
Reference no. 255593 Working load limit [kg] 1500 Overall length L [mm] 79 Body width B 66 Stirrup height C [mm] 14 Ring section diameter F 14 Inner ring Ø D [mm] 38 Base width U [mm] 32 Base height J [mm] 25 Weight approx. [kg] 0.4 Working load limit single-leg with cross bar 0° [t] 1.5 Working load limit single-leg with cross bar 90° [t] 1.5 Working load limit 2-leg with cross bar 0° [t] 3 Working load limit 2-leg with cross bar 90° [t] 3 Working load limit 2-leg symmetrical 0°–45° [t] 2.1 Working load limit 2-leg symmetrical 45°–60° [t] 1.5 Working load limit 2-leg asymmetrical [t] 1.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15 Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25 Working load limit 3 or 4 leg asymmetrical [t] 1.5 -
2500255594
AWO AW1 SFA-2.5T
Reference no. 255594 Working load limit [kg] 2500 Overall length L [mm] 91 Body width B 77 Stirrup height C [mm] 16 Ring section diameter F 16 Inner ring Ø D [mm] 45 Base width U [mm] 36 Base height J [mm] 27 Weight approx. [kg] 0.6 Working load limit single-leg with cross bar 0° [t] 2.5 Working load limit single-leg with cross bar 90° [t] 2.5 Working load limit 2-leg with cross bar 0° [t] 5 Working load limit 2-leg with cross bar 90° [t] 5 Working load limit 2-leg symmetrical 0°–45° [t] 3.5 Working load limit 2-leg symmetrical 45°–60° [t] 2.5 Working load limit 2-leg asymmetrical [t] 2.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 5.25 Working load limit 3/4-leg symmetrical 45°–60° [t] 3.75 Working load limit 3 or 4 leg asymmetrical [t] 2.5 -
4000255595
AWO AW1 SFA-4T
Reference no. 255595 Working load limit [kg] 4000 Overall length L [mm] 102 Body width B 87 Stirrup height C [mm] 18 Ring section diameter F 18 Inner ring Ø D [mm] 51 Base width U [mm] 43 Base height J [mm] 32 Weight approx. [kg] 0.9 Working load limit single-leg with cross bar 0° [t] 4 Working load limit single-leg with cross bar 90° [t] 4 Working load limit 2-leg with cross bar 0° [t] 8 Working load limit 2-leg with cross bar 90° [t] 8 Working load limit 2-leg symmetrical 0°–45° [t] 5.6 Working load limit 2-leg symmetrical 45°–60° [t] 4 Working load limit 2-leg asymmetrical [t] 4 Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4 Working load limit 3/4-leg symmetrical 45°–60° [t] 6 Working load limit 3 or 4 leg asymmetrical [t] 4 -
6700255596
AWO AW1 SFA-6.7T
Reference no. 255596 Working load limit [kg] 6700 Overall length L [mm] 141 Body width B 115 Stirrup height C [mm] 24 Ring section diameter F 24 Inner ring Ø D [mm] 67.3 Base width U [mm] 63.3 Base height J [mm] 44 Weight approx. [kg] 2.3 Working load limit single-leg with cross bar 0° [t] 6.7 Working load limit single-leg with cross bar 90° [t] 6.7 Working load limit 2-leg with cross bar 0° [t] 13.4 Working load limit 2-leg with cross bar 90° [t] 13.4 Working load limit 2-leg symmetrical 0°–45° [t] 9.5 Working load limit 2-leg symmetrical 45°–60° [t] 6.7 Working load limit 2-leg asymmetrical [t] 6.7 Working load limit 3/4-leg symmetrical 0°–45° [t] 14 Working load limit 3/4-leg symmetrical 45°–60° [t] 10 Working load limit 3 or 4 leg asymmetrical [t] 6.7 -
10000255597
AWO AW1 SFA-10T
Reference no. 255597 Working load limit [kg] 10000 Overall length L [mm] 153 Body width B 129 Stirrup height C [mm] 27 Ring section diameter F 27 Inner ring Ø D [mm] 67 Base width U [mm] 75.5 Base height J [mm] 52 Weight approx. [kg] 3.18 Working load limit single-leg with cross bar 0° [t] 10 Working load limit single-leg with cross bar 90° [t] 10 Working load limit 2-leg with cross bar 0° [t] 20 Working load limit 2-leg with cross bar 90° [t] 20 Working load limit 2-leg symmetrical 0°–45° [t] 14 Working load limit 2-leg symmetrical 45°–60° [t] 10 Working load limit 2-leg asymmetrical [t] 10 Working load limit 3/4-leg symmetrical 0°–45° [t] 21 Working load limit 3/4-leg symmetrical 45°–60° [t] 15 Working load limit 3 or 4 leg asymmetrical [t] 10 -
16000255598
AWO AW1 SFA-16T
Reference no. 255598 Working load limit [kg] 16000 Overall length L [mm] 216 Body width B 192 Stirrup height C [mm] 41 Ring section diameter F 41 Inner ring Ø D [mm] 100 Base width U [mm] 94 Base height J [mm] 69 Weight approx. [kg] 6.9 Working load limit single-leg with cross bar 0° [t] 16 Working load limit single-leg with cross bar 90° [t] 16 Working load limit 2-leg with cross bar 0° [t] 32 Working load limit 2-leg with cross bar 90° [t] 32 Working load limit 2-leg symmetrical 0°–45° [t] 22.4 Working load limit 2-leg symmetrical 45°–60° [t] 16 Working load limit 2-leg asymmetrical [t] 16 Working load limit 3/4-leg symmetrical 0°–45° [t] 33.6 Working load limit 3/4-leg symmetrical 45°–60° [t] 24 Working load limit 3 or 4 leg asymmetrical [t] 16
Working load limit [kg]
1500
Reference no.
255593
-
Details
AWO AW1 SFA-1.5T
Reference no. 255593 Working load limit [kg] 1500 Overall length L [mm] 79 Body width B 66 Stirrup height C [mm] 14 Ring section diameter F 14 Inner ring Ø D [mm] 38 Base width U [mm] 32 Base height J [mm] 25 Weight approx. [kg] 0.4 Working load limit single-leg with cross bar 0° [t] 1.5 Working load limit single-leg with cross bar 90° [t] 1.5 Working load limit 2-leg with cross bar 0° [t] 3 Working load limit 2-leg with cross bar 90° [t] 3 Working load limit 2-leg symmetrical 0°–45° [t] 2.1 Working load limit 2-leg symmetrical 45°–60° [t] 1.5 Working load limit 2-leg asymmetrical [t] 1.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 3.15 Working load limit 3/4-leg symmetrical 45°–60° [t] 2.25 Working load limit 3 or 4 leg asymmetrical [t] 1.5
Working load limit [kg]
2500
Reference no.
255594
-
Details
AWO AW1 SFA-2.5T
Reference no. 255594 Working load limit [kg] 2500 Overall length L [mm] 91 Body width B 77 Stirrup height C [mm] 16 Ring section diameter F 16 Inner ring Ø D [mm] 45 Base width U [mm] 36 Base height J [mm] 27 Weight approx. [kg] 0.6 Working load limit single-leg with cross bar 0° [t] 2.5 Working load limit single-leg with cross bar 90° [t] 2.5 Working load limit 2-leg with cross bar 0° [t] 5 Working load limit 2-leg with cross bar 90° [t] 5 Working load limit 2-leg symmetrical 0°–45° [t] 3.5 Working load limit 2-leg symmetrical 45°–60° [t] 2.5 Working load limit 2-leg asymmetrical [t] 2.5 Working load limit 3/4-leg symmetrical 0°–45° [t] 5.25 Working load limit 3/4-leg symmetrical 45°–60° [t] 3.75 Working load limit 3 or 4 leg asymmetrical [t] 2.5
Working load limit [kg]
4000
Reference no.
255595
-
Details
AWO AW1 SFA-4T
Reference no. 255595 Working load limit [kg] 4000 Overall length L [mm] 102 Body width B 87 Stirrup height C [mm] 18 Ring section diameter F 18 Inner ring Ø D [mm] 51 Base width U [mm] 43 Base height J [mm] 32 Weight approx. [kg] 0.9 Working load limit single-leg with cross bar 0° [t] 4 Working load limit single-leg with cross bar 90° [t] 4 Working load limit 2-leg with cross bar 0° [t] 8 Working load limit 2-leg with cross bar 90° [t] 8 Working load limit 2-leg symmetrical 0°–45° [t] 5.6 Working load limit 2-leg symmetrical 45°–60° [t] 4 Working load limit 2-leg asymmetrical [t] 4 Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4 Working load limit 3/4-leg symmetrical 45°–60° [t] 6 Working load limit 3 or 4 leg asymmetrical [t] 4
Working load limit [kg]
6700
Reference no.
255596
-
Details
AWO AW1 SFA-6.7T
Reference no. 255596 Working load limit [kg] 6700 Overall length L [mm] 141 Body width B 115 Stirrup height C [mm] 24 Ring section diameter F 24 Inner ring Ø D [mm] 67.3 Base width U [mm] 63.3 Base height J [mm] 44 Weight approx. [kg] 2.3 Working load limit single-leg with cross bar 0° [t] 6.7 Working load limit single-leg with cross bar 90° [t] 6.7 Working load limit 2-leg with cross bar 0° [t] 13.4 Working load limit 2-leg with cross bar 90° [t] 13.4 Working load limit 2-leg symmetrical 0°–45° [t] 9.5 Working load limit 2-leg symmetrical 45°–60° [t] 6.7 Working load limit 2-leg asymmetrical [t] 6.7 Working load limit 3/4-leg symmetrical 0°–45° [t] 14 Working load limit 3/4-leg symmetrical 45°–60° [t] 10 Working load limit 3 or 4 leg asymmetrical [t] 6.7
Working load limit [kg]
10000
Reference no.
255597
-
Details
AWO AW1 SFA-10T
Reference no. 255597 Working load limit [kg] 10000 Overall length L [mm] 153 Body width B 129 Stirrup height C [mm] 27 Ring section diameter F 27 Inner ring Ø D [mm] 67 Base width U [mm] 75.5 Base height J [mm] 52 Weight approx. [kg] 3.18 Working load limit single-leg with cross bar 0° [t] 10 Working load limit single-leg with cross bar 90° [t] 10 Working load limit 2-leg with cross bar 0° [t] 20 Working load limit 2-leg with cross bar 90° [t] 20 Working load limit 2-leg symmetrical 0°–45° [t] 14 Working load limit 2-leg symmetrical 45°–60° [t] 10 Working load limit 2-leg asymmetrical [t] 10 Working load limit 3/4-leg symmetrical 0°–45° [t] 21 Working load limit 3/4-leg symmetrical 45°–60° [t] 15 Working load limit 3 or 4 leg asymmetrical [t] 10
Working load limit [kg]
16000
Reference no.
255598
-
Details
AWO AW1 SFA-16T
Reference no. 255598 Working load limit [kg] 16000 Overall length L [mm] 216 Body width B 192 Stirrup height C [mm] 41 Ring section diameter F 41 Inner ring Ø D [mm] 100 Base width U [mm] 94 Base height J [mm] 69 Weight approx. [kg] 6.9 Working load limit single-leg with cross bar 0° [t] 16 Working load limit single-leg with cross bar 90° [t] 16 Working load limit 2-leg with cross bar 0° [t] 32 Working load limit 2-leg with cross bar 90° [t] 32 Working load limit 2-leg symmetrical 0°–45° [t] 22.4 Working load limit 2-leg symmetrical 45°–60° [t] 16 Working load limit 2-leg asymmetrical [t] 16 Working load limit 3/4-leg symmetrical 0°–45° [t] 33.6 Working load limit 3/4-leg symmetrical 45°–60° [t] 24 Working load limit 3 or 4 leg asymmetrical [t] 16
