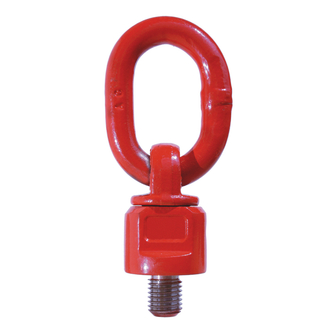

Bolt-on swivel G8 Pro / C800

Bolt-on swivel G8 Pro / C800
High-quality standard bolt-on swivel - also for turning and reversing operations. Intelligent alternative to the conventional eye bolt.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • 360° (under load)

Tilting

  • 180°

Load angle

  • ±110°
Safety

Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • in special designs

Thread options

  • Variable thread lengths
  • with UNC thread and other thread types

Labelling options

  • with RFID chip
  • with individual serial number or labelling
Product variants

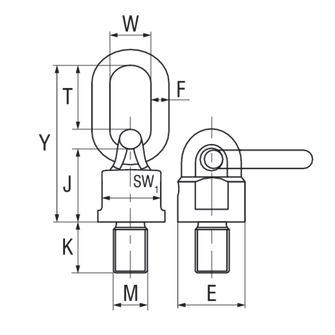

Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 300
    M 8
    281477
    ASW A8P C800-0.3T-M8X1.25-EL18MM
    Reference no. 281477
    Working load limit [kg] 300
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 16
    Tightening torque max [Nm] 10
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.48
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.6
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 1.2
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.4
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.5
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
  • 300
    M 10
    219846
    ASW A8P C800-0.3T-M10X1.5-EL18MM
    Reference no. 219846
    Working load limit [kg] 300
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 16
    Tightening torque max [Nm] 10
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.48
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.6
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 1.2
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.4
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.5
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
  • 500
    M 12
    219847
    ASW A8P C800-0.5T-M12X1.75-EL18MM
    Reference no. 219847
    Working load limit [kg] 500
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 28
    Tightening torque max [Nm] 10
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.5
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.5
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 1
    Working load limit 2-leg symmetrical 0°–45° [t] 0.8
    Working load limit 2-leg symmetrical 45°–60° [t] 0.5
    Working load limit 2-leg asymmetrical [t] 0.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.8
    Working load limit 3 or 4 leg asymmetrical [t] 0.5
  • 1120
    M 16
    219848
    ASW A8P C800-1.12T-M16X2-EL20MM
    Reference no. 219848
    Working load limit [kg] 1120
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 20
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 70
    Tightening torque max [Nm] 30
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.53
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 1.1
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.5
    Working load limit 2-leg symmetrical 45°–60° [t] 1.1
    Working load limit 2-leg asymmetrical [t] 1.1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.6
    Working load limit 3 or 4 leg asymmetrical [t] 1.1
  • 2000
    M 20
    219849
    ASW A8P C800-2T-M20X2.5-EL30MM
    Reference no. 219849
    Working load limit [kg] 2000
    Overall length without thread without stirrup Y [mm] 131
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 40
    Tightening torque MA [Nm] 135
    Tightening torque max [Nm] 70
    Ø of contact surface E 50
    Clear height T [mm] 57
    Clearance W [mm] 34
    Ring section diameter F 16
    Base height J [mm] 61
    Weight approx. [kg] 1.05
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
  • 3150
    M 24
    219850
    ASW A8P C800-3.15T-M24X3-EL30MM
    Reference no. 219850
    Working load limit [kg] 3150
    Overall length without thread without stirrup Y [mm] 153
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 48
    Tightening torque MA [Nm] 230
    Tightening torque max [Nm] 150
    Ø of contact surface E 58
    Clear height T [mm] 70
    Clearance W [mm] 40
    Ring section diameter F 18
    Base height J [mm] 68
    Weight approx. [kg] 1.63
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 6.3
    Working load limit single-leg with cross bar 90° [t] 3.2
    Working load limit 2-leg with cross bar 0° [t] 12.5
    Working load limit 2-leg with cross bar 90° [t] 6.3
    Working load limit 2-leg symmetrical 0°–45° [t] 4.3
    Working load limit 2-leg symmetrical 45°–60° [t] 3.2
    Working load limit 2-leg asymmetrical [t] 3.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8
    Working load limit 3 or 4 leg asymmetrical [t] 3.2
  • 5300
    M 30
    219851
    ASW A8P C800-5.3T-M30X3.5-EL35MM
    Reference no. 219851
    Working load limit [kg] 5300
    Overall length without thread without stirrup Y [mm] 165
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 65
    Tightening torque MA [Nm] 465
    Tightening torque max [Nm] 225
    Ø of contact surface E 75
    Clear height T [mm] 65
    Clearance W [mm] 45
    Ring section diameter F 22
    Base height J [mm] 80
    Weight approx. [kg] 3.02
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 10.6
    Working load limit single-leg with cross bar 90° [t] 5.3
    Working load limit 2-leg with cross bar 0° [t] 21.2
    Working load limit 2-leg with cross bar 90° [t] 10.6
    Working load limit 2-leg symmetrical 0°–45° [t] 7.1
    Working load limit 2-leg symmetrical 45°–60° [t] 5.3
    Working load limit 2-leg asymmetrical [t] 5.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8
    Working load limit 3 or 4 leg asymmetrical [t] 5.3
  • 8000
    M 30
    370084
    ASW A8P C800-8T-M30X3.5-EL35MM
    Reference no. 370084
    Working load limit [kg] 8000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 78
    Tightening torque max [Nm] 225
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 49
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 5.3
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12.5
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 25
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
  • 8000
    M 36
    238035
    ASW A8P C800-8T-M36X4-EL54MM
    Reference no. 238035
    Working load limit [kg] 8000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 54
    Outer wrench size AF1 [mm] 75
    Tightening torque MA [Nm] 465
    Tightening torque max [Nm] 410
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 50
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 5.5
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 12.5
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 25
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
  • 10000
    M 36
    370086
    ASW A8P C800-10T-M36X4-EL50MM
    Reference no. 370086
    Working load limit [kg] 10000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 50
    Outer wrench size AF1 [mm] 75
    Tightening torque max [Nm] 550
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 49
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 4.64
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
  • 10000
    M 42
    219856
    ASW A8P C800-10T-M42X4.5-EL63MM
    Reference no. 219856
    Working load limit [kg] 10000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 63
    Outer wrench size AF1 [mm] 75
    Tightening torque MA [Nm] 1304
    Tightening torque max [Nm] 550
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 50
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 4.8
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
  • 15000
    M 45
    285365
    ASW A8P C800-15T-M45X4.5-EL60MM
    Reference no. 285365
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 550
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
  • 15000
    M 48
    262478
    ASW A8P C800-15T-M48X5-EL60MM
    Reference no. 262478
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 550
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
  • 15000
    M 56
    219857
    ASW A8P C800-15T-M56X5.5-EL78MM
    Reference no. 219857
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 78
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 800
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 56
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
  • 15000
    M 64
    262479
    ASW A8P C800-15T-M64X6-EL96MM
    Reference no. 262479
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 96
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 800
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
  • 20000
    M 64
    281479
    ASW A8P C800-20T-M64X6-EL110MM
    Reference no. 281479
    Working load limit [kg] 20000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 110
    Outer wrench size AF1 [mm] 95
    Tightening torque max [Nm] 800
    Ø of contact surface E 130
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 12
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 42.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
  • 25000
    M 72
    262481
    ASW A8P C800-25T-M72X6-EL108MM
    Reference no. 262481
    Working load limit [kg] 25000
    Overall length without thread without stirrup Y [mm] 338
    Thread length K [mm] 108
    Outer wrench size AF1 [mm] 134
    Tightening torque MA [Nm] 6913
    Tightening torque max [Nm] 1200
    Ø of contact surface E 170
    Clear height T [mm] 130
    Clearance W [mm] 90
    Ring section diameter F 45
    Base height J [mm] 165
    Weight approx. [kg] 29
    Thread diameter metric M M 72
    Working load limit single-leg with cross bar 0° [t] 35
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 70
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
  • 30000
    M 80
    283929
    ASW A8P C800-30T-M80X6-EL120MM
    Reference no. 283929
    Working load limit [kg] 30000
    Overall length without thread without stirrup Y [mm] 338
    Thread length K [mm] 120
    Outer wrench size AF1 [mm] 137
    Tightening torque MA [Nm] 9625
    Tightening torque max [Nm] 1500
    Ø of contact surface E 170
    Clear height T [mm] 130
    Clearance W [mm] 90
    Ring section diameter F 45
    Base height J [mm] 165
    Weight approx. [kg] 29
    Thread diameter metric M M 80
    Working load limit single-leg with cross bar 0° [t] 35
    Working load limit single-leg with cross bar 90° [t] 30
    Working load limit 2-leg with cross bar 0° [t] 70
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 42
    Working load limit 2-leg symmetrical 45°–60° [t] 30
    Working load limit 2-leg asymmetrical [t] 30
    Working load limit 3/4-leg symmetrical 0°–45° [t] 63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 45
    Working load limit 3 or 4 leg asymmetrical [t] 30
  • 35000
    M 90
    262480
    ASW A8P C800-35T-M90X6-EL135MM
    Reference no. 262480
    Working load limit [kg] 35000
    Overall length without thread without stirrup Y [mm] 338
    Thread length K [mm] 135
    Outer wrench size AF1 [mm] 137
    Tightening torque MA [Nm] 14000
    Tightening torque max [Nm] 2000
    Ø of contact surface E 170
    Clear height T [mm] 130
    Clearance W [mm] 90
    Ring section diameter F 45
    Base height J [mm] 165
    Weight approx. [kg] 29
    Thread diameter metric M M 90
    Working load limit single-leg with cross bar 0° [t] 35
    Working load limit single-leg with cross bar 90° [t] 35
    Working load limit 2-leg with cross bar 0° [t] 70
    Working load limit 2-leg with cross bar 90° [t] 70
    Working load limit 2-leg symmetrical 0°–45° [t] 49
    Working load limit 2-leg symmetrical 45°–60° [t] 35
    Working load limit 2-leg asymmetrical [t] 35
    Working load limit 3/4-leg symmetrical 0°–45° [t] 73.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 52.5
    Working load limit 3 or 4 leg asymmetrical [t] 35
Working load limit [kg] 300
Thread diameter metric M M 8
Reference no. 281477
  • Details
    ASW A8P C800-0.3T-M8X1.25-EL18MM
    Reference no. 281477
    Working load limit [kg] 300
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 16
    Tightening torque max [Nm] 10
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.48
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.6
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 1.2
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.4
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.5
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
Working load limit [kg] 300
Thread diameter metric M M 10
Reference no. 219846
  • Details
    ASW A8P C800-0.3T-M10X1.5-EL18MM
    Reference no. 219846
    Working load limit [kg] 300
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 16
    Tightening torque max [Nm] 10
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.48
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.6
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 1.2
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.4
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.5
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
Working load limit [kg] 500
Thread diameter metric M M 12
Reference no. 219847
  • Details
    ASW A8P C800-0.5T-M12X1.75-EL18MM
    Reference no. 219847
    Working load limit [kg] 500
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 28
    Tightening torque max [Nm] 10
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.5
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.5
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 1
    Working load limit 2-leg symmetrical 0°–45° [t] 0.8
    Working load limit 2-leg symmetrical 45°–60° [t] 0.5
    Working load limit 2-leg asymmetrical [t] 0.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.8
    Working load limit 3 or 4 leg asymmetrical [t] 0.5
Working load limit [kg] 1120
Thread diameter metric M M 16
Reference no. 219848
  • Details
    ASW A8P C800-1.12T-M16X2-EL20MM
    Reference no. 219848
    Working load limit [kg] 1120
    Overall length without thread without stirrup Y [mm] 105
    Thread length K [mm] 20
    Outer wrench size AF1 [mm] 30
    Tightening torque MA [Nm] 70
    Tightening torque max [Nm] 30
    Ø of contact surface E 38
    Clear height T [mm] 46
    Clearance W [mm] 30
    Ring section diameter F 13
    Base height J [mm] 50
    Weight approx. [kg] 0.53
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 1.1
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.5
    Working load limit 2-leg symmetrical 45°–60° [t] 1.1
    Working load limit 2-leg asymmetrical [t] 1.1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.6
    Working load limit 3 or 4 leg asymmetrical [t] 1.1
Working load limit [kg] 2000
Thread diameter metric M M 20
Reference no. 219849
  • Details
    ASW A8P C800-2T-M20X2.5-EL30MM
    Reference no. 219849
    Working load limit [kg] 2000
    Overall length without thread without stirrup Y [mm] 131
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 40
    Tightening torque MA [Nm] 135
    Tightening torque max [Nm] 70
    Ø of contact surface E 50
    Clear height T [mm] 57
    Clearance W [mm] 34
    Ring section diameter F 16
    Base height J [mm] 61
    Weight approx. [kg] 1.05
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
Working load limit [kg] 3150
Thread diameter metric M M 24
Reference no. 219850
  • Details
    ASW A8P C800-3.15T-M24X3-EL30MM
    Reference no. 219850
    Working load limit [kg] 3150
    Overall length without thread without stirrup Y [mm] 153
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 48
    Tightening torque MA [Nm] 230
    Tightening torque max [Nm] 150
    Ø of contact surface E 58
    Clear height T [mm] 70
    Clearance W [mm] 40
    Ring section diameter F 18
    Base height J [mm] 68
    Weight approx. [kg] 1.63
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 6.3
    Working load limit single-leg with cross bar 90° [t] 3.2
    Working load limit 2-leg with cross bar 0° [t] 12.5
    Working load limit 2-leg with cross bar 90° [t] 6.3
    Working load limit 2-leg symmetrical 0°–45° [t] 4.3
    Working load limit 2-leg symmetrical 45°–60° [t] 3.2
    Working load limit 2-leg asymmetrical [t] 3.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.8
    Working load limit 3 or 4 leg asymmetrical [t] 3.2
Working load limit [kg] 5300
Thread diameter metric M M 30
Reference no. 219851
  • Details
    ASW A8P C800-5.3T-M30X3.5-EL35MM
    Reference no. 219851
    Working load limit [kg] 5300
    Overall length without thread without stirrup Y [mm] 165
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 65
    Tightening torque MA [Nm] 465
    Tightening torque max [Nm] 225
    Ø of contact surface E 75
    Clear height T [mm] 65
    Clearance W [mm] 45
    Ring section diameter F 22
    Base height J [mm] 80
    Weight approx. [kg] 3.02
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 10.6
    Working load limit single-leg with cross bar 90° [t] 5.3
    Working load limit 2-leg with cross bar 0° [t] 21.2
    Working load limit 2-leg with cross bar 90° [t] 10.6
    Working load limit 2-leg symmetrical 0°–45° [t] 7.1
    Working load limit 2-leg symmetrical 45°–60° [t] 5.3
    Working load limit 2-leg asymmetrical [t] 5.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8
    Working load limit 3 or 4 leg asymmetrical [t] 5.3
Working load limit [kg] 8000
Thread diameter metric M M 30
Reference no. 370084
  • Details
    ASW A8P C800-8T-M30X3.5-EL35MM
    Reference no. 370084
    Working load limit [kg] 8000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 78
    Tightening torque max [Nm] 225
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 49
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 5.3
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12.5
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 25
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 8000
Thread diameter metric M M 36
Reference no. 238035
  • Details
    ASW A8P C800-8T-M36X4-EL54MM
    Reference no. 238035
    Working load limit [kg] 8000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 54
    Outer wrench size AF1 [mm] 75
    Tightening torque MA [Nm] 465
    Tightening torque max [Nm] 410
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 50
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 5.5
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 12.5
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 25
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 10000
Thread diameter metric M M 36
Reference no. 370086
  • Details
    ASW A8P C800-10T-M36X4-EL50MM
    Reference no. 370086
    Working load limit [kg] 10000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 50
    Outer wrench size AF1 [mm] 75
    Tightening torque max [Nm] 550
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 49
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 4.64
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
Working load limit [kg] 10000
Thread diameter metric M M 42
Reference no. 219856
  • Details
    ASW A8P C800-10T-M42X4.5-EL63MM
    Reference no. 219856
    Working load limit [kg] 10000
    Overall length without thread without stirrup Y [mm] 205
    Thread length K [mm] 63
    Outer wrench size AF1 [mm] 75
    Tightening torque MA [Nm] 1304
    Tightening torque max [Nm] 550
    Ø of contact surface E 85
    Clear height T [mm] 95
    Clearance W [mm] 50
    Ring section diameter F 23
    Base height J [mm] 95
    Weight approx. [kg] 4.8
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
Working load limit [kg] 15000
Thread diameter metric M M 45
Reference no. 285365
  • Details
    ASW A8P C800-15T-M45X4.5-EL60MM
    Reference no. 285365
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 550
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg] 15000
Thread diameter metric M M 48
Reference no. 262478
  • Details
    ASW A8P C800-15T-M48X5-EL60MM
    Reference no. 262478
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 550
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg] 15000
Thread diameter metric M M 56
Reference no. 219857
  • Details
    ASW A8P C800-15T-M56X5.5-EL78MM
    Reference no. 219857
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 78
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 800
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 56
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg] 15000
Thread diameter metric M M 64
Reference no. 262479
  • Details
    ASW A8P C800-15T-M64X6-EL96MM
    Reference no. 262479
    Working load limit [kg] 15000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 96
    Outer wrench size AF1 [mm] 95
    Tightening torque MA [Nm] 1981
    Tightening torque max [Nm] 800
    Ø of contact surface E 120
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 10
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5
    Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg] 20000
Thread diameter metric M M 64
Reference no. 281479
  • Details
    ASW A8P C800-20T-M64X6-EL110MM
    Reference no. 281479
    Working load limit [kg] 20000
    Overall length without thread without stirrup Y [mm] 280
    Thread length K [mm] 110
    Outer wrench size AF1 [mm] 95
    Tightening torque max [Nm] 800
    Ø of contact surface E 130
    Clear height T [mm] 120
    Clearance W [mm] 70
    Ring section diameter F 32
    Base height J [mm] 130
    Weight approx. [kg] 12
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 42.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
Working load limit [kg] 25000
Thread diameter metric M M 72
Reference no. 262481
  • Details
    ASW A8P C800-25T-M72X6-EL108MM
    Reference no. 262481
    Working load limit [kg] 25000
    Overall length without thread without stirrup Y [mm] 338
    Thread length K [mm] 108
    Outer wrench size AF1 [mm] 134
    Tightening torque MA [Nm] 6913
    Tightening torque max [Nm] 1200
    Ø of contact surface E 170
    Clear height T [mm] 130
    Clearance W [mm] 90
    Ring section diameter F 45
    Base height J [mm] 165
    Weight approx. [kg] 29
    Thread diameter metric M M 72
    Working load limit single-leg with cross bar 0° [t] 35
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 70
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
Working load limit [kg] 30000
Thread diameter metric M M 80
Reference no. 283929
  • Details
    ASW A8P C800-30T-M80X6-EL120MM
    Reference no. 283929
    Working load limit [kg] 30000
    Overall length without thread without stirrup Y [mm] 338
    Thread length K [mm] 120
    Outer wrench size AF1 [mm] 137
    Tightening torque MA [Nm] 9625
    Tightening torque max [Nm] 1500
    Ø of contact surface E 170
    Clear height T [mm] 130
    Clearance W [mm] 90
    Ring section diameter F 45
    Base height J [mm] 165
    Weight approx. [kg] 29
    Thread diameter metric M M 80
    Working load limit single-leg with cross bar 0° [t] 35
    Working load limit single-leg with cross bar 90° [t] 30
    Working load limit 2-leg with cross bar 0° [t] 70
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 42
    Working load limit 2-leg symmetrical 45°–60° [t] 30
    Working load limit 2-leg asymmetrical [t] 30
    Working load limit 3/4-leg symmetrical 0°–45° [t] 63
    Working load limit 3/4-leg symmetrical 45°–60° [t] 45
    Working load limit 3 or 4 leg asymmetrical [t] 30
Working load limit [kg] 35000
Thread diameter metric M M 90
Reference no. 262480
  • Details
    ASW A8P C800-35T-M90X6-EL135MM
    Reference no. 262480
    Working load limit [kg] 35000
    Overall length without thread without stirrup Y [mm] 338
    Thread length K [mm] 135
    Outer wrench size AF1 [mm] 137
    Tightening torque MA [Nm] 14000
    Tightening torque max [Nm] 2000
    Ø of contact surface E 170
    Clear height T [mm] 130
    Clearance W [mm] 90
    Ring section diameter F 45
    Base height J [mm] 165
    Weight approx. [kg] 29
    Thread diameter metric M M 90
    Working load limit single-leg with cross bar 0° [t] 35
    Working load limit single-leg with cross bar 90° [t] 35
    Working load limit 2-leg with cross bar 0° [t] 70
    Working load limit 2-leg with cross bar 90° [t] 70
    Working load limit 2-leg symmetrical 0°–45° [t] 49
    Working load limit 2-leg symmetrical 45°–60° [t] 35
    Working load limit 2-leg asymmetrical [t] 35
    Working load limit 3/4-leg symmetrical 0°–45° [t] 73.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 52.5
    Working load limit 3 or 4 leg asymmetrical [t] 35
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
