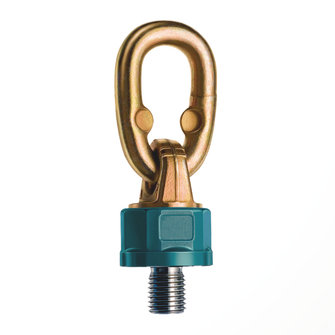

Bolt-on swivel AP3+ / TP

Bolt-on swivel AP3+ / TP

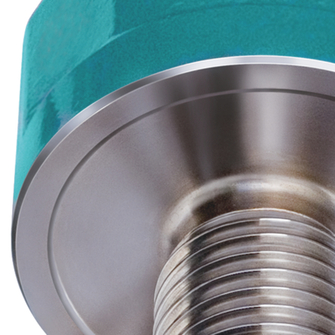

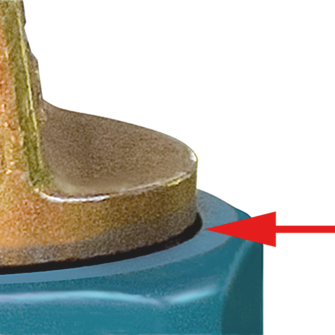

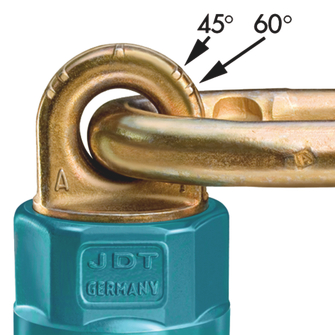

High standard bolt-on swivel with optimised contact surface, angle indicator (45° and 60°) and crimp marks on the load ring to prevent kinking of the load ring. Intelligent alternative to the conventional eye bolt.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • 360° (under load)

Tilting

  • 180°
Safety

Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • in special designs
  • in weldable design up to 32.5 t

Thread options

  • with internal thread up to 15 t
  • Variable thread lengths
  • with UNC thread and other thread types

Labelling options

  • with RFID chip
  • with individual serial number or labelling
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 500
    M 10
    222669
    ASW AP3 TP-0.5T-M10X1.5-EL18MM
    Reference no. 222669
    Working load limit [kg] 500

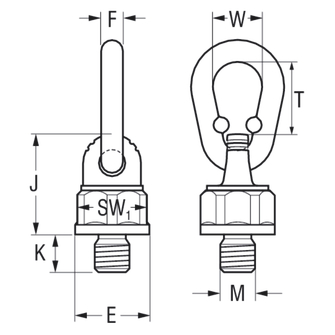

    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 10
    Tightening torque max [Nm] 40
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.43
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.5
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 1
    Working load limit 2-leg symmetrical 0°–45° [t] 0.7
    Working load limit 2-leg symmetrical 45°–60° [t] 0.5
    Working load limit 2-leg asymmetrical [t] 0.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.8
    Working load limit 3 or 4 leg asymmetrical [t] 0.5
  • 700
    M 12
    217109
    ASW AP3 TP-0.7T-M12X1.75-EL18MM
    Reference no. 217109
    Working load limit [kg] 700
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 15
    Tightening torque max [Nm] 40
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.43
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1.4
    Working load limit single-leg with cross bar 90° [t] 0.7
    Working load limit 2-leg with cross bar 0° [t] 2.8
    Working load limit 2-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg symmetrical 0°–45° [t] 1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.7
    Working load limit 2-leg asymmetrical [t] 0.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 0.7
  • 1000
    M 14
    237260
    ASW AP3 TP-1T-M14X2-EL20MM
    Reference no. 237260
    Working load limit [kg] 1000
    Thread length K [mm] 20
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 30
    Tightening torque max [Nm] 40
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.43
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 1
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.5
    Working load limit 3 or 4 leg asymmetrical [t] 1
  • 1400
    M 16
    217110
    ASW AP3 TP-1.4T-M16X2-EL20MM
    Reference no. 217110
    Working load limit [kg] 1400
    Thread length K [mm] 20
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 45
    Tightening torque max [Nm] 130
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.44
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 2
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.1
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
  • 2500
    M 20
    217111
    ASW AP3 TP-2.5T-M20X2.5-EL30MM
    Reference no. 217111
    Working load limit [kg] 2500
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 46
    Tightening torque min [Nm] 100
    Tightening torque max [Nm] 170
    Ø of contact surface E 52
    Clear height T [mm] 70
    Clearance W [mm] 34
    Ring section diameter F 16
    Base height J [mm] 67
    Weight approx. [kg] 0.98
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 2.5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 5
    Working load limit 2-leg symmetrical 0°–45° [t] 3.6
    Working load limit 2-leg symmetrical 45°–60° [t] 2.5
    Working load limit 2-leg asymmetrical [t] 2.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.8
    Working load limit 3 or 4 leg asymmetrical [t] 2.5
  • 4000
    M 24
    217112
    ASW AP3 TP-4T-M24X3-EL30MM
    Reference no. 217112
    Working load limit [kg] 4000
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 50
    Tightening torque min [Nm] 190
    Tightening torque max [Nm] 280
    Ø of contact surface E 57
    Clear height T [mm] 85
    Clearance W [mm] 45
    Ring section diameter F 18
    Base height J [mm] 75
    Weight approx. [kg] 1.43
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
  • 6700
    M 30
    217114
    ASW AP3 TP-6.7T-M30X3.5-EL35MM
    Reference no. 217114
    Working load limit [kg] 6700
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 65
    Tightening torque min [Nm] 230
    Tightening torque max [Nm] 400
    Ø of contact surface E 70
    Clear height T [mm] 85
    Clearance W [mm] 45
    Ring section diameter F 20
    Base height J [mm] 94.5
    Weight approx. [kg] 2.33
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 6.7
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 13.4
    Working load limit 2-leg symmetrical 0°–45° [t] 9.5
    Working load limit 2-leg symmetrical 45°–60° [t] 6.7
    Working load limit 2-leg asymmetrical [t] 6.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10
    Working load limit 3 or 4 leg asymmetrical [t] 6.7
  • 8000
    M 30
    237261
    ASW AP3 TP-8T-M30X3.5-EL35MM
    Reference no. 237261
    Working load limit [kg] 8000
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 600
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 3.59
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
  • 10000
    M 36
    237262
    ASW AP3 TP-10T-M36X4-EL50MM
    Reference no. 237262
    Working load limit [kg] 10000
    Thread length K [mm] 50
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 600
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 3.72
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
  • 12500
    M 42
    230259
    ASW AP3 TP-12.5T-M42X4.5-EL60MM
    Reference no. 230259
    Working load limit [kg] 12500
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 3.91
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 25
    Working load limit 2-leg symmetrical 0°–45° [t] 17
    Working load limit 2-leg symmetrical 45°–60° [t] 12.5
    Working load limit 2-leg asymmetrical [t] 12.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12.5
  • 12500
    M 45
    237263
    ASW AP3 TP-12.5T-M45X4.5-EL60MM
    Reference no. 237263
    Working load limit [kg] 12500
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 4.03
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 25
    Working load limit 2-leg symmetrical 0°–45° [t] 17
    Working load limit 2-leg symmetrical 45°–60° [t] 12.5
    Working load limit 2-leg asymmetrical [t] 12.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12.5
  • 12500
    M 48
    237264
    ASW AP3 TP-12.5T-M48X5-EL72MM
    Reference no. 237264
    Working load limit [kg] 12500
    Thread length K [mm] 72
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 4.35
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 25
    Working load limit 2-leg symmetrical 0°–45° [t] 17
    Working load limit 2-leg symmetrical 45°–60° [t] 12.5
    Working load limit 2-leg asymmetrical [t] 12.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12.5
  • 13000
    M 42
    237265
    ASW AP3 TP-13T-M42X4.5-EL60MM
    Reference no. 237265
    Working load limit [kg] 13000
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 7.52
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 13
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 26
    Working load limit 2-leg symmetrical 0°–45° [t] 18
    Working load limit 2-leg symmetrical 45°–60° [t] 13
    Working load limit 2-leg asymmetrical [t] 13
    Working load limit 3/4-leg symmetrical 0°–45° [t] 27
    Working load limit 3/4-leg symmetrical 45°–60° [t] 19
    Working load limit 3 or 4 leg asymmetrical [t] 13
  • 17000
    M 45
    237266
    ASW AP3 TP-17T-M45X4.5-EL60MM
    Reference no. 237266
    Working load limit [kg] 17000
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 800
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 7.5
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 17
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 34
    Working load limit 2-leg symmetrical 0°–45° [t] 23.5
    Working load limit 2-leg symmetrical 45°–60° [t] 17
    Working load limit 2-leg asymmetrical [t] 17
    Working load limit 3/4-leg symmetrical 0°–45° [t] 35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 25
    Working load limit 3 or 4 leg asymmetrical [t] 17
  • 17000
    M 48
    233867
    ASW AP3 TP-17T-M48X5-EL60MM
    Reference no. 233867
    Working load limit [kg] 17000
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 800
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 7.57
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 17
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 34
    Working load limit 2-leg symmetrical 0°–45° [t] 23.5
    Working load limit 2-leg symmetrical 45°–60° [t] 17
    Working load limit 2-leg asymmetrical [t] 17
    Working load limit 3/4-leg symmetrical 0°–45° [t] 35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 25
    Working load limit 3 or 4 leg asymmetrical [t] 17
  • 18000
    M 56
    237267
    ASW AP3 TP-18T-M56X5.5-EL78MM
    Reference no. 237267
    Working load limit [kg] 18000
    Thread length K [mm] 78
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 900
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 8.26
    Thread diameter metric M M 56
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 18
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 36
    Working load limit 2-leg symmetrical 0°–45° [t] 25
    Working load limit 2-leg symmetrical 45°–60° [t] 18
    Working load limit 2-leg asymmetrical [t] 18
    Working load limit 3/4-leg symmetrical 0°–45° [t] 37.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 26.5
    Working load limit 3 or 4 leg asymmetrical [t] 18
  • 20000
    M 64
    237268
    ASW AP3 TP-20T-M64X6-EL96MM
    Reference no. 237268
    Working load limit [kg] 20000
    Thread length K [mm] 96
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 900
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 9.08
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 40
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
Working load limit [kg] 500
Thread diameter metric M M 10
Reference no. 222669
  • Details
    ASW AP3 TP-0.5T-M10X1.5-EL18MM
    Reference no. 222669
    Working load limit [kg] 500
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 10
    Tightening torque max [Nm] 40
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.43
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1
    Working load limit single-leg with cross bar 90° [t] 0.5
    Working load limit 2-leg with cross bar 0° [t] 2
    Working load limit 2-leg with cross bar 90° [t] 1
    Working load limit 2-leg symmetrical 0°–45° [t] 0.7
    Working load limit 2-leg symmetrical 45°–60° [t] 0.5
    Working load limit 2-leg asymmetrical [t] 0.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.8
    Working load limit 3 or 4 leg asymmetrical [t] 0.5
Working load limit [kg] 700
Thread diameter metric M M 12
Reference no. 217109
  • Details
    ASW AP3 TP-0.7T-M12X1.75-EL18MM
    Reference no. 217109
    Working load limit [kg] 700
    Thread length K [mm] 18
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 15
    Tightening torque max [Nm] 40
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.43
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1.4
    Working load limit single-leg with cross bar 90° [t] 0.7
    Working load limit 2-leg with cross bar 0° [t] 2.8
    Working load limit 2-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg symmetrical 0°–45° [t] 1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.7
    Working load limit 2-leg asymmetrical [t] 0.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 0.7
Working load limit [kg] 1000
Thread diameter metric M M 14
Reference no. 237260
  • Details
    ASW AP3 TP-1T-M14X2-EL20MM
    Reference no. 237260
    Working load limit [kg] 1000
    Thread length K [mm] 20
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 30
    Tightening torque max [Nm] 40
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.43
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 1
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.5
    Working load limit 3 or 4 leg asymmetrical [t] 1
Working load limit [kg] 1400
Thread diameter metric M M 16
Reference no. 217110
  • Details
    ASW AP3 TP-1.4T-M16X2-EL20MM
    Reference no. 217110
    Working load limit [kg] 1400
    Thread length K [mm] 20
    Outer wrench size AF1 [mm] 34
    Tightening torque min [Nm] 45
    Tightening torque max [Nm] 130
    Ø of contact surface E 36.5
    Clear height T [mm] 55
    Clearance W [mm] 32
    Ring section diameter F 13
    Base height J [mm] 48
    Weight approx. [kg] 0.44
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 2
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.1
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
Working load limit [kg] 2500
Thread diameter metric M M 20
Reference no. 217111
  • Details
    ASW AP3 TP-2.5T-M20X2.5-EL30MM
    Reference no. 217111
    Working load limit [kg] 2500
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 46
    Tightening torque min [Nm] 100
    Tightening torque max [Nm] 170
    Ø of contact surface E 52
    Clear height T [mm] 70
    Clearance W [mm] 34
    Ring section diameter F 16
    Base height J [mm] 67
    Weight approx. [kg] 0.98
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 2.5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 5
    Working load limit 2-leg symmetrical 0°–45° [t] 3.6
    Working load limit 2-leg symmetrical 45°–60° [t] 2.5
    Working load limit 2-leg asymmetrical [t] 2.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.8
    Working load limit 3 or 4 leg asymmetrical [t] 2.5
Working load limit [kg] 4000
Thread diameter metric M M 24
Reference no. 217112
  • Details
    ASW AP3 TP-4T-M24X3-EL30MM
    Reference no. 217112
    Working load limit [kg] 4000
    Thread length K [mm] 30
    Outer wrench size AF1 [mm] 50
    Tightening torque min [Nm] 190
    Tightening torque max [Nm] 280
    Ø of contact surface E 57
    Clear height T [mm] 85
    Clearance W [mm] 45
    Ring section diameter F 18
    Base height J [mm] 75
    Weight approx. [kg] 1.43
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
Working load limit [kg] 6700
Thread diameter metric M M 30
Reference no. 217114
  • Details
    ASW AP3 TP-6.7T-M30X3.5-EL35MM
    Reference no. 217114
    Working load limit [kg] 6700
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 65
    Tightening torque min [Nm] 230
    Tightening torque max [Nm] 400
    Ø of contact surface E 70
    Clear height T [mm] 85
    Clearance W [mm] 45
    Ring section diameter F 20
    Base height J [mm] 94.5
    Weight approx. [kg] 2.33
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 6.7
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 13.4
    Working load limit 2-leg symmetrical 0°–45° [t] 9.5
    Working load limit 2-leg symmetrical 45°–60° [t] 6.7
    Working load limit 2-leg asymmetrical [t] 6.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10
    Working load limit 3 or 4 leg asymmetrical [t] 6.7
Working load limit [kg] 8000
Thread diameter metric M M 30
Reference no. 237261
  • Details
    ASW AP3 TP-8T-M30X3.5-EL35MM
    Reference no. 237261
    Working load limit [kg] 8000
    Thread length K [mm] 35
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 600
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 3.59
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 12
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 24
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 10000
Thread diameter metric M M 36
Reference no. 237262
  • Details
    ASW AP3 TP-10T-M36X4-EL50MM
    Reference no. 237262
    Working load limit [kg] 10000
    Thread length K [mm] 50
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 600
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 3.72
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
Working load limit [kg] 12500
Thread diameter metric M M 42
Reference no. 230259
  • Details
    ASW AP3 TP-12.5T-M42X4.5-EL60MM
    Reference no. 230259
    Working load limit [kg] 12500
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 3.91
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 25
    Working load limit 2-leg symmetrical 0°–45° [t] 17
    Working load limit 2-leg symmetrical 45°–60° [t] 12.5
    Working load limit 2-leg asymmetrical [t] 12.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12.5
Working load limit [kg] 12500
Thread diameter metric M M 45
Reference no. 237263
  • Details
    ASW AP3 TP-12.5T-M45X4.5-EL60MM
    Reference no. 237263
    Working load limit [kg] 12500
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 4.03
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 25
    Working load limit 2-leg symmetrical 0°–45° [t] 17
    Working load limit 2-leg symmetrical 45°–60° [t] 12.5
    Working load limit 2-leg asymmetrical [t] 12.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12.5
Working load limit [kg] 12500
Thread diameter metric M M 48
Reference no. 237264
  • Details
    ASW AP3 TP-12.5T-M48X5-EL72MM
    Reference no. 237264
    Working load limit [kg] 12500
    Thread length K [mm] 72
    Outer wrench size AF1 [mm] 75
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 81
    Clear height T [mm] 115
    Clearance W [mm] 60
    Ring section diameter F 23
    Base height J [mm] 106
    Weight approx. [kg] 4.35
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 25
    Working load limit 2-leg symmetrical 0°–45° [t] 17
    Working load limit 2-leg symmetrical 45°–60° [t] 12.5
    Working load limit 2-leg asymmetrical [t] 12.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12.5
Working load limit [kg] 13000
Thread diameter metric M M 42
Reference no. 237265
  • Details
    ASW AP3 TP-13T-M42X4.5-EL60MM
    Reference no. 237265
    Working load limit [kg] 13000
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 270
    Tightening torque max [Nm] 700
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 7.52
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 20
    Working load limit single-leg with cross bar 90° [t] 13
    Working load limit 2-leg with cross bar 0° [t] 40
    Working load limit 2-leg with cross bar 90° [t] 26
    Working load limit 2-leg symmetrical 0°–45° [t] 18
    Working load limit 2-leg symmetrical 45°–60° [t] 13
    Working load limit 2-leg asymmetrical [t] 13
    Working load limit 3/4-leg symmetrical 0°–45° [t] 27
    Working load limit 3/4-leg symmetrical 45°–60° [t] 19
    Working load limit 3 or 4 leg asymmetrical [t] 13
Working load limit [kg] 17000
Thread diameter metric M M 45
Reference no. 237266
  • Details
    ASW AP3 TP-17T-M45X4.5-EL60MM
    Reference no. 237266
    Working load limit [kg] 17000
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 800
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 7.5
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 17
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 34
    Working load limit 2-leg symmetrical 0°–45° [t] 23.5
    Working load limit 2-leg symmetrical 45°–60° [t] 17
    Working load limit 2-leg asymmetrical [t] 17
    Working load limit 3/4-leg symmetrical 0°–45° [t] 35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 25
    Working load limit 3 or 4 leg asymmetrical [t] 17
Working load limit [kg] 17000
Thread diameter metric M M 48
Reference no. 233867
  • Details
    ASW AP3 TP-17T-M48X5-EL60MM
    Reference no. 233867
    Working load limit [kg] 17000
    Thread length K [mm] 60
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 800
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 7.57
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 17
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 34
    Working load limit 2-leg symmetrical 0°–45° [t] 23.5
    Working load limit 2-leg symmetrical 45°–60° [t] 17
    Working load limit 2-leg asymmetrical [t] 17
    Working load limit 3/4-leg symmetrical 0°–45° [t] 35
    Working load limit 3/4-leg symmetrical 45°–60° [t] 25
    Working load limit 3 or 4 leg asymmetrical [t] 17
Working load limit [kg] 18000
Thread diameter metric M M 56
Reference no. 237267
  • Details
    ASW AP3 TP-18T-M56X5.5-EL78MM
    Reference no. 237267
    Working load limit [kg] 18000
    Thread length K [mm] 78
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 900
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 8.26
    Thread diameter metric M M 56
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 18
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 36
    Working load limit 2-leg symmetrical 0°–45° [t] 25
    Working load limit 2-leg symmetrical 45°–60° [t] 18
    Working load limit 2-leg asymmetrical [t] 18
    Working load limit 3/4-leg symmetrical 0°–45° [t] 37.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 26.5
    Working load limit 3 or 4 leg asymmetrical [t] 18
Working load limit [kg] 20000
Thread diameter metric M M 64
Reference no. 237268
  • Details
    ASW AP3 TP-20T-M64X6-EL96MM
    Reference no. 237268
    Working load limit [kg] 20000
    Thread length K [mm] 96
    Outer wrench size AF1 [mm] 95
    Tightening torque min [Nm] 350
    Tightening torque max [Nm] 900
    Ø of contact surface E 104
    Clear height T [mm] 140
    Clearance W [mm] 70
    Ring section diameter F 30
    Base height J [mm] 127
    Weight approx. [kg] 9.08
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 20
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 40
    Working load limit 2-leg symmetrical 0°–45° [t] 28
    Working load limit 2-leg symmetrical 45°–60° [t] 20
    Working load limit 2-leg asymmetrical [t] 20
    Working load limit 3/4-leg symmetrical 0°–45° [t] 40
    Working load limit 3/4-leg symmetrical 45°–60° [t] 30
    Working load limit 3 or 4 leg asymmetrical [t] 20
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
