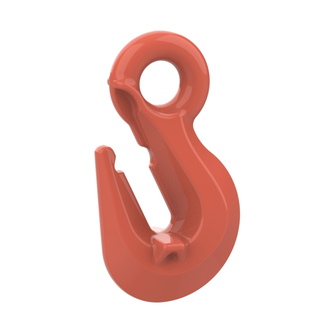

HIT PRO 1-CDX eye parallel hook, quality grade 10

HIT PRO 1-CDX eye parallel hook, quality grade 10
Enables the simple and safe shortening of chain slings with direct connection, from 1.4 t to 19 t. For shortening and for loops that must not tighten themselves.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    207565
    B1V 10B-OESE-P-H-CDX-1.40T-6MM
    Reference no. 207565
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

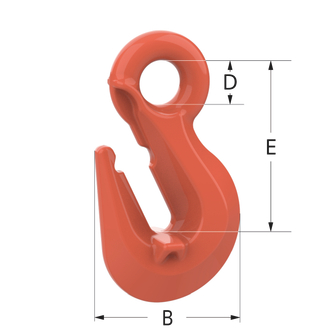

    Component width B [mm] 47
    Eye Ø D [mm] 12
    Distance suspension point E [mm] 53.5
    Weight approx. [kg] 0.18
  • 2500
    8
    207566
    B1V 10B-OESE-P-H-CDX-2.50T-8MM
    Reference no. 207566
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 59
    Eye Ø D [mm] 17
    Distance suspension point E [mm] 70
    Weight approx. [kg] 0.4
  • 4000
    10
    207567
    B1V 10B-OESE-P-H-CDX-4.00T-10MM
    Reference no. 207567
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 76
    Eye Ø D [mm] 22
    Distance suspension point E [mm] 86.5
    Weight approx. [kg] 0.88
  • 6700
    13
    207568
    B1V 10B-OESE-P-H-CDX-6.70T-13MM
    Reference no. 207568
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 99
    Eye Ø D [mm] 26
    Distance suspension point E [mm] 110.5
    Weight approx. [kg] 1.95
  • 10000
    16
    207569
    B1V 10B-OESE-P-H-CDX-10T-16MM
    Reference no. 207569
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Component width B [mm] 122
    Eye Ø D [mm] 32
    Distance suspension point E [mm] 129
    Weight approx. [kg] 3.2
  • 16000
    20
    207570
    B1V 10B-OESE-P-H-CDX-16T-20MM
    Reference no. 207570
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Component width B [mm] 152
    Eye Ø D [mm] 38
    Distance suspension point E [mm] 153.5
    Weight approx. [kg] 4.9
  • 19000
    22
    207571
    B1V 10B-OESE-P-H-CDX-19T-22MM
    Reference no. 207571
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Component width B [mm] 158
    Eye Ø D [mm] 42
    Distance suspension point E [mm] 184
    Weight approx. [kg] 7.5
  • 26500
    26
    502289
    B1V 10B-OESE-P-H-CDX-26.50T-26MM
    Reference no. 502289
    Working load limit [kg] 26500
    for nominal chain thickness [mm] 26
    Component width B [mm] 158
    Eye Ø D [mm] 55
    Distance suspension point E [mm] 213
    Weight approx. [kg] 13
  • 40000
    32
    502290
    B1V 10B-OESE-P-H-CDX-40T-32MM
    Reference no. 502290
    Working load limit [kg] 40000
    for nominal chain thickness [mm] 32
    Component width B [mm] 230
    Eye Ø D [mm] 60
    Distance suspension point E [mm] 245
    Weight approx. [kg] 30.5
Working load limit [kg] 1400
for nominal chain thickness [mm] 6
Reference no. 207565
  • Details
    B1V 10B-OESE-P-H-CDX-1.40T-6MM
    Reference no. 207565
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6
    Component width B [mm] 47
    Eye Ø D [mm] 12
    Distance suspension point E [mm] 53.5
    Weight approx. [kg] 0.18
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 207566
  • Details
    B1V 10B-OESE-P-H-CDX-2.50T-8MM
    Reference no. 207566
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Component width B [mm] 59
    Eye Ø D [mm] 17
    Distance suspension point E [mm] 70
    Weight approx. [kg] 0.4
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 207567
  • Details
    B1V 10B-OESE-P-H-CDX-4.00T-10MM
    Reference no. 207567
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Component width B [mm] 76
    Eye Ø D [mm] 22
    Distance suspension point E [mm] 86.5
    Weight approx. [kg] 0.88
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 207568
  • Details
    B1V 10B-OESE-P-H-CDX-6.70T-13MM
    Reference no. 207568
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Component width B [mm] 99
    Eye Ø D [mm] 26
    Distance suspension point E [mm] 110.5
    Weight approx. [kg] 1.95
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 207569
  • Details
    B1V 10B-OESE-P-H-CDX-10T-16MM
    Reference no. 207569
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Component width B [mm] 122
    Eye Ø D [mm] 32
    Distance suspension point E [mm] 129
    Weight approx. [kg] 3.2
Working load limit [kg] 16000
for nominal chain thickness [mm] 20
Reference no. 207570
  • Details
    B1V 10B-OESE-P-H-CDX-16T-20MM
    Reference no. 207570
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Component width B [mm] 152
    Eye Ø D [mm] 38
    Distance suspension point E [mm] 153.5
    Weight approx. [kg] 4.9
Working load limit [kg] 19000
for nominal chain thickness [mm] 22
Reference no. 207571
  • Details
    B1V 10B-OESE-P-H-CDX-19T-22MM
    Reference no. 207571
    Working load limit [kg] 19000
    for nominal chain thickness [mm] 22
    Component width B [mm] 158
    Eye Ø D [mm] 42
    Distance suspension point E [mm] 184
    Weight approx. [kg] 7.5
Working load limit [kg] 26500
for nominal chain thickness [mm] 26
Reference no. 502289
  • Details
    B1V 10B-OESE-P-H-CDX-26.50T-26MM
    Reference no. 502289
    Working load limit [kg] 26500
    for nominal chain thickness [mm] 26
    Component width B [mm] 158
    Eye Ø D [mm] 55
    Distance suspension point E [mm] 213
    Weight approx. [kg] 13
Working load limit [kg] 40000
for nominal chain thickness [mm] 32
Reference no. 502290
  • Details
    B1V 10B-OESE-P-H-CDX-40T-32MM
    Reference no. 502290
    Working load limit [kg] 40000
    for nominal chain thickness [mm] 32
    Component width B [mm] 230
    Eye Ø D [mm] 60
    Distance suspension point E [mm] 245
    Weight approx. [kg] 30.5
