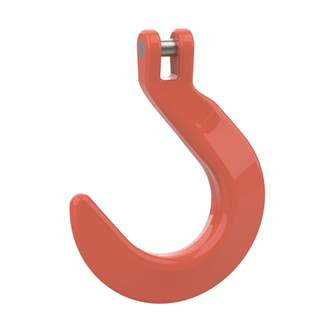

HIT PRO 1-CYFX coupling foundry hook grade 10

HIT PRO 1-CYFX coupling foundry hook grade 10
Hook with direct connection with large aperture for rapid hooking and unhooking without safety latch, often used as foundry hook. As end hook or suspension hook for simple and fast connection of the chain sling to the load. CAUTION: According to German Statutory Accident Insurance regulation 109-017 these hooks should only be used where unintentional unhooking is not possible.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated

Colour

  • orange

Technical note

  • For direct connection to the chain by means of coupling connection.
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2500
    8
    369124
    B1H 10B-KPL-WEITM-CYFX-2.5T-8MM
    Reference no. 369124
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8

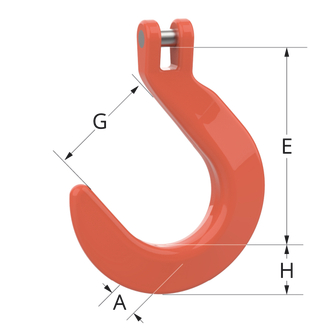

    Hook opening width G [mm] 64
    hook base height H [mm] 31
    Hook thickness A [mm] 26
    Distance suspension point E [mm] 120.4
    Weight approx. [kg] 999
  • 4000
    10
    369125
    B1H 10B-KPL-WEITM-CYFX-4T-10MM
    Reference no. 369125
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Hook opening width G [mm] 76
    hook base height H [mm] 34
    Hook thickness A [mm] 30
    Distance suspension point E [mm] 131
    Weight approx. [kg] 999
  • 6700
    13
    369126
    B1H 10B-KPL-WEITM-CYFX-6.7T-13MM
    Reference no. 369126
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Hook opening width G [mm] 89
    hook base height H [mm] 44.5
    Hook thickness A [mm] 40
    Distance suspension point E [mm] 148
    Weight approx. [kg] 3.6
  • 10000
    16
    369127
    B1H 10B-KPL-WEITM-CYFX-10T-16MM
    Reference no. 369127
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Hook opening width G [mm] 101
    hook base height H [mm] 50.5
    Hook thickness A [mm] 45
    Distance suspension point E [mm] 198.5
    Weight approx. [kg] 5.6
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 369124
  • Details
    B1H 10B-KPL-WEITM-CYFX-2.5T-8MM
    Reference no. 369124
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Hook opening width G [mm] 64
    hook base height H [mm] 31
    Hook thickness A [mm] 26
    Distance suspension point E [mm] 120.4
    Weight approx. [kg] 999
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 369125
  • Details
    B1H 10B-KPL-WEITM-CYFX-4T-10MM
    Reference no. 369125
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Hook opening width G [mm] 76
    hook base height H [mm] 34
    Hook thickness A [mm] 30
    Distance suspension point E [mm] 131
    Weight approx. [kg] 999
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 369126
  • Details
    B1H 10B-KPL-WEITM-CYFX-6.7T-13MM
    Reference no. 369126
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Hook opening width G [mm] 89
    hook base height H [mm] 44.5
    Hook thickness A [mm] 40
    Distance suspension point E [mm] 148
    Weight approx. [kg] 3.6
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 369127
  • Details
    B1H 10B-KPL-WEITM-CYFX-10T-16MM
    Reference no. 369127
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Hook opening width G [mm] 101
    hook base height H [mm] 50.5
    Hook thickness A [mm] 45
    Distance suspension point E [mm] 198.5
    Weight approx. [kg] 5.6
