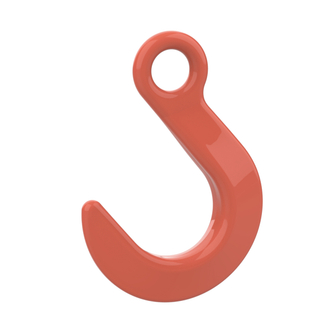

HIT PRO 1-CYX eye foundry hook, quality grade 10

HIT PRO 1-CYX eye foundry hook, quality grade 10
Fast attachment and detachment without safety latch, from 2.5 t to 16 t. Frequent application as foundry hook. CAUTION: According to German Statutory Accident Insurance regulation 109-017 these hooks should only be used where unintentional unhooking is not possible.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 2500
    8
    230488
    Foundry hook CYX-2.50t-8mm-pc -128
    Reference no. 230488
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8

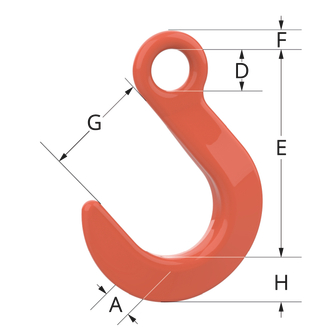

    Ring section diameter F 13.5
    Eye Ø D [mm] 18
    Hook opening width G [mm] 62
    hook base height H [mm] 29
    Hook thickness A [mm] 25
    Distance suspension point E [mm] 128
    Weight approx. [kg] 999
  • 4000
    10
    230489
    Foundry hook CYX-4.00t-10mm-pc -150
    Reference no. 230489
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 14
    Eye Ø D [mm] 22
    Hook opening width G [mm] 76
    hook base height H [mm] 30
    Hook thickness A [mm] 32
    Distance suspension point E [mm] 150
    Weight approx. [kg] 999
  • 6700
    13
    230490
    Foundry hook CYX-6.70t-13mm-pc -173
    Reference no. 230490
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 19
    Eye Ø D [mm] 27
    Hook opening width G [mm] 89
    hook base height H [mm] 40
    Hook thickness A [mm] 38
    Distance suspension point E [mm] 173
    Weight approx. [kg] 999
  • 10000
    16
    230491
    Foundry hook CYX-10.00t-16mm -pc-210
    Reference no. 230491
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 24
    Eye Ø D [mm] 47
    Hook opening width G [mm] 102
    hook base height H [mm] 48
    Hook thickness A [mm] 45
    Distance suspension point E [mm] 210
    Weight approx. [kg] 999
  • 16000
    20
    230492
    B1H 10B-OESE-WEITM-CYX-16T-20MM
    Reference no. 230492
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 28
    Eye Ø D [mm] 56
    Hook opening width G [mm] 114
    hook base height H [mm] 60
    Hook thickness A [mm] 54
    Distance suspension point E [mm] 260
    Weight approx. [kg] 999
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 230488
  • Details
    Foundry hook CYX-2.50t-8mm-pc -128
    Reference no. 230488
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 13.5
    Eye Ø D [mm] 18
    Hook opening width G [mm] 62
    hook base height H [mm] 29
    Hook thickness A [mm] 25
    Distance suspension point E [mm] 128
    Weight approx. [kg] 999
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 230489
  • Details
    Foundry hook CYX-4.00t-10mm-pc -150
    Reference no. 230489
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 14
    Eye Ø D [mm] 22
    Hook opening width G [mm] 76
    hook base height H [mm] 30
    Hook thickness A [mm] 32
    Distance suspension point E [mm] 150
    Weight approx. [kg] 999
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 230490
  • Details
    Foundry hook CYX-6.70t-13mm-pc -173
    Reference no. 230490
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 19
    Eye Ø D [mm] 27
    Hook opening width G [mm] 89
    hook base height H [mm] 40
    Hook thickness A [mm] 38
    Distance suspension point E [mm] 173
    Weight approx. [kg] 999
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 230491
  • Details
    Foundry hook CYX-10.00t-16mm -pc-210
    Reference no. 230491
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 24
    Eye Ø D [mm] 47
    Hook opening width G [mm] 102
    hook base height H [mm] 48
    Hook thickness A [mm] 45
    Distance suspension point E [mm] 210
    Weight approx. [kg] 999
Working load limit [kg] 16000
for nominal chain thickness [mm] 20
Reference no. 230492
  • Details
    B1H 10B-OESE-WEITM-CYX-16T-20MM
    Reference no. 230492
    Working load limit [kg] 16000
    for nominal chain thickness [mm] 20
    Ring section diameter F 28
    Eye Ø D [mm] 56
    Hook opening width G [mm] 114
    hook base height H [mm] 60
    Hook thickness A [mm] 54
    Distance suspension point E [mm] 260
    Weight approx. [kg] 999
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
