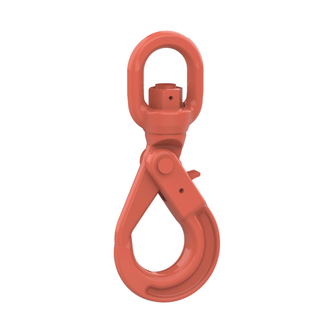

HIT PRO 1 Single-Eye Safety Load Hook CRGX GK10

HIT PRO 1 Single-Eye Safety Load Hook CRGX GK10
Suitable for rotation under load with increased safety through intelligent locking system, from 1.4 t to 10 t.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +380 °C = 60 % working load limit

Standard

  • on the basis of DIN EN 1677

Certification

  • H-stamp

Marking

  • Batch number

Safety factor

  • 4

Surface

  • powder-coated
Product variants
Working load limit [kg]
for nominal chain thickness [mm]
Reference no.
Details
  • 1400
    6
    207599
    B1H 10B-SWIVEL-SI-H-CRGX-1.4T-6MM-160
    Reference no. 207599
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6

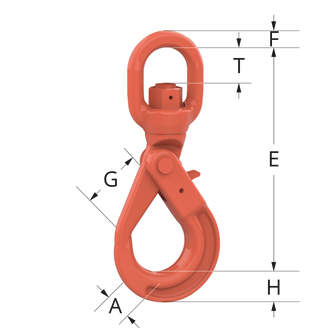

    Ring section diameter F 13
    Clear height T [mm] 27
    Hook opening width G [mm] 28
    hook base height H [mm] 21
    Hook thickness A [mm] 16
    Distance suspension point E [mm] 160
    Weight approx. [kg] 0.6
  • 2500
    8
    207600
    B1H 10B-SWIVEL-SI-H-CRGX-2.5T-8MM-182
    Reference no. 207600
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 13
    Clear height T [mm] 27
    Hook opening width G [mm] 34
    hook base height H [mm] 26
    Hook thickness A [mm] 20
    Distance suspension point E [mm] 182
    Weight approx. [kg] 1.1
  • 4000
    10
    207601
    B1H 10B-SWIVEL-SI-H-CRGX-4T-10MM-217
    Reference no. 207601
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 16
    Clear height T [mm] 35
    Hook opening width G [mm] 45
    hook base height H [mm] 30
    Hook thickness A [mm] 25
    Distance suspension point E [mm] 217
    Weight approx. [kg] 2
  • 6700
    13
    207602
    Swivel self lock. hook CRGX -6.70t-13mm-pc-271
    Reference no. 207602
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 21
    Clear height T [mm] 45
    Hook opening width G [mm] 54
    hook base height H [mm] 40
    Hook thickness A [mm] 35
    Distance suspension point E [mm] 271
    Weight approx. [kg] 4
  • 10000
    16
    207603
    B1H 10B-SWIVEL-SI-H-CRGX-10T-16MM-320
    Reference no. 207603
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 24
    Clear height T [mm] 58
    Hook opening width G [mm] 62
    hook base height H [mm] 50
    Hook thickness A [mm] 38
    Distance suspension point E [mm] 320
    Weight approx. [kg] 6.8
Working load limit [kg] 1400
for nominal chain thickness [mm] 6
Reference no. 207599
  • Details
    B1H 10B-SWIVEL-SI-H-CRGX-1.4T-6MM-160
    Reference no. 207599
    Working load limit [kg] 1400
    for nominal chain thickness [mm] 6
    Ring section diameter F 13
    Clear height T [mm] 27
    Hook opening width G [mm] 28
    hook base height H [mm] 21
    Hook thickness A [mm] 16
    Distance suspension point E [mm] 160
    Weight approx. [kg] 0.6
Working load limit [kg] 2500
for nominal chain thickness [mm] 8
Reference no. 207600
  • Details
    B1H 10B-SWIVEL-SI-H-CRGX-2.5T-8MM-182
    Reference no. 207600
    Working load limit [kg] 2500
    for nominal chain thickness [mm] 8
    Ring section diameter F 13
    Clear height T [mm] 27
    Hook opening width G [mm] 34
    hook base height H [mm] 26
    Hook thickness A [mm] 20
    Distance suspension point E [mm] 182
    Weight approx. [kg] 1.1
Working load limit [kg] 4000
for nominal chain thickness [mm] 10
Reference no. 207601
  • Details
    B1H 10B-SWIVEL-SI-H-CRGX-4T-10MM-217
    Reference no. 207601
    Working load limit [kg] 4000
    for nominal chain thickness [mm] 10
    Ring section diameter F 16
    Clear height T [mm] 35
    Hook opening width G [mm] 45
    hook base height H [mm] 30
    Hook thickness A [mm] 25
    Distance suspension point E [mm] 217
    Weight approx. [kg] 2
Working load limit [kg] 6700
for nominal chain thickness [mm] 13
Reference no. 207602
  • Details
    Swivel self lock. hook CRGX -6.70t-13mm-pc-271
    Reference no. 207602
    Working load limit [kg] 6700
    for nominal chain thickness [mm] 13
    Ring section diameter F 21
    Clear height T [mm] 45
    Hook opening width G [mm] 54
    hook base height H [mm] 40
    Hook thickness A [mm] 35
    Distance suspension point E [mm] 271
    Weight approx. [kg] 4
Working load limit [kg] 10000
for nominal chain thickness [mm] 16
Reference no. 207603
  • Details
    B1H 10B-SWIVEL-SI-H-CRGX-10T-16MM-320
    Reference no. 207603
    Working load limit [kg] 10000
    for nominal chain thickness [mm] 16
    Ring section diameter F 24
    Clear height T [mm] 58
    Hook opening width G [mm] 62
    hook base height H [mm] 50
    Hook thickness A [mm] 38
    Distance suspension point E [mm] 320
    Weight approx. [kg] 6.8
Downloads

Applications

Application table

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
