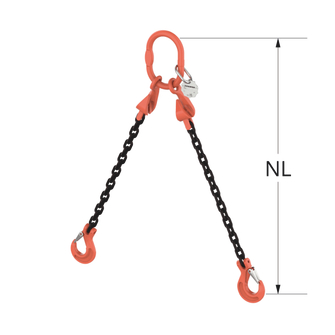

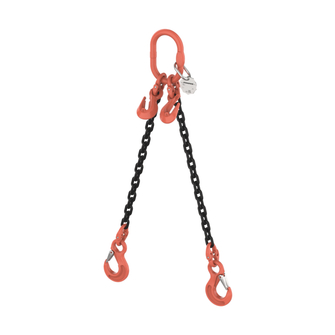

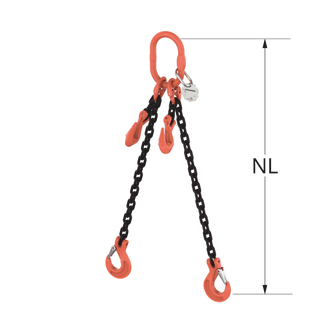

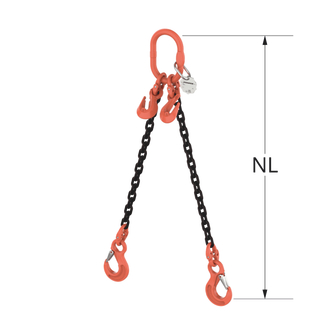

HIT PRO chain sling quality grade 10, 2-leg, can be shortened Standard load hook

Chain sling with shortening parallel hook and standard load hook for 2-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.

Technical data
Product variants
Downloads
Contact

Technical data

Quality grade

Legs Quantity

2-leg

Standard

Chain following EN 818
EN 1677-compliant chain components

Marking

Batch number and serial number
Quality grade and working load limit symbol

Safety factor

Chain surface

cathodic dip-paint coating

Chain colour

black

Component surface

powder-coated

Shortening

can be shortened

Product variants

G12 P1B-6-2T-RAVK-HK-2M

Reference no.	710932
Working load limit 0–45° [kg]	2000
Working load limit 45−60° [kg]	1400
Working load limit laced 0–45° [kg]	1600
Working load limit laced 45−60° [kg]	1120
Nominal size of chain [mm]	6
Effective length WLL [m]	2
Weight approx. [kg]	5.1

G12 P1B-6-2T-RAVK-HK-3M

Reference no.	710933
Working load limit 0–45° [kg]	2000
Working load limit 45−60° [kg]	1400
Working load limit laced 0–45° [kg]	1600
Working load limit laced 45−60° [kg]	1120
Nominal size of chain [mm]	6
Effective length WLL [m]	3
Weight approx. [kg]	7

G12 P1B-6-2T-RAVK-HK-4M

Reference no.	710934
Working load limit 0–45° [kg]	2000
Working load limit 45−60° [kg]	1400
Working load limit laced 0–45° [kg]	1600
Working load limit laced 45−60° [kg]	1120
Nominal size of chain [mm]	6
Effective length WLL [m]	4
Weight approx. [kg]	8.9

G12 P1B-6-2T-RAVK-HK-5M

Reference no.	710935
Working load limit 0–45° [kg]	2000
Working load limit 45−60° [kg]	1400
Working load limit laced 0–45° [kg]	1600
Working load limit laced 45−60° [kg]	1120
Nominal size of chain [mm]	6
Effective length WLL [m]	5
Weight approx. [kg]	10.8

G12 P1B-6-2T-RAVK-HK-6M

Reference no.	710936
Working load limit 0–45° [kg]	2000
Working load limit 45−60° [kg]	1400
Working load limit laced 0–45° [kg]	1600
Working load limit laced 45−60° [kg]	1120
Nominal size of chain [mm]	6
Effective length WLL [m]	6
Weight approx. [kg]	12.7

G12 P1B-8-3.55T-RAVK-HK-2M

Reference no.	710937
Working load limit 0–45° [kg]	3550
Working load limit 45−60° [kg]	2500
Working load limit laced 0–45° [kg]	2800
Working load limit laced 45−60° [kg]	2000
Nominal size of chain [mm]	8
Effective length WLL [m]	2
Weight approx. [kg]	8.7

G12 P1B-8-3.55T-RAVK-HK-3M

Reference no.	710938
Working load limit 0–45° [kg]	3550
Working load limit 45−60° [kg]	2500
Working load limit laced 0–45° [kg]	2800
Working load limit laced 45−60° [kg]	2000
Nominal size of chain [mm]	8
Effective length WLL [m]	3
Weight approx. [kg]	11.9

G12 P1B-8-3.55T-RAVK-HK-4M

Reference no.	710939
Working load limit 0–45° [kg]	3550
Working load limit 45−60° [kg]	2500
Working load limit laced 0–45° [kg]	2800
Working load limit laced 45−60° [kg]	2000
Nominal size of chain [mm]	8
Effective length WLL [m]	4
Weight approx. [kg]	15.1

G12 P1B-8-3.55T-RAVK-HK-5M

Reference no.	710940
Working load limit 0–45° [kg]	3550
Working load limit 45−60° [kg]	2500
Working load limit laced 0–45° [kg]	2800
Working load limit laced 45−60° [kg]	2000
Nominal size of chain [mm]	8
Effective length WLL [m]	5
Weight approx. [kg]	18.1

G12 P1B-8-3.55T-RAVK-HK-6M

Reference no.	710941
Working load limit 0–45° [kg]	3550
Working load limit 45−60° [kg]	2500
Working load limit laced 0–45° [kg]	2800
Working load limit laced 45−60° [kg]	2000
Nominal size of chain [mm]	8
Effective length WLL [m]	6
Weight approx. [kg]	21.3

G12 P1B-10-5.6T-RAVK-HK-2M

Reference no.	710942
Working load limit 0–45° [kg]	5600
Working load limit 45−60° [kg]	4000
Working load limit laced 0–45° [kg]	4250
Working load limit laced 45−60° [kg]	3150
Nominal size of chain [mm]	10
Effective length WLL [m]	2
Weight approx. [kg]	14.7

G12 P1B-10-5.6T-RAVK-HK-3M

Reference no.	710943
Working load limit 0–45° [kg]	5600
Working load limit 45−60° [kg]	4000
Working load limit laced 0–45° [kg]	4250
Working load limit laced 45−60° [kg]	3150
Nominal size of chain [mm]	10
Effective length WLL [m]	3
Weight approx. [kg]	19.4

G12 P1B-10-5.6T-RAVK-HK-4M

Reference no.	710944
Working load limit 0–45° [kg]	5600
Working load limit 45−60° [kg]	4000
Working load limit laced 0–45° [kg]	4250
Working load limit laced 45−60° [kg]	3150
Nominal size of chain [mm]	10
Effective length WLL [m]	4
Weight approx. [kg]	24.4

G12 P1B-10-5.6T-RAVK-HK-5M

Reference no.	710945
Working load limit 0–45° [kg]	5600
Working load limit 45−60° [kg]	4000
Working load limit laced 0–45° [kg]	4250
Working load limit laced 45−60° [kg]	3150
Nominal size of chain [mm]	10
Effective length WLL [m]	5
Weight approx. [kg]	29.4

G12 P1B-10-5.6T-RAVK-HK-6M

Reference no.	710946
Working load limit 0–45° [kg]	5600
Working load limit 45−60° [kg]	4000
Working load limit laced 0–45° [kg]	4250
Working load limit laced 45−60° [kg]	3150
Nominal size of chain [mm]	10
Effective length WLL [m]	6
Weight approx. [kg]	34.1

G12 P1B-13-9.5T-RAVK-HK-2M

Reference no.	710947
Working load limit 0–45° [kg]	9500
Working load limit 45−60° [kg]	6700
Working load limit laced 0–45° [kg]	7500
Working load limit laced 45−60° [kg]	5300
Nominal size of chain [mm]	13
Effective length WLL [m]	2
Weight approx. [kg]	24

G12 P1B-13-9.5T-RAVK-HK-3M

Reference no.	710948
Working load limit 0–45° [kg]	9500
Working load limit 45−60° [kg]	6700
Working load limit laced 0–45° [kg]	7500
Working load limit laced 45−60° [kg]	5300
Nominal size of chain [mm]	13
Effective length WLL [m]	3
Weight approx. [kg]	32.5

G12 P1B-13-9.5T-RAVK-HK-4M

Reference no.	710949
Working load limit 0–45° [kg]	9500
Working load limit 45−60° [kg]	6700
Working load limit laced 0–45° [kg]	7500
Working load limit laced 45−60° [kg]	5300
Nominal size of chain [mm]	13
Effective length WLL [m]	4
Weight approx. [kg]	41

G12 P1B-13-9.5T-RAVK-HK-5M

Reference no.	710950
Working load limit 0–45° [kg]	9500
Working load limit 45−60° [kg]	6700
Working load limit laced 0–45° [kg]	7500
Working load limit laced 45−60° [kg]	5300
Nominal size of chain [mm]	13
Effective length WLL [m]	5
Weight approx. [kg]	49.4

G12 P1B-13-9.5T-RAVK-HK-6M

Reference no.	710951
Working load limit 0–45° [kg]	9500
Working load limit 45−60° [kg]	6700
Working load limit laced 0–45° [kg]	7500
Working load limit laced 45−60° [kg]	5300
Nominal size of chain [mm]	13
Effective length WLL [m]	6
Weight approx. [kg]	57.9

C12 P1B-16-14T-RAVK-HK-2M

Reference no.	710952
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	16
Effective length WLL [m]	2
Weight approx. [kg]	38.8

C12 P1B-16-14T-RAVK-HK-3M

Reference no.	710953
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	16
Effective length WLL [m]	3
Weight approx. [kg]	52

C12 P1B-16-14T-RAVK-HK-4M

Reference no.	710954
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	16
Effective length WLL [m]	4
Weight approx. [kg]	64.1

C12 P1B-16-14T-RAVK-HK-5M

Reference no.	710955
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	16
Effective length WLL [m]	5
Weight approx. [kg]	76.2

C12 P1B-16-14T-RAVK-HK-6M

Reference no.	710956
Working load limit 0–45° [kg]	14000
Working load limit 45−60° [kg]	10000
Working load limit laced 0–45° [kg]	11200
Working load limit laced 45−60° [kg]	8000
Nominal size of chain [mm]	16
Effective length WLL [m]	6
Weight approx. [kg]	89.4

C12 P1B-20-20T-RA-PKU-HK-2M

Reference no.	710957
Working load limit 0–45° [kg]	20000
Working load limit 45−60° [kg]	14000
Working load limit laced 0–45° [kg]	16000
Working load limit laced 45−60° [kg]	11200
Nominal size of chain [mm]	20
Effective length WLL [m]	2
Weight approx. [kg]	61

C12 P1B-20-20T-RA-PKU-HK-3M

Reference no.	710958
Working load limit 0–45° [kg]	20000
Working load limit 45−60° [kg]	14000
Working load limit laced 0–45° [kg]	16000
Working load limit laced 45−60° [kg]	11200
Nominal size of chain [mm]	20
Effective length WLL [m]	3
Weight approx. [kg]	79.3

C12 P1B-20-20T-RA-PKU-HK-4M

Reference no.	710959
Working load limit 0–45° [kg]	20000
Working load limit 45−60° [kg]	14000
Working load limit laced 0–45° [kg]	16000
Working load limit laced 45−60° [kg]	11200
Nominal size of chain [mm]	20
Effective length WLL [m]	4
Weight approx. [kg]	95.6

C12 P1B-20-20T-RA-PKU-HK-5M

Reference no.	710960
Working load limit 0–45° [kg]	20000
Working load limit 45−60° [kg]	14000
Working load limit laced 0–45° [kg]	16000
Working load limit laced 45−60° [kg]	11200
Nominal size of chain [mm]	20
Effective length WLL [m]	5
Weight approx. [kg]	113.9

C12 P1B-20-20T-RA-PKU-HK-6M

Reference no.	710961
Working load limit 0–45° [kg]	20000
Working load limit 45−60° [kg]	14000
Working load limit laced 0–45° [kg]	16000
Working load limit laced 45−60° [kg]	11200
Nominal size of chain [mm]	20
Effective length WLL [m]	6
Weight approx. [kg]	132.2

C12 P1B-22-26.5T-RA-PKU-HK-3M

Reference no.	710962
Working load limit 0–45° [kg]	26500
Working load limit 45−60° [kg]	19000
Working load limit laced 0–45° [kg]	21200
Working load limit laced 45−60° [kg]	15000
Nominal size of chain [mm]	22
Effective length WLL [m]	3
Weight approx. [kg]	123.7

C12 P1B-22-26.5T-RA-PKU-HK-4M

Reference no.	710963
Working load limit 0–45° [kg]	26500
Working load limit 45−60° [kg]	19000
Working load limit laced 0–45° [kg]	21200
Working load limit laced 45−60° [kg]	15000
Nominal size of chain [mm]	22
Effective length WLL [m]	4
Weight approx. [kg]	148.8

C12 P1B-22-26.5T-RA-PKU-HK-6M

Reference no.	710964
Working load limit 0–45° [kg]	26500
Working load limit 45−60° [kg]	19000
Working load limit laced 0–45° [kg]	21200
Working load limit laced 45−60° [kg]	15000
Nominal size of chain [mm]	22
Effective length WLL [m]	6
Weight approx. [kg]	195.8

C12 P1B-26-37.5T-RA-PH-H-3M

Reference no.	710965
Working load limit 0–45° [kg]	37500
Working load limit 45−60° [kg]	26500
Working load limit laced 0–45° [kg]	30000
Working load limit laced 45−60° [kg]	21200
Nominal size of chain [mm]	26
Effective length WLL [m]	3
Weight approx. [kg]	148.1

C12 P1B-26-37.5T-RA-PH-H-4M

Reference no.	710966
Working load limit 0–45° [kg]	37500
Working load limit 45−60° [kg]	26500
Working load limit laced 0–45° [kg]	30000
Working load limit laced 45−60° [kg]	21200
Nominal size of chain [mm]	26
Effective length WLL [m]	4
Weight approx. [kg]	178.4

C12 P1B-26-37.5T-RA-PH-H-6M

Reference no.	710967
Working load limit 0–45° [kg]	37500
Working load limit 45−60° [kg]	26500
Working load limit laced 0–45° [kg]	30000
Working load limit laced 45−60° [kg]	21200
Nominal size of chain [mm]	26
Effective length WLL [m]	6
Weight approx. [kg]	244

C12 P1B-32-56T-RA-PH-H-3M

Reference no.	710968
Working load limit 0–45° [kg]	56000
Working load limit 45−60° [kg]	40000
Working load limit laced 0–45° [kg]	44800
Working load limit laced 45−60° [kg]	32000
Nominal size of chain [mm]	32
Effective length WLL [m]	3
Weight approx. [kg]	279.5

C12 P1B-32-56T-RA-PH-H-4M

Reference no.	710969
Working load limit 0–45° [kg]	56000
Working load limit 45−60° [kg]	40000
Working load limit laced 0–45° [kg]	44800
Working load limit laced 45−60° [kg]	32000
Nominal size of chain [mm]	32
Effective length WLL [m]	4
Weight approx. [kg]	325.8

C12 P1B-32-56T-RA-PH-H-6M

Reference no.	710970
Working load limit 0–45° [kg]	56000
Working load limit 45−60° [kg]	40000
Working load limit laced 0–45° [kg]	44800
Working load limit laced 45−60° [kg]	32000
Nominal size of chain [mm]	32
Effective length WLL [m]	6
Weight approx. [kg]	418.4

Working load limit 0–45° [kg] 2000

Working load limit 45−60° [kg] 1400

Working load limit laced 0–45° [kg] 1600

Working load limit laced 45−60° [kg] 1120

Nominal size of chain [mm] 6

Effective length WLL [m] 2

Reference no. 710932

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

HIT PRO chain sling quality grade 10, 2-leg, can be shortened Standard load hook

Quality grade

Legs Quantity

Standard

Marking

Safety factor

Chain surface

Chain colour

Component surface

Shortening

Description

Applications

Feel free to contact us

Tel.

E-Mail

Inquiry

Cookie settings

Required cookies

Functional cookies
