HIT chain sling quality grade 8, 2-leg, can be shortened Safety load hooks

HIT chain sling quality grade 8, 2-leg, can be shortened Safety load hooks

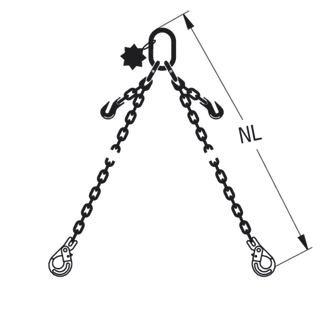

Chain sling with shortener parallel hook and safety load hook for 2-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1600
    1120
    1250
    900
    6
    2
    701473
    G82 H8A-6-1.6T-RA-PKU-SHK-2M
    Reference no. 701473
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5
  • 1600
    1120
    1250
    900
    6
    3
    701474
    G82 H8A-6-1.6T-RA-PKU-SHK-3M
    Reference no. 701474
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.6
  • 1600
    1120
    1250
    900
    6
    4
    701475
    G82 H8A-6-1.6T-RA-PKU-SHK-4M
    Reference no. 701475
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8.3
  • 1600
    1120
    1250
    900
    6
    6
    701476
    G82 H8A-6-1.6T-RA-PKU-SHK-6M
    Reference no. 701476
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.4
  • 2800
    2000
    2240
    1600
    8
    2
    701477
    G82 H8A-8-2.8T-RA-PKU-SHK-2M
    Reference no. 701477
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 8.8
  • 2800
    2000
    2240
    1600
    8
    3
    701478
    G82 H8A-8-2.8T-RA-PKU-SHK-3M
    Reference no. 701478
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 11.5
  • 2800
    2000
    2240
    1600
    8
    4
    701479
    G82 H8A-8-2.8T-RA-PKU-SHK-4M
    Reference no. 701479
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 14.3
  • 2800
    2000
    2240
    1600
    8
    6
    701480
    G82 H8A-8-2.8T-RA-PKU-SHK-6M
    Reference no. 701480
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 20
  • 4250
    3150
    3550
    2500
    10
    2
    701481
    G82 H8A-10-4.25T-RA-PKU-SHK-2M
    Reference no. 701481
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 14.5
  • 4250
    3150
    3550
    2500
    10
    3
    701482
    G82 H8A-10-4.25T-RA-PKU-SHK-3M
    Reference no. 701482
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 18.7
  • 4250
    3150
    3550
    2500
    10
    4
    701483
    G82 H8A-10-4.25T-RA-PKU-SHK-4M
    Reference no. 701483
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 23.2
  • 4250
    3150
    3550
    2500
    10
    6
    701484
    G82 H8A-10-4.25T-RA-PKU-SHK-6M
    Reference no. 701484
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 31.9
  • 7500
    5300
    5900
    4250
    13
    2
    701485
    G82 H8A-13-7.5T-RA-PKU-SHK-2M
    Reference no. 701485
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 25.9
  • 7500
    5300
    5900
    4250
    13
    3
    701486
    G82 H8A-13-7.5T-RA-PKU-SHK-3M
    Reference no. 701486
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 33.6
  • 7500
    5300
    5900
    4250
    13
    4
    701487
    G82 H8A-13-7.5T-RA-PKU-SHK-4M
    Reference no. 701487
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 41.3
  • 7500
    5300
    5900
    4250
    13
    6
    701488
    G82 H8A-13-7.5T-RA-PKU-SHK-6M
    Reference no. 701488
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 56.7
  • 11200
    8000
    9000
    6300
    16
    2
    701489
    C82 H8A-16-11.2T-RA-PKU-SHK-2M
    Reference no. 701489
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 44.4
  • 11200
    8000
    9000
    6300
    16
    3
    701490
    C82 H8A-16-11.2T-RA-PKU-SHK-3M
    Reference no. 701490
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 55.4
  • 11200
    8000
    9000
    6300
    16
    4
    701491
    C82 H8A-16-11.2T-RA-PKU-SHK-4M
    Reference no. 701491
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 67.4
  • 11200
    8000
    9000
    6300
    16
    6
    701492
    C82 H8A-16-11.2T-RA-PKU-SHK-6M
    Reference no. 701492
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.3
  • 14000
    10000
    11200
    8000
    18
    2
    702101
    C82 H8A-18-14T-RA-PKU-SHK-2M
    Reference no. 702101
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 58.4
  • 14000
    10000
    11200
    8000
    18
    3
    702102
    C82 H8A-18-14T-RA-PKU-SHK-3M
    Reference no. 702102
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 72.4
  • 14000
    10000
    11200
    8000
    18
    4
    702103
    C82 H8A-18-14T-RA-PKU-SHK-4M
    Reference no. 702103
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 88.1
  • 14000
    10000
    11200
    8000
    18
    6
    702104
    C82 H8A-18-14T-RA-PKU-SHK-6M
    Reference no. 702104
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 116.2
  • 17000
    12500
    14000
    10000
    20
    2
    702581
    C82 H8A-20-17T-RA-PKU-SHK-2M
    Reference no. 702581
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 66.9
  • 17000
    12500
    14000
    10000
    20
    3
    702582
    C82 H8A-20-17T-RA-PKU-SHK-3M
    Reference no. 702582
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 84.2
  • 17000
    12500
    14000
    10000
    20
    4
    702583
    C82 H8A-20-17T-RA-PKU-SHK-4M
    Reference no. 702583
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 101.5
  • 17000
    12500
    14000
    10000
    20
    6
    702584
    C82 H8A-20-17T-RA-PKU-SHK-6M
    Reference no. 702584
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 138.2
  • 21200
    15000
    17000
    12000
    22
    2
    493710
    C82 H8A-22-21.2T-RA-PK-U-SHK-2M
    Reference no. 493710
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 92.359
  • 21200
    15000
    17000
    12000
    22
    3
    493711
    C82 H8A-22-21.2T-RA-PK-U-SHK-3M
    Reference no. 493711
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 114.159
  • 21200
    15000
    17000
    12000
    22
    4
    493712
    C82 H8A-22-21.2T-RA-PK-U-SHK-4M
    Reference no. 493712
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 135.959
  • 21200
    15000
    17000
    12000
    22
    6
    493713
    C82 H8A-22-21.2T-RA-PK-U-SHK-6M
    Reference no. 493713
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 179.559
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701473
  • Details
    G82 H8A-6-1.6T-RA-PKU-SHK-2M
    Reference no. 701473
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701474
  • Details
    G82 H8A-6-1.6T-RA-PKU-SHK-3M
    Reference no. 701474
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 6.6
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701475
  • Details
    G82 H8A-6-1.6T-RA-PKU-SHK-4M
    Reference no. 701475
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 8.3
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701476
  • Details
    G82 H8A-6-1.6T-RA-PKU-SHK-6M
    Reference no. 701476
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 11.4
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701477
  • Details
    G82 H8A-8-2.8T-RA-PKU-SHK-2M
    Reference no. 701477
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 8.8
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701478
  • Details
    G82 H8A-8-2.8T-RA-PKU-SHK-3M
    Reference no. 701478
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 11.5
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701479
  • Details
    G82 H8A-8-2.8T-RA-PKU-SHK-4M
    Reference no. 701479
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 14.3
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701480
  • Details
    G82 H8A-8-2.8T-RA-PKU-SHK-6M
    Reference no. 701480
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 20
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701481
  • Details
    G82 H8A-10-4.25T-RA-PKU-SHK-2M
    Reference no. 701481
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 14.5
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701482
  • Details
    G82 H8A-10-4.25T-RA-PKU-SHK-3M
    Reference no. 701482
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 18.7
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701483
  • Details
    G82 H8A-10-4.25T-RA-PKU-SHK-4M
    Reference no. 701483
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 23.2
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701484
  • Details
    G82 H8A-10-4.25T-RA-PKU-SHK-6M
    Reference no. 701484
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 31.9
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701485
  • Details
    G82 H8A-13-7.5T-RA-PKU-SHK-2M
    Reference no. 701485
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 25.9
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701486
  • Details
    G82 H8A-13-7.5T-RA-PKU-SHK-3M
    Reference no. 701486
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 33.6
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701487
  • Details
    G82 H8A-13-7.5T-RA-PKU-SHK-4M
    Reference no. 701487
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 41.3
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701488
  • Details
    G82 H8A-13-7.5T-RA-PKU-SHK-6M
    Reference no. 701488
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 56.7
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701489
  • Details
    C82 H8A-16-11.2T-RA-PKU-SHK-2M
    Reference no. 701489
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 44.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701490
  • Details
    C82 H8A-16-11.2T-RA-PKU-SHK-3M
    Reference no. 701490
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 55.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701491
  • Details
    C82 H8A-16-11.2T-RA-PKU-SHK-4M
    Reference no. 701491
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 67.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701492
  • Details
    C82 H8A-16-11.2T-RA-PKU-SHK-6M
    Reference no. 701492
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.3
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 702101
  • Details
    C82 H8A-18-14T-RA-PKU-SHK-2M
    Reference no. 702101
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 58.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 702102
  • Details
    C82 H8A-18-14T-RA-PKU-SHK-3M
    Reference no. 702102
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 72.4
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 702103
  • Details
    C82 H8A-18-14T-RA-PKU-SHK-4M
    Reference no. 702103
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 88.1
Working load limit 0–45° [kg] 14000
Working load limit 45−60° [kg] 10000
Working load limit laced 0–45° [kg] 11200
Working load limit laced 45−60° [kg] 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 702104
  • Details
    C82 H8A-18-14T-RA-PKU-SHK-6M
    Reference no. 702104
    Working load limit 0–45° [kg] 14000
    Working load limit 45−60° [kg] 10000
    Working load limit laced 0–45° [kg] 11200
    Working load limit laced 45−60° [kg] 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 116.2
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 702581
  • Details
    C82 H8A-20-17T-RA-PKU-SHK-2M
    Reference no. 702581
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 66.9
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 702582
  • Details
    C82 H8A-20-17T-RA-PKU-SHK-3M
    Reference no. 702582
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 84.2
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 702583
  • Details
    C82 H8A-20-17T-RA-PKU-SHK-4M
    Reference no. 702583
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 101.5
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 12500
Working load limit laced 0–45° [kg] 14000
Working load limit laced 45−60° [kg] 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 702584
  • Details
    C82 H8A-20-17T-RA-PKU-SHK-6M
    Reference no. 702584
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 12500
    Working load limit laced 0–45° [kg] 14000
    Working load limit laced 45−60° [kg] 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 138.2
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 493710
  • Details
    C82 H8A-22-21.2T-RA-PK-U-SHK-2M
    Reference no. 493710
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 92.359
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 493711
  • Details
    C82 H8A-22-21.2T-RA-PK-U-SHK-3M
    Reference no. 493711
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 114.159
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 493712
  • Details
    C82 H8A-22-21.2T-RA-PK-U-SHK-4M
    Reference no. 493712
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 135.959
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Working load limit laced 0–45° [kg] 17000
Working load limit laced 45−60° [kg] 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 493713
  • Details
    C82 H8A-22-21.2T-RA-PK-U-SHK-6M
    Reference no. 493713
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Working load limit laced 0–45° [kg] 17000
    Working load limit laced 45−60° [kg] 12000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 179.559
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
