HIT chain sling quality grade 8, 2-leg, can be shortened with extra-large suspension link and standard load hook

HIT chain sling quality grade 8, 2-leg, can be shortened with extra-large suspension link and standard load hook

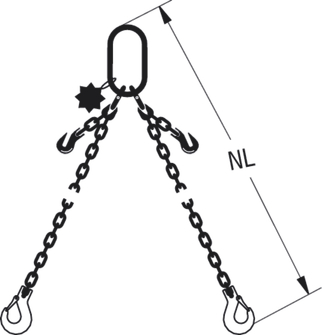

Chain sling with extra-large suspension link, shortener parallel hook and standard load hooks for 2 leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 2-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Working load limit laced 0–45° [kg]
Working load limit laced 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1600
    1120
    1250
    900
    6
    2
    493598
    G82 H8A-6-1.6T-RL-PKU-HK-2M
    Reference no. 493598
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 7.16
  • 1600
    1120
    1250
    900
    6
    3
    493599
    G82 H8A-6-1.6T-RL-PKU-HK-3M
    Reference no. 493599
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 8.76
  • 1600
    1120
    1250
    900
    6
    4
    493600
    G82 H8A-6-1.6T-RL-PKU-HK-4M
    Reference no. 493600
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 10.36
  • 1600
    1120
    1250
    900
    6
    6
    493601
    G82 H8A-6-1.6T-RL-PKU-HK-6M
    Reference no. 493601
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.56
  • 2800
    2000
    2240
    1600
    8
    2
    493603
    G82 H8A-8-2.8T-RL-PKU-HK-2M
    Reference no. 493603
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 10.323
  • 2800
    2000
    2240
    1600
    8
    3
    493604
    G82 H8A-8-2.8T-RL-PKU-HK-3M
    Reference no. 493604
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 13.123
  • 2800
    2000
    2240
    1600
    8
    4
    493605
    G82 H8A-8-2.8T-RL-PKU-HK-4M
    Reference no. 493605
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.923
  • 2800
    2000
    2240
    1600
    8
    6
    493606
    G82 H8A-8-2.8T-RL-PKU-HK-6M
    Reference no. 493606
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.523
  • 4250
    3150
    3550
    2500
    10
    2
    493608
    G82 H8A-10-4.25T-RL-PKU-HK-2M
    Reference no. 493608
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 17.918
  • 4250
    3150
    3550
    2500
    10
    3
    493609
    G82 H8A-10-4.25T-RL-PKU-HK-3M
    Reference no. 493609
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 22.318
  • 4250
    3150
    3550
    2500
    10
    4
    493610
    G82 H8A-10-4.25T-RL-PKU-HK-4M
    Reference no. 493610
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 26.718
  • 4250
    3150
    3550
    2500
    10
    6
    493611
    G82 H8A-10-4.25T-RL-PKU-HK-6M
    Reference no. 493611
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 35.518
  • 7500
    5300
    5900
    4250
    13
    2
    493613
    G82 H8A-13-7.5T-RL-PKU-HK-2M
    Reference no. 493613
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 28.956
  • 7500
    5300
    5900
    4250
    13
    3
    493614
    G82 H8A-13-7.5T-RL-PKU-HK-3M
    Reference no. 493614
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 36.556
  • 7500
    5300
    5900
    4250
    13
    4
    493615
    G82 H8A-13-7.5T-RL-PKU-HK-4M
    Reference no. 493615
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 44.156
  • 7500
    5300
    5900
    4250
    13
    6
    493616
    G82 H8A-13-7.5T-RL-PKU-HK-6M
    Reference no. 493616
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 59.356
  • 11200
    8000
    9000
    6300
    16
    2
    493618
    C82 H8A-16-11.2T-RL-PK-U-HK-2M
    Reference no. 493618
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 43.729
  • 11200
    8000
    9000
    6300
    16
    3
    493619
    C82 H8A-16-11.2T-RL-PK-U-HK-3M
    Reference no. 493619
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 55.129
  • 11200
    8000
    9000
    6300
    16
    4
    493620
    C82 H8A-16-11.2T-RL-PK-U-HK-4M
    Reference no. 493620
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 66.529
  • 11200
    8000
    9000
    6300
    16
    6
    493621
    C82 H8A-16-11.2T-RL-PK-U-HK-6M
    Reference no. 493621
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.329
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 493598
  • Details
    G82 H8A-6-1.6T-RL-PKU-HK-2M
    Reference no. 493598
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 7.16
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 493599
  • Details
    G82 H8A-6-1.6T-RL-PKU-HK-3M
    Reference no. 493599
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 8.76
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 493600
  • Details
    G82 H8A-6-1.6T-RL-PKU-HK-4M
    Reference no. 493600
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 10.36
Working load limit 0–45° [kg] 1600
Working load limit 45−60° [kg] 1120
Working load limit laced 0–45° [kg] 1250
Working load limit laced 45−60° [kg] 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 493601
  • Details
    G82 H8A-6-1.6T-RL-PKU-HK-6M
    Reference no. 493601
    Working load limit 0–45° [kg] 1600
    Working load limit 45−60° [kg] 1120
    Working load limit laced 0–45° [kg] 1250
    Working load limit laced 45−60° [kg] 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 13.56
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 493603
  • Details
    G82 H8A-8-2.8T-RL-PKU-HK-2M
    Reference no. 493603
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 10.323
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 493604
  • Details
    G82 H8A-8-2.8T-RL-PKU-HK-3M
    Reference no. 493604
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 13.123
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 493605
  • Details
    G82 H8A-8-2.8T-RL-PKU-HK-4M
    Reference no. 493605
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 15.923
Working load limit 0–45° [kg] 2800
Working load limit 45−60° [kg] 2000
Working load limit laced 0–45° [kg] 2240
Working load limit laced 45−60° [kg] 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 493606
  • Details
    G82 H8A-8-2.8T-RL-PKU-HK-6M
    Reference no. 493606
    Working load limit 0–45° [kg] 2800
    Working load limit 45−60° [kg] 2000
    Working load limit laced 0–45° [kg] 2240
    Working load limit laced 45−60° [kg] 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 21.523
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 493608
  • Details
    G82 H8A-10-4.25T-RL-PKU-HK-2M
    Reference no. 493608
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 17.918
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 493609
  • Details
    G82 H8A-10-4.25T-RL-PKU-HK-3M
    Reference no. 493609
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 22.318
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 493610
  • Details
    G82 H8A-10-4.25T-RL-PKU-HK-4M
    Reference no. 493610
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 26.718
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3150
Working load limit laced 0–45° [kg] 3550
Working load limit laced 45−60° [kg] 2500
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 493611
  • Details
    G82 H8A-10-4.25T-RL-PKU-HK-6M
    Reference no. 493611
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3150
    Working load limit laced 0–45° [kg] 3550
    Working load limit laced 45−60° [kg] 2500
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 35.518
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 493613
  • Details
    G82 H8A-13-7.5T-RL-PKU-HK-2M
    Reference no. 493613
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 28.956
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 493614
  • Details
    G82 H8A-13-7.5T-RL-PKU-HK-3M
    Reference no. 493614
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 36.556
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 493615
  • Details
    G82 H8A-13-7.5T-RL-PKU-HK-4M
    Reference no. 493615
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 44.156
Working load limit 0–45° [kg] 7500
Working load limit 45−60° [kg] 5300
Working load limit laced 0–45° [kg] 5900
Working load limit laced 45−60° [kg] 4250
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 493616
  • Details
    G82 H8A-13-7.5T-RL-PKU-HK-6M
    Reference no. 493616
    Working load limit 0–45° [kg] 7500
    Working load limit 45−60° [kg] 5300
    Working load limit laced 0–45° [kg] 5900
    Working load limit laced 45−60° [kg] 4250
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 59.356
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 493618
  • Details
    C82 H8A-16-11.2T-RL-PK-U-HK-2M
    Reference no. 493618
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 43.729
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 493619
  • Details
    C82 H8A-16-11.2T-RL-PK-U-HK-3M
    Reference no. 493619
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 55.129
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 493620
  • Details
    C82 H8A-16-11.2T-RL-PK-U-HK-4M
    Reference no. 493620
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 66.529
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Working load limit laced 0–45° [kg] 9000
Working load limit laced 45−60° [kg] 6300
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 493621
  • Details
    C82 H8A-16-11.2T-RL-PK-U-HK-6M
    Reference no. 493621
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Working load limit laced 0–45° [kg] 9000
    Working load limit laced 45−60° [kg] 6300
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 89.329
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
