HIT Chain slings in quality grade 8 4 leg with extra-large suspension link and safety load hook

HIT Chain slings in quality grade 8 4 leg with extra-large suspension link and safety load hook

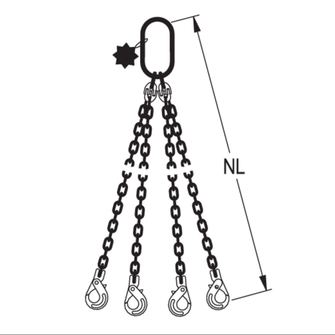

Chain sling with extra-large suspension link and safety load hook for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    1
    493396
    G84 H8A-6-2.36T-RL-SHK-1M
    Reference no. 493396
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 7.365
  • 2360
    1700
    6
    2
    493397
    G84 H8A-6-2.36T-RL-SHK-2M
    Reference no. 493397
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 10.565
  • 2360
    1700
    6
    3
    493398
    G84 H8A-6-2.36T-RL-SHK-3M
    Reference no. 493398
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.765
  • 2360
    1700
    6
    4
    493399
    G84 H8A-6-2.36T-RL-SHK-4M
    Reference no. 493399
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.965
  • 2360
    1700
    6
    6
    493400
    G84 H8A-6-2.36T-RL-SHK-6M
    Reference no. 493400
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 23.365
  • 4250
    3000
    8
    1
    493401
    G84 H8A-8-4.25T-RL-SHK-1M
    Reference no. 493401
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 13.729
  • 4250
    3000
    8
    2
    493402
    G84 H8A-8-4.25T-RL-SHK-2M
    Reference no. 493402
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 19.329
  • 4250
    3000
    8
    3
    493403
    G84 H8A-8-4.25T-RL-SHK-3M
    Reference no. 493403
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 24.929
  • 4250
    3000
    8
    4
    493404
    G84 H8A-8-4.25T-RL-SHK-4M
    Reference no. 493404
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 30.529
  • 4250
    3000
    8
    6
    493405
    G84 H8A-8-4.25T-RL-SHK-6M
    Reference no. 493405
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 41.729
  • 6700
    4750
    10
    1
    493406
    G84 H8A-10-6.7T-RL-SHK-1M
    Reference no. 493406
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 17.952
  • 6700
    4750
    10
    2
    493407
    G84 H8A-10-6.7T-RL-SHK-2M
    Reference no. 493407
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 26.752
  • 6700
    4750
    10
    3
    493408
    G84 H8A-10-6.7T-RL-SHK-3M
    Reference no. 493408
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 35.552
  • 6700
    4750
    10
    4
    493409
    G84 H8A-10-6.7T-RL-SHK-4M
    Reference no. 493409
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 44.352
  • 6700
    4750
    10
    6
    493410
    G84 H8A-10-6.7T-RL-SHK-6M
    Reference no. 493410
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 61.952
  • 11200
    8000
    13
    1
    493411
    G84 H8A-13-11.2T-RL-SHK-1M
    Reference no. 493411
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 34.431
  • 11200
    8000
    13
    2
    493412
    G84 H8A-13-11.2T-RL-SHK-2M
    Reference no. 493412
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 49.631
  • 11200
    8000
    13
    3
    493413
    G84 H8A-13-11.2T-RL-SHK-3M
    Reference no. 493413
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 64.831
  • 11200
    8000
    13
    4
    493414
    G84 H8A-13-11.2T-RL-SHK-4M
    Reference no. 493414
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 80.031
  • 11200
    8000
    13
    6
    493415
    G84 H8A-13-11.2T-RL-SHK-6M
    Reference no. 493415
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 110.431
  • 17000
    11800
    16
    1
    493416
    C84 H8A-16-17T-RL-SHK-1M
    Reference no. 493416
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 48.776
  • 17000
    11800
    16
    2
    493417
    C84 H8A-16-17T-RL-SHK-2M
    Reference no. 493417
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 71.576
  • 17000
    11800
    16
    3
    493418
    C84 H8A-16-17T-RL-SHK-3M
    Reference no. 493418
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 94.376
  • 17000
    11800
    16
    4
    493419
    C84 H8A-16-17T-RL-SHK-4M
    Reference no. 493419
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 117.176
  • 17000
    11800
    16
    6
    493420
    C84 H8A-16-17T-RL-SHK-6M
    Reference no. 493420
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 162.776
