HIT Chain slings in quality grade 8 4 leg with extra-large suspension link and standard load hook

HIT Chain slings in quality grade 8 4 leg with extra-large suspension link and standard load hook

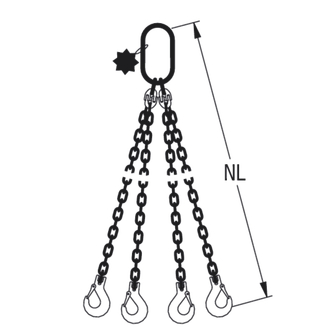

Chain sling with extra-large suspension link and standard load hook for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    1
    493324
    G84 H8A-6-2.36T-RL-HK-1M
    Reference no. 493324
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6.68
  • 2360
    1700
    6
    2
    493325
    G84 H8A-6-2.36T-RL-HK-2M
    Reference no. 493325
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.88
  • 2360
    1700
    6
    3
    493326
    G84 H8A-6-2.36T-RL-HK-3M
    Reference no. 493326
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.08
  • 2360
    1700
    6
    4
    493327
    G84 H8A-6-2.36T-RL-HK-4M
    Reference no. 493327
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.28
  • 2360
    1700
    6
    6
    493328
    G84 H8A-6-2.36T-RL-HK-6M
    Reference no. 493328
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 22.68
  • 4250
    3000
    8
    1
    493329
    G84 H8A-8-4.25T-RL-HK-1M
    Reference no. 493329
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 12.398
  • 4250
    3000
    8
    2
    493330
    G84 H8A-8-4.25T-RL-HK-2M
    Reference no. 493330
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17.998
  • 4250
    3000
    8
    3
    493331
    G84 H8A-8-4.25T-RL-HK-3M
    Reference no. 493331
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23.598
  • 4250
    3000
    8
    4
    493332
    G84 H8A-8-4.25T-RL-HK-4M
    Reference no. 493332
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 29.198
  • 4250
    3000
    8
    6
    493333
    G84 H8A-8-4.25T-RL-HK-6M
    Reference no. 493333
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 40.398
  • 6700
    4750
    10
    1
    493334
    G84 H8A-10-6.7T-RL-HK-1M
    Reference no. 493334
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 16.08
  • 6700
    4750
    10
    2
    493335
    G84 H8A-10-6.7T-RL-HK-2M
    Reference no. 493335
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 24.88
  • 6700
    4750
    10
    3
    493336
    G84 H8A-10-6.7T-RL-HK-3M
    Reference no. 493336
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 33.68
  • 6700
    4750
    10
    4
    493337
    G84 H8A-10-6.7T-RL-HK-4M
    Reference no. 493337
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 42.48
  • 6700
    4750
    10
    6
    493338
    G84 H8A-10-6.7T-RL-HK-6M
    Reference no. 493338
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 60.08
  • 11200
    8000
    13
    1
    493339
    G84 H8A-13-11.2T-RL-HK-1M
    Reference no. 493339
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 28.431
  • 11200
    8000
    13
    2
    493340
    G84 H8A-13-11.2T-RL-HK-2M
    Reference no. 493340
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 43.631
  • 11200
    8000
    13
    3
    493341
    G84 H8A-13-11.2T-RL-HK-3M
    Reference no. 493341
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 58.831
  • 11200
    8000
    13
    4
    493342
    G84 H8A-13-11.2T-RL-HK-4M
    Reference no. 493342
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 74.031
  • 11200
    8000
    13
    6
    493343
    G84 H8A-13-11.2T-RL-HK-6M
    Reference no. 493343
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 104.431
  • 17000
    11800
    16
    1
    493344
    C84 H8A-16-17T-RL-HK-1M
    Reference no. 493344
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 37.871
  • 17000
    11800
    16
    2
    493345
    C84 H8A-16-17T-RL-HK-2M
    Reference no. 493345
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 60.671
  • 17000
    11800
    16
    3
    493346
    C84 H8A-16-17T-RL-HK-3M
    Reference no. 493346
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 83.471
  • 17000
    11800
    16
    4
    493347
    C84 H8A-16-17T-RL-HK-4M
    Reference no. 493347
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 106.271
  • 17000
    11800
    16
    6
    493348
    C84 H8A-16-17T-RL-HK-6M
    Reference no. 493348
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 151.871
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 493324
  • Details
    G84 H8A-6-2.36T-RL-HK-1M
    Reference no. 493324
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 6.68
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 493325
  • Details
    G84 H8A-6-2.36T-RL-HK-2M
    Reference no. 493325
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.88
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 493326
  • Details
    G84 H8A-6-2.36T-RL-HK-3M
    Reference no. 493326
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13.08
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 493327
  • Details
    G84 H8A-6-2.36T-RL-HK-4M
    Reference no. 493327
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.28
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 493328
  • Details
    G84 H8A-6-2.36T-RL-HK-6M
    Reference no. 493328
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 22.68
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 493329
  • Details
    G84 H8A-8-4.25T-RL-HK-1M
    Reference no. 493329
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 12.398
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 493330
  • Details
    G84 H8A-8-4.25T-RL-HK-2M
    Reference no. 493330
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17.998
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 493331
  • Details
    G84 H8A-8-4.25T-RL-HK-3M
    Reference no. 493331
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23.598
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 493332
  • Details
    G84 H8A-8-4.25T-RL-HK-4M
    Reference no. 493332
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 29.198
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 493333
  • Details
    G84 H8A-8-4.25T-RL-HK-6M
    Reference no. 493333
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 40.398
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 493334
  • Details
    G84 H8A-10-6.7T-RL-HK-1M
    Reference no. 493334
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 16.08
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 493335
  • Details
    G84 H8A-10-6.7T-RL-HK-2M
    Reference no. 493335
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 24.88
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 493336
  • Details
    G84 H8A-10-6.7T-RL-HK-3M
    Reference no. 493336
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 33.68
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 493337
  • Details
    G84 H8A-10-6.7T-RL-HK-4M
    Reference no. 493337
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 42.48
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 493338
  • Details
    G84 H8A-10-6.7T-RL-HK-6M
    Reference no. 493338
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 60.08
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 493339
  • Details
    G84 H8A-13-11.2T-RL-HK-1M
    Reference no. 493339
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 28.431
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 493340
  • Details
    G84 H8A-13-11.2T-RL-HK-2M
    Reference no. 493340
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 43.631
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 493341
  • Details
    G84 H8A-13-11.2T-RL-HK-3M
    Reference no. 493341
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 58.831
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 493342
  • Details
    G84 H8A-13-11.2T-RL-HK-4M
    Reference no. 493342
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 74.031
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 493343
  • Details
    G84 H8A-13-11.2T-RL-HK-6M
    Reference no. 493343
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 104.431
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 493344
  • Details
    C84 H8A-16-17T-RL-HK-1M
    Reference no. 493344
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 37.871
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 493345
  • Details
    C84 H8A-16-17T-RL-HK-2M
    Reference no. 493345
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 60.671
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 493346
  • Details
    C84 H8A-16-17T-RL-HK-3M
    Reference no. 493346
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 83.471
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 493347
  • Details
    C84 H8A-16-17T-RL-HK-4M
    Reference no. 493347
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 106.271
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 493348
  • Details
    C84 H8A-16-17T-RL-HK-6M
    Reference no. 493348
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 151.871
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
