Polytex® lifting strap SH

Polytex® lifting strap SH
Two layer lifting strap with sling hook with safety latch for lifting operations in choker hitch. Saves time for frequent choker hitching because the sling hook ensures that the strap doesn't have not be unhooked from the crane hook. The strap lies fully within the sling hook which makes it wear-resistant.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Marking

  • Imprinted working load limit

Protective sleeve

  • Robust

Safety factor

  • 5

Material

  • Polyester fabric

Material layers

  • two-layer

PU coating

  • none
Options

Options on request

  • further useful lengths
Product variants
Working load limit 0° [kg]

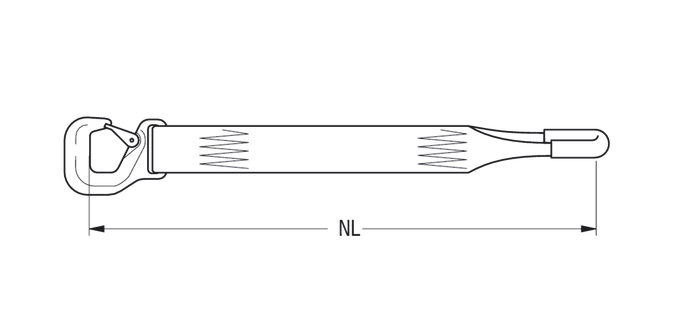

Effective length WLL [m]
Reference no.
Details

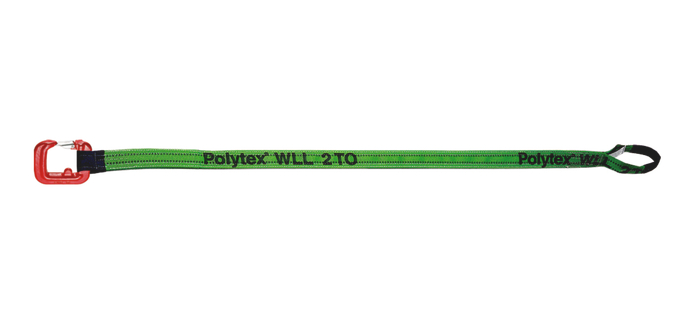

  • 2000
    1
    471338
    HBL-EN-2T-2L-60-1M
    Reference no. 471338
    Working load limit 0° [kg] 2000

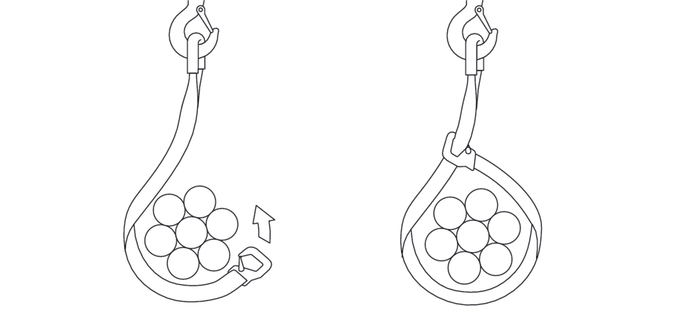

    Working load limit laced [kg] 1600
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 1
    Weight approx. [kg] 2.343
  • 2000
    2
    471339
    HBL-EN-2T-2L-60-2M
    Reference no. 471339
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 2.669
  • 2000
    3
    471340
    HBL-EN-2T-2L-60-3M
    Reference no. 471340
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 2.995

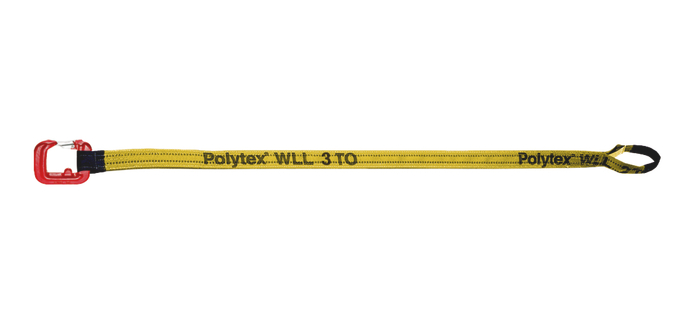

  • 3000
    2
    471342
    HBL-EN-3T-2L-90-2M
    Reference no. 471342
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 2
    Weight approx. [kg] 4.077
  • 3000
    3
    471343
    HBL-EN-3T-2L-90-3M
    Reference no. 471343
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 3
    Weight approx. [kg] 4.549
  • 3000
    4
    471344
    HBL-EN-3T-2L-90-4M
    Reference no. 471344
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 4
    Weight approx. [kg] 5.021
  • 3000
    6
    471345
    HBL-EN-3T-2L-90-6M
    Reference no. 471345
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 6
    Weight approx. [kg] 5.965

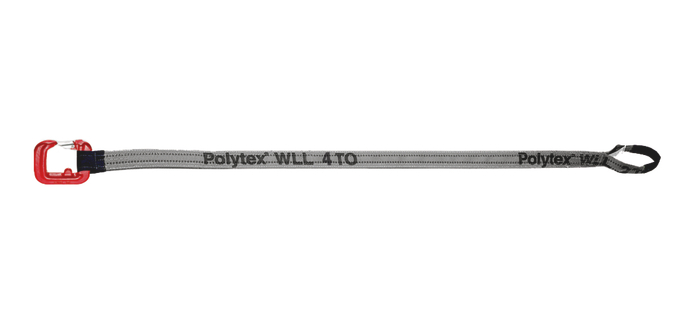

  • 4000
    2
    471347
    HBL-EN-4T-2L-120-2M
    Reference no. 471347
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 6.692
  • 4000
    3
    471348
    HBL-EN-4T-2L-120-3M
    Reference no. 471348
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 7.412
  • 4000
    4
    471349
    HBL-EN-4T-2L-120-4M
    Reference no. 471349
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 8.132
  • 4000
    6
    471350
    HBL-EN-4T-2L-120-6M
    Reference no. 471350
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 9.572

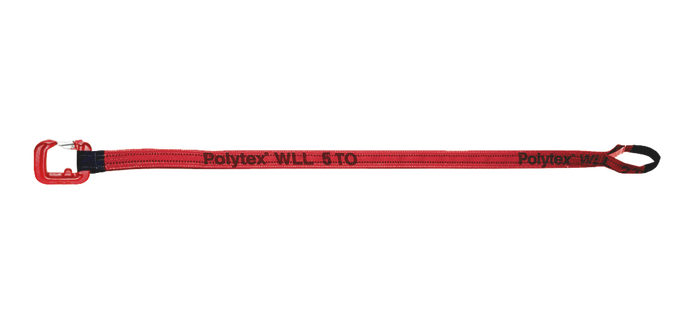

  • 5000
    2
    471351
    HBL-EN-5T-2L-150-2M
    Reference no. 471351
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 2
    Weight approx. [kg] 12.509
  • 5000
    3
    471352
    HBL-EN-5T-2L-150-3M
    Reference no. 471352
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 3
    Weight approx. [kg] 13.343
  • 5000
    4
    471353
    HBL-EN-5T-2L-150-4M
    Reference no. 471353
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 4
    Weight approx. [kg] 14.177
  • 5000
    6
    471354
    HBL-EN-5T-2L-150-6M
    Reference no. 471354
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 6
    Weight approx. [kg] 15.845
Working load limit 0° [kg] 2000
Effective length WLL [m] 1
Reference no. 471338
  • Details
    HBL-EN-2T-2L-60-1M
    Reference no. 471338
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 1
    Weight approx. [kg] 2.343
Working load limit 0° [kg] 2000
Effective length WLL [m] 2
Reference no. 471339
  • Details
    HBL-EN-2T-2L-60-2M
    Reference no. 471339
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 2.669
Working load limit 0° [kg] 2000
Effective length WLL [m] 3
Reference no. 471340
  • Details
    HBL-EN-2T-2L-60-3M
    Reference no. 471340
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 2.995
Working load limit 0° [kg] 3000
Effective length WLL [m] 2
Reference no. 471342
  • Details
    HBL-EN-3T-2L-90-2M
    Reference no. 471342
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 2
    Weight approx. [kg] 4.077
Working load limit 0° [kg] 3000
Effective length WLL [m] 3
Reference no. 471343
  • Details
    HBL-EN-3T-2L-90-3M
    Reference no. 471343
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 3
    Weight approx. [kg] 4.549
Working load limit 0° [kg] 3000
Effective length WLL [m] 4
Reference no. 471344
  • Details
    HBL-EN-3T-2L-90-4M
    Reference no. 471344
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 4
    Weight approx. [kg] 5.021
Working load limit 0° [kg] 3000
Effective length WLL [m] 6
Reference no. 471345
  • Details
    HBL-EN-3T-2L-90-6M
    Reference no. 471345
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 6
    Weight approx. [kg] 5.965
Working load limit 0° [kg] 4000
Effective length WLL [m] 2
Reference no. 471347
  • Details
    HBL-EN-4T-2L-120-2M
    Reference no. 471347
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 6.692
Working load limit 0° [kg] 4000
Effective length WLL [m] 3
Reference no. 471348
  • Details
    HBL-EN-4T-2L-120-3M
    Reference no. 471348
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 7.412
Working load limit 0° [kg] 4000
Effective length WLL [m] 4
Reference no. 471349
  • Details
    HBL-EN-4T-2L-120-4M
    Reference no. 471349
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 8.132
Working load limit 0° [kg] 4000
Effective length WLL [m] 6
Reference no. 471350
  • Details
    HBL-EN-4T-2L-120-6M
    Reference no. 471350
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 9.572
Working load limit 0° [kg] 5000
Effective length WLL [m] 2
Reference no. 471351
  • Details
    HBL-EN-5T-2L-150-2M
    Reference no. 471351
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 2
    Weight approx. [kg] 12.509
Working load limit 0° [kg] 5000
Effective length WLL [m] 3
Reference no. 471352
  • Details
    HBL-EN-5T-2L-150-3M
    Reference no. 471352
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 3
    Weight approx. [kg] 13.343
Working load limit 0° [kg] 5000
Effective length WLL [m] 4
Reference no. 471353
  • Details
    HBL-EN-5T-2L-150-4M
    Reference no. 471353
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 4
    Weight approx. [kg] 14.177
Working load limit 0° [kg] 5000
Effective length WLL [m] 6
Reference no. 471354
  • Details
    HBL-EN-5T-2L-150-6M
    Reference no. 471354
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 6
    Weight approx. [kg] 15.845
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
