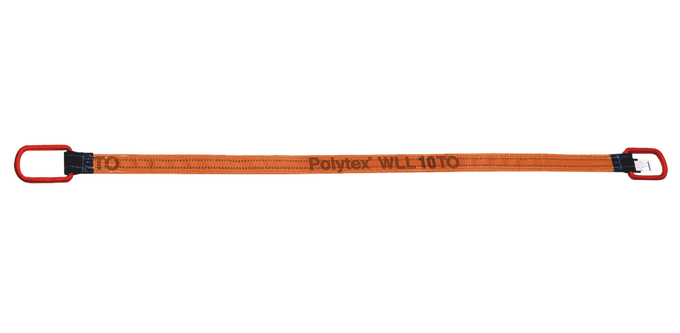

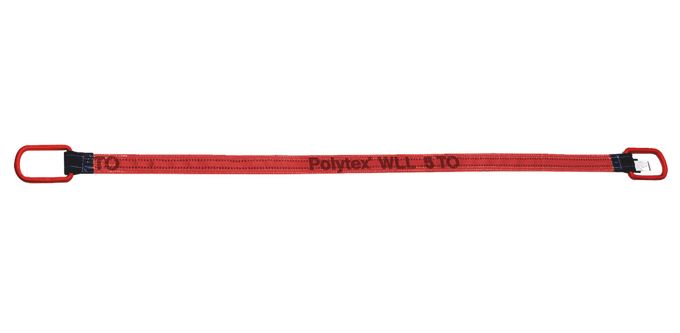

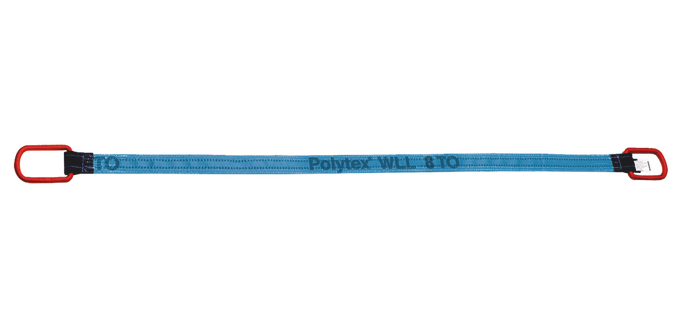

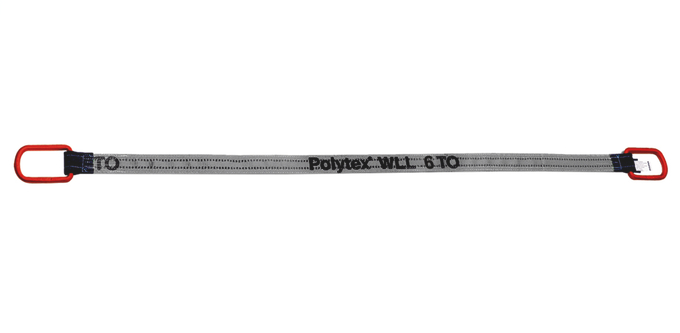

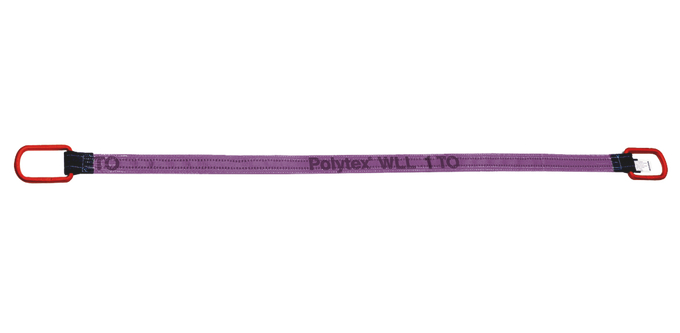

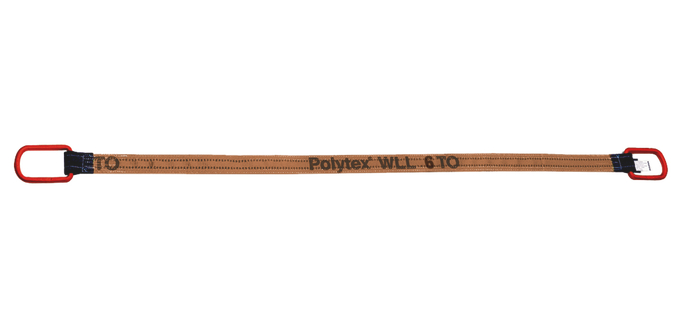

Polytex® lifting strap round steel brackets

Polytex® lifting strap round steel brackets

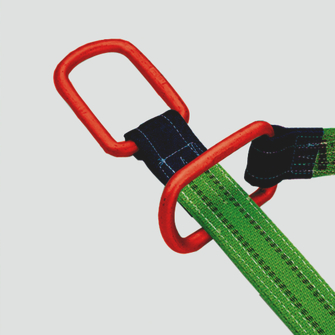

Two-layer lifting strap with push-through round steel stirrups for easy looping around the load. Reinforced loops in the round steel stirrup area. The steel stirrups reduce wear and tear in the strap's load carrying area. In choker hitching, the strap lies evenly in the stirrup.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Marking

  • Printed load capacity, woven tonnage strips and label

Material

  • high-strength polyester fabric

Material layers

  • two-layer

PU coating

  • none
Options

Options on request

  • further useful lengths
Product variants
Working load limit 0° [kg]

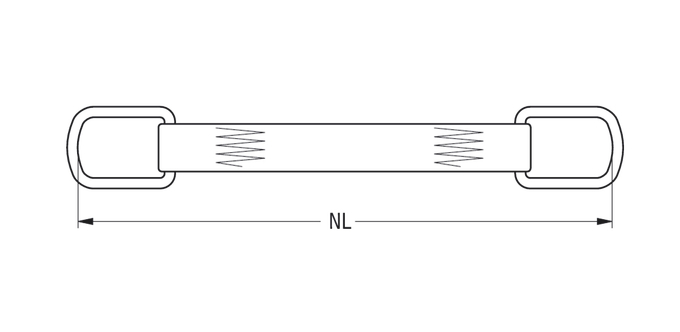

Effective length WLL [m]
Reference no.
Details
  • 1000
    1
    471239
    HBB-EN-1T-2L-30-1M
    Reference no. 471239
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 1
    Weight approx. [kg] 0.76
  • 1000
    1.5
    471240
    HBB-EN-1T-2L-30-1.5M
    Reference no. 471240
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 1.5
    Weight approx. [kg] 0.845
  • 1000
    2
    471241
    HBB-EN-1T-2L-30-2M
    Reference no. 471241
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 2
    Weight approx. [kg] 0.93
  • 1000
    3
    471242
    HBB-EN-1T-2L-30-3M
    Reference no. 471242
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 3
    Weight approx. [kg] 1.1
  • 1000
    4
    515445
    HBB-EN-1T-2L-30-4M
    Reference no. 515445
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 4
    Weight approx. [kg] 1.27
  • 1000
    5
    515446
    HBB-EN-1T-2L-30-5M
    Reference no. 515446
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 5
    Weight approx. [kg] 1.44
  • 1000
    6
    515447
    HBB-EN-1T-2L-30-6M
    Reference no. 515447
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 6
    Weight approx. [kg] 1.61
  • 1000
    8
    515448
    HBB-EN-1T-2L-30-8M
    Reference no. 515448
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 8
    Weight approx. [kg] 1.95

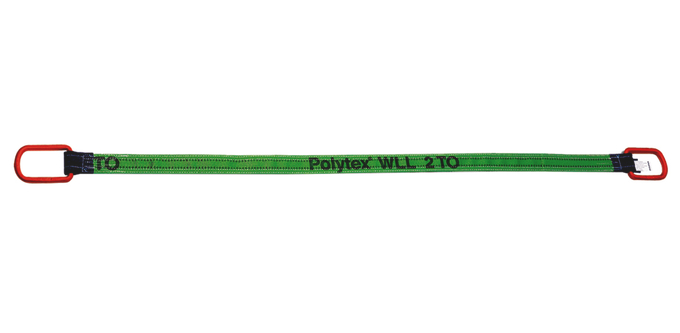

  • 2000
    1
    471243
    HBB-EN-2T-2L-60-1M
    Reference no. 471243
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 1
    Weight approx. [kg] 1.686
  • 2000
    1.5
    471244
    HBB-EN-2T-2L-60-1.5M
    Reference no. 471244
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.849
  • 2000
    2
    471245
    HBB-EN-2T-2L-60-2M
    Reference no. 471245
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 2.012
  • 2000
    3
    471246
    HBB-EN-2T-2L-60-3M
    Reference no. 471246
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 2.338
  • 2000
    4
    471247
    HBB-EN-2T-2L-60-4M
    Reference no. 471247
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 4
    Weight approx. [kg] 2.664
  • 2000
    5
    515449
    HBB-EN-2T-2L-60-5M
    Reference no. 515449
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 5
    Weight approx. [kg] 2.99
  • 2000
    6
    515450
    HBB-EN-2T-2L-60-6M
    Reference no. 515450
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 6
    Weight approx. [kg] 3.32
  • 2000
    8
    515451
    HBB-EN-2T-2L-60-8M
    Reference no. 515451
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 8
    Weight approx. [kg] 3.97

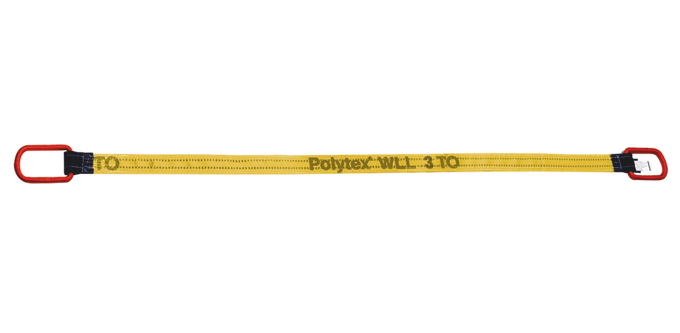

  • 3000
    1
    709963
    HBB-EN-3T-2L-90-1M
    Reference no. 709963
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 1
    Weight approx. [kg] 3.5
  • 3000
    1.5
    702401
    HBB-EN-3T-2L-90-1.5M
    Reference no. 702401
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.7
  • 3000
    2
    471248
    HBB-EN-3T-2L-90-2M
    Reference no. 471248
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 2
    Weight approx. [kg] 4.004
  • 3000
    3
    471249
    HBB-EN-3T-2L-90-3M
    Reference no. 471249
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 3
    Weight approx. [kg] 4.476
  • 3000
    4
    471250
    HBB-EN-3T-2L-90-4M
    Reference no. 471250
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 4
    Weight approx. [kg] 4.948
  • 3000
    5
    515453
    HBB-EN-3T-2L-90-5M
    Reference no. 515453
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 5
    Weight approx. [kg] 5.42
  • 3000
    6
    515454
    HBB-EN-3T-2L-90-6M
    Reference no. 515454
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 6
    Weight approx. [kg] 5.89
  • 3000
    8
    515455
    HBB-EN-3T-2L-90-8M
    Reference no. 515455
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 8
    Weight approx. [kg] 6.84
  • 4000
    1.5
    709044
    HBB-EN-4T-2L-120-1.5M
    Reference no. 709044
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.7
  • 4000
    2
    471251
    HBB-EN-4T-2L-120-2M
    Reference no. 471251
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 6.221
  • 4000
    3
    471252
    HBB-EN-4T-2L-120-3M
    Reference no. 471252
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 6.941
  • 4000
    4
    471253
    HBB-EN-4T-2L-120-4M
    Reference no. 471253
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 7.661
  • 4000
    5
    471254
    HBB-EN-4T-2L-120-5M
    Reference no. 471254
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 5
    Weight approx. [kg] 8.381
  • 4000
    6
    515456
    HBB-EN-4T-2L-120-6M
    Reference no. 515456
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 9.1
  • 4000
    8
    515457
    HBB-EN-4T-2L-120-8M
    Reference no. 515457
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 8
    Weight approx. [kg] 10.54
  • 5000
    2
    471255
    HBB-EN-5T-2L-150-2M
    Reference no. 471255
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 2
    Weight approx. [kg] 9.474
  • 5000
    3
    471256
    HBB-EN-5T-2L-150-3M
    Reference no. 471256
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 3
    Weight approx. [kg] 10.308
  • 5000
    4
    471257
    HBB-EN-5T-2L-150-4M
    Reference no. 471257
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 4
    Weight approx. [kg] 11.142
  • 5000
    5
    471258
    HBB-EN-5T-2L-150-5M
    Reference no. 471258
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 5
    Weight approx. [kg] 11.976
  • 5000
    6
    515458
    HBB-EN-5T-2L-150-6M
    Reference no. 515458
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 6
    Weight approx. [kg] 12.81
  • 5000
    8
    515459
    HBB-EN-5T-2L-150-8M
    Reference no. 515459
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 8
    Weight approx. [kg] 14.48
  • 6000
    4
    706253
    HBB-EN-6T-2L-180-4M
    Reference no. 706253
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 4
    Weight approx. [kg] 13.3
  • 6000
    5
    471259
    HBB-EN-6T-2L-180-5M
    Reference no. 471259
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 5
    Weight approx. [kg] 17.659
  • 6000
    6
    471260
    HBB-EN-6T-2L-180-6M
    Reference no. 471260
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 6
    Weight approx. [kg] 18.762
  • 6000
    8
    471261
    HBB-EN-6T-2L-180-8M
    Reference no. 471261
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 8
    Weight approx. [kg] 20.968
  • 8000
    4
    706418
    HBB-EN-8T-2L-240-4M
    Reference no. 706418
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 4
    Weight approx. [kg] 23.8
  • 8000
    5
    471262
    HBB-EN-8T-2L-240-5M
    Reference no. 471262
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 5
    Weight approx. [kg] 27.089
  • 8000
    6
    471263
    HBB-EN-8T-2L-240-6M
    Reference no. 471263
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 6
    Weight approx. [kg] 28.741
  • 8000
    8
    471264
    HBB-EN-8T-2L-240-8M
    Reference no. 471264
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 8
    Weight approx. [kg] 32.045
  • 10000
    5
    471265
    HBB-EN-10T-2L-300-5M
    Reference no. 471265
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 290
    Stirrup width H 85
    Stirrup section Ø F [mm] 40
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 34.579
  • 10000
    6
    471266
    HBB-EN-10T-2L-300-6M
    Reference no. 471266
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 290
    Stirrup width H 85
    Stirrup section Ø F [mm] 40
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 36.45
  • 10000
    8
    471267
    HBB-EN-10T-2L-300-8M
    Reference no. 471267
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 290
    Stirrup width H 85
    Stirrup section Ø F [mm] 40
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 40.192
Working load limit 0° [kg] 1000
Effective length WLL [m] 1
Reference no. 471239
  • Details
    HBB-EN-1T-2L-30-1M
    Reference no. 471239
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 1
    Weight approx. [kg] 0.76
Working load limit 0° [kg] 1000
Effective length WLL [m] 1.5
Reference no. 471240
  • Details
    HBB-EN-1T-2L-30-1.5M
    Reference no. 471240
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 1.5
    Weight approx. [kg] 0.845
Working load limit 0° [kg] 1000
Effective length WLL [m] 2
Reference no. 471241
  • Details
    HBB-EN-1T-2L-30-2M
    Reference no. 471241
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 2
    Weight approx. [kg] 0.93
Working load limit 0° [kg] 1000
Effective length WLL [m] 3
Reference no. 471242
  • Details
    HBB-EN-1T-2L-30-3M
    Reference no. 471242
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 3
    Weight approx. [kg] 1.1
Working load limit 0° [kg] 1000
Effective length WLL [m] 4
Reference no. 515445
  • Details
    HBB-EN-1T-2L-30-4M
    Reference no. 515445
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 4
    Weight approx. [kg] 1.27
Working load limit 0° [kg] 1000
Effective length WLL [m] 5
Reference no. 515446
  • Details
    HBB-EN-1T-2L-30-5M
    Reference no. 515446
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 5
    Weight approx. [kg] 1.44
Working load limit 0° [kg] 1000
Effective length WLL [m] 6
Reference no. 515447
  • Details
    HBB-EN-1T-2L-30-6M
    Reference no. 515447
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 6
    Weight approx. [kg] 1.61
Working load limit 0° [kg] 1000
Effective length WLL [m] 8
Reference no. 515448
  • Details
    HBB-EN-1T-2L-30-8M
    Reference no. 515448
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 80
    Stirrup width H 40
    Stirrup section Ø F [mm] 13
    Colour violet
    Effective length WLL [m] 8
    Weight approx. [kg] 1.95
Working load limit 0° [kg] 2000
Effective length WLL [m] 1
Reference no. 471243
  • Details
    HBB-EN-2T-2L-60-1M
    Reference no. 471243
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 1
    Weight approx. [kg] 1.686
Working load limit 0° [kg] 2000
Effective length WLL [m] 1.5
Reference no. 471244
  • Details
    HBB-EN-2T-2L-60-1.5M
    Reference no. 471244
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.849
Working load limit 0° [kg] 2000
Effective length WLL [m] 2
Reference no. 471245
  • Details
    HBB-EN-2T-2L-60-2M
    Reference no. 471245
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 2.012
Working load limit 0° [kg] 2000
Effective length WLL [m] 3
Reference no. 471246
  • Details
    HBB-EN-2T-2L-60-3M
    Reference no. 471246
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 2.338
Working load limit 0° [kg] 2000
Effective length WLL [m] 4
Reference no. 471247
  • Details
    HBB-EN-2T-2L-60-4M
    Reference no. 471247
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 4
    Weight approx. [kg] 2.664
Working load limit 0° [kg] 2000
Effective length WLL [m] 5
Reference no. 515449
  • Details
    HBB-EN-2T-2L-60-5M
    Reference no. 515449
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 5
    Weight approx. [kg] 2.99
Working load limit 0° [kg] 2000
Effective length WLL [m] 6
Reference no. 515450
  • Details
    HBB-EN-2T-2L-60-6M
    Reference no. 515450
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 6
    Weight approx. [kg] 3.32
Working load limit 0° [kg] 2000
Effective length WLL [m] 8
Reference no. 515451
  • Details
    HBB-EN-2T-2L-60-8M
    Reference no. 515451
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 125
    Stirrup width H 75
    Stirrup section Ø F [mm] 16
    Colour green
    Effective length WLL [m] 8
    Weight approx. [kg] 3.97
Working load limit 0° [kg] 3000
Effective length WLL [m] 1
Reference no. 709963
  • Details
    HBB-EN-3T-2L-90-1M
    Reference no. 709963
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 1
    Weight approx. [kg] 3.5
Working load limit 0° [kg] 3000
Effective length WLL [m] 1.5
Reference no. 702401
  • Details
    HBB-EN-3T-2L-90-1.5M
    Reference no. 702401
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.7
Working load limit 0° [kg] 3000
Effective length WLL [m] 2
Reference no. 471248
  • Details
    HBB-EN-3T-2L-90-2M
    Reference no. 471248
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 2
    Weight approx. [kg] 4.004
Working load limit 0° [kg] 3000
Effective length WLL [m] 3
Reference no. 471249
  • Details
    HBB-EN-3T-2L-90-3M
    Reference no. 471249
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 3
    Weight approx. [kg] 4.476
Working load limit 0° [kg] 3000
Effective length WLL [m] 4
Reference no. 471250
  • Details
    HBB-EN-3T-2L-90-4M
    Reference no. 471250
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 4
    Weight approx. [kg] 4.948
Working load limit 0° [kg] 3000
Effective length WLL [m] 5
Reference no. 515453
  • Details
    HBB-EN-3T-2L-90-5M
    Reference no. 515453
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 5
    Weight approx. [kg] 5.42
Working load limit 0° [kg] 3000
Effective length WLL [m] 6
Reference no. 515454
  • Details
    HBB-EN-3T-2L-90-6M
    Reference no. 515454
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 6
    Weight approx. [kg] 5.89
Working load limit 0° [kg] 3000
Effective length WLL [m] 8
Reference no. 515455
  • Details
    HBB-EN-3T-2L-90-8M
    Reference no. 515455
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Stirrup length LB [mm] 165
    Stirrup width H 105
    Stirrup section Ø F [mm] 20
    Colour yellow
    Effective length WLL [m] 8
    Weight approx. [kg] 6.84
Working load limit 0° [kg] 4000
Effective length WLL [m] 1.5
Reference no. 709044
  • Details
    HBB-EN-4T-2L-120-1.5M
    Reference no. 709044
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 1.5
    Weight approx. [kg] 5.7
Working load limit 0° [kg] 4000
Effective length WLL [m] 2
Reference no. 471251
  • Details
    HBB-EN-4T-2L-120-2M
    Reference no. 471251
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 6.221
Working load limit 0° [kg] 4000
Effective length WLL [m] 3
Reference no. 471252
  • Details
    HBB-EN-4T-2L-120-3M
    Reference no. 471252
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 6.941
Working load limit 0° [kg] 4000
Effective length WLL [m] 4
Reference no. 471253
  • Details
    HBB-EN-4T-2L-120-4M
    Reference no. 471253
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 7.661
Working load limit 0° [kg] 4000
Effective length WLL [m] 5
Reference no. 471254
  • Details
    HBB-EN-4T-2L-120-5M
    Reference no. 471254
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 5
    Weight approx. [kg] 8.381
Working load limit 0° [kg] 4000
Effective length WLL [m] 6
Reference no. 515456
  • Details
    HBB-EN-4T-2L-120-6M
    Reference no. 515456
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 9.1
Working load limit 0° [kg] 4000
Effective length WLL [m] 8
Reference no. 515457
  • Details
    HBB-EN-4T-2L-120-8M
    Reference no. 515457
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 210
    Stirrup width H 140
    Stirrup section Ø F [mm] 23
    Colour grey
    Effective length WLL [m] 8
    Weight approx. [kg] 10.54
Working load limit 0° [kg] 5000
Effective length WLL [m] 2
Reference no. 471255
  • Details
    HBB-EN-5T-2L-150-2M
    Reference no. 471255
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 2
    Weight approx. [kg] 9.474
Working load limit 0° [kg] 5000
Effective length WLL [m] 3
Reference no. 471256
  • Details
    HBB-EN-5T-2L-150-3M
    Reference no. 471256
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 3
    Weight approx. [kg] 10.308
Working load limit 0° [kg] 5000
Effective length WLL [m] 4
Reference no. 471257
  • Details
    HBB-EN-5T-2L-150-4M
    Reference no. 471257
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 4
    Weight approx. [kg] 11.142
Working load limit 0° [kg] 5000
Effective length WLL [m] 5
Reference no. 471258
  • Details
    HBB-EN-5T-2L-150-5M
    Reference no. 471258
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 5
    Weight approx. [kg] 11.976
Working load limit 0° [kg] 5000
Effective length WLL [m] 6
Reference no. 515458
  • Details
    HBB-EN-5T-2L-150-6M
    Reference no. 515458
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 6
    Weight approx. [kg] 12.81
Working load limit 0° [kg] 5000
Effective length WLL [m] 8
Reference no. 515459
  • Details
    HBB-EN-5T-2L-150-8M
    Reference no. 515459
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 245
    Stirrup width H 170
    Stirrup section Ø F [mm] 26
    Colour red
    Effective length WLL [m] 8
    Weight approx. [kg] 14.48
Working load limit 0° [kg] 6000
Effective length WLL [m] 4
Reference no. 706253
  • Details
    HBB-EN-6T-2L-180-4M
    Reference no. 706253
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 4
    Weight approx. [kg] 13.3
Working load limit 0° [kg] 6000
Effective length WLL [m] 5
Reference no. 471259
  • Details
    HBB-EN-6T-2L-180-5M
    Reference no. 471259
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 5
    Weight approx. [kg] 17.659
Working load limit 0° [kg] 6000
Effective length WLL [m] 6
Reference no. 471260
  • Details
    HBB-EN-6T-2L-180-6M
    Reference no. 471260
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 6
    Weight approx. [kg] 18.762
Working load limit 0° [kg] 6000
Effective length WLL [m] 8
Reference no. 471261
  • Details
    HBB-EN-6T-2L-180-8M
    Reference no. 471261
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Stirrup length LB [mm] 300
    Stirrup width H 200
    Stirrup section Ø F [mm] 30
    Colour brown
    Effective length WLL [m] 8
    Weight approx. [kg] 20.968
Working load limit 0° [kg] 8000
Effective length WLL [m] 4
Reference no. 706418
  • Details
    HBB-EN-8T-2L-240-4M
    Reference no. 706418
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 4
    Weight approx. [kg] 23.8
Working load limit 0° [kg] 8000
Effective length WLL [m] 5
Reference no. 471262
  • Details
    HBB-EN-8T-2L-240-5M
    Reference no. 471262
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 5
    Weight approx. [kg] 27.089
Working load limit 0° [kg] 8000
Effective length WLL [m] 6
Reference no. 471263
  • Details
    HBB-EN-8T-2L-240-6M
    Reference no. 471263
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 6
    Weight approx. [kg] 28.741
Working load limit 0° [kg] 8000
Effective length WLL [m] 8
Reference no. 471264
  • Details
    HBB-EN-8T-2L-240-8M
    Reference no. 471264
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 395
    Stirrup width H 270
    Stirrup section Ø F [mm] 36
    Colour blue
    Effective length WLL [m] 8
    Weight approx. [kg] 32.045
Working load limit 0° [kg] 10000
Effective length WLL [m] 5
Reference no. 471265
  • Details
    HBB-EN-10T-2L-300-5M
    Reference no. 471265
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 290
    Stirrup width H 85
    Stirrup section Ø F [mm] 40
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 34.579
Working load limit 0° [kg] 10000
Effective length WLL [m] 6
Reference no. 471266
  • Details
    HBB-EN-10T-2L-300-6M
    Reference no. 471266
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 290
    Stirrup width H 85
    Stirrup section Ø F [mm] 40
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 36.45
Working load limit 0° [kg] 10000
Effective length WLL [m] 8
Reference no. 471267
  • Details
    HBB-EN-10T-2L-300-8M
    Reference no. 471267
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Stirrup length LB [mm] 290
    Stirrup width H 85
    Stirrup section Ø F [mm] 40
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 40.192
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
