Polytex® round sling DH

Polytex® round sling DH
Round slings with impregnated, double protective sleeve for long service life.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Imprinted working load limit
  • woven tonnage stripes
  • Standard label

Protective sleeve

  • double, impregnated polyester sheath for long service life

Safety factor

  • 7

Material

  • High-tensile polyester fibres
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Wrap around working load limit [kg]

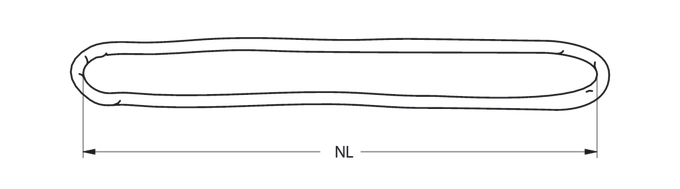

Effective length WLL [m]
Reference no.
Details
  • 1000
    800
    2000
    0.5
    473595
    RSL RDH-1T-0.5M-VI
    Reference no. 473595
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4

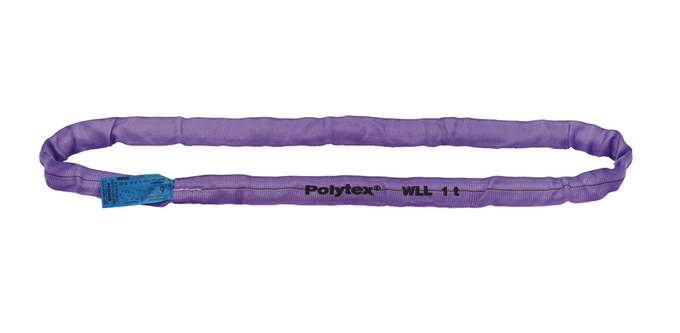

    Colour violet
    Weight approx. [kg] 0.215
  • 1000
    800
    2000
    1
    473596
    RSL RDH-1T-1M-VI
    Reference no. 473596
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.43
  • 1000
    800
    2000
    1.5
    473597
    RSL RDH-1T-1.5M-VI
    Reference no. 473597
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.63
  • 1000
    800
    2000
    2
    473598
    RSL RDH-1T-2M-VI
    Reference no. 473598
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.83
  • 1000
    800
    2000
    2.5
    473599
    RSL RDH-1T-2.5M-VI
    Reference no. 473599
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.03
  • 1000
    800
    2000
    3
    473600
    RSL RDH-1T-3M-VI
    Reference no. 473600
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.23
  • 1000
    800
    2000
    4
    473601
    RSL RDH-1T-4M-VI
    Reference no. 473601
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.63
  • 1000
    800
    2000
    5
    701082
    RSL RDH-1T-5M-VI
    Reference no. 701082
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Weight approx. [kg] 1.55
  • 1000
    800
    2000
    6
    515358
    RSL RDH-1T-6M-VI
    Reference no. 515358
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 2.43
  • 1000
    800
    2000
    8
    515359
    RSL RDH-1T-8M-VI
    Reference no. 515359
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 8
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Weight approx. [kg] 3.23
  • 2000
    1600
    4000
    0.5
    473602
    RSL RDH-2T-0.5M-GN
    Reference no. 473602
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour green
    Weight approx. [kg] 0.305
  • 2000
    1600
    4000
    1
    473603
    RSL RDH-2T-1M-GN
    Reference no. 473603
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 0.61
  • 2000
    1600
    4000
    1.5
    473604
    RSL RDH-2T-1.5M-GN
    Reference no. 473604
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 0.91
  • 2000
    1600
    4000
    2
    473605
    RSL RDH-2T-2M-GN
    Reference no. 473605
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 1.21
  • 2000
    1600
    4000
    2.5
    473606
    RSL RDH-2T-2.5M-GN
    Reference no. 473606
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 1.51
  • 2000
    1600
    4000
    3
    473607
    RSL RDH-2T-3M-GN
    Reference no. 473607
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 1.81
  • 2000
    1600
    4000
    4
    473608
    RSL RDH-2T-4M-GN
    Reference no. 473608
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 2.41
  • 2000
    1600
    4000
    5
    473609
    RSL RDH-2T-5M-GN
    Reference no. 473609
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 3.01
  • 2000
    1600
    4000
    6
    515361
    RSL RDH-2T-6M-GN
    Reference no. 515361
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour green
    Weight approx. [kg] 3.61
  • 2000
    1600
    4000
    8
    701115
    RSL RDH-2T-8M-GN
    Reference no. 701115
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Weight approx. [kg] 3.3
  • 3000
    2400
    6000
    0.5
    473610
    RSL RDH-3T-0.5M-YE
    Reference no. 473610
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8

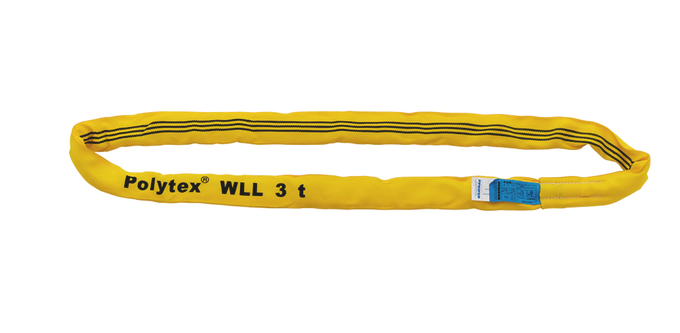

    Colour yellow
    Weight approx. [kg] 0.465
  • 3000
    2400
    6000
    1
    473611
    RSL RDH-3T-1M-YE
    Reference no. 473611
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 0.93
  • 3000
    2400
    6000
    1.5
    473612
    RSL RDH-3T-1.5M-YE
    Reference no. 473612
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 1.395
  • 3000
    2400
    6000
    2
    473613
    RSL RDH-3T-2M-YE
    Reference no. 473613
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 1.86
  • 3000
    2400
    6000
    2.5
    473614
    RSL RDH-3T-2.5M-YE
    Reference no. 473614
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 2.325
  • 3000
    2400
    6000
    3
    473615
    RSL RDH-3T-3M-YE
    Reference no. 473615
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 2.79
  • 3000
    2400
    6000
    4
    473616
    RSL RDH-3T-4M-YE
    Reference no. 473616
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 3.72
  • 3000
    2400
    6000
    5
    473617
    RSL RDH-3T-5M-YE
    Reference no. 473617
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 4.65
  • 3000
    2400
    6000
    6
    473618
    RSL RDH-3T-6M-YE
    Reference no. 473618
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 5.58
  • 3000
    2400
    6000
    8
    701123
    RSL RDH-3T-8M-YE
    Reference no. 701123
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 7.3
  • 4000
    3200
    8000
    0.5
    515363

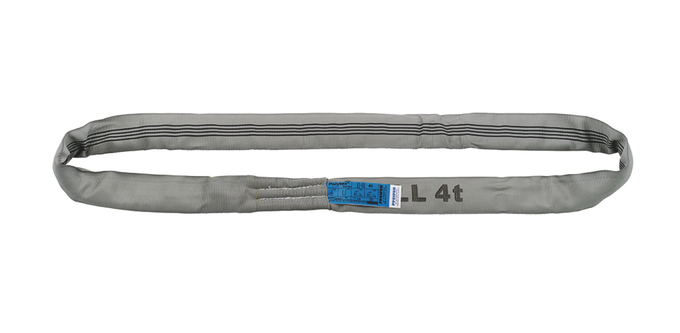

    RSL RDH-4T-0.5M-GR
    Reference no. 515363
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 0.56
  • 4000
    3200
    8000
    1
    473619
    RSL RDH-4T-1M-GR
    Reference no. 473619
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 1.1
  • 4000
    3200
    8000
    1.5
    473620
    RSL RDH-4T-1.5M-GR
    Reference no. 473620
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 1.65
  • 4000
    3200
    8000
    2
    473621
    RSL RDH-4T-2M-GR
    Reference no. 473621
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 2.2
  • 4000
    3200
    8000
    5
    473624
    RSL RDH-4T-5M-GR
    Reference no. 473624
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 5.5
  • 4000
    3200
    8000
    2.5
    515364
    RSL RDH-4T-2.5M-GR
    Reference no. 515364
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 2.72
  • 4000
    3200
    8000
    3
    473622
    RSL RDH-4T-3M-GR
    Reference no. 473622
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 3.3
  • 4000
    3200
    8000
    4
    473623
    RSL RDH-4T-4M-GR
    Reference no. 473623
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 4.4
  • 4000
    3200
    8000
    8
    473626
    RSL RDH-4T-8M-GR
    Reference no. 473626
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 7.02
  • 4000
    3200
    8000
    6
    473625
    RSL RDH-4T-6M-GR
    Reference no. 473625
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 6.6
  • 5000
    4000
    10000
    0.5
    701147

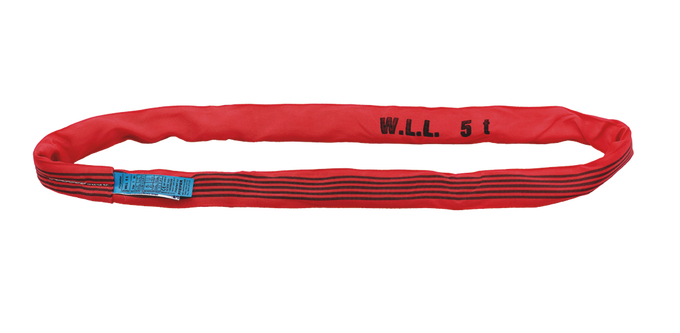

    RSL RDH-5T-0.5M-RD
    Reference no. 701147
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 0.9
  • 5000
    4000
    10000
    1
    473627
    RSL RDH-5T-1M-RD
    Reference no. 473627
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 1.28
  • 5000
    4000
    10000
    1.5
    515366
    RSL RDH-5T-1.5M-RD
    Reference no. 515366
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 1.92
  • 5000
    4000
    10000
    2
    473628
    RSL RDH-5T-2M-RD
    Reference no. 473628
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 2.566
  • 5000
    4000
    10000
    2.5
    473629
    RSL RDH-5T-2.5M-RD
    Reference no. 473629
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 3.209
  • 5000
    4000
    10000
    3
    473630
    RSL RDH-5T-3M-RD
    Reference no. 473630
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 3.852
  • 5000
    4000
    10000
    4
    473631
    RSL RDH-5T-4M-RD
    Reference no. 473631
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 5.138
  • 5000
    4000
    10000
    5
    473632
    RSL RDH-5T-5M-RD
    Reference no. 473632
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 6.424
  • 5000
    4000
    10000
    6
    515369
    RSL RDH-5T-6M-RD
    Reference no. 515369
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 7.71
  • 5000
    4000
    10000
    8
    701186
    RSL RDH-5T-8M-RD
    Reference no. 701186
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 10.3
  • 5000
    4000
    10000
    10
    708530
    RSL RDH-5T-10M-RD
    Reference no. 708530
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 10
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 10.5
  • 6000
    4800
    1200
    0.5
    515370

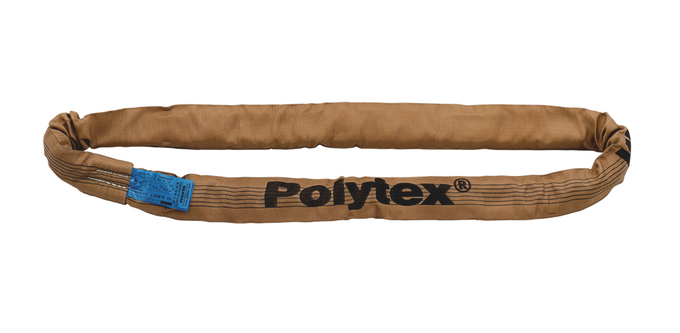

    RSL RDH-6T-0.5M-BR
    Reference no. 515370
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 1200
    Effective length WLL [m] 0.5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 0.72
  • 6000
    4800
    12000
    1
    473633
    RSL RDH-6T-1M-BR
    Reference no. 473633
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 1.44
  • 6000
    4800
    12000
    1.5
    515371
    RSL RDH-6T-1.5M-BR
    Reference no. 515371
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 2.16
  • 6000
    4800
    12000
    2
    473634
    RSL RDH-6T-2M-BR
    Reference no. 473634
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 2.88
  • 6000
    4800
    12000
    2.5
    515372
    RSL RDH-6T-2.5M-BR
    Reference no. 515372
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 3.6
  • 6000
    4800
    12000
    3
    473635
    RSL RDH-6T-3M-BR
    Reference no. 473635
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 4.32
  • 6000
    4800
    12000
    4
    473636
    RSL RDH-6T-4M-BR
    Reference no. 473636
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 5.76
  • 6000
    4800
    12000
    5
    473637
    RSL RDH-6T-5M-BR
    Reference no. 473637
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 7.2
  • 6000
    4800
    12000
    6
    473638
    RSL RDH-6T-6M-BR
    Reference no. 473638
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 8.64
  • 6000
    4800
    12000
    8
    515374
    RSL RDH-6T-8M-BR
    Reference no. 515374
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 11.52
  • 6000
    4800
    12000
    10
    700719
    RSL RDH-6T-10M-BR
    Reference no. 700719
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 10
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 14.4

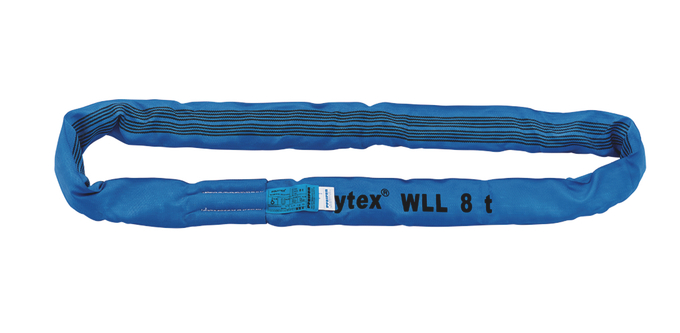

  • 8000
    6400
    16000
    0.5
    701187
    RSL RDH-8T-0.5M-BL
    Reference no. 701187
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 1
  • 8000
    6400
    16000
    1
    473639
    RSL RDH-8T-1M-BL
    Reference no. 473639
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 1.92
  • 8000
    6400
    16000
    1.5
    473640
    RSL RDH-8T-1.5M-BL
    Reference no. 473640
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 2.54
  • 8000
    6400
    16000
    2
    473641
    RSL RDH-8T-2M-BL
    Reference no. 473641
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 3.72
  • 8000
    5600
    16000
    2.5
    515377
    RSL RDH-8T-2.5M-BL
    Reference no. 515377
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 5600
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 4.62
  • 8000
    6400
    16000
    3
    473642
    RSL RDH-8T-3M-BL
    Reference no. 473642
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 5.52
  • 8000
    6400
    16000
    4
    473643
    RSL RDH-8T-4M-BL
    Reference no. 473643
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 7.32
  • 8000
    6400
    16000
    5
    473644
    RSL RDH-8T-5M-BL
    Reference no. 473644
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 9.12
  • 8000
    6400
    16000
    6
    473645
    RSL RDH-8T-6M-BL
    Reference no. 473645
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 10.92
  • 8000
    6400
    16000
    8
    473646
    RSL RDH-8T-8M-BL
    Reference no. 473646
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 14.52
  • 8000
    5600
    16000
    10
    515376
    RSL RDH-8T-10M-BL
    Reference no. 515376
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 5600
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 10
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour orange
    Weight approx. [kg] 18.12

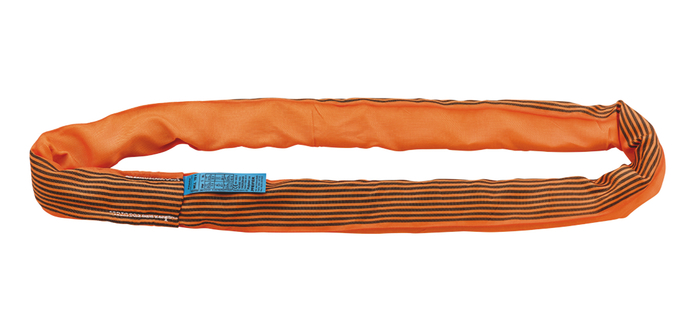

  • 10000
    8000
    20000
    0.5
    701190
    RSL RDH-10T-0.5M-OR
    Reference no. 701190
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 1.45
  • 10000
    8000
    20000
    1
    473647
    RSL RDH-10T-1M-OR
    Reference no. 473647
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 2.5
  • 10000
    8000
    20000
    1.5
    515586
    RSL RDH-10T-1.5M-OR
    Reference no. 515586
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 3.55
  • 10000
    8000
    20000
    2
    473648
    RSL RDH-10T-2M-OR
    Reference no. 473648
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 4.6
  • 10000
    8000
    20000
    2.5
    515588
    RSL RDH-10T-2.5M-OR
    Reference no. 515588
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 5.65
  • 10000
    8000
    20000
    3
    473649
    RSL RDH-10T-3M-OR
    Reference no. 473649
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 6.7
  • 10000
    8000
    20000
    4
    473650
    RSL RDH-10T-4M-OR
    Reference no. 473650
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 8.8
  • 10000
    8000
    20000
    5
    473651
    RSL RDH-10T-5M-OR
    Reference no. 473651
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 10.9
  • 10000
    8000
    20000
    6
    473652
    RSL RDH-10T-6M-OR
    Reference no. 473652
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 13
  • 10000
    8000
    20000
    8
    473653
    RSL RDH-10T-8M-OR
    Reference no. 473653
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 17.2
  • 10000
    8000
    20000
    10
    473654
    RSL RDH-10T-10M-OR
    Reference no. 473654
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 10
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 21.4
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 0.5
Reference no. 473595
  • Details
    RSL RDH-1T-0.5M-VI
    Reference no. 473595
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.215
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 1
Reference no. 473596
  • Details
    RSL RDH-1T-1M-VI
    Reference no. 473596
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.43
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 1.5
Reference no. 473597
  • Details
    RSL RDH-1T-1.5M-VI
    Reference no. 473597
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.63
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 2
Reference no. 473598
  • Details
    RSL RDH-1T-2M-VI
    Reference no. 473598
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.83
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 2.5
Reference no. 473599
  • Details
    RSL RDH-1T-2.5M-VI
    Reference no. 473599
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.03
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 3
Reference no. 473600
  • Details
    RSL RDH-1T-3M-VI
    Reference no. 473600
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.23
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 4
Reference no. 473601
  • Details
    RSL RDH-1T-4M-VI
    Reference no. 473601
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.63
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 5
Reference no. 701082
  • Details
    RSL RDH-1T-5M-VI
    Reference no. 701082
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Weight approx. [kg] 1.55
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 6
Reference no. 515358
  • Details
    RSL RDH-1T-6M-VI
    Reference no. 515358
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 2.43
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 8
Reference no. 515359
  • Details
    RSL RDH-1T-8M-VI
    Reference no. 515359
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 8
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Weight approx. [kg] 3.23
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 0.5
Reference no. 473602
  • Details
    RSL RDH-2T-0.5M-GN
    Reference no. 473602
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 52
    Textile thickness at optimum support surface approx. [mm] 4
    Colour green
    Weight approx. [kg] 0.305
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 1
Reference no. 473603
  • Details
    RSL RDH-2T-1M-GN
    Reference no. 473603
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 0.61
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 1.5
Reference no. 473604
  • Details
    RSL RDH-2T-1.5M-GN
    Reference no. 473604
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 0.91
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2
Reference no. 473605
  • Details
    RSL RDH-2T-2M-GN
    Reference no. 473605
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 1.21
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2.5
Reference no. 473606
  • Details
    RSL RDH-2T-2.5M-GN
    Reference no. 473606
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 1.51
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 3
Reference no. 473607
  • Details
    RSL RDH-2T-3M-GN
    Reference no. 473607
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 1.81
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 4
Reference no. 473608
  • Details
    RSL RDH-2T-4M-GN
    Reference no. 473608
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 2.41
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 5
Reference no. 473609
  • Details
    RSL RDH-2T-5M-GN
    Reference no. 473609
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 6
    Colour green
    Weight approx. [kg] 3.01
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 6
Reference no. 515361
  • Details
    RSL RDH-2T-6M-GN
    Reference no. 515361
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour green
    Weight approx. [kg] 3.61
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 8
Reference no. 701115
  • Details
    RSL RDH-2T-8M-GN
    Reference no. 701115
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Weight approx. [kg] 3.3
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 0.5
Reference no. 473610
  • Details
    RSL RDH-3T-0.5M-YE
    Reference no. 473610
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 0.465
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 1
Reference no. 473611
  • Details
    RSL RDH-3T-1M-YE
    Reference no. 473611
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 0.93
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 1.5
Reference no. 473612
  • Details
    RSL RDH-3T-1.5M-YE
    Reference no. 473612
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 1.395
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2
Reference no. 473613
  • Details
    RSL RDH-3T-2M-YE
    Reference no. 473613
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 1.86
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2.5
Reference no. 473614
  • Details
    RSL RDH-3T-2.5M-YE
    Reference no. 473614
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 2.325
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 3
Reference no. 473615
  • Details
    RSL RDH-3T-3M-YE
    Reference no. 473615
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 2.79
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 4
Reference no. 473616
  • Details
    RSL RDH-3T-4M-YE
    Reference no. 473616
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 3.72
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 5
Reference no. 473617
  • Details
    RSL RDH-3T-5M-YE
    Reference no. 473617
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 4.65
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 6
Reference no. 473618
  • Details
    RSL RDH-3T-6M-YE
    Reference no. 473618
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 5.58
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 8
Reference no. 701123
  • Details
    RSL RDH-3T-8M-YE
    Reference no. 701123
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 8
    Colour yellow
    Weight approx. [kg] 7.3
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 0.5
Reference no. 515363
  • Details
    RSL RDH-4T-0.5M-GR
    Reference no. 515363
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 0.56
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 1
Reference no. 473619
  • Details
    RSL RDH-4T-1M-GR
    Reference no. 473619
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 1.1
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 1.5
Reference no. 473620
  • Details
    RSL RDH-4T-1.5M-GR
    Reference no. 473620
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 1.65
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2
Reference no. 473621
  • Details
    RSL RDH-4T-2M-GR
    Reference no. 473621
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 2.2
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 5
Reference no. 473624
  • Details
    RSL RDH-4T-5M-GR
    Reference no. 473624
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 5.5
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2.5
Reference no. 515364
  • Details
    RSL RDH-4T-2.5M-GR
    Reference no. 515364
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 2.72
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 3
Reference no. 473622
  • Details
    RSL RDH-4T-3M-GR
    Reference no. 473622
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 3.3
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 4
Reference no. 473623
  • Details
    RSL RDH-4T-4M-GR
    Reference no. 473623
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 4.4
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 8
Reference no. 473626
  • Details
    RSL RDH-4T-8M-GR
    Reference no. 473626
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 7.02
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 6
Reference no. 473625
  • Details
    RSL RDH-4T-6M-GR
    Reference no. 473625
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 10
    Colour grey
    Weight approx. [kg] 6.6
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 0.5
Reference no. 701147
  • Details
    RSL RDH-5T-0.5M-RD
    Reference no. 701147
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 0.9
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 1
Reference no. 473627
  • Details
    RSL RDH-5T-1M-RD
    Reference no. 473627
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 1.28
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 1.5
Reference no. 515366
  • Details
    RSL RDH-5T-1.5M-RD
    Reference no. 515366
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 1.92
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2
Reference no. 473628
  • Details
    RSL RDH-5T-2M-RD
    Reference no. 473628
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 2.566
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2.5
Reference no. 473629
  • Details
    RSL RDH-5T-2.5M-RD
    Reference no. 473629
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 3.209
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 3
Reference no. 473630
  • Details
    RSL RDH-5T-3M-RD
    Reference no. 473630
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 3.852
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 4
Reference no. 473631
  • Details
    RSL RDH-5T-4M-RD
    Reference no. 473631
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 5.138
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 5
Reference no. 473632
  • Details
    RSL RDH-5T-5M-RD
    Reference no. 473632
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 6.424
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 6
Reference no. 515369
  • Details
    RSL RDH-5T-6M-RD
    Reference no. 515369
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 7.71
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 8
Reference no. 701186
  • Details
    RSL RDH-5T-8M-RD
    Reference no. 701186
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 10.3
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 10
Reference no. 708530
  • Details
    RSL RDH-5T-10M-RD
    Reference no. 708530
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 10
    Contact width under load [mm] 80
    Textile thickness at optimum support surface approx. [mm] 12
    Colour red
    Weight approx. [kg] 10.5
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 1200
Effective length WLL [m] 0.5
Reference no. 515370
  • Details
    RSL RDH-6T-0.5M-BR
    Reference no. 515370
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 1200
    Effective length WLL [m] 0.5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 0.72
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 1
Reference no. 473633
  • Details
    RSL RDH-6T-1M-BR
    Reference no. 473633
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 1.44
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 1.5
Reference no. 515371
  • Details
    RSL RDH-6T-1.5M-BR
    Reference no. 515371
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 2.16
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 2
Reference no. 473634
  • Details
    RSL RDH-6T-2M-BR
    Reference no. 473634
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 2.88
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 2.5
Reference no. 515372
  • Details
    RSL RDH-6T-2.5M-BR
    Reference no. 515372
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 3.6
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 3
Reference no. 473635
  • Details
    RSL RDH-6T-3M-BR
    Reference no. 473635
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 4.32
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 4
Reference no. 473636
  • Details
    RSL RDH-6T-4M-BR
    Reference no. 473636
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 5.76
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 5
Reference no. 473637
  • Details
    RSL RDH-6T-5M-BR
    Reference no. 473637
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 7.2
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 6
Reference no. 473638
  • Details
    RSL RDH-6T-6M-BR
    Reference no. 473638
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 8.64
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 8
Reference no. 515374
  • Details
    RSL RDH-6T-8M-BR
    Reference no. 515374
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 11.52
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 10
Reference no. 700719
  • Details
    RSL RDH-6T-10M-BR
    Reference no. 700719
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 10
    Contact width under load [mm] 85
    Textile thickness at optimum support surface approx. [mm] 13
    Colour brown
    Weight approx. [kg] 14.4
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 0.5
Reference no. 701187
  • Details
    RSL RDH-8T-0.5M-BL
    Reference no. 701187
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 1
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 1
Reference no. 473639
  • Details
    RSL RDH-8T-1M-BL
    Reference no. 473639
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 1.92
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 1.5
Reference no. 473640
  • Details
    RSL RDH-8T-1.5M-BL
    Reference no. 473640
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 2.54
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 2
Reference no. 473641
  • Details
    RSL RDH-8T-2M-BL
    Reference no. 473641
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 3.72
Working load limit 0° [kg] 8000
Working load limit laced [kg] 5600
Wrap around working load limit [kg] 16000
Effective length WLL [m] 2.5
Reference no. 515377
  • Details
    RSL RDH-8T-2.5M-BL
    Reference no. 515377
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 5600
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 4.62
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 3
Reference no. 473642
  • Details
    RSL RDH-8T-3M-BL
    Reference no. 473642
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 5.52
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 4
Reference no. 473643
  • Details
    RSL RDH-8T-4M-BL
    Reference no. 473643
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 7.32
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 5
Reference no. 473644
  • Details
    RSL RDH-8T-5M-BL
    Reference no. 473644
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 9.12
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 6
Reference no. 473645
  • Details
    RSL RDH-8T-6M-BL
    Reference no. 473645
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 10.92
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 8
Reference no. 473646
  • Details
    RSL RDH-8T-8M-BL
    Reference no. 473646
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour blue
    Weight approx. [kg] 14.52
Working load limit 0° [kg] 8000
Working load limit laced [kg] 5600
Wrap around working load limit [kg] 16000
Effective length WLL [m] 10
Reference no. 515376
  • Details
    RSL RDH-8T-10M-BL
    Reference no. 515376
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 5600
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 10
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 15
    Colour orange
    Weight approx. [kg] 18.12
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 0.5
Reference no. 701190
  • Details
    RSL RDH-10T-0.5M-OR
    Reference no. 701190
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 1.45
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 1
Reference no. 473647
  • Details
    RSL RDH-10T-1M-OR
    Reference no. 473647
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 2.5
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 1.5
Reference no. 515586
  • Details
    RSL RDH-10T-1.5M-OR
    Reference no. 515586
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 3.55
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 2
Reference no. 473648
  • Details
    RSL RDH-10T-2M-OR
    Reference no. 473648
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 4.6
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 2.5
Reference no. 515588
  • Details
    RSL RDH-10T-2.5M-OR
    Reference no. 515588
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 5.65
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 3
Reference no. 473649
  • Details
    RSL RDH-10T-3M-OR
    Reference no. 473649
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 6.7
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 4
Reference no. 473650
  • Details
    RSL RDH-10T-4M-OR
    Reference no. 473650
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 8.8
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 5
Reference no. 473651
  • Details
    RSL RDH-10T-5M-OR
    Reference no. 473651
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 10.9
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 6
Reference no. 473652
  • Details
    RSL RDH-10T-6M-OR
    Reference no. 473652
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 13
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 8
Reference no. 473653
  • Details
    RSL RDH-10T-8M-OR
    Reference no. 473653
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 17.2
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 10
Reference no. 473654
  • Details
    RSL RDH-10T-10M-OR
    Reference no. 473654
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 10
    Contact width under load [mm] 100
    Textile thickness at optimum support surface approx. [mm] 18
    Colour orange
    Weight approx. [kg] 21.4
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
