Polytex® round sling Eco-Tex

Polytex® round sling Eco-Tex
All-round round sling with single-layer protective sleeve for long service life.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Imprinted working load limit
  • woven tonnage stripes
  • Standard label

Protective sleeve

  • single-layer, impregnated polyester sleeve

Safety factor

  • 7

Material

  • High-tensile polyester fibres
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Wrap around working load limit [kg]
Effective length WLL [m]
Reference no.
Details

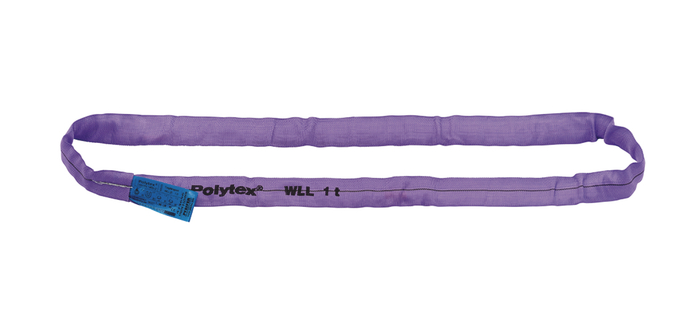

  • 1000
    800
    2000
    0.5
    473655
    RSL ETX-1T-0.5M-VI
    Reference no. 473655
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.12
  • 1000
    800
    2000
    1
    473656
    RSL ETX-1T-1M-VI
    Reference no. 473656
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.24
  • 1000
    800
    2000
    1.5
    473657
    RSL ETX-1T-1.5M-VI
    Reference no. 473657
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.34
  • 1000
    800
    2000
    2
    473658
    RSL ETX-1T-2M-VI
    Reference no. 473658
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.44
  • 1000
    800
    2000
    2.5
    473659
    RSL ETX-1T-2.5M-VI
    Reference no. 473659
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.53
  • 1000
    800
    2000
    3
    473660
    RSL ETX-1T-3M-VI
    Reference no. 473660
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.64
  • 1000
    800
    2000
    4
    473661
    Polytex Round Sling Eco-Tex -1.0to-violet L=4.0m
    Reference no. 473661
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.84
  • 1000
    800
    2000
    5
    515345
    RSL ETX-1T-5M-VI
    Reference no. 515345
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Colour violet
    Weight approx. [kg] 1.04
  • 1000
    800
    2000
    6
    515346
    RSL ETX-1T-6M-VI
    Reference no. 515346
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Colour violet
    Weight approx. [kg] 1.24

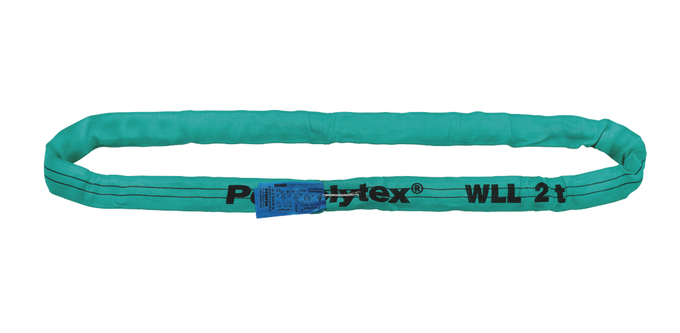

  • 2000
    1600
    4000
    0.5
    473662
    RSL ETX-2T-0.5M-GN
    Reference no. 473662
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.225
  • 2000
    1600
    4000
    1
    473663
    RSL ETX-2T-1M-GN
    Reference no. 473663
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.45
  • 2000
    1600
    4000
    1.5
    473664
    Polytex Round Sling Eco-Tex -2.0to-light green L=1.5m
    Reference no. 473664
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.64
  • 2000
    1600
    4000
    2
    473665
    RSL ETX-2T-2M-GN
    Reference no. 473665
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.83
  • 2000
    1600
    4000
    2.5
    473666
    RSL ETX-2T-2.5M-GN
    Reference no. 473666
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.02
  • 2000
    1600
    4000
    3
    473667
    RSL ETX-2T-3M-GN
    Reference no. 473667
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.21
  • 2000
    1600
    4000
    4
    473668
    RSL ETX-2T-4M-GN
    Reference no. 473668
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.59
  • 2000
    1600
    4000
    5
    473669
    RSL ETX-2T-5M-GN
    Reference no. 473669
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.75
  • 2000
    1600
    4000
    6
    473670
    RSL ETX-2T-6M-GN
    Reference no. 473670
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 2.35

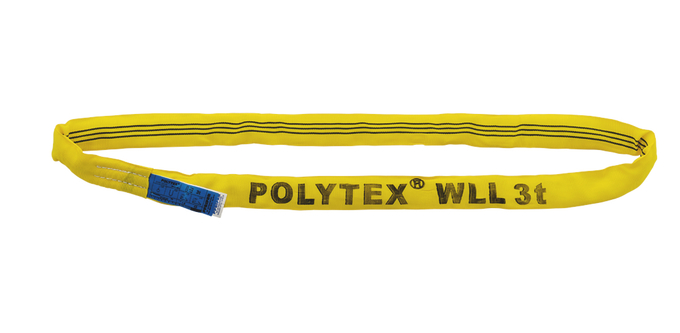

  • 3000
    2400
    6000
    0.5
    473671
    RSL ETX-3T-0.5M-YE
    Reference no. 473671
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.3
  • 3000
    2400
    6000
    1
    473672
    RSL ETX-3T-1M-YE
    Reference no. 473672
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.6
  • 3000
    2400
    6000
    1.5
    473673
    RSL ETX-3T-1.5M-YE
    Reference no. 473673
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.9
  • 3000
    2400
    6000
    2
    473674
    RSL ETX-3T-2M-YE
    Reference no. 473674
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.2
  • 3000
    2400
    6000
    2.5
    473675
    RSL ETX-3T-2.5M-YE
    Reference no. 473675
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.5
  • 3000
    2400
    6000
    3
    473676
    RSL ETX-3T-3M-YE
    Reference no. 473676
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.8
  • 3000
    2400
    6000
    4
    473677
    RSL ETX-3T-4M-YE
    Reference no. 473677
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 2.4
  • 3000
    2400
    6000
    5
    473678
    RSL ETX-3T-5M-YE
    Reference no. 473678
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 3
  • 3000
    2400
    6000
    6
    473679
    Polytex Round Sling Eco-Tex -3.0to-yellow L=6.0m
    Reference no. 473679
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 3.6

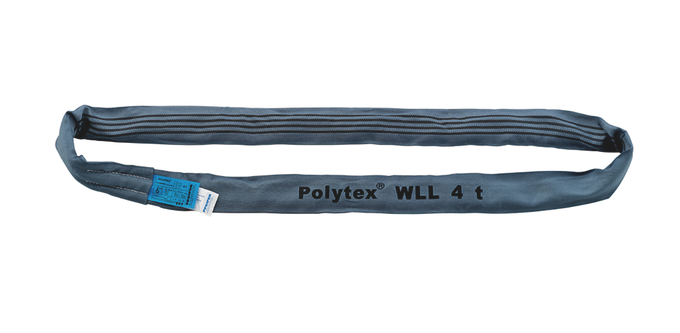

  • 4000
    3200
    8000
    0.5
    473680
    RSL ETX-4T-0.5M-GR
    Reference no. 473680
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 0.41
  • 4000
    3200
    8000
    1
    473681
    RSL ETX-4T-1M-GR
    Reference no. 473681
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 0.82
  • 4000
    3200
    8000
    1.5
    473682
    RSL ETX-4T-1.5M-GR
    Reference no. 473682
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 1.19
  • 4000
    3200
    8000
    2
    473683
    RSL ETX-4T-2M-GR
    Reference no. 473683
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 1.56
  • 4000
    3200
    8000
    2.5
    473684
    RSL ETX-4T-2.5M-GR
    Reference no. 473684
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 1.93
  • 4000
    3200
    8000
    3
    473685
    RSL ETX-4T-3M-GR
    Reference no. 473685
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 2.3
  • 4000
    3200
    8000
    4
    473686
    RSL ETX-4T-4M-GR
    Reference no. 473686
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 3.04
  • 4000
    3200
    8000
    5
    473687
    RSL ETX-4T-5M-GR
    Reference no. 473687
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 3.78
  • 4000
    3200
    8000
    6
    473688
    RSL ETX-4T-6M-GR
    Reference no. 473688
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 4.52
  • 5000
    4000
    10000
    0.5
    515353

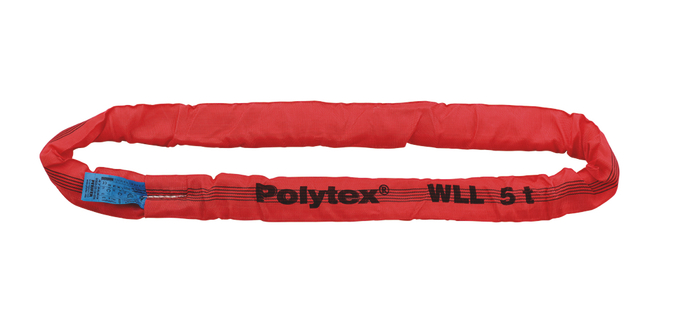

    RSL ETX-5T-0.5M-RD
    Reference no. 515353
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 0.53
  • 5000
    4000
    10000
    1
    473689
    RSL ETX-5T-1M-RD
    Reference no. 473689
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 1
  • 5000
    4000
    10000
    1.5
    473690
    RSL ETX-5T-1.5M-RD
    Reference no. 473690
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 1.475
  • 5000
    4000
    10000
    2
    473691
    RSL ETX-5T-2M-RD
    Reference no. 473691
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 1.95
  • 5000
    4000
    10000
    2.5
    515354
    RSL ETX-5T-2.5M-RD
    Reference no. 515354
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Weight approx. [kg] 2.43
  • 5000
    4000
    10000
    3
    473692
    RSL ETX-5T-3M-RD
    Reference no. 473692
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 2.9
  • 5000
    4000
    10000
    4
    473693
    RSL ETX-5T-4M-RD
    Reference no. 473693
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 3.85
  • 5000
    4000
    10000
    5
    473694
    RSL ETX-5T-5M-RD
    Reference no. 473694
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 4.8
  • 5000
    4000
    10000
    6
    473695
    RSL ETX-5T-6M-RD
    Reference no. 473695
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 5.75
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 0.5
Reference no. 473655
  • Details
    RSL ETX-1T-0.5M-VI
    Reference no. 473655
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.12
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 1
Reference no. 473656
  • Details
    RSL ETX-1T-1M-VI
    Reference no. 473656
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.24
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 1.5
Reference no. 473657
  • Details
    RSL ETX-1T-1.5M-VI
    Reference no. 473657
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.34
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 2
Reference no. 473658
  • Details
    RSL ETX-1T-2M-VI
    Reference no. 473658
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.44
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 2.5
Reference no. 473659
  • Details
    RSL ETX-1T-2.5M-VI
    Reference no. 473659
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.53
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 3
Reference no. 473660
  • Details
    RSL ETX-1T-3M-VI
    Reference no. 473660
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 4
Reference no. 473661
  • Details
    Polytex Round Sling Eco-Tex -1.0to-violet L=4.0m
    Reference no. 473661
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Contact width under load [mm] 43
    Textile thickness at optimum support surface approx. [mm] 2
    Colour violet
    Weight approx. [kg] 0.84
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 5
Reference no. 515345
  • Details
    RSL ETX-1T-5M-VI
    Reference no. 515345
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Colour violet
    Weight approx. [kg] 1.04
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 6
Reference no. 515346
  • Details
    RSL ETX-1T-6M-VI
    Reference no. 515346
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Colour violet
    Weight approx. [kg] 1.24
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 0.5
Reference no. 473662
  • Details
    RSL ETX-2T-0.5M-GN
    Reference no. 473662
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.225
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 1
Reference no. 473663
  • Details
    RSL ETX-2T-1M-GN
    Reference no. 473663
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.45
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 1.5
Reference no. 473664
  • Details
    Polytex Round Sling Eco-Tex -2.0to-light green L=1.5m
    Reference no. 473664
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2
Reference no. 473665
  • Details
    RSL ETX-2T-2M-GN
    Reference no. 473665
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.83
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2.5
Reference no. 473666
  • Details
    RSL ETX-2T-2.5M-GN
    Reference no. 473666
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.02
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 3
Reference no. 473667
  • Details
    RSL ETX-2T-3M-GN
    Reference no. 473667
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.21
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 4
Reference no. 473668
  • Details
    RSL ETX-2T-4M-GN
    Reference no. 473668
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.59
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 5
Reference no. 473669
  • Details
    RSL ETX-2T-5M-GN
    Reference no. 473669
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.75
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 6
Reference no. 473670
  • Details
    RSL ETX-2T-6M-GN
    Reference no. 473670
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Contact width under load [mm] 50
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 2.35
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 0.5
Reference no. 473671
  • Details
    RSL ETX-3T-0.5M-YE
    Reference no. 473671
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.3
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 1
Reference no. 473672
  • Details
    RSL ETX-3T-1M-YE
    Reference no. 473672
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.6
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 1.5
Reference no. 473673
  • Details
    RSL ETX-3T-1.5M-YE
    Reference no. 473673
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.9
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2
Reference no. 473674
  • Details
    RSL ETX-3T-2M-YE
    Reference no. 473674
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.2
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2.5
Reference no. 473675
  • Details
    RSL ETX-3T-2.5M-YE
    Reference no. 473675
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.5
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 3
Reference no. 473676
  • Details
    RSL ETX-3T-3M-YE
    Reference no. 473676
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.8
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 4
Reference no. 473677
  • Details
    RSL ETX-3T-4M-YE
    Reference no. 473677
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 2.4
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 5
Reference no. 473678
  • Details
    RSL ETX-3T-5M-YE
    Reference no. 473678
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 3
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 6
Reference no. 473679
  • Details
    Polytex Round Sling Eco-Tex -3.0to-yellow L=6.0m
    Reference no. 473679
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 3.6
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 0.5
Reference no. 473680
  • Details
    RSL ETX-4T-0.5M-GR
    Reference no. 473680
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 0.41
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 1
Reference no. 473681
  • Details
    RSL ETX-4T-1M-GR
    Reference no. 473681
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 0.82
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 1.5
Reference no. 473682
  • Details
    RSL ETX-4T-1.5M-GR
    Reference no. 473682
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 1.19
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2
Reference no. 473683
  • Details
    RSL ETX-4T-2M-GR
    Reference no. 473683
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 1.56
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2.5
Reference no. 473684
  • Details
    RSL ETX-4T-2.5M-GR
    Reference no. 473684
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 1.93
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 3
Reference no. 473685
  • Details
    RSL ETX-4T-3M-GR
    Reference no. 473685
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 2.3
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 4
Reference no. 473686
  • Details
    RSL ETX-4T-4M-GR
    Reference no. 473686
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 3.04
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 5
Reference no. 473687
  • Details
    RSL ETX-4T-5M-GR
    Reference no. 473687
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 3.78
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 6
Reference no. 473688
  • Details
    RSL ETX-4T-6M-GR
    Reference no. 473688
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour grey
    Weight approx. [kg] 4.52
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 0.5
Reference no. 515353
  • Details
    RSL ETX-5T-0.5M-RD
    Reference no. 515353
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 0.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 0.53
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 1
Reference no. 473689
  • Details
    RSL ETX-5T-1M-RD
    Reference no. 473689
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 1
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 1.5
Reference no. 473690
  • Details
    RSL ETX-5T-1.5M-RD
    Reference no. 473690
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 1.475
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2
Reference no. 473691
  • Details
    RSL ETX-5T-2M-RD
    Reference no. 473691
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 1.95
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2.5
Reference no. 515354
  • Details
    RSL ETX-5T-2.5M-RD
    Reference no. 515354
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Weight approx. [kg] 2.43
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 3
Reference no. 473692
  • Details
    RSL ETX-5T-3M-RD
    Reference no. 473692
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 2.9
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 4
Reference no. 473693
  • Details
    RSL ETX-5T-4M-RD
    Reference no. 473693
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 3.85
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 5
Reference no. 473694
  • Details
    RSL ETX-5T-5M-RD
    Reference no. 473694
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 4.8
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 6
Reference no. 473695
  • Details
    RSL ETX-5T-6M-RD
    Reference no. 473695
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 13
    Colour red
    Weight approx. [kg] 5.75
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
