Load-lifting magnetic spreader beam FX-LT

Load-lifting magnetic spreader beam FX-LT

Comfortable handling, especially suitable for transporting long workpieces, such as at sheet metal processors as well as laser and flame cutters. For large sheets Magnets can be dismantled for individual use to enable transport of blanks and small sheets even without a spreader beam. The locking device enables flexible settings.

Technical data
Options
Safety instruction
Product variants
Downloads
Contact

Technical data

Design

Permanent load-lifting magnet

Standard

DIN EN 13155

Safety factor

3.5

Operating temperature

–10 °C to +80 °C

Magnet surface Coating

nickel-plated

Gear lever

Non-return, lever travel 90°
self-braking

Suspension

Suspension Ring

Range of application Magnets

Transport

Options

Options on request

360° rotating device
in special designs

Safety instruction

Caution: the carrying capacity of permanent load-lifting magnets is influenced by the following factors, which need to be taken into account when making the right choice:- Contact surface (such as rust or paint) and the resulting air gap- Material thickness- Temperature (> 80° not permissible with standard models – permanent damage to the device!)- Workpiece dimensions or inherent stability- Material composition of the load to be liftedAll 5 factors can occur at the same time and affect the carrying capacity accordingly!Carrying capacity reductions in relation to the factors can be taken from the tables!
Persons with heart pacemakers are prohibited from using the device!
Observe the operating instructions!

Product variants

MTR-GLT-EN-FX-LT750-TRAVERSE

Reference no.	283426
Working load limit max [kg]	750
Sheet thickness flat material min [mm]	15
Workpiece Length max [mm]	5000
Workpiece width max [mm]	1500

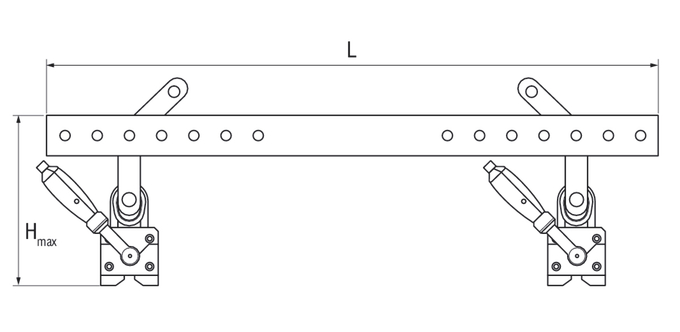

Overall length L [mm]	1600
Overall height max H_max [mm]	276
Weight approx. [kg]	44 [kg]

MTR-GLT-EN-FX-LT1000-TRAVERSE

Reference no.	283427
Working load limit max [kg]	1000
Sheet thickness flat material min [mm]	20
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2000
Overall length L [mm]	1600
Overall height max H_max [mm]	303.5
Weight approx. [kg]	58 [kg]

MTR-GLT-EN-FX-LT1600-TRAVERSE

Reference no.	283428
Working load limit max [kg]	1600
Sheet thickness flat material min [mm]	20
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2000
Overall length L [mm]	1600
Overall height max H_max [mm]	303.5
Weight approx. [kg]	86 [kg]

MTR-GLT-EN-FX-LT3200-TRAVERSE

Reference no.	283429
Working load limit max [kg]	3200
Sheet thickness flat material min [mm]	50
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2500
Overall length L [mm]	2000
Overall height max H_max [mm]	554
Weight approx. [kg]	305 [kg]

MTR-GLT-EN-FX-LT4800-TRAVERSE

Reference no.	283430
Working load limit max [kg]	4800
Sheet thickness flat material min [mm]	50
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2500
Overall length L [mm]	2000
Overall height max H_max [mm]	554
Weight approx. [kg]	410 [kg]

Working load limit max [kg] 750

Reference no. 283426

MTR-GLT-EN-FX-LT750-TRAVERSE

Reference no.	283426
Working load limit max [kg]	750
Sheet thickness flat material min [mm]	15
Workpiece Length max [mm]	5000
Workpiece width max [mm]	1500
Overall length L [mm]	1600
Overall height max H_max [mm]	276
Weight approx. [kg]	44 [kg]

Working load limit max [kg] 1000

Reference no. 283427

MTR-GLT-EN-FX-LT1000-TRAVERSE

Reference no.	283427
Working load limit max [kg]	1000
Sheet thickness flat material min [mm]	20
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2000
Overall length L [mm]	1600
Overall height max H_max [mm]	303.5
Weight approx. [kg]	58 [kg]

Working load limit max [kg] 1600

Reference no. 283428

MTR-GLT-EN-FX-LT1600-TRAVERSE

Reference no.	283428
Working load limit max [kg]	1600
Sheet thickness flat material min [mm]	20
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2000
Overall length L [mm]	1600
Overall height max H_max [mm]	303.5
Weight approx. [kg]	86 [kg]

Working load limit max [kg] 3200

Reference no. 283429

MTR-GLT-EN-FX-LT3200-TRAVERSE

Reference no.	283429
Working load limit max [kg]	3200
Sheet thickness flat material min [mm]	50
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2500
Overall length L [mm]	2000
Overall height max H_max [mm]	554
Weight approx. [kg]	305 [kg]

Working load limit max [kg] 4800

Reference no. 283430

MTR-GLT-EN-FX-LT4800-TRAVERSE

Reference no.	283430
Working load limit max [kg]	4800
Sheet thickness flat material min [mm]	50
Workpiece Length max [mm]	5000
Workpiece width max [mm]	2500
Overall length L [mm]	2000
Overall height max H_max [mm]	554
Weight approx. [kg]	410 [kg]

Downloads

Description

technical infos

Download

Contact

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

E-Mail

verkauf-azs@pfeifer.de

Inquiry

please leave empty!

Mr Mrs

* Required fields

Send me a copy.

I consent to my data being processed in accordance with the data protection declaration.

For large sheets
Two FX lifting magnets for machine loading and unloading
Magnets removable for individual operation
