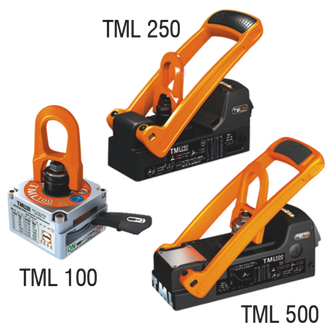

Smart permanent load-lifting magnet especially for thin metal sheets (from 2 mm). Due to its low dead weight and ergonomic activation lever, the magnet makes handling extremely easy. 360° rotatable load swivel: freely rotatable and swiveling for flexible load alignment The TML 500 is equipped with an adjustable oil damper for absorbing the recoil energy of the activation lever.
Technical data

Design

  • Permanent load-lifting magnet

Standard

  • DIN EN 13155

Safety factor

  • 3

Operating temperature

  • –10 °C to +60 °C

Magnet surface Coating

  • Titanium nitride coating

Gear lever

  • TML 500: adjustable oil damper for absorbing the recoil energy of the activation lever

Suspension

  • Rotating attachment points

Range of application Magnets

  • Transport

load types Magnets

  • Thin sheet metal
Safety instruction
  • Caution: the carrying capacity of permanent load-lifting magnets is influenced by the following factors, which need to be taken into account when making the right choice:- Contact surface (such as rust or paint) and the resulting air gap- Material thickness- Temperature (> 80° not permissible with standard models – permanent damage to the device!)- Workpiece dimensions or inherent stability- Material composition of the load to be liftedAll 5 factors can occur at the same time and affect the carrying capacity accordingly!Carrying capacity reductions in relation to the factors can be taken from the tables!
  • Use for parallel shear pull is forbidden – use magnets only to lift straight upwards, not at an inclination angle.
  • Persons with heart pacemakers are prohibited from using the device!
  • Observe the operating instructions!
Product variants
Type
Working load limit flat material max [kg]
Reference no.
Details
  • TML 100
    100
    289654
    MPL-TML-EN-TML100-6MM
    Reference no. 289654
    Type TML 100
    Working load limit flat material max [kg] 100

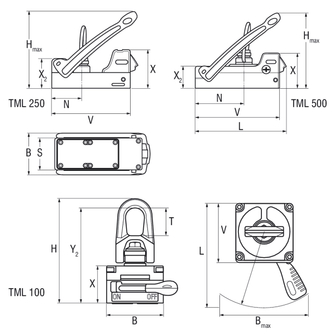

    Sheet thickness flat material min [mm] 6
    Overall length L [mm] 146
    Overall width max Bmax [mm] 124
    Overall height max Hmax [mm] 147
    Body length V [mm] 82.5
    Body width B 80
    Body height X [mm] 52
    Distance to suspension point Y2 134
    Suspension ring clearance height T [mm] 39
    Weight approx. [kg] 1.7 [kg]
  • TML 250
    250
    275162
    MPL-TML-EN-TML250-10MM
    Reference no. 275162
    Type TML 250
    Working load limit flat material max [kg] 250
    Sheet thickness flat material min [mm] 10
    Overall height max Hmax [mm] 191
    Body length V [mm] 191
    Body width B 91
    Body height X [mm] 94
    Body height 2 X2 [mm] 73
    Spacing pivot point of base to web P [mm] 73
    Contact surface width S 71
    Weight approx. [kg] 3.5 [kg]
  • TML 500
    500
    275163
    MPL-TML-EN-TML500-15MM
    Reference no. 275163
    Type TML 500
    Working load limit flat material max [kg] 500
    Sheet thickness flat material min [mm] 15
    Overall length L [mm] 265
    Overall height max Hmax [mm] 216
    Body length V [mm] 248
    Body width B 118
    Body height X [mm] 102
    Body height 2 X2 [mm] 64.5
    Spacing pivot point of base to web P [mm] 143
    Contact surface width S 60
    Weight approx. [kg] 8.16 [kg]
Type TML 100
Working load limit flat material max [kg] 100
Reference no. 289654
  • Details
    MPL-TML-EN-TML100-6MM
    Reference no. 289654
    Type TML 100
    Working load limit flat material max [kg] 100
    Sheet thickness flat material min [mm] 6
    Overall length L [mm] 146
    Overall width max Bmax [mm] 124
    Overall height max Hmax [mm] 147
    Body length V [mm] 82.5
    Body width B 80
    Body height X [mm] 52
    Distance to suspension point Y2 134
    Suspension ring clearance height T [mm] 39
    Weight approx. [kg] 1.7 [kg]
Type TML 250
Working load limit flat material max [kg] 250
Reference no. 275162
  • Details
    MPL-TML-EN-TML250-10MM
    Reference no. 275162
    Type TML 250
    Working load limit flat material max [kg] 250
    Sheet thickness flat material min [mm] 10
    Overall height max Hmax [mm] 191
    Body length V [mm] 191
    Body width B 91
    Body height X [mm] 94
    Body height 2 X2 [mm] 73
    Spacing pivot point of base to web P [mm] 73
    Contact surface width S 71
    Weight approx. [kg] 3.5 [kg]
Type TML 500
Working load limit flat material max [kg] 500
Reference no. 275163
  • Details
    MPL-TML-EN-TML500-15MM
    Reference no. 275163
    Type TML 500
    Working load limit flat material max [kg] 500
    Sheet thickness flat material min [mm] 15
    Overall length L [mm] 265
    Overall height max Hmax [mm] 216
    Body length V [mm] 248
    Body width B 118
    Body height X [mm] 102
    Body height 2 X2 [mm] 64.5
    Spacing pivot point of base to web P [mm] 143
    Contact surface width S 60
    Weight approx. [kg] 8.16 [kg]
