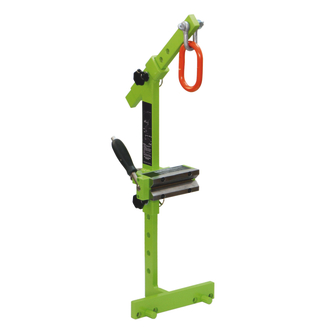

Vertical system LIFT

Vertical system LIFT

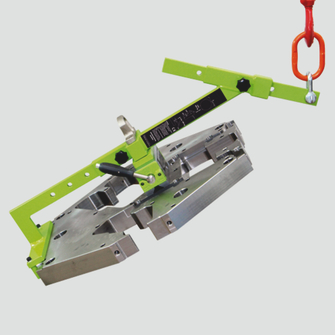

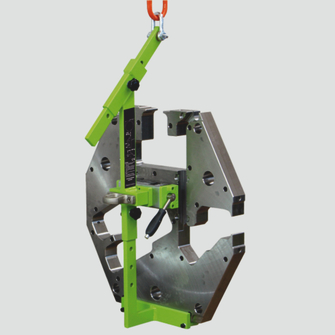

The practical aid for swivelling, moving and transporting materials. Suitable for moving loads from the horizontal to the vertical position and vice versa – especially for loads or workpieces without a pick-up device. Also suitable for vertical transport of materials and loading or unloading of machine tools. Ideal for the transport of round blanks. For up to 20 % of its nominal load, the unit can also be used without the supports underneath. Safe handling of workpieces is possible due to the variably adjustable centre of gravity and the adjustable overall height.
Technical data

Design

  • Permanent load-lifting magnet

Standard

  • DIN EN 13155

Safety factor

  • 3.5

Operating temperature

  • –10 °C to +80 °C

Magnet surface Coating

  • nickel-plated

Gear lever

  • Non-return, lever travel 90°
  • self-braking

Suspension

  • Suspension Ring

Range of application Magnets

  • Transport
  • Rotate
  • move

load types Magnets

  • Standard
Options

Options on request

  • in special designs
Safety instruction
  • Observe the specific carrying capacities for the respective HIT GREEN load-lifting magnets (model V up to 800 kg; model S from 2000 kg).
  • Caution: the carrying capacity of permanent load-lifting magnets is influenced by the following factors, which need to be taken into account when making the right choice:- Contact surface (such as rust or paint) and the resulting air gap- Material thickness- Temperature (> 80° not permissible with standard models – permanent damage to the device!)- Workpiece dimensions or inherent stability- Material composition of the load to be liftedAll 5 factors can occur at the same time and affect the carrying capacity accordingly!Carrying capacity reductions in relation to the factors can be taken from the tables!
  • Persons with heart pacemakers are prohibited from using the device!
Product variants
Working load limit max [kg]
Working load limit without stop max [kg]
Reference no.
Details
  • 200
    40
    283418
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-200
    Reference no. 283418
    Working load limit max [kg] 200
    Disc Ø min [mm] 250
    Disc Ø max [mm] 750
    Flat material Width max [mm] 2000
    Flat material Length max [mm] 750
    Working load limit without stop max [kg] 40

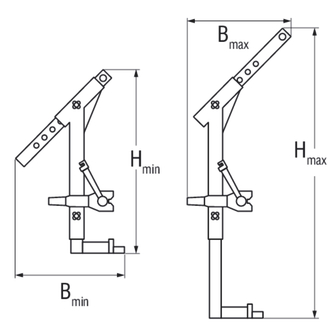

    Overall width min Bmin [mm] 390
    Overall width max Bmax [mm] 400
    Overall height min Hmin 715
    Overall height max Hmax [mm] 1000
    Weight approx. [kg] 24 [kg]
  • 400
    80
    283419
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-400
    Reference no. 283419
    Working load limit max [kg] 400
    Disc Ø min [mm] 400
    Disc Ø max [mm] 1000
    Flat material Width max [mm] 2000
    Flat material Length max [mm] 1000
    Working load limit without stop max [kg] 80
    Overall width min Bmin [mm] 475
    Overall width max Bmax [mm] 450
    Overall height min Hmin 795
    Overall height max Hmax [mm] 1250
    Weight approx. [kg] 31 [kg]
  • 800
    160
    283420
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-800
    Reference no. 283420
    Working load limit max [kg] 800
    Disc Ø min [mm] 500
    Disc Ø max [mm] 1200
    Flat material Width max [mm] 2500
    Flat material Length max [mm] 1250
    Working load limit without stop max [kg] 160
    Overall width min Bmin [mm] 520
    Overall width max Bmax [mm] 500
    Overall height min Hmin 943
    Overall height max Hmax [mm] 1500
    Weight approx. [kg] 70 [kg]
  • 2000
    400
    283421
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-2000
    Reference no. 283421
    Working load limit max [kg] 2000
    Disc Ø min [mm] 500
    Disc Ø max [mm] 1200
    Flat material Width max [mm] 2500
    Flat material Length max [mm] 1250
    Working load limit without stop max [kg] 400
    Overall width min Bmin [mm] 650
    Overall width max Bmax [mm] 600
    Overall height min Hmin 1200
    Overall height max Hmax [mm] 1800
    Weight approx. [kg] 162 [kg]
  • 3000
    600
    283422
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-3000
    Reference no. 283422
    Working load limit max [kg] 3000
    Disc Ø min [mm] 500
    Disc Ø max [mm] 1200
    Flat material Width max [mm] 2500
    Flat material Length max [mm] 1250
    Working load limit without stop max [kg] 600
    Overall width min Bmin [mm] 650
    Overall width max Bmax [mm] 600
    Overall height min Hmin 1200
    Overall height max Hmax [mm] 1800
    Weight approx. [kg] 213 [kg]
Working load limit max [kg] 200
Working load limit without stop max [kg] 40
Reference no. 283418
  • Details
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-200
    Reference no. 283418
    Working load limit max [kg] 200
    Disc Ø min [mm] 250
    Disc Ø max [mm] 750
    Flat material Width max [mm] 2000
    Flat material Length max [mm] 750
    Working load limit without stop max [kg] 40
    Overall width min Bmin [mm] 390
    Overall width max Bmax [mm] 400
    Overall height min Hmin 715
    Overall height max Hmax [mm] 1000
    Weight approx. [kg] 24 [kg]
Working load limit max [kg] 400
Working load limit without stop max [kg] 80
Reference no. 283419
  • Details
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-400
    Reference no. 283419
    Working load limit max [kg] 400
    Disc Ø min [mm] 400
    Disc Ø max [mm] 1000
    Flat material Width max [mm] 2000
    Flat material Length max [mm] 1000
    Working load limit without stop max [kg] 80
    Overall width min Bmin [mm] 475
    Overall width max Bmax [mm] 450
    Overall height min Hmin 795
    Overall height max Hmax [mm] 1250
    Weight approx. [kg] 31 [kg]
Working load limit max [kg] 800
Working load limit without stop max [kg] 160
Reference no. 283420
  • Details
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-800
    Reference no. 283420
    Working load limit max [kg] 800
    Disc Ø min [mm] 500
    Disc Ø max [mm] 1200
    Flat material Width max [mm] 2500
    Flat material Length max [mm] 1250
    Working load limit without stop max [kg] 160
    Overall width min Bmin [mm] 520
    Overall width max Bmax [mm] 500
    Overall height min Hmin 943
    Overall height max Hmax [mm] 1500
    Weight approx. [kg] 70 [kg]
Working load limit max [kg] 2000
Working load limit without stop max [kg] 400
Reference no. 283421
  • Details
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-2000
    Reference no. 283421
    Working load limit max [kg] 2000
    Disc Ø min [mm] 500
    Disc Ø max [mm] 1200
    Flat material Width max [mm] 2500
    Flat material Length max [mm] 1250
    Working load limit without stop max [kg] 400
    Overall width min Bmin [mm] 650
    Overall width max Bmax [mm] 600
    Overall height min Hmin 1200
    Overall height max Hmax [mm] 1800
    Weight approx. [kg] 162 [kg]
Working load limit max [kg] 3000
Working load limit without stop max [kg] 600
Reference no. 283422
  • Details
    MVS-GLL-EN-FX-HV-HORIZONTAL-SYS-3000
    Reference no. 283422
    Working load limit max [kg] 3000
    Disc Ø min [mm] 500
    Disc Ø max [mm] 1200
    Flat material Width max [mm] 2500
    Flat material Length max [mm] 1250
    Working load limit without stop max [kg] 600
    Overall width min Bmin [mm] 650
    Overall width max Bmax [mm] 600
    Overall height min Hmin 1200
    Overall height max Hmax [mm] 1800
    Weight approx. [kg] 213 [kg]
