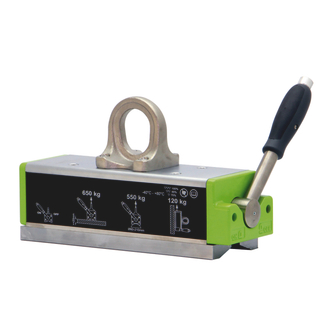

Permanent load-lifting magnet FX-P

Permanent load-lifting magnet FX-P

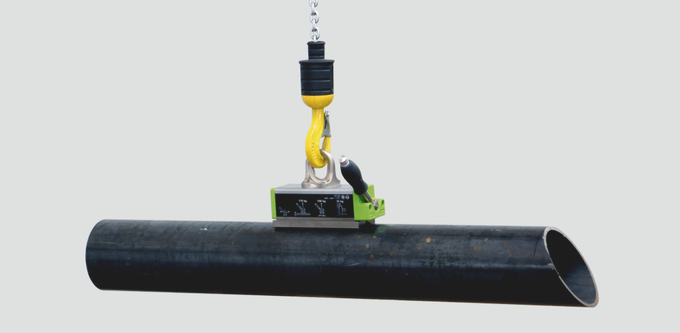

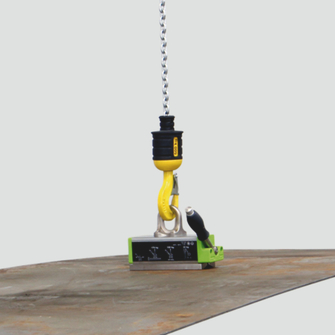

Innovative, powerful and sturdy permanent load-lifting magnet, which is particularly suitable for thin sheets and tubes (from 2 mm) due to the specially adapted magnet configuration in conjunction with deep and flat-angled prism pole shoes. The non-recoiling, self-braking gear lever has an optimal shift travel of 90° (V-shift travel) and can therefore ideal for use even in confined spaces.
Technical data

Design

  • Permanent load-lifting magnet

Standard

  • DIN EN 13155

Safety factor

  • 3.5

Operating temperature

  • –10 °C to +80 °C

Magnet surface Coating

  • nickel-plated

Gear lever

  • Non-return, lever travel 90°
  • self-braking

Suspension

  • Rigid attachment eye

Range of application Magnets

  • Transport

load types Magnets

  • Thin sheet metal
Options

Options on request

  • in special designs
Safety instruction
  • Caution: the carrying capacity of permanent load-lifting magnets is influenced by the following factors, which need to be taken into account when making the right choice:- Contact surface (such as rust or paint) and the resulting air gap- Material thickness- Temperature (> 80° not permissible with standard models – permanent damage to the device!)- Workpiece dimensions or inherent stability- Material composition of the load to be liftedAll 5 factors can occur at the same time and affect the carrying capacity accordingly!Carrying capacity reductions in relation to the factors can be taken from the tables!
  • Use for parallel shear pull is forbidden – use magnets only to lift straight upwards, not at an inclination angle.
  • Persons with heart pacemakers are prohibited from using the device!
  • Observe the operating instructions!
Product variants
Working load limit flat material max [kg]
Working load limit round and flat material max [kg]
Reference no.
Details
  • 170
    150
    283323
    MPL-GMP-EN-FX-P-170-8MM
    Reference no. 283323
    Working load limit flat material max [kg] 170
    Working load limit round and flat material max [kg] 150
    Sheet thickness flat material min [mm] 8
    Round and pipe material Ø min [mm] 30
    Round and pipe material Ø max [mm] 105
    Round and pipe material min. wall thickness [mm] 8
    Load length max [mm] 1500

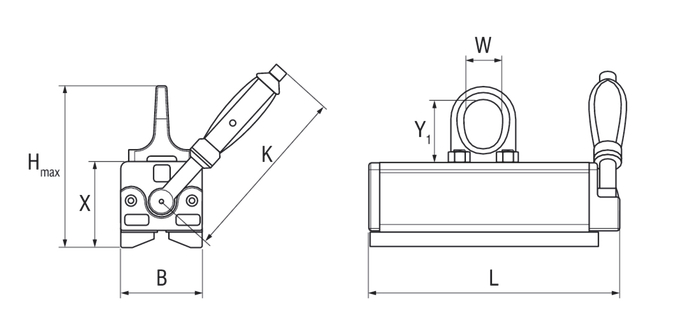

    Overall length L [mm] 195
    Overall height max Hmax [mm] 134
    Body width B 64
    Body height X [mm] 70
    Spacing body to suspension point Y1 42
    Lever length K 139
    Clear span stirrup W [mm] 30
    Weight approx. [kg] 5.1 [kg]
  • 330
    300
    283324
    MPL-GMP-EN-FX-P-330-10MM
    Reference no. 283324
    Working load limit flat material max [kg] 330
    Working load limit round and flat material max [kg] 300
    Sheet thickness flat material min [mm] 10
    Round and pipe material Ø min [mm] 40
    Round and pipe material Ø max [mm] 160
    Round and pipe material min. wall thickness [mm] 10
    Load length max [mm] 2500
    Overall length L [mm] 263
    Overall height max Hmax [mm] 170
    Body width B 87
    Body height X [mm] 90
    Spacing body to suspension point Y1 52
    Lever length K 197
    Clear span stirrup W [mm] 40
    Weight approx. [kg] 12.4 [kg]
  • 650
    550
    283325
    MPL-GMP-EN-FX-P-650-20MM
    Reference no. 283325
    Working load limit flat material max [kg] 650
    Working load limit round and flat material max [kg] 550
    Sheet thickness flat material min [mm] 20
    Round and pipe material Ø min [mm] 60
    Round and pipe material Ø max [mm] 210
    Round and pipe material min. wall thickness [mm] 20
    Load length max [mm] 3000
    Overall length L [mm] 348
    Overall height max Hmax [mm] 203
    Body width B 112
    Body height X [mm] 108
    Spacing body to suspension point Y1 62
    Lever length K 230
    Clear span stirrup W [mm] 50
    Weight approx. [kg] 26 [kg]
Working load limit flat material max [kg] 170
Working load limit round and flat material max [kg] 150
Reference no. 283323
  • Details
    MPL-GMP-EN-FX-P-170-8MM
    Reference no. 283323
    Working load limit flat material max [kg] 170
    Working load limit round and flat material max [kg] 150
    Sheet thickness flat material min [mm] 8
    Round and pipe material Ø min [mm] 30
    Round and pipe material Ø max [mm] 105
    Round and pipe material min. wall thickness [mm] 8
    Load length max [mm] 1500
    Overall length L [mm] 195
    Overall height max Hmax [mm] 134
    Body width B 64
    Body height X [mm] 70
    Spacing body to suspension point Y1 42
    Lever length K 139
    Clear span stirrup W [mm] 30
    Weight approx. [kg] 5.1 [kg]
Working load limit flat material max [kg] 330
Working load limit round and flat material max [kg] 300
Reference no. 283324
  • Details
    MPL-GMP-EN-FX-P-330-10MM
    Reference no. 283324
    Working load limit flat material max [kg] 330
    Working load limit round and flat material max [kg] 300
    Sheet thickness flat material min [mm] 10
    Round and pipe material Ø min [mm] 40
    Round and pipe material Ø max [mm] 160
    Round and pipe material min. wall thickness [mm] 10
    Load length max [mm] 2500
    Overall length L [mm] 263
    Overall height max Hmax [mm] 170
    Body width B 87
    Body height X [mm] 90
    Spacing body to suspension point Y1 52
    Lever length K 197
    Clear span stirrup W [mm] 40
    Weight approx. [kg] 12.4 [kg]
Working load limit flat material max [kg] 650
Working load limit round and flat material max [kg] 550
Reference no. 283325
  • Details
    MPL-GMP-EN-FX-P-650-20MM
    Reference no. 283325
    Working load limit flat material max [kg] 650
    Working load limit round and flat material max [kg] 550
    Sheet thickness flat material min [mm] 20
    Round and pipe material Ø min [mm] 60
    Round and pipe material Ø max [mm] 210
    Round and pipe material min. wall thickness [mm] 20
    Load length max [mm] 3000
    Overall length L [mm] 348
    Overall height max Hmax [mm] 203
    Body width B 112
    Body height X [mm] 108
    Spacing body to suspension point Y1 62
    Lever length K 230
    Clear span stirrup W [mm] 50
    Weight approx. [kg] 26 [kg]
