Permanent load-lifting magnet V

Permanent load-lifting magnet V

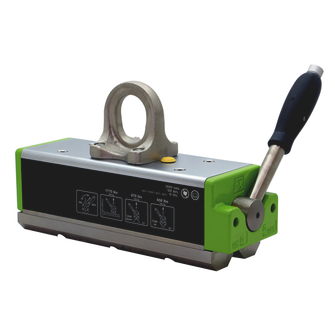

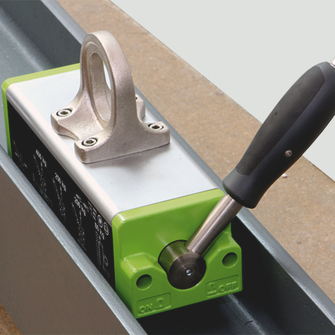

Innovative and powerful permanent load-lifting magnet with maximum holding force and smooth-running single-hand operation for short pick-up and unloading times of workpieces. Due to the new shape of the pole shoe, angular sheet metal can be accommodated on the outside as well as on the inside.
Technical data

Design

  • Permanent load-lifting magnet

Standard

  • DIN EN 13155

Safety factor

  • 3.5

Operating temperature

  • –10 °C to +150 °C

Magnet surface Coating

  • nickel-plated

Gear lever

  • Non-return, lever travel 90°
  • self-braking

Suspension

  • Rigid attachment eye

Range of application Magnets

  • Transport

load types Magnets

  • Beams/Hot Parts
Options

Options on request

  • in special designs
Safety instruction
  • Caution: the carrying capacity of permanent load-lifting magnets is influenced by the following factors, which need to be taken into account when making the right choice:- Contact surface (such as rust or paint) and the resulting air gap- Material thickness- Temperature (> 80° not permissible with standard models – permanent damage to the device!)- Workpiece dimensions or inherent stability- Material composition of the load to be liftedAll 5 factors can occur at the same time and affect the carrying capacity accordingly!Carrying capacity reductions in relation to the factors can be taken from the tables!
  • Use for parallel shear pull is forbidden – use magnets only to lift straight upwards, not at an inclination angle.
  • Persons with heart pacemakers are prohibited from using the device!
Product variants
Working load limit flat material max [kg]
Working load limit round and flat material max [kg]
Reference no.
Details
  • 200
    100
    283327
    MPL-GMV-EN-FX-VV-200-10MM
    Reference no. 283327
    Working load limit flat material max [kg] 200
    Working load limit round and flat material max [kg] 100
    Sheet thickness flat material min [mm] 10
    Round and pipe material Ø min [mm] 20
    Round and pipe material Ø max [mm] 50
    Round and pipe material min. wall thickness [mm] 10
    Working load limit Prism 90° exterior/top [kg] 120
    Working load limit Prism 90° inside/bottom [kg] 100
    Load length max [mm] 3000

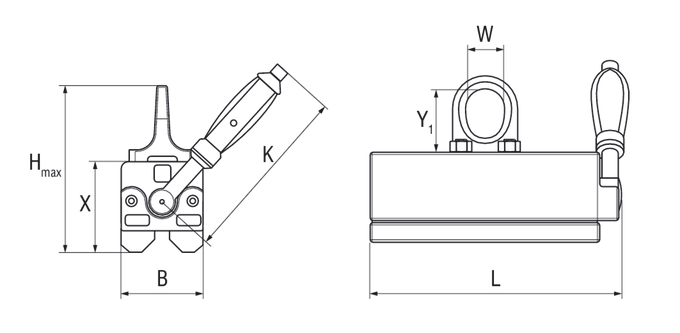

    Overall length L [mm] 195
    Overall height max Hmax [mm] 141
    Body width B 64
    Body height X [mm] 77
    Spacing body to suspension point Y1 42
    Lever length K 139
    Clear span stirrup W [mm] 30
    Weight approx. [kg] 5.5 [kg]
  • 400
    200
    283328
    MPL-GMV-EN-FX-VV-400-15MM
    Reference no. 283328
    Working load limit flat material max [kg] 400
    Working load limit round and flat material max [kg] 200
    Sheet thickness flat material min [mm] 15
    Round and pipe material Ø min [mm] 25
    Round and pipe material Ø max [mm] 60
    Round and pipe material min. wall thickness [mm] 15
    Working load limit Prism 90° exterior/top [kg] 250
    Working load limit Prism 90° inside/bottom [kg] 200
    Load length max [mm] 4000
    Overall length L [mm] 263
    Overall height max Hmax [mm] 176
    Body width B 87
    Body height X [mm] 96
    Spacing body to suspension point Y1 52
    Lever length K 197
    Clear span stirrup W [mm] 40
    Weight approx. [kg] 12.9 [kg]
  • 800
    300
    283329
    MPL-GMV-EN-FX-VV-800-20MM
    Reference no. 283329
    Working load limit flat material max [kg] 800
    Working load limit round and flat material max [kg] 300
    Sheet thickness flat material min [mm] 20
    Round and pipe material Ø min [mm] 35
    Round and pipe material Ø max [mm] 75
    Round and pipe material min. wall thickness [mm] 20
    Working load limit Prism 90° exterior/top [kg] 400
    Working load limit Prism 90° inside/bottom [kg] 300
    Load length max [mm] 5000
    Overall length L [mm] 348
    Overall height max Hmax [mm] 210
    Body width B 112
    Body height X [mm] 115
    Spacing body to suspension point Y1 62
    Lever length K 230
    Clear span stirrup W [mm] 51
    Weight approx. [kg] 27.7 [kg]
Working load limit flat material max [kg] 200
Working load limit round and flat material max [kg] 100
Reference no. 283327
  • Details
    MPL-GMV-EN-FX-VV-200-10MM
    Reference no. 283327
    Working load limit flat material max [kg] 200
    Working load limit round and flat material max [kg] 100
    Sheet thickness flat material min [mm] 10
    Round and pipe material Ø min [mm] 20
    Round and pipe material Ø max [mm] 50
    Round and pipe material min. wall thickness [mm] 10
    Working load limit Prism 90° exterior/top [kg] 120
    Working load limit Prism 90° inside/bottom [kg] 100
    Load length max [mm] 3000
    Overall length L [mm] 195
    Overall height max Hmax [mm] 141
    Body width B 64
    Body height X [mm] 77
    Spacing body to suspension point Y1 42
    Lever length K 139
    Clear span stirrup W [mm] 30
    Weight approx. [kg] 5.5 [kg]
Working load limit flat material max [kg] 400
Working load limit round and flat material max [kg] 200
Reference no. 283328
  • Details
    MPL-GMV-EN-FX-VV-400-15MM
    Reference no. 283328
    Working load limit flat material max [kg] 400
    Working load limit round and flat material max [kg] 200
    Sheet thickness flat material min [mm] 15
    Round and pipe material Ø min [mm] 25
    Round and pipe material Ø max [mm] 60
    Round and pipe material min. wall thickness [mm] 15
    Working load limit Prism 90° exterior/top [kg] 250
    Working load limit Prism 90° inside/bottom [kg] 200
    Load length max [mm] 4000
    Overall length L [mm] 263
    Overall height max Hmax [mm] 176
    Body width B 87
    Body height X [mm] 96
    Spacing body to suspension point Y1 52
    Lever length K 197
    Clear span stirrup W [mm] 40
    Weight approx. [kg] 12.9 [kg]
Working load limit flat material max [kg] 800
Working load limit round and flat material max [kg] 300
Reference no. 283329
  • Details
    MPL-GMV-EN-FX-VV-800-20MM
    Reference no. 283329
    Working load limit flat material max [kg] 800
    Working load limit round and flat material max [kg] 300
    Sheet thickness flat material min [mm] 20
    Round and pipe material Ø min [mm] 35
    Round and pipe material Ø max [mm] 75
    Round and pipe material min. wall thickness [mm] 20
    Working load limit Prism 90° exterior/top [kg] 400
    Working load limit Prism 90° inside/bottom [kg] 300
    Load length max [mm] 5000
    Overall length L [mm] 348
    Overall height max Hmax [mm] 210
    Body width B 112
    Body height X [mm] 115
    Spacing body to suspension point Y1 62
    Lever length K 230
    Clear span stirrup W [mm] 51
    Weight approx. [kg] 27.7 [kg]
