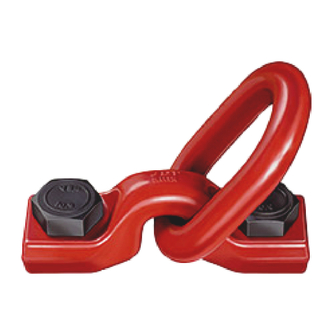

Bolt-on eye TPB-S
Bolt-on eye TPB-S
Technical data
Quality grade
- 8
Operating temperature
- –40 °C to +200 °C
Standard
- EN 1677-1
Marking
- Batch number
Safety factor
- 4
Rotation
- rigid
Tilting
- 120°
Load angle
- ±45°
Product variants
Working load limit [kg]
Reference no.
Details
-
15000201655
ASR AR8 TPB-15T

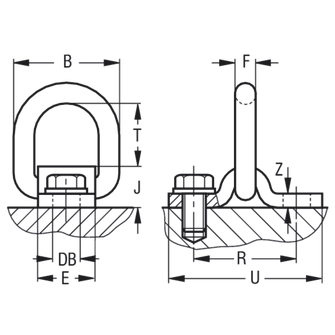

Reference no. 201655 Working load limit [kg] 15000 Tightening torque MA [Nm] 675 Body width B 75 Ø of contact surface E 72 Clear height T [mm] 110 Ring section diameter F 32 Base width U [mm] 255 Base height J [mm] 90 Base thickness Z [mm] 40 Bore Ø DB [mm] 39 Hole spacing R [mm] 175 Weight approx. [kg] 7.4 Working load limit single-leg with cross bar 0° [t] 15 Working load limit single-leg with cross bar 90° [t] 15 Working load limit 2-leg with cross bar 0° [t] 30 Working load limit 2-leg with cross bar 90° [t] 30 Working load limit 2-leg symmetrical 0°–45° [t] 21 Working load limit 2-leg symmetrical 45°–60° [t] 15 Working load limit 2-leg asymmetrical [t] 15 Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5 Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5 Working load limit 3 or 4 leg asymmetrical [t] 15 -
20000201656
ASR AR8 TPB-20T
Reference no. 201656 Working load limit [kg] 20000 Tightening torque MA [Nm] 1000 Body width B 100 Ø of contact surface E 90 Clear height T [mm] 140 Ring section diameter F 40 Base width U [mm] 295 Base height J [mm] 116 Base thickness Z [mm] 50 Bore Ø DB [mm] 45 Hole spacing R [mm] 200 Weight approx. [kg] 15.1 Working load limit single-leg with cross bar 0° [t] 20 Working load limit single-leg with cross bar 90° [t] 20 Working load limit 2-leg with cross bar 0° [t] 40 Working load limit 2-leg with cross bar 90° [t] 40 Working load limit 2-leg symmetrical 0°–45° [t] 28 Working load limit 2-leg symmetrical 45°–60° [t] 20 Working load limit 2-leg asymmetrical [t] 20 Working load limit 3/4-leg symmetrical 0°–45° [t] 42 Working load limit 3/4-leg symmetrical 45°–60° [t] 30 Working load limit 3 or 4 leg asymmetrical [t] 20 -
25000201657
ASR AR8 TPB-25T
Reference no. 201657 Working load limit [kg] 25000 Tightening torque MA [Nm] 1400 Body width B 100 Ø of contact surface E 90 Clear height T [mm] 140 Ring section diameter F 40 Base width U [mm] 295 Base height J [mm] 116 Base thickness Z [mm] 50 Bore Ø DB [mm] 48 Hole spacing R [mm] 200 Weight approx. [kg] 15.1 Working load limit single-leg with cross bar 0° [t] 25 Working load limit single-leg with cross bar 90° [t] 25 Working load limit 2-leg with cross bar 0° [t] 50 Working load limit 2-leg with cross bar 90° [t] 50 Working load limit 2-leg symmetrical 0°–45° [t] 35 Working load limit 2-leg symmetrical 45°–60° [t] 25 Working load limit 2-leg asymmetrical [t] 25 Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5 Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5 Working load limit 3 or 4 leg asymmetrical [t] 25
Working load limit [kg]
15000
Reference no.
201655
-
Details
ASR AR8 TPB-15T
Reference no. 201655 Working load limit [kg] 15000 Tightening torque MA [Nm] 675 Body width B 75 Ø of contact surface E 72 Clear height T [mm] 110 Ring section diameter F 32 Base width U [mm] 255 Base height J [mm] 90 Base thickness Z [mm] 40 Bore Ø DB [mm] 39 Hole spacing R [mm] 175 Weight approx. [kg] 7.4 Working load limit single-leg with cross bar 0° [t] 15 Working load limit single-leg with cross bar 90° [t] 15 Working load limit 2-leg with cross bar 0° [t] 30 Working load limit 2-leg with cross bar 90° [t] 30 Working load limit 2-leg symmetrical 0°–45° [t] 21 Working load limit 2-leg symmetrical 45°–60° [t] 15 Working load limit 2-leg asymmetrical [t] 15 Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5 Working load limit 3/4-leg symmetrical 45°–60° [t] 22.5 Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg]
20000
Reference no.
201656
-
Details
ASR AR8 TPB-20T
Reference no. 201656 Working load limit [kg] 20000 Tightening torque MA [Nm] 1000 Body width B 100 Ø of contact surface E 90 Clear height T [mm] 140 Ring section diameter F 40 Base width U [mm] 295 Base height J [mm] 116 Base thickness Z [mm] 50 Bore Ø DB [mm] 45 Hole spacing R [mm] 200 Weight approx. [kg] 15.1 Working load limit single-leg with cross bar 0° [t] 20 Working load limit single-leg with cross bar 90° [t] 20 Working load limit 2-leg with cross bar 0° [t] 40 Working load limit 2-leg with cross bar 90° [t] 40 Working load limit 2-leg symmetrical 0°–45° [t] 28 Working load limit 2-leg symmetrical 45°–60° [t] 20 Working load limit 2-leg asymmetrical [t] 20 Working load limit 3/4-leg symmetrical 0°–45° [t] 42 Working load limit 3/4-leg symmetrical 45°–60° [t] 30 Working load limit 3 or 4 leg asymmetrical [t] 20
Working load limit [kg]
25000
Reference no.
201657
-
Details
ASR AR8 TPB-25T
Reference no. 201657 Working load limit [kg] 25000 Tightening torque MA [Nm] 1400 Body width B 100 Ø of contact surface E 90 Clear height T [mm] 140 Ring section diameter F 40 Base width U [mm] 295 Base height J [mm] 116 Base thickness Z [mm] 50 Bore Ø DB [mm] 48 Hole spacing R [mm] 200 Weight approx. [kg] 15.1 Working load limit single-leg with cross bar 0° [t] 25 Working load limit single-leg with cross bar 90° [t] 25 Working load limit 2-leg with cross bar 0° [t] 50 Working load limit 2-leg with cross bar 90° [t] 50 Working load limit 2-leg symmetrical 0°–45° [t] 35 Working load limit 2-leg symmetrical 45°–60° [t] 25 Working load limit 2-leg asymmetrical [t] 25 Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5 Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5 Working load limit 3 or 4 leg asymmetrical [t] 25
Bolts are not included in the scope of delivery!
Safety
Please note the admissible load angle.
Options
- A selection of the options available on request can be found below. Please contact us for your individual offer!
Labelling options
- with individual serial number or labelling
