Welding hoist ring quality grade 10

Welding hoist ring quality grade 10

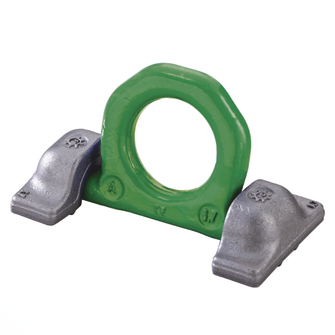

Weldable hoist ring with two fixed bases, lowline version.
Technical data

Quality grade

  • 10

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • rigid

Tilting

  • 180°

Load angle

  • ±90°
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Labelling options

  • with individual serial number or labelling
Product variants
Working load limit [kg]
Reference no.
Details
  • 4000
    255600
    ARB RB1 SFA-4T
    Reference no. 255600
    Working load limit [kg] 4000

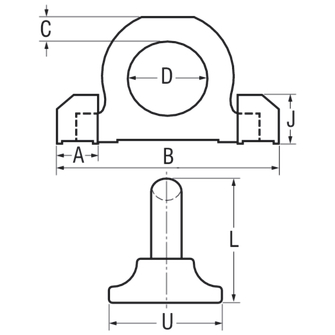

    Overall length L [mm] 79
    Body width B 125.5
    Stirrup height C [mm] 14
    Inner ring Ø D [mm] 48
    Base length A [mm] 26
    Base width U [mm] 63
    Base height J [mm] 30
    Weight approx. [kg] 0.8
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
  • 6700
    255601
    ARB RB1 SFA-6.7T
    Reference no. 255601
    Working load limit [kg] 6700
    Overall length L [mm] 104
    Body width B 170.2
    Stirrup height C [mm] 20
    Inner ring Ø D [mm] 60
    Base length A [mm] 37
    Base width U [mm] 88
    Base height J [mm] 40
    Weight approx. [kg] 1.8
    Working load limit single-leg with cross bar 0° [t] 6.7
    Working load limit single-leg with cross bar 90° [t] 6.7
    Working load limit 2-leg with cross bar 0° [t] 13.4
    Working load limit 2-leg with cross bar 90° [t] 13.4
    Working load limit 2-leg symmetrical 0°–45° [t] 9.5
    Working load limit 2-leg symmetrical 45°–60° [t] 6.7
    Working load limit 2-leg asymmetrical [t] 6.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.1
    Working load limit 3 or 4 leg asymmetrical [t] 6.7
  • 10000
    255602
    ARB RB1 SFA-10T
    Reference no. 255602
    Working load limit [kg] 10000
    Overall length L [mm] 114.25
    Body width B 198
    Stirrup height C [mm] 22
    Inner ring Ø D [mm] 64
    Base length A [mm] 46.7
    Base width U [mm] 100.3
    Base height J [mm] 46
    Weight approx. [kg] 3
    Working load limit single-leg with cross bar 0° [t] 10
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 20
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
  • 16000
    255603
    ARB RB1 SFA-16T
    Reference no. 255603
    Working load limit [kg] 16000
    Overall length L [mm] 153.35
    Body width B 258
    Stirrup height C [mm] 30
    Inner ring Ø D [mm] 90
    Base length A [mm] 57
    Base width U [mm] 131
    Base height J [mm] 57
    Weight approx. [kg] 5.8
    Working load limit single-leg with cross bar 0° [t] 16
    Working load limit single-leg with cross bar 90° [t] 16
    Working load limit 2-leg with cross bar 0° [t] 32
    Working load limit 2-leg with cross bar 90° [t] 32
    Working load limit 2-leg symmetrical 0°–45° [t] 22.4
    Working load limit 2-leg symmetrical 45°–60° [t] 16
    Working load limit 2-leg asymmetrical [t] 16
    Working load limit 3/4-leg symmetrical 0°–45° [t] 33.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 24
    Working load limit 3 or 4 leg asymmetrical [t] 16
  • 31500
    705934
    ARB RB1 SFA-31.5T
    Reference no. 705934
    Working load limit [kg] 31500
    Overall length L [mm] 215
    Body width B 368
    Stirrup height C [mm] 37
    Inner ring Ø D [mm] 130
    Base length A [mm] 80
    Base width U [mm] 160
    Base height J [mm] 79
    Weight approx. [kg] 18.1
    Working load limit single-leg with cross bar 0° [t] 31.5
    Working load limit single-leg with cross bar 90° [t] 31.5
    Working load limit 2-leg with cross bar 0° [t] 63
    Working load limit 2-leg with cross bar 90° [t] 63
    Working load limit 2-leg symmetrical 0°–45° [t] 44.1
    Working load limit 2-leg symmetrical 45°–60° [t] 31.5
    Working load limit 2-leg asymmetrical [t] 31.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 66.15
    Working load limit 3/4-leg symmetrical 45°–60° [t] 47.25
    Working load limit 3 or 4 leg asymmetrical [t] 31.5
Working load limit [kg] 4000
Reference no. 255600
  • Details
    ARB RB1 SFA-4T
    Reference no. 255600
    Working load limit [kg] 4000
    Overall length L [mm] 79
    Body width B 125.5
    Stirrup height C [mm] 14
    Inner ring Ø D [mm] 48
    Base length A [mm] 26
    Base width U [mm] 63
    Base height J [mm] 30
    Weight approx. [kg] 0.8
    Working load limit single-leg with cross bar 0° [t] 4
    Working load limit single-leg with cross bar 90° [t] 4
    Working load limit 2-leg with cross bar 0° [t] 8
    Working load limit 2-leg with cross bar 90° [t] 8
    Working load limit 2-leg symmetrical 0°–45° [t] 5.6
    Working load limit 2-leg symmetrical 45°–60° [t] 4
    Working load limit 2-leg asymmetrical [t] 4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 8.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 4
Working load limit [kg] 6700
Reference no. 255601
  • Details
    ARB RB1 SFA-6.7T
    Reference no. 255601
    Working load limit [kg] 6700
    Overall length L [mm] 104
    Body width B 170.2
    Stirrup height C [mm] 20
    Inner ring Ø D [mm] 60
    Base length A [mm] 37
    Base width U [mm] 88
    Base height J [mm] 40
    Weight approx. [kg] 1.8
    Working load limit single-leg with cross bar 0° [t] 6.7
    Working load limit single-leg with cross bar 90° [t] 6.7
    Working load limit 2-leg with cross bar 0° [t] 13.4
    Working load limit 2-leg with cross bar 90° [t] 13.4
    Working load limit 2-leg symmetrical 0°–45° [t] 9.5
    Working load limit 2-leg symmetrical 45°–60° [t] 6.7
    Working load limit 2-leg asymmetrical [t] 6.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 14
    Working load limit 3/4-leg symmetrical 45°–60° [t] 10.1
    Working load limit 3 or 4 leg asymmetrical [t] 6.7
Working load limit [kg] 10000
Reference no. 255602
  • Details
    ARB RB1 SFA-10T
    Reference no. 255602
    Working load limit [kg] 10000
    Overall length L [mm] 114.25
    Body width B 198
    Stirrup height C [mm] 22
    Inner ring Ø D [mm] 64
    Base length A [mm] 46.7
    Base width U [mm] 100.3
    Base height J [mm] 46
    Weight approx. [kg] 3
    Working load limit single-leg with cross bar 0° [t] 10
    Working load limit single-leg with cross bar 90° [t] 10
    Working load limit 2-leg with cross bar 0° [t] 20
    Working load limit 2-leg with cross bar 90° [t] 20
    Working load limit 2-leg symmetrical 0°–45° [t] 14
    Working load limit 2-leg symmetrical 45°–60° [t] 10
    Working load limit 2-leg asymmetrical [t] 10
    Working load limit 3/4-leg symmetrical 0°–45° [t] 21
    Working load limit 3/4-leg symmetrical 45°–60° [t] 15
    Working load limit 3 or 4 leg asymmetrical [t] 10
Working load limit [kg] 16000
Reference no. 255603
  • Details
    ARB RB1 SFA-16T
    Reference no. 255603
    Working load limit [kg] 16000
    Overall length L [mm] 153.35
    Body width B 258
    Stirrup height C [mm] 30
    Inner ring Ø D [mm] 90
    Base length A [mm] 57
    Base width U [mm] 131
    Base height J [mm] 57
    Weight approx. [kg] 5.8
    Working load limit single-leg with cross bar 0° [t] 16
    Working load limit single-leg with cross bar 90° [t] 16
    Working load limit 2-leg with cross bar 0° [t] 32
    Working load limit 2-leg with cross bar 90° [t] 32
    Working load limit 2-leg symmetrical 0°–45° [t] 22.4
    Working load limit 2-leg symmetrical 45°–60° [t] 16
    Working load limit 2-leg asymmetrical [t] 16
    Working load limit 3/4-leg symmetrical 0°–45° [t] 33.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 24
    Working load limit 3 or 4 leg asymmetrical [t] 16
Working load limit [kg] 31500
Reference no. 705934
  • Details
    ARB RB1 SFA-31.5T
    Reference no. 705934
    Working load limit [kg] 31500
    Overall length L [mm] 215
    Body width B 368
    Stirrup height C [mm] 37
    Inner ring Ø D [mm] 130
    Base length A [mm] 80
    Base width U [mm] 160
    Base height J [mm] 79
    Weight approx. [kg] 18.1
    Working load limit single-leg with cross bar 0° [t] 31.5
    Working load limit single-leg with cross bar 90° [t] 31.5
    Working load limit 2-leg with cross bar 0° [t] 63
    Working load limit 2-leg with cross bar 90° [t] 63
    Working load limit 2-leg symmetrical 0°–45° [t] 44.1
    Working load limit 2-leg symmetrical 45°–60° [t] 31.5
    Working load limit 2-leg asymmetrical [t] 31.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 66.15
    Working load limit 3/4-leg symmetrical 45°–60° [t] 47.25
    Working load limit 3 or 4 leg asymmetrical [t] 31.5
