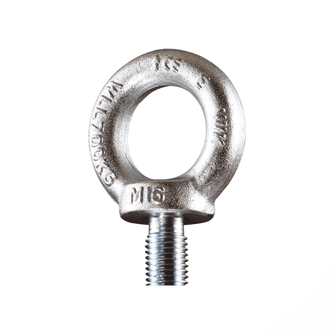

Rigid eye bolt DIN 580 C15E

Rigid eye bolt DIN 580 C15E
Eye bolt for single leg attachment Multi-leg attachment not recommended
Technical data

Operating temperature

  • –20 °C to +200 °C

Standard

  • Rigid eye bolt DIN 580 C15E

Marking

  • Batch number

Safety factor

  • 4

Technical note

  • As part of a sling—and as a load-bearing device
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 140
    M 8
    237232
    ARS 580-DIN-C15E-0.14T-M8X1.25-EL13MM-ZN
    Reference no. 237232
    Working load limit [kg] 140
    Thread length K [mm] 13
    Ø of contact surface E 20
    Outer ring Ø O [mm] 36
    Inner ring Ø D [mm] 20
    Weight approx. [kg] 0.06
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.14
  • 230
    M 10
    237233
    ARS 580-DIN-C15E-0.23T-M10X1.5-EL17MM-ZN
    Reference no. 237233
    Working load limit [kg] 230
    Thread length K [mm] 17
    Ø of contact surface E 25
    Outer ring Ø O [mm] 45
    Inner ring Ø D [mm] 25
    Weight approx. [kg] 0.103
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.23
  • 340
    M 12
    237234
    ARS 580-DIN-C15E-0.34T-M12X1.75-EL20MMZN
    Reference no. 237234
    Working load limit [kg] 340
    Thread length K [mm] 20.5
    Ø of contact surface E 30
    Outer ring Ø O [mm] 54
    Inner ring Ø D [mm] 30
    Weight approx. [kg] 0.177
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 0.34
  • 700
    M 16
    237235
    ARS 580-DIN-C15E-0.7T-M16X2-EL27MM-ZN
    Reference no. 237235
    Working load limit [kg] 700
    Thread length K [mm] 27
    Ø of contact surface E 35
    Outer ring Ø O [mm] 63
    Inner ring Ø D [mm] 35
    Weight approx. [kg] 0.28
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 0.7
  • 1200
    M 20
    237236
    ARS 580-DIN-C15E-1.2T-M20X2.5-EL30MM-ZN
    Reference no. 237236
    Working load limit [kg] 1200
    Thread length K [mm] 30
    Ø of contact surface E 40
    Outer ring Ø O [mm] 72
    Inner ring Ø D [mm] 40
    Weight approx. [kg] 0.424
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 1.2
  • 1800
    M 24
    237237
    ARS 580-DIN-C15E-1.8T-M24X3-EL36MM-ZN
    Reference no. 237237
    Working load limit [kg] 1800
    Thread length K [mm] 36
    Ø of contact surface E 50
    Outer ring Ø O [mm] 90
    Inner ring Ø D [mm] 50
    Weight approx. [kg] 0.834
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 1.8
  • 3200
    M 30
    237238
    ARS 580-DIN-C15E-3.2T-M30X3.5-EL45MM-ZN
    Reference no. 237238
    Working load limit [kg] 3200
    Thread length K [mm] 45
    Ø of contact surface E 65
    Outer ring Ø O [mm] 108
    Inner ring Ø D [mm] 60
    Weight approx. [kg] 1.66
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 3.2
  • 4600
    M 36
    237239
    ARS 580-DIN-C15E-4.6T-M36X4-EL54MM-ZN
    Reference no. 237239
    Working load limit [kg] 4600
    Thread length K [mm] 54
    Ø of contact surface E 75
    Outer ring Ø O [mm] 126
    Inner ring Ø D [mm] 70
    Weight approx. [kg] 2
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 4.6
Working load limit [kg] 140
Thread diameter metric M M 8
Reference no. 237232
  • Details
    ARS 580-DIN-C15E-0.14T-M8X1.25-EL13MM-ZN
    Reference no. 237232
    Working load limit [kg] 140
    Thread length K [mm] 13
    Ø of contact surface E 20
    Outer ring Ø O [mm] 36
    Inner ring Ø D [mm] 20
    Weight approx. [kg] 0.06
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.14
Working load limit [kg] 230
Thread diameter metric M M 10
Reference no. 237233
  • Details
    ARS 580-DIN-C15E-0.23T-M10X1.5-EL17MM-ZN
    Reference no. 237233
    Working load limit [kg] 230
    Thread length K [mm] 17
    Ø of contact surface E 25
    Outer ring Ø O [mm] 45
    Inner ring Ø D [mm] 25
    Weight approx. [kg] 0.103
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.23
Working load limit [kg] 340
Thread diameter metric M M 12
Reference no. 237234
  • Details
    ARS 580-DIN-C15E-0.34T-M12X1.75-EL20MMZN
    Reference no. 237234
    Working load limit [kg] 340
    Thread length K [mm] 20.5
    Ø of contact surface E 30
    Outer ring Ø O [mm] 54
    Inner ring Ø D [mm] 30
    Weight approx. [kg] 0.177
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 0.34
Working load limit [kg] 700
Thread diameter metric M M 16
Reference no. 237235
  • Details
    ARS 580-DIN-C15E-0.7T-M16X2-EL27MM-ZN
    Reference no. 237235
    Working load limit [kg] 700
    Thread length K [mm] 27
    Ø of contact surface E 35
    Outer ring Ø O [mm] 63
    Inner ring Ø D [mm] 35
    Weight approx. [kg] 0.28
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 0.7
Working load limit [kg] 1200
Thread diameter metric M M 20
Reference no. 237236
  • Details
    ARS 580-DIN-C15E-1.2T-M20X2.5-EL30MM-ZN
    Reference no. 237236
    Working load limit [kg] 1200
    Thread length K [mm] 30
    Ø of contact surface E 40
    Outer ring Ø O [mm] 72
    Inner ring Ø D [mm] 40
    Weight approx. [kg] 0.424
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 1.2
Working load limit [kg] 1800
Thread diameter metric M M 24
Reference no. 237237
  • Details
    ARS 580-DIN-C15E-1.8T-M24X3-EL36MM-ZN
    Reference no. 237237
    Working load limit [kg] 1800
    Thread length K [mm] 36
    Ø of contact surface E 50
    Outer ring Ø O [mm] 90
    Inner ring Ø D [mm] 50
    Weight approx. [kg] 0.834
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 1.8
Working load limit [kg] 3200
Thread diameter metric M M 30
Reference no. 237238
  • Details
    ARS 580-DIN-C15E-3.2T-M30X3.5-EL45MM-ZN
    Reference no. 237238
    Working load limit [kg] 3200
    Thread length K [mm] 45
    Ø of contact surface E 65
    Outer ring Ø O [mm] 108
    Inner ring Ø D [mm] 60
    Weight approx. [kg] 1.66
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 3.2
Working load limit [kg] 4600
Thread diameter metric M M 36
Reference no. 237239
  • Details
    ARS 580-DIN-C15E-4.6T-M36X4-EL54MM-ZN
    Reference no. 237239
    Working load limit [kg] 4600
    Thread length K [mm] 54
    Ø of contact surface E 75
    Outer ring Ø O [mm] 126
    Inner ring Ø D [mm] 70
    Weight approx. [kg] 2
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 4.6
