Weld-on eye G8

Weld-on eye G8
Weldable attachment eye for maximum working load limit.
Technical data

Quality grade

  • 8

Operating temperature

  • –40 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1

Marking

  • Batch number

Safety factor

  • 4

Rotation

  • rigid

Tilting

  • 180°

Load angle

  • ±45°
Safety

Please note the admissible load angle.
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Labelling options

  • with individual serial number or labelling
Product variants
Working load limit [kg]
Reference no.
Details
  • 1120
    146454
    AWO AW8 SFA-1.12T
    Reference no. 146454
    Working load limit [kg] 1120

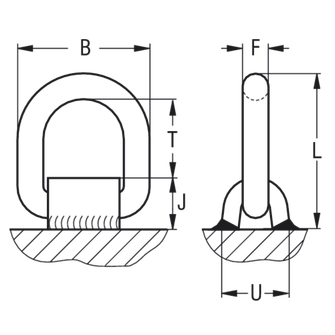

    Overall length L [mm] 83
    Body width B 66
    Clear height T [mm] 37
    Ring section diameter F 13
    Base length A [mm] 37
    Base width U [mm] 38
    Base height J [mm] 29
    Weight approx. [kg] 0.38
    Working load limit single-leg with cross bar 0° [t] 1.12
    Working load limit single-leg with cross bar 90° [t] 1.12
    Working load limit 2-leg with cross bar 0° [t] 2.24
    Working load limit 2-leg with cross bar 90° [t] 2.24
    Working load limit 2-leg symmetrical 0°–45° [t] 1.5
    Working load limit 2-leg symmetrical 45°–60° [t] 1.12
    Working load limit 2-leg asymmetrical [t] 1.12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.36
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.6
    Working load limit 3 or 4 leg asymmetrical [t] 1.12
  • 2000
    146455
    AWO AW8 SFA-2T
    Reference no. 146455
    Working load limit [kg] 2000
    Overall length L [mm] 92
    Body width B 70
    Clear height T [mm] 48
    Ring section diameter F 14
    Base length A [mm] 40
    Base width U [mm] 40
    Base height J [mm] 30
    Weight approx. [kg] 0.46
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
  • 3150
    120637
    AWO AW8 SFA-3.15T
    Reference no. 120637
    Working load limit [kg] 3150
    Overall length L [mm] 101
    Body width B 79
    Clear height T [mm] 48
    Ring section diameter F 17
    Base length A [mm] 43
    Base width U [mm] 42
    Base height J [mm] 36
    Weight approx. [kg] 0.69
    Working load limit single-leg with cross bar 0° [t] 3.15
    Working load limit single-leg with cross bar 90° [t] 3.15
    Working load limit 2-leg with cross bar 0° [t] 6.3
    Working load limit 2-leg with cross bar 90° [t] 6.3
    Working load limit 2-leg symmetrical 0°–45° [t] 4.25
    Working load limit 2-leg symmetrical 45°–60° [t] 3.15
    Working load limit 2-leg asymmetrical [t] 3.15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.75
    Working load limit 3 or 4 leg asymmetrical [t] 3.15
  • 5300
    120638
    AWO AW8 SFA-5.3T
    Reference no. 120638
    Working load limit [kg] 5300
    Overall length L [mm] 126
    Body width B 99
    Clear height T [mm] 56
    Ring section diameter F 23
    Base length A [mm] 50
    Base width U [mm] 60
    Base height J [mm] 47
    Weight approx. [kg] 1.42
    Working load limit single-leg with cross bar 0° [t] 5.3
    Working load limit single-leg with cross bar 90° [t] 5.3
    Working load limit 2-leg with cross bar 0° [t] 10.6
    Working load limit 2-leg with cross bar 90° [t] 10.6
    Working load limit 2-leg symmetrical 0°–45° [t] 7.1
    Working load limit 2-leg symmetrical 45°–60° [t] 5.3
    Working load limit 2-leg asymmetrical [t] 5.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8
    Working load limit 3 or 4 leg asymmetrical [t] 5.3
  • 8000
    120639
    AWO AW8 SFA-8T
    Reference no. 120639
    Working load limit [kg] 8000
    Overall length L [mm] 146
    Body width B 122
    Clear height T [mm] 66
    Ring section diameter F 26
    Base length A [mm] 65
    Base width U [mm] 70
    Base height J [mm] 54
    Weight approx. [kg] 2.67
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
  • 15000
    120640
    AWO AW8 SFA-15T
    Reference no. 120640
    Working load limit [kg] 15000
    Overall length L [mm] 195
    Body width B 165
    Clear height T [mm] 92
    Ring section diameter F 34
    Base length A [mm] 90
    Base width U [mm] 90
    Base height J [mm] 69
    Weight approx. [kg] 5.9
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21.2
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.4
    Working load limit 3 or 4 leg asymmetrical [t] 15
  • 37500
    255644
    AWO AW8 SFA-37.5T
    Reference no. 255644
    Working load limit [kg] 37500
    Overall length L [mm] 327
    Body width B 274
    Clear height T [mm] 175
    Ring section diameter F 52
    Base length A [mm] 140
    Base width U [mm] 135
    Base height J [mm] 100
    Weight approx. [kg] 22
    Working load limit single-leg with cross bar 0° [t] 37.5
    Working load limit single-leg with cross bar 90° [t] 37.5
    Working load limit 2-leg with cross bar 0° [t] 75
    Working load limit 2-leg with cross bar 90° [t] 75
    Working load limit 2-leg symmetrical 0°–45° [t] 52
    Working load limit 2-leg symmetrical 45°–60° [t] 37.5
    Working load limit 2-leg asymmetrical [t] 37.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 75
    Working load limit 3/4-leg symmetrical 45°–60° [t] 56
    Working load limit 3 or 4 leg asymmetrical [t] 37.5
Working load limit [kg] 1120
Reference no. 146454
  • Details
    AWO AW8 SFA-1.12T
    Reference no. 146454
    Working load limit [kg] 1120
    Overall length L [mm] 83
    Body width B 66
    Clear height T [mm] 37
    Ring section diameter F 13
    Base length A [mm] 37
    Base width U [mm] 38
    Base height J [mm] 29
    Weight approx. [kg] 0.38
    Working load limit single-leg with cross bar 0° [t] 1.12
    Working load limit single-leg with cross bar 90° [t] 1.12
    Working load limit 2-leg with cross bar 0° [t] 2.24
    Working load limit 2-leg with cross bar 90° [t] 2.24
    Working load limit 2-leg symmetrical 0°–45° [t] 1.5
    Working load limit 2-leg symmetrical 45°–60° [t] 1.12
    Working load limit 2-leg asymmetrical [t] 1.12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.36
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.6
    Working load limit 3 or 4 leg asymmetrical [t] 1.12
Working load limit [kg] 2000
Reference no. 146455
  • Details
    AWO AW8 SFA-2T
    Reference no. 146455
    Working load limit [kg] 2000
    Overall length L [mm] 92
    Body width B 70
    Clear height T [mm] 48
    Ring section diameter F 14
    Base length A [mm] 40
    Base width U [mm] 40
    Base height J [mm] 30
    Weight approx. [kg] 0.46
    Working load limit single-leg with cross bar 0° [t] 2
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
Working load limit [kg] 3150
Reference no. 120637
  • Details
    AWO AW8 SFA-3.15T
    Reference no. 120637
    Working load limit [kg] 3150
    Overall length L [mm] 101
    Body width B 79
    Clear height T [mm] 48
    Ring section diameter F 17
    Base length A [mm] 43
    Base width U [mm] 42
    Base height J [mm] 36
    Weight approx. [kg] 0.69
    Working load limit single-leg with cross bar 0° [t] 3.15
    Working load limit single-leg with cross bar 90° [t] 3.15
    Working load limit 2-leg with cross bar 0° [t] 6.3
    Working load limit 2-leg with cross bar 90° [t] 6.3
    Working load limit 2-leg symmetrical 0°–45° [t] 4.25
    Working load limit 2-leg symmetrical 45°–60° [t] 3.15
    Working load limit 2-leg asymmetrical [t] 3.15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.75
    Working load limit 3 or 4 leg asymmetrical [t] 3.15
Working load limit [kg] 5300
Reference no. 120638
  • Details
    AWO AW8 SFA-5.3T
    Reference no. 120638
    Working load limit [kg] 5300
    Overall length L [mm] 126
    Body width B 99
    Clear height T [mm] 56
    Ring section diameter F 23
    Base length A [mm] 50
    Base width U [mm] 60
    Base height J [mm] 47
    Weight approx. [kg] 1.42
    Working load limit single-leg with cross bar 0° [t] 5.3
    Working load limit single-leg with cross bar 90° [t] 5.3
    Working load limit 2-leg with cross bar 0° [t] 10.6
    Working load limit 2-leg with cross bar 90° [t] 10.6
    Working load limit 2-leg symmetrical 0°–45° [t] 7.1
    Working load limit 2-leg symmetrical 45°–60° [t] 5.3
    Working load limit 2-leg asymmetrical [t] 5.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8
    Working load limit 3 or 4 leg asymmetrical [t] 5.3
Working load limit [kg] 8000
Reference no. 120639
  • Details
    AWO AW8 SFA-8T
    Reference no. 120639
    Working load limit [kg] 8000
    Overall length L [mm] 146
    Body width B 122
    Clear height T [mm] 66
    Ring section diameter F 26
    Base length A [mm] 65
    Base width U [mm] 70
    Base height J [mm] 54
    Weight approx. [kg] 2.67
    Working load limit single-leg with cross bar 0° [t] 8
    Working load limit single-leg with cross bar 90° [t] 8
    Working load limit 2-leg with cross bar 0° [t] 16
    Working load limit 2-leg with cross bar 90° [t] 16
    Working load limit 2-leg symmetrical 0°–45° [t] 11.2
    Working load limit 2-leg symmetrical 45°–60° [t] 8
    Working load limit 2-leg asymmetrical [t] 8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 16
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12
    Working load limit 3 or 4 leg asymmetrical [t] 8
Working load limit [kg] 15000
Reference no. 120640
  • Details
    AWO AW8 SFA-15T
    Reference no. 120640
    Working load limit [kg] 15000
    Overall length L [mm] 195
    Body width B 165
    Clear height T [mm] 92
    Ring section diameter F 34
    Base length A [mm] 90
    Base width U [mm] 90
    Base height J [mm] 69
    Weight approx. [kg] 5.9
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 15
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 30
    Working load limit 2-leg symmetrical 0°–45° [t] 21.2
    Working load limit 2-leg symmetrical 45°–60° [t] 15
    Working load limit 2-leg asymmetrical [t] 15
    Working load limit 3/4-leg symmetrical 0°–45° [t] 31.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 22.4
    Working load limit 3 or 4 leg asymmetrical [t] 15
Working load limit [kg] 37500
Reference no. 255644
  • Details
    AWO AW8 SFA-37.5T
    Reference no. 255644
    Working load limit [kg] 37500
    Overall length L [mm] 327
    Body width B 274
    Clear height T [mm] 175
    Ring section diameter F 52
    Base length A [mm] 140
    Base width U [mm] 135
    Base height J [mm] 100
    Weight approx. [kg] 22
    Working load limit single-leg with cross bar 0° [t] 37.5
    Working load limit single-leg with cross bar 90° [t] 37.5
    Working load limit 2-leg with cross bar 0° [t] 75
    Working load limit 2-leg with cross bar 90° [t] 75
    Working load limit 2-leg symmetrical 0°–45° [t] 52
    Working load limit 2-leg symmetrical 45°–60° [t] 37.5
    Working load limit 2-leg asymmetrical [t] 37.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 75
    Working load limit 3/4-leg symmetrical 45°–60° [t] 56
    Working load limit 3 or 4 leg asymmetrical [t] 37.5
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
