SNS bolt-on swivel

SNS bolt-on swivel

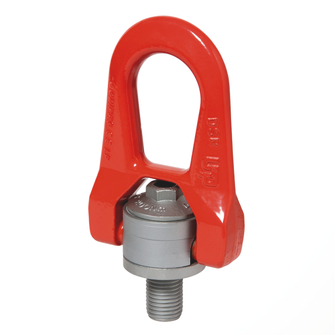

Top-quality double swivel lifting ring bolt, specially developed for heavy lifting with load rotation. Perfect alignment in the pulling direction is ensured by double swivels. The approval in accordance with ASME B30.26-1010 allows use on the American market and in offshore areas. Intelligent alternative to the conventional eye bolt.
Technical data

Operating temperature

  • –20 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1, ASME B30.26-1010

Marking

  • Batch number

Safety factor

  • 5 or 4

Rotation

  • 360° (under load)

Tilting

  • 180°

Load angle

  • ±90°

Material

  • High-tensile steel
Safety

Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • in special designs
  • in weldable design up to 5 t
  • with centring
  • with spring for locking the load ring

Thread options

  • with internal thread up to 3 t
  • Variable thread lengths
  • with UNC thread and other thread types
  • with thread adapter

Labelling options

  • with RFID chip
  • with engraving of the working load limit with safety factor 4:1
  • with individual serial number or labelling
  • with LC marking for lashing
  • with special paint finish
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 400
    M 8
    323664
    ASW SNS DSR-0.4T-M8X1.25-EL15MM
    Reference no. 323664
    Working load limit [kg] 400

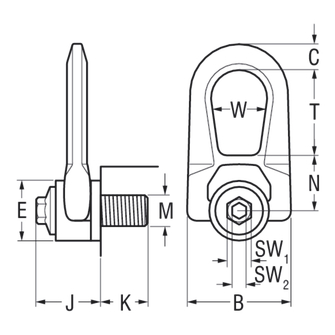

    Thread length K [mm] 15
    pitch [mm] 1.25
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 6
    Body width B 53
    Stirrup height C [mm] 14
    Ø of contact surface E 30
    Clear height T [mm] 38
    Clearance W [mm] 27
    Base height J [mm] 33
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.8
    Working load limit single-leg with cross bar 90° [t] 0.4
    Working load limit 2-leg with cross bar 0° [t] 1.6
    Working load limit 2-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg symmetrical 0°–45° [t] 0.5
    Working load limit 2-leg symmetrical 45°–60° [t] 0.4
    Working load limit 2-leg asymmetrical [t] 0.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.6
    Working load limit 3 or 4 leg asymmetrical [t] 0.4
  • 700
    M 10
    323665
    ASW SNS DSR-0.7T-M10X1.5-EL18MM
    Reference no. 323665
    Working load limit [kg] 700
    Thread length K [mm] 18
    pitch [mm] 1.5
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 10
    Body width B 53
    Stirrup height C [mm] 14
    Ø of contact surface E 30
    Clear height T [mm] 38
    Clearance W [mm] 27
    Base height J [mm] 33
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1.3
    Working load limit single-leg with cross bar 90° [t] 0.7
    Working load limit 2-leg with cross bar 0° [t] 2.6
    Working load limit 2-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg symmetrical 0°–45° [t] 0.9
    Working load limit 2-leg symmetrical 45°–60° [t] 0.7
    Working load limit 2-leg asymmetrical [t] 0.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 0.7
  • 1050
    M 12
    323666
    ASW SNS DSR-1.05T-M12X1.75-EL21MM
    Reference no. 323666
    Working load limit [kg] 1050
    Thread length K [mm] 21
    pitch [mm] 1.75
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 15
    Body width B 53
    Stirrup height C [mm] 14
    Ø of contact surface E 30
    Clear height T [mm] 38
    Clearance W [mm] 27
    Base height J [mm] 33
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.1
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.1
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.5
    Working load limit 3 or 4 leg asymmetrical [t] 1.1
  • 1400
    M 14
    323667
    ASW SNS DSR-1.4T-M14X2-EL23MM
    Reference no. 323667
    Working load limit [kg] 1400
    Thread length K [mm] 23
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 30
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 2.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 5
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.1
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
  • 2000
    M 16
    323668
    ASW SNS DSR-2T-M16X2-EL27MM
    Reference no. 323668
    Working load limit [kg] 2000
    Thread length K [mm] 27
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 50
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 2.7
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 5.4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
  • 2300
    M 18
    323669
    ASW SNS DSR-2.3T-M18X2.5-EL27MM
    Reference no. 323669
    Working load limit [kg] 2300
    Thread length K [mm] 27
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 70
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 2.5
    Working load limit single-leg with cross bar 90° [t] 2.3
    Working load limit 2-leg with cross bar 0° [t] 5
    Working load limit 2-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.2
    Working load limit 2-leg symmetrical 45°–60° [t] 2.3
    Working load limit 2-leg asymmetrical [t] 2.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.4
    Working load limit 3 or 4 leg asymmetrical [t] 2.3
  • 2500
    M 20
    323670
    ASW SNS DSR-2.5T-M20X2.5-EL30MM
    Reference no. 323670
    Working load limit [kg] 2500
    Thread length K [mm] 30
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 100
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 2.5
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 5
    Working load limit 2-leg symmetrical 0°–45° [t] 3.5
    Working load limit 2-leg symmetrical 45°–60° [t] 2.5
    Working load limit 2-leg asymmetrical [t] 2.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.3
    Working load limit 3 or 4 leg asymmetrical [t] 2.5
  • 3500
    M 22
    323671
    ASW SNS DSR-3.5T-M22X2.5-EL33MM
    Reference no. 323671
    Working load limit [kg] 3500
    Thread length K [mm] 33
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 120
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.6
    Thread diameter metric M M 22
    Working load limit single-leg with cross bar 0° [t] 5.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 11
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5.2
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
  • 4400
    M 24
    323672
    ASW SNS DSR-4.4T-M24X3-EL36MM
    Reference no. 323672
    Working load limit [kg] 4400
    Thread length K [mm] 36
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 160
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.6
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 4.4
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 8.8
    Working load limit 2-leg symmetrical 0°–45° [t] 6.1
    Working load limit 2-leg symmetrical 45°–60° [t] 4.4
    Working load limit 2-leg asymmetrical [t] 4.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.6
    Working load limit 3 or 4 leg asymmetrical [t] 4.4
  • 5700
    M 27
    323673
    ASW SNS DSR-5.7T-M27X3 -EL40MM
    Reference no. 323673
    Working load limit [kg] 5700
    Thread length K [mm] 40
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 200
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.7
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 5.7
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 11.4
    Working load limit 2-leg symmetrical 0°–45° [t] 7.9
    Working load limit 2-leg symmetrical 45°–60° [t] 5.7
    Working load limit 2-leg asymmetrical [t] 5.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8.5
    Working load limit 3 or 4 leg asymmetrical [t] 5.7
  • 6000
    M 30
    323674
    ASW SNS DSR-6T-M30X3.5-EL45MM
    Reference no. 323674
    Working load limit [kg] 6000
    Thread length K [mm] 45
    pitch [mm] 3.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 250
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.7
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 6.3
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 12.6
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 9
    Working load limit 3 or 4 leg asymmetrical [t] 6
Working load limit [kg] 400
Thread diameter metric M M 8
Reference no. 323664
  • Details
    ASW SNS DSR-0.4T-M8X1.25-EL15MM
    Reference no. 323664
    Working load limit [kg] 400
    Thread length K [mm] 15
    pitch [mm] 1.25
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 6
    Body width B 53
    Stirrup height C [mm] 14
    Ø of contact surface E 30
    Clear height T [mm] 38
    Clearance W [mm] 27
    Base height J [mm] 33
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.8
    Working load limit single-leg with cross bar 90° [t] 0.4
    Working load limit 2-leg with cross bar 0° [t] 1.6
    Working load limit 2-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg symmetrical 0°–45° [t] 0.5
    Working load limit 2-leg symmetrical 45°–60° [t] 0.4
    Working load limit 2-leg asymmetrical [t] 0.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.6
    Working load limit 3 or 4 leg asymmetrical [t] 0.4
Working load limit [kg] 700
Thread diameter metric M M 10
Reference no. 323665
  • Details
    ASW SNS DSR-0.7T-M10X1.5-EL18MM
    Reference no. 323665
    Working load limit [kg] 700
    Thread length K [mm] 18
    pitch [mm] 1.5
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 10
    Body width B 53
    Stirrup height C [mm] 14
    Ø of contact surface E 30
    Clear height T [mm] 38
    Clearance W [mm] 27
    Base height J [mm] 33
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 1.3
    Working load limit single-leg with cross bar 90° [t] 0.7
    Working load limit 2-leg with cross bar 0° [t] 2.6
    Working load limit 2-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg symmetrical 0°–45° [t] 0.9
    Working load limit 2-leg symmetrical 45°–60° [t] 0.7
    Working load limit 2-leg asymmetrical [t] 0.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 0.7
Working load limit [kg] 1050
Thread diameter metric M M 12
Reference no. 323666
  • Details
    ASW SNS DSR-1.05T-M12X1.75-EL21MM
    Reference no. 323666
    Working load limit [kg] 1050
    Thread length K [mm] 21
    pitch [mm] 1.75
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 15
    Body width B 53
    Stirrup height C [mm] 14
    Ø of contact surface E 30
    Clear height T [mm] 38
    Clearance W [mm] 27
    Base height J [mm] 33
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.1
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.1
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.5
    Working load limit 3 or 4 leg asymmetrical [t] 1.1
Working load limit [kg] 1400
Thread diameter metric M M 14
Reference no. 323667
  • Details
    ASW SNS DSR-1.4T-M14X2-EL23MM
    Reference no. 323667
    Working load limit [kg] 1400
    Thread length K [mm] 23
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 30
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 2.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 5
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.1
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
Working load limit [kg] 2000
Thread diameter metric M M 16
Reference no. 323668
  • Details
    ASW SNS DSR-2T-M16X2-EL27MM
    Reference no. 323668
    Working load limit [kg] 2000
    Thread length K [mm] 27
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 50
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 2.7
    Working load limit single-leg with cross bar 90° [t] 2
    Working load limit 2-leg with cross bar 0° [t] 5.4
    Working load limit 2-leg with cross bar 90° [t] 4
    Working load limit 2-leg symmetrical 0°–45° [t] 2.8
    Working load limit 2-leg symmetrical 45°–60° [t] 2
    Working load limit 2-leg asymmetrical [t] 2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 2
Working load limit [kg] 2300
Thread diameter metric M M 18
Reference no. 323669
  • Details
    ASW SNS DSR-2.3T-M18X2.5-EL27MM
    Reference no. 323669
    Working load limit [kg] 2300
    Thread length K [mm] 27
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 70
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 2.5
    Working load limit single-leg with cross bar 90° [t] 2.3
    Working load limit 2-leg with cross bar 0° [t] 5
    Working load limit 2-leg with cross bar 90° [t] 4.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.2
    Working load limit 2-leg symmetrical 45°–60° [t] 2.3
    Working load limit 2-leg asymmetrical [t] 2.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.4
    Working load limit 3 or 4 leg asymmetrical [t] 2.3
Working load limit [kg] 2500
Thread diameter metric M M 20
Reference no. 323670
  • Details
    ASW SNS DSR-2.5T-M20X2.5-EL30MM
    Reference no. 323670
    Working load limit [kg] 2500
    Thread length K [mm] 30
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque min [Nm] 100
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 45
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 2.5
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 5
    Working load limit 2-leg symmetrical 0°–45° [t] 3.5
    Working load limit 2-leg symmetrical 45°–60° [t] 2.5
    Working load limit 2-leg asymmetrical [t] 2.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 4.3
    Working load limit 3 or 4 leg asymmetrical [t] 2.5
Working load limit [kg] 3500
Thread diameter metric M M 22
Reference no. 323671
  • Details
    ASW SNS DSR-3.5T-M22X2.5-EL33MM
    Reference no. 323671
    Working load limit [kg] 3500
    Thread length K [mm] 33
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 120
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.6
    Thread diameter metric M M 22
    Working load limit single-leg with cross bar 0° [t] 5.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 11
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5.2
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
Working load limit [kg] 4400
Thread diameter metric M M 24
Reference no. 323672
  • Details
    ASW SNS DSR-4.4T-M24X3-EL36MM
    Reference no. 323672
    Working load limit [kg] 4400
    Thread length K [mm] 36
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 160
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.6
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 4.4
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 8.8
    Working load limit 2-leg symmetrical 0°–45° [t] 6.1
    Working load limit 2-leg symmetrical 45°–60° [t] 4.4
    Working load limit 2-leg asymmetrical [t] 4.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 9.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6.6
    Working load limit 3 or 4 leg asymmetrical [t] 4.4
Working load limit [kg] 5700
Thread diameter metric M M 27
Reference no. 323673
  • Details
    ASW SNS DSR-5.7T-M27X3 -EL40MM
    Reference no. 323673
    Working load limit [kg] 5700
    Thread length K [mm] 40
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 200
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.7
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 5.7
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 11.4
    Working load limit 2-leg symmetrical 0°–45° [t] 7.9
    Working load limit 2-leg symmetrical 45°–60° [t] 5.7
    Working load limit 2-leg asymmetrical [t] 5.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 11.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 8.5
    Working load limit 3 or 4 leg asymmetrical [t] 5.7
Working load limit [kg] 6000
Thread diameter metric M M 30
Reference no. 323674
  • Details
    ASW SNS DSR-6T-M30X3.5-EL45MM
    Reference no. 323674
    Working load limit [kg] 6000
    Thread length K [mm] 45
    pitch [mm] 3.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque min [Nm] 250
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 60
    Clear height T [mm] 83
    Clearance W [mm] 55
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.7
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 6.3
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 12.6
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 9
    Working load limit 3 or 4 leg asymmetrical [t] 6
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
