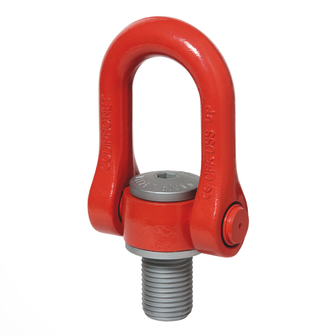

SNB bolt-on swivel

SNB bolt-on swivel
Top-quality double swivel lifting ring bolt, specially developed for heavy lifting with load rotation. Perfect alignment in the pulling direction is ensured by double swivels. The approval in accordance with ASME B30.26-1010 allows use on the American market and in offshore areas. Intelligent alternative to the conventional eye bolt.
Technical data

Operating temperature

  • –20 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1, ASME B30.26-1010

Marking

  • Batch number and serial number

Safety factor

  • 5 or 4

Rotation

  • 360° (under load)

Tilting

  • 180°

Load angle

  • ±90°

Material

  • High-tensile steel
Safety

Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • in special designs
  • in weldable design
  • with centring
  • with spring for locking the load ring

Thread options

  • with internal thread
  • Variable thread lengths
  • with UNC thread and other thread types
  • with thread adapter

Labelling options

  • with engraving of the working load limit with safety factor 4:1
  • with RFID chip
  • with individual serial number or labelling
  • with LC marking for lashing
  • with special paint finish
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 8500
    M 33
    323677
    ASW SNB DSS-8.5T-M33X3.5-EL50MM
    Reference no. 323677
    Working load limit [kg] 8500
    Thread length K [mm] 50
    pitch [mm] 3.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 250
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.5
    Thread diameter metric M M 33
    Working load limit single-leg with cross bar 0° [t] 14.5
    Working load limit single-leg with cross bar 90° [t] 8.5
    Working load limit 2-leg with cross bar 0° [t] 29
    Working load limit 2-leg with cross bar 90° [t] 17
    Working load limit 2-leg symmetrical 0°–45° [t] 11.9
    Working load limit 2-leg symmetrical 45°–60° [t] 8.5
    Working load limit 2-leg asymmetrical [t] 8.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 17.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12.7
    Working load limit 3 or 4 leg asymmetrical [t] 8.5
  • 11000
    M 36
    323679
    ASW SNB DSS-11T-M36X4-EL54MM
    Reference no. 323679
    Working load limit [kg] 11000
    Thread length K [mm] 54
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.5
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 11
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 22
    Working load limit 2-leg symmetrical 0°–45° [t] 15.4
    Working load limit 2-leg symmetrical 45°–60° [t] 11
    Working load limit 2-leg asymmetrical [t] 11
    Working load limit 3/4-leg symmetrical 0°–45° [t] 23.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 16.5
    Working load limit 3 or 4 leg asymmetrical [t] 11
  • 12000
    M 39
    323681
    ASW SNB DSS-12T-M39X4-EL58MM
    Reference no. 323681
    Working load limit [kg] 12000
    Thread length K [mm] 58
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.7
    Thread diameter metric M M 39
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 24
    Working load limit 2-leg symmetrical 0°–45° [t] 16.8
    Working load limit 2-leg symmetrical 45°–60° [t] 12
    Working load limit 2-leg asymmetrical [t] 12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12
  • 13000
    M 42
    323682
    ASW SNB DSS-13T-M42X4.5-EL63MM
    Reference no. 323682
    Working load limit [kg] 13000
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.8
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 13
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 26
    Working load limit 2-leg symmetrical 0°–45° [t] 18.2
    Working load limit 2-leg symmetrical 45°–60° [t] 13
    Working load limit 2-leg asymmetrical [t] 13
    Working load limit 3/4-leg symmetrical 0°–45° [t] 27.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 19.5
    Working load limit 3 or 4 leg asymmetrical [t] 13
  • 14500
    M 45
    323685
    ASW SNB DSS-14.5T-M45X4.5-EL63MM
    Reference no. 323685
    Working load limit [kg] 14500
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.7
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 14.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 29
    Working load limit 2-leg symmetrical 0°–45° [t] 20.3
    Working load limit 2-leg symmetrical 45°–60° [t] 14.5
    Working load limit 2-leg asymmetrical [t] 14.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 30.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 21.7
    Working load limit 3 or 4 leg asymmetrical [t] 14.5
  • 17000
    M 48
    323686
    ASW SNB DSS-17T-M48X5-EL68MM
    Reference no. 323686
    Working load limit [kg] 17000
    Thread length K [mm] 68
    pitch [mm] 5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 90
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 11
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 22
    Working load limit single-leg with cross bar 90° [t] 17
    Working load limit 2-leg with cross bar 0° [t] 44
    Working load limit 2-leg with cross bar 90° [t] 34
    Working load limit 2-leg symmetrical 0°–45° [t] 23.8
    Working load limit 2-leg symmetrical 45°–60° [t] 17
    Working load limit 2-leg asymmetrical [t] 17
    Working load limit 3/4-leg symmetrical 0°–45° [t] 35.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 25.5
    Working load limit 3 or 4 leg asymmetrical [t] 17
  • 19000
    M 52
    323688
    ASW SNB DSS-19T-M52X5-EL68MM
    Reference no. 323688
    Working load limit [kg] 19000
    Thread length K [mm] 68
    pitch [mm] 5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 90
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 11
    Thread diameter metric M M 52
    Working load limit single-leg with cross bar 0° [t] 23
    Working load limit single-leg with cross bar 90° [t] 19
    Working load limit 2-leg with cross bar 0° [t] 46
    Working load limit 2-leg with cross bar 90° [t] 38
    Working load limit 2-leg symmetrical 0°–45° [t] 26.6
    Working load limit 2-leg symmetrical 45°–60° [t] 19
    Working load limit 2-leg asymmetrical [t] 19
    Working load limit 3/4-leg symmetrical 0°–45° [t] 39.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 28.5
    Working load limit 3 or 4 leg asymmetrical [t] 19
  • 22000
    M 56
    323690
    ASW SNB DSS-22T-M56X5.5-EL78MM
    Reference no. 323690
    Working load limit [kg] 22000
    Thread length K [mm] 78
    pitch [mm] 5.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 90
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 11.3
    Thread diameter metric M M 56
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 22
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 44
    Working load limit 2-leg symmetrical 0°–45° [t] 30.8
    Working load limit 2-leg symmetrical 45°–60° [t] 22
    Working load limit 2-leg asymmetrical [t] 22
    Working load limit 3/4-leg symmetrical 0°–45° [t] 46.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 33
    Working load limit 3 or 4 leg asymmetrical [t] 25
  • 25000
    M 64
    323691
    ASW SNB DSS-25T-M64X6-EL90MM
    Reference no. 323691
    Working load limit [kg] 25000
    Thread length K [mm] 90
    pitch [mm] 6
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 95
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 12.2
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
  • 25000
    M 80
    323693
    ASW SNB DSS-25T-M80X6-EL90MM
    Reference no. 323693
    Working load limit [kg] 25000
    Thread length K [mm] 90
    pitch [mm] 6
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 100
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 15
    Thread diameter metric M M 80
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
  • 25000
    M 100
    323694
    ASW SNB DSS-25T-M100X6-EL90MM
    Reference no. 323694
    Working load limit [kg] 25000
    Thread length K [mm] 90
    pitch [mm] 6
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 110
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 16.5
    Thread diameter metric M M 100
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
  • 28000
    M 72
    323695
    Mega-SNB bolt-on swivel-35.0t -M72x6-paint-GwLg.110mm
    Reference no. 323695
    Working load limit [kg] 28000
    Thread length K [mm] 110
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 700
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 43
    Thread diameter metric M M 72
    Working load limit single-leg with cross bar 0° [t] 28
    Working load limit single-leg with cross bar 90° [t] 28
    Working load limit 2-leg with cross bar 0° [t] 56
    Working load limit 2-leg with cross bar 90° [t] 56
    Working load limit 2-leg symmetrical 0°–45° [t] 39.2
    Working load limit 2-leg symmetrical 45°–60° [t] 28
    Working load limit 2-leg asymmetrical [t] 28
    Working load limit 3/4-leg symmetrical 0°–45° [t] 58.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 28
    Working load limit 3 or 4 leg asymmetrical [t] 28
  • 32000
    M 80
    323696
    ASW SNB MEGADSS-32T-M80X6-EL120MM
    Reference no. 323696
    Working load limit [kg] 32000
    Thread length K [mm] 120
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 800
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 44.5
    Thread diameter metric M M 80
    Working load limit single-leg with cross bar 0° [t] 32
    Working load limit single-leg with cross bar 90° [t] 32
    Working load limit 2-leg with cross bar 0° [t] 64
    Working load limit 2-leg with cross bar 90° [t] 64
    Working load limit 2-leg symmetrical 0°–45° [t] 44.8
    Working load limit 2-leg symmetrical 45°–60° [t] 32
    Working load limit 2-leg asymmetrical [t] 32
    Working load limit 3/4-leg symmetrical 0°–45° [t] 67.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 32
    Working load limit 3 or 4 leg asymmetrical [t] 32
  • 36000
    M 90
    323697
    ASW SNB MEGADSS-36T-M90X6-EL135MM
    Reference no. 323697
    Working load limit [kg] 36000
    Thread length K [mm] 135
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 900
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 46.5
    Thread diameter metric M M 90
    Working load limit single-leg with cross bar 0° [t] 36
    Working load limit single-leg with cross bar 90° [t] 36
    Working load limit 2-leg with cross bar 0° [t] 72
    Working load limit 2-leg with cross bar 90° [t] 72
    Working load limit 2-leg symmetrical 0°–45° [t] 50.4
    Working load limit 2-leg symmetrical 45°–60° [t] 36
    Working load limit 2-leg asymmetrical [t] 36
    Working load limit 3/4-leg symmetrical 0°–45° [t] 75.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 36
    Working load limit 3 or 4 leg asymmetrical [t] 36
  • 48000
    M 100
    323698
    Mega-SNB bolt-on swivel-60.0t -M100x6-paint-GwLg.150mm
    Reference no. 323698
    Working load limit [kg] 48000
    Thread length K [mm] 150
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 1000
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 49
    Thread diameter metric M M 100
    Working load limit single-leg with cross bar 0° [t] 48
    Working load limit single-leg with cross bar 90° [t] 48
    Working load limit 2-leg with cross bar 0° [t] 96
    Working load limit 2-leg with cross bar 90° [t] 96
    Working load limit 2-leg symmetrical 0°–45° [t] 67.2
    Working load limit 2-leg symmetrical 45°–60° [t] 48
    Working load limit 2-leg asymmetrical [t] 48
    Working load limit 3/4-leg symmetrical 0°–45° [t] 100.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 48
    Working load limit 3 or 4 leg asymmetrical [t] 48
Working load limit [kg] 8500
Thread diameter metric M M 33
Reference no. 323677
  • Details
    ASW SNB DSS-8.5T-M33X3.5-EL50MM
    Reference no. 323677
    Working load limit [kg] 8500
    Thread length K [mm] 50
    pitch [mm] 3.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 250
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.5
    Thread diameter metric M M 33
    Working load limit single-leg with cross bar 0° [t] 14.5
    Working load limit single-leg with cross bar 90° [t] 8.5
    Working load limit 2-leg with cross bar 0° [t] 29
    Working load limit 2-leg with cross bar 90° [t] 17
    Working load limit 2-leg symmetrical 0°–45° [t] 11.9
    Working load limit 2-leg symmetrical 45°–60° [t] 8.5
    Working load limit 2-leg asymmetrical [t] 8.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 17.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 12.7
    Working load limit 3 or 4 leg asymmetrical [t] 8.5
Working load limit [kg] 11000
Thread diameter metric M M 36
Reference no. 323679
  • Details
    ASW SNB DSS-11T-M36X4-EL54MM
    Reference no. 323679
    Working load limit [kg] 11000
    Thread length K [mm] 54
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.5
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 11
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 22
    Working load limit 2-leg symmetrical 0°–45° [t] 15.4
    Working load limit 2-leg symmetrical 45°–60° [t] 11
    Working load limit 2-leg asymmetrical [t] 11
    Working load limit 3/4-leg symmetrical 0°–45° [t] 23.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 16.5
    Working load limit 3 or 4 leg asymmetrical [t] 11
Working load limit [kg] 12000
Thread diameter metric M M 39
Reference no. 323681
  • Details
    ASW SNB DSS-12T-M39X4-EL58MM
    Reference no. 323681
    Working load limit [kg] 12000
    Thread length K [mm] 58
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.7
    Thread diameter metric M M 39
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 12
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 24
    Working load limit 2-leg symmetrical 0°–45° [t] 16.8
    Working load limit 2-leg symmetrical 45°–60° [t] 12
    Working load limit 2-leg asymmetrical [t] 12
    Working load limit 3/4-leg symmetrical 0°–45° [t] 25.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 18
    Working load limit 3 or 4 leg asymmetrical [t] 12
Working load limit [kg] 13000
Thread diameter metric M M 42
Reference no. 323682
  • Details
    ASW SNB DSS-13T-M42X4.5-EL63MM
    Reference no. 323682
    Working load limit [kg] 13000
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.8
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 13
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 26
    Working load limit 2-leg symmetrical 0°–45° [t] 18.2
    Working load limit 2-leg symmetrical 45°–60° [t] 13
    Working load limit 2-leg asymmetrical [t] 13
    Working load limit 3/4-leg symmetrical 0°–45° [t] 27.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 19.5
    Working load limit 3 or 4 leg asymmetrical [t] 13
Working load limit [kg] 14500
Thread diameter metric M M 45
Reference no. 323685
  • Details
    ASW SNB DSS-14.5T-M45X4.5-EL63MM
    Reference no. 323685
    Working load limit [kg] 14500
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 33
    Base height J [mm] 61
    Weight approx. [kg] 5.7
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 15
    Working load limit single-leg with cross bar 90° [t] 14.5
    Working load limit 2-leg with cross bar 0° [t] 30
    Working load limit 2-leg with cross bar 90° [t] 29
    Working load limit 2-leg symmetrical 0°–45° [t] 20.3
    Working load limit 2-leg symmetrical 45°–60° [t] 14.5
    Working load limit 2-leg asymmetrical [t] 14.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 30.4
    Working load limit 3/4-leg symmetrical 45°–60° [t] 21.7
    Working load limit 3 or 4 leg asymmetrical [t] 14.5
Working load limit [kg] 17000
Thread diameter metric M M 48
Reference no. 323686
  • Details
    ASW SNB DSS-17T-M48X5-EL68MM
    Reference no. 323686
    Working load limit [kg] 17000
    Thread length K [mm] 68
    pitch [mm] 5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 90
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 11
    Thread diameter metric M M 48
    Working load limit single-leg with cross bar 0° [t] 22
    Working load limit single-leg with cross bar 90° [t] 17
    Working load limit 2-leg with cross bar 0° [t] 44
    Working load limit 2-leg with cross bar 90° [t] 34
    Working load limit 2-leg symmetrical 0°–45° [t] 23.8
    Working load limit 2-leg symmetrical 45°–60° [t] 17
    Working load limit 2-leg asymmetrical [t] 17
    Working load limit 3/4-leg symmetrical 0°–45° [t] 35.7
    Working load limit 3/4-leg symmetrical 45°–60° [t] 25.5
    Working load limit 3 or 4 leg asymmetrical [t] 17
Working load limit [kg] 19000
Thread diameter metric M M 52
Reference no. 323688
  • Details
    ASW SNB DSS-19T-M52X5-EL68MM
    Reference no. 323688
    Working load limit [kg] 19000
    Thread length K [mm] 68
    pitch [mm] 5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 90
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 11
    Thread diameter metric M M 52
    Working load limit single-leg with cross bar 0° [t] 23
    Working load limit single-leg with cross bar 90° [t] 19
    Working load limit 2-leg with cross bar 0° [t] 46
    Working load limit 2-leg with cross bar 90° [t] 38
    Working load limit 2-leg symmetrical 0°–45° [t] 26.6
    Working load limit 2-leg symmetrical 45°–60° [t] 19
    Working load limit 2-leg asymmetrical [t] 19
    Working load limit 3/4-leg symmetrical 0°–45° [t] 39.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 28.5
    Working load limit 3 or 4 leg asymmetrical [t] 19
Working load limit [kg] 22000
Thread diameter metric M M 56
Reference no. 323690
  • Details
    ASW SNB DSS-22T-M56X5.5-EL78MM
    Reference no. 323690
    Working load limit [kg] 22000
    Thread length K [mm] 78
    pitch [mm] 5.5
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 90
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 11.3
    Thread diameter metric M M 56
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 22
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 44
    Working load limit 2-leg symmetrical 0°–45° [t] 30.8
    Working load limit 2-leg symmetrical 45°–60° [t] 22
    Working load limit 2-leg asymmetrical [t] 22
    Working load limit 3/4-leg symmetrical 0°–45° [t] 46.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 33
    Working load limit 3 or 4 leg asymmetrical [t] 25
Working load limit [kg] 25000
Thread diameter metric M M 64
Reference no. 323691
  • Details
    ASW SNB DSS-25T-M64X6-EL90MM
    Reference no. 323691
    Working load limit [kg] 25000
    Thread length K [mm] 90
    pitch [mm] 6
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 95
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 12.2
    Thread diameter metric M M 64
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
Working load limit [kg] 25000
Thread diameter metric M M 80
Reference no. 323693
  • Details
    ASW SNB DSS-25T-M80X6-EL90MM
    Reference no. 323693
    Working load limit [kg] 25000
    Thread length K [mm] 90
    pitch [mm] 6
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 100
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 15
    Thread diameter metric M M 80
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
Working load limit [kg] 25000
Thread diameter metric M M 100
Reference no. 323694
  • Details
    ASW SNB DSS-25T-M100X6-EL90MM
    Reference no. 323694
    Working load limit [kg] 25000
    Thread length K [mm] 90
    pitch [mm] 6
    Inner wrench size AF2 [mm] 19
    Tightening torque min [Nm] 600
    Body width B 182
    Ø of contact surface E 110
    Clear height T [mm] 125
    Clearance W [mm] 91
    Ring section diameter F 45
    Base height J [mm] 79
    Weight approx. [kg] 16.5
    Thread diameter metric M M 100
    Working load limit single-leg with cross bar 0° [t] 25
    Working load limit single-leg with cross bar 90° [t] 25
    Working load limit 2-leg with cross bar 0° [t] 50
    Working load limit 2-leg with cross bar 90° [t] 50
    Working load limit 2-leg symmetrical 0°–45° [t] 35
    Working load limit 2-leg symmetrical 45°–60° [t] 25
    Working load limit 2-leg asymmetrical [t] 25
    Working load limit 3/4-leg symmetrical 0°–45° [t] 52.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 37.5
    Working load limit 3 or 4 leg asymmetrical [t] 25
Working load limit [kg] 28000
Thread diameter metric M M 72
Reference no. 323695
  • Details
    Mega-SNB bolt-on swivel-35.0t -M72x6-paint-GwLg.110mm
    Reference no. 323695
    Working load limit [kg] 28000
    Thread length K [mm] 110
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 700
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 43
    Thread diameter metric M M 72
    Working load limit single-leg with cross bar 0° [t] 28
    Working load limit single-leg with cross bar 90° [t] 28
    Working load limit 2-leg with cross bar 0° [t] 56
    Working load limit 2-leg with cross bar 90° [t] 56
    Working load limit 2-leg symmetrical 0°–45° [t] 39.2
    Working load limit 2-leg symmetrical 45°–60° [t] 28
    Working load limit 2-leg asymmetrical [t] 28
    Working load limit 3/4-leg symmetrical 0°–45° [t] 58.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 28
    Working load limit 3 or 4 leg asymmetrical [t] 28
Working load limit [kg] 32000
Thread diameter metric M M 80
Reference no. 323696
  • Details
    ASW SNB MEGADSS-32T-M80X6-EL120MM
    Reference no. 323696
    Working load limit [kg] 32000
    Thread length K [mm] 120
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 800
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 44.5
    Thread diameter metric M M 80
    Working load limit single-leg with cross bar 0° [t] 32
    Working load limit single-leg with cross bar 90° [t] 32
    Working load limit 2-leg with cross bar 0° [t] 64
    Working load limit 2-leg with cross bar 90° [t] 64
    Working load limit 2-leg symmetrical 0°–45° [t] 44.8
    Working load limit 2-leg symmetrical 45°–60° [t] 32
    Working load limit 2-leg asymmetrical [t] 32
    Working load limit 3/4-leg symmetrical 0°–45° [t] 67.2
    Working load limit 3/4-leg symmetrical 45°–60° [t] 32
    Working load limit 3 or 4 leg asymmetrical [t] 32
Working load limit [kg] 36000
Thread diameter metric M M 90
Reference no. 323697
  • Details
    ASW SNB MEGADSS-36T-M90X6-EL135MM
    Reference no. 323697
    Working load limit [kg] 36000
    Thread length K [mm] 135
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 900
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 46.5
    Thread diameter metric M M 90
    Working load limit single-leg with cross bar 0° [t] 36
    Working load limit single-leg with cross bar 90° [t] 36
    Working load limit 2-leg with cross bar 0° [t] 72
    Working load limit 2-leg with cross bar 90° [t] 72
    Working load limit 2-leg symmetrical 0°–45° [t] 50.4
    Working load limit 2-leg symmetrical 45°–60° [t] 36
    Working load limit 2-leg asymmetrical [t] 36
    Working load limit 3/4-leg symmetrical 0°–45° [t] 75.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 36
    Working load limit 3 or 4 leg asymmetrical [t] 36
Working load limit [kg] 48000
Thread diameter metric M M 100
Reference no. 323698
  • Details
    Mega-SNB bolt-on swivel-60.0t -M100x6-paint-GwLg.150mm
    Reference no. 323698
    Working load limit [kg] 48000
    Thread length K [mm] 150
    pitch [mm] 6
    Inner wrench size AF2 [mm] 36
    Tightening torque min [Nm] 1000
    Body width B 278
    Ø of contact surface E 140
    Clear height T [mm] 195
    Clearance W [mm] 143
    Ring section diameter F 69
    Base height J [mm] 127
    Weight approx. [kg] 49
    Thread diameter metric M M 100
    Working load limit single-leg with cross bar 0° [t] 48
    Working load limit single-leg with cross bar 90° [t] 48
    Working load limit 2-leg with cross bar 0° [t] 96
    Working load limit 2-leg with cross bar 90° [t] 96
    Working load limit 2-leg symmetrical 0°–45° [t] 67.2
    Working load limit 2-leg symmetrical 45°–60° [t] 48
    Working load limit 2-leg asymmetrical [t] 48
    Working load limit 3/4-leg symmetrical 0°–45° [t] 100.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 48
    Working load limit 3 or 4 leg asymmetrical [t] 48
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
