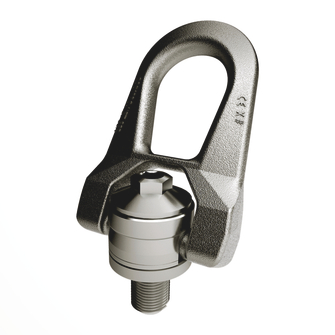

Stainless steel SNS bolt-on swivel

Stainless steel SNS bolt-on swivel
Premium bolt-on stainless steel swivel, resistant to corrosion and for specific industries, with individual serial number. Intelligent alternative to the conventional eye bolt.
Technical data

Operating temperature

  • –20 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1, ASME B30.26-1010

Marking

  • Batch number and serial number

Safety factor

  • 5 or 4

Rotation

  • 360° (under load)

Tilting

  • 180°

Load angle

  • ±90°

Material

  • Stainless steel

Technical note

  • M8 – M12 with Allen screw – other executions on request; M14 – M30 with hex head screw
Safety

Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • in special designs
  • with spring for locking the load ring

Thread options

  • with internal thread up to 2 t
  • Variable thread lengths
  • with UNC thread and other thread types

Labelling options

  • with engraving of the working load limit with safety factor 4:1
  • with RFID chip
  • with individual serial number or labelling
  • with LC marking for lashing
Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 300
    M 8
    323701
    ASW ENS SS.DSR-0.3T-M8X1.25-EL16MM
    Reference no. 323701

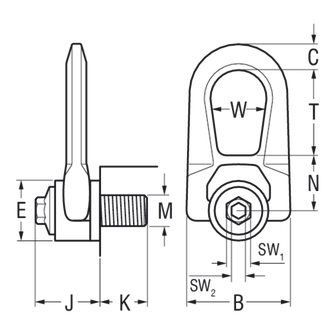

    Working load limit [kg] 300
    Thread length K [mm] 16
    pitch [mm] 1.25
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 6
    Tightening torque min [Nm] 6
    Body width B 53
    Stirrup height C [mm] 13
    Ø of contact surface E 30
    Clear height T [mm] 39
    Clearance W [mm] 28
    Base height J [mm] 32
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.4
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 0.8
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.4
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.3
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
  • 500
    M 10
    323702
    ASW ENS SS.DSR-0.5T-M10X1.5-EL16MM
    Reference no. 323702
    Working load limit [kg] 500
    Thread length K [mm] 16
    pitch [mm] 1.5
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 10
    Tightening torque min [Nm] 10
    Body width B 53
    Stirrup height C [mm] 13
    Ø of contact surface E 30
    Clear height T [mm] 39
    Clearance W [mm] 28
    Base height J [mm] 32
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.7
    Working load limit single-leg with cross bar 90° [t] 0.5
    Working load limit 2-leg with cross bar 0° [t] 1.4
    Working load limit 2-leg with cross bar 90° [t] 1
    Working load limit 2-leg symmetrical 0°–45° [t] 0.7
    Working load limit 2-leg symmetrical 45°–60° [t] 0.5
    Working load limit 2-leg asymmetrical [t] 0.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.5
    Working load limit 3 or 4 leg asymmetrical [t] 0.5
  • 800
    M 12
    323703
    ASW ENS SS.DSR-0.8T-M12X1.75-EL19MM
    Reference no. 323703
    Working load limit [kg] 800
    Thread length K [mm] 19
    pitch [mm] 1.75
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 15
    Tightening torque min [Nm] 15
    Body width B 53
    Stirrup height C [mm] 13
    Ø of contact surface E 30
    Clear height T [mm] 39
    Clearance W [mm] 28
    Base height J [mm] 32
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 0.9
    Working load limit single-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg with cross bar 0° [t] 1.8
    Working load limit 2-leg with cross bar 90° [t] 1.6
    Working load limit 2-leg symmetrical 0°–45° [t] 1.1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.8
    Working load limit 2-leg asymmetrical [t] 0.8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.8
    Working load limit 3 or 4 leg asymmetrical [t] 0.8
  • 1000
    M 14
    323705
    ASW ENS SS.DSR-1T-M14X2-EL29MM
    Reference no. 323705
    Working load limit [kg] 1000
    Thread length K [mm] 29
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 30
    Tightening torque min [Nm] 30
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 42
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 1.2
    Working load limit single-leg with cross bar 90° [t] 1
    Working load limit 2-leg with cross bar 0° [t] 2.4
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 1
  • 1400
    M 16
    323707
    ASW ENS SS.DSR-1.4T-M16X2-EL26MM
    Reference no. 323707
    Working load limit [kg] 1400
    Thread length K [mm] 26
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 50
    Tightening torque min [Nm] 50
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.4
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
  • 1400
    M 18
    323709
    ASW ENS SS.DSR-1.4T-M18X2.5-EL30MM
    Reference no. 323709
    Working load limit [kg] 1400
    Thread length K [mm] 30
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 70
    Tightening torque min [Nm] 70
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 1
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.4
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
  • 1400
    M 20
    323710
    ASW ENS SS.DSR-1.4T-M20X2.5-EL30MM
    Reference no. 323710
    Working load limit [kg] 1400
    Thread length K [mm] 30
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 100
    Tightening torque min [Nm] 100
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 1
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.4
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
  • 2200
    M 22
    323711
    ASW ENS SS.DSR-2.2T-M22X2.5-EL42MM
    Reference no. 323711
    Working load limit [kg] 2200
    Thread length K [mm] 42
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 120
    Tightening torque min [Nm] 120
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.5
    Thread diameter metric M M 22
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 2.2
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 4.4
    Working load limit 2-leg symmetrical 0°–45° [t] 3
    Working load limit 2-leg symmetrical 45°–60° [t] 2.2
    Working load limit 2-leg asymmetrical [t] 2.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.2
    Working load limit 3 or 4 leg asymmetrical [t] 2.2
  • 2700
    M 24
    323712
    ASW ENS SS.DSR-2.7T-M24X3-EL42MM
    Reference no. 323712
    Working load limit [kg] 2700
    Thread length K [mm] 42
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 160
    Tightening torque min [Nm] 160
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.6
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 2.7
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 5.4
    Working load limit 2-leg symmetrical 0°–45° [t] 3.7
    Working load limit 2-leg symmetrical 45°–60° [t] 2.7
    Working load limit 2-leg asymmetrical [t] 2.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.7
    Working load limit 3 or 4 leg asymmetrical [t] 2.7
  • 2800
    M 27
    323752
    ASW ENS SS.DSR-2.8T-M27X3-EL42MM
    Reference no. 323752
    Working load limit [kg] 2800
    Thread length K [mm] 47
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 200
    Tightening torque min [Nm] 200
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.7
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 2.9
    Working load limit single-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg with cross bar 0° [t] 5.8
    Working load limit 2-leg with cross bar 90° [t] 5.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.9
    Working load limit 2-leg symmetrical 45°–60° [t] 2.8
    Working load limit 2-leg asymmetrical [t] 2.8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.8
    Working load limit 3 or 4 leg asymmetrical [t] 2.8
  • 3000
    M 30
    323714
    ASW ENS SS.DSR-3T-M30X3.5-EL47MM
    Reference no. 323714
    Working load limit [kg] 3000
    Thread length K [mm] 47
    pitch [mm] 3.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 250
    Tightening torque min [Nm] 250
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.8
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 3
    Working load limit single-leg with cross bar 90° [t] 3
    Working load limit 2-leg with cross bar 0° [t] 6
    Working load limit 2-leg with cross bar 90° [t] 6
    Working load limit 2-leg symmetrical 0°–45° [t] 4.2
    Working load limit 2-leg symmetrical 45°–60° [t] 3
    Working load limit 2-leg asymmetrical [t] 3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 3
Working load limit [kg] 300
Thread diameter metric M M 8
Reference no. 323701
  • Details
    ASW ENS SS.DSR-0.3T-M8X1.25-EL16MM
    Reference no. 323701
    Working load limit [kg] 300
    Thread length K [mm] 16
    pitch [mm] 1.25
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 6
    Tightening torque min [Nm] 6
    Body width B 53
    Stirrup height C [mm] 13
    Ø of contact surface E 30
    Clear height T [mm] 39
    Clearance W [mm] 28
    Base height J [mm] 32
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 8
    Working load limit single-leg with cross bar 0° [t] 0.4
    Working load limit single-leg with cross bar 90° [t] 0.3
    Working load limit 2-leg with cross bar 0° [t] 0.8
    Working load limit 2-leg with cross bar 90° [t] 0.6
    Working load limit 2-leg symmetrical 0°–45° [t] 0.4
    Working load limit 2-leg symmetrical 45°–60° [t] 0.3
    Working load limit 2-leg asymmetrical [t] 0.3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 0.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.3
    Working load limit 3 or 4 leg asymmetrical [t] 0.3
Working load limit [kg] 500
Thread diameter metric M M 10
Reference no. 323702
  • Details
    ASW ENS SS.DSR-0.5T-M10X1.5-EL16MM
    Reference no. 323702
    Working load limit [kg] 500
    Thread length K [mm] 16
    pitch [mm] 1.5
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 10
    Tightening torque min [Nm] 10
    Body width B 53
    Stirrup height C [mm] 13
    Ø of contact surface E 30
    Clear height T [mm] 39
    Clearance W [mm] 28
    Base height J [mm] 32
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 10
    Working load limit single-leg with cross bar 0° [t] 0.7
    Working load limit single-leg with cross bar 90° [t] 0.5
    Working load limit 2-leg with cross bar 0° [t] 1.4
    Working load limit 2-leg with cross bar 90° [t] 1
    Working load limit 2-leg symmetrical 0°–45° [t] 0.7
    Working load limit 2-leg symmetrical 45°–60° [t] 0.5
    Working load limit 2-leg asymmetrical [t] 0.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.5
    Working load limit 3 or 4 leg asymmetrical [t] 0.5
Working load limit [kg] 800
Thread diameter metric M M 12
Reference no. 323703
  • Details
    ASW ENS SS.DSR-0.8T-M12X1.75-EL19MM
    Reference no. 323703
    Working load limit [kg] 800
    Thread length K [mm] 19
    pitch [mm] 1.75
    Outer wrench size AF1 [mm] 16
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 15
    Tightening torque min [Nm] 15
    Body width B 53
    Stirrup height C [mm] 13
    Ø of contact surface E 30
    Clear height T [mm] 39
    Clearance W [mm] 28
    Base height J [mm] 32
    Spacing pivot point of base to web N [mm] 30
    Weight approx. [kg] 0.3
    Thread diameter metric M M 12
    Working load limit single-leg with cross bar 0° [t] 0.9
    Working load limit single-leg with cross bar 90° [t] 0.8
    Working load limit 2-leg with cross bar 0° [t] 1.8
    Working load limit 2-leg with cross bar 90° [t] 1.6
    Working load limit 2-leg symmetrical 0°–45° [t] 1.1
    Working load limit 2-leg symmetrical 45°–60° [t] 0.8
    Working load limit 2-leg asymmetrical [t] 0.8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 1.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 0.8
    Working load limit 3 or 4 leg asymmetrical [t] 0.8
Working load limit [kg] 1000
Thread diameter metric M M 14
Reference no. 323705
  • Details
    ASW ENS SS.DSR-1T-M14X2-EL29MM
    Reference no. 323705
    Working load limit [kg] 1000
    Thread length K [mm] 29
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 30
    Tightening torque min [Nm] 30
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 42
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 14
    Working load limit single-leg with cross bar 0° [t] 1.2
    Working load limit single-leg with cross bar 90° [t] 1
    Working load limit 2-leg with cross bar 0° [t] 2.4
    Working load limit 2-leg with cross bar 90° [t] 2
    Working load limit 2-leg symmetrical 0°–45° [t] 1.4
    Working load limit 2-leg symmetrical 45°–60° [t] 1
    Working load limit 2-leg asymmetrical [t] 1
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.1
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1
    Working load limit 3 or 4 leg asymmetrical [t] 1
Working load limit [kg] 1400
Thread diameter metric M M 16
Reference no. 323707
  • Details
    ASW ENS SS.DSR-1.4T-M16X2-EL26MM
    Reference no. 323707
    Working load limit [kg] 1400
    Thread length K [mm] 26
    pitch [mm] 2
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 50
    Tightening torque min [Nm] 50
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 0.9
    Thread diameter metric M M 16
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.4
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
Working load limit [kg] 1400
Thread diameter metric M M 18
Reference no. 323709
  • Details
    ASW ENS SS.DSR-1.4T-M18X2.5-EL30MM
    Reference no. 323709
    Working load limit [kg] 1400
    Thread length K [mm] 30
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 70
    Tightening torque min [Nm] 70
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 1
    Thread diameter metric M M 18
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.4
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
Working load limit [kg] 1400
Thread diameter metric M M 20
Reference no. 323710
  • Details
    ASW ENS SS.DSR-1.4T-M20X2.5-EL30MM
    Reference no. 323710
    Working load limit [kg] 1400
    Thread length K [mm] 30
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 20
    Inner wrench size AF2 [mm] 8
    Tightening torque MA [Nm] 100
    Tightening torque min [Nm] 100
    Body width B 76
    Stirrup height C [mm] 17
    Ø of contact surface E 45
    Clear height T [mm] 53
    Clearance W [mm] 38
    Base height J [mm] 44
    Spacing pivot point of base to web N [mm] 40
    Weight approx. [kg] 1
    Thread diameter metric M M 20
    Working load limit single-leg with cross bar 0° [t] 1.5
    Working load limit single-leg with cross bar 90° [t] 1.4
    Working load limit 2-leg with cross bar 0° [t] 3
    Working load limit 2-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg symmetrical 0°–45° [t] 1.9
    Working load limit 2-leg symmetrical 45°–60° [t] 1.4
    Working load limit 2-leg asymmetrical [t] 1.4
    Working load limit 3/4-leg symmetrical 0°–45° [t] 2.9
    Working load limit 3/4-leg symmetrical 45°–60° [t] 1.4
    Working load limit 3 or 4 leg asymmetrical [t] 1.4
Working load limit [kg] 2200
Thread diameter metric M M 22
Reference no. 323711
  • Details
    ASW ENS SS.DSR-2.2T-M22X2.5-EL42MM
    Reference no. 323711
    Working load limit [kg] 2200
    Thread length K [mm] 42
    pitch [mm] 2.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 120
    Tightening torque min [Nm] 120
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.5
    Thread diameter metric M M 22
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 2.2
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 4.4
    Working load limit 2-leg symmetrical 0°–45° [t] 3
    Working load limit 2-leg symmetrical 45°–60° [t] 2.2
    Working load limit 2-leg asymmetrical [t] 2.2
    Working load limit 3/4-leg symmetrical 0°–45° [t] 4.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.2
    Working load limit 3 or 4 leg asymmetrical [t] 2.2
Working load limit [kg] 2700
Thread diameter metric M M 24
Reference no. 323712
  • Details
    ASW ENS SS.DSR-2.7T-M24X3-EL42MM
    Reference no. 323712
    Working load limit [kg] 2700
    Thread length K [mm] 42
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 160
    Tightening torque min [Nm] 160
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.6
    Thread diameter metric M M 24
    Working load limit single-leg with cross bar 0° [t] 2.8
    Working load limit single-leg with cross bar 90° [t] 2.7
    Working load limit 2-leg with cross bar 0° [t] 5.6
    Working load limit 2-leg with cross bar 90° [t] 5.4
    Working load limit 2-leg symmetrical 0°–45° [t] 3.7
    Working load limit 2-leg symmetrical 45°–60° [t] 2.7
    Working load limit 2-leg asymmetrical [t] 2.7
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.7
    Working load limit 3 or 4 leg asymmetrical [t] 2.7
Working load limit [kg] 2800
Thread diameter metric M M 27
Reference no. 323752
  • Details
    ASW ENS SS.DSR-2.8T-M27X3-EL42MM
    Reference no. 323752
    Working load limit [kg] 2800
    Thread length K [mm] 47
    pitch [mm] 3
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 200
    Tightening torque min [Nm] 200
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.7
    Thread diameter metric M M 27
    Working load limit single-leg with cross bar 0° [t] 2.9
    Working load limit single-leg with cross bar 90° [t] 2.8
    Working load limit 2-leg with cross bar 0° [t] 5.8
    Working load limit 2-leg with cross bar 90° [t] 5.6
    Working load limit 2-leg symmetrical 0°–45° [t] 3.9
    Working load limit 2-leg symmetrical 45°–60° [t] 2.8
    Working load limit 2-leg asymmetrical [t] 2.8
    Working load limit 3/4-leg symmetrical 0°–45° [t] 5.8
    Working load limit 3/4-leg symmetrical 45°–60° [t] 2.8
    Working load limit 3 or 4 leg asymmetrical [t] 2.8
Working load limit [kg] 3000
Thread diameter metric M M 30
Reference no. 323714
  • Details
    ASW ENS SS.DSR-3T-M30X3.5-EL47MM
    Reference no. 323714
    Working load limit [kg] 3000
    Thread length K [mm] 47
    pitch [mm] 3.5
    Outer wrench size AF1 [mm] 24
    Inner wrench size AF2 [mm] 14
    Tightening torque MA [Nm] 250
    Tightening torque min [Nm] 250
    Body width B 115
    Stirrup height C [mm] 25
    Ø of contact surface E 58
    Clear height T [mm] 83
    Clearance W [mm] 56
    Base height J [mm] 62
    Spacing pivot point of base to web N [mm] 55
    Weight approx. [kg] 2.8
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 3
    Working load limit single-leg with cross bar 90° [t] 3
    Working load limit 2-leg with cross bar 0° [t] 6
    Working load limit 2-leg with cross bar 90° [t] 6
    Working load limit 2-leg symmetrical 0°–45° [t] 4.2
    Working load limit 2-leg symmetrical 45°–60° [t] 3
    Working load limit 2-leg asymmetrical [t] 3
    Working load limit 3/4-leg symmetrical 0°–45° [t] 6.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3
    Working load limit 3 or 4 leg asymmetrical [t] 3
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
