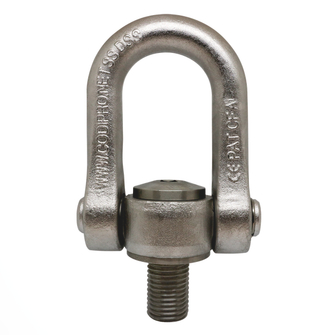

Stainless steel SNB bolt-on swivel

Stainless steel SNB bolt-on swivel
Premium bolt-on stainless steel swivel for heavy loads, resistant to corrosion and for specific industries, with individual serial number. Intelligent alternative to the conventional eye bolt.
Technical data

Operating temperature

  • –20 °C to +200 °C
  • reduced carrying capacities outside this range

Standard

  • EN 1677-1, ASME B30.26-1010

Marking

  • Batch number and serial number

Safety factor

  • 5

Rotation

  • 360° (under load)

Tilting

  • 180°

Load angle

  • ±90°

Material

  • Stainless steel
Safety

Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • in special designs
  • with spring for locking the load ring

Thread options

  • Variable thread lengths
  • with UNC thread and other thread types
  • with internal thread

Labelling options

  • with RFID chip
  • with individual serial number or labelling
  • with LC marking for lashing

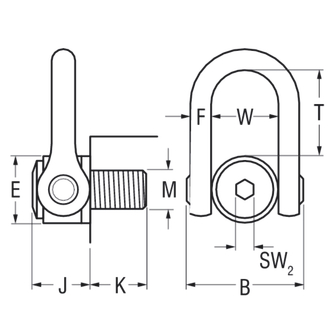

Product variants
Working load limit [kg]
Thread diameter metric M
Reference no.
Details
  • 3500
    M 30
    247298
    ASW ENB SS.DSS-3.5T-M30X3.5-EL45MM
    Reference no. 247298
    Working load limit [kg] 3500
    Thread length K [mm] 45
    pitch [mm] 3.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 250
    Tightening torque min [Nm] 250
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.2
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.5
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
  • 3500
    M 33
    247299
    SSDSS-3.5t-M33x3,5-GwLg.50mm
    Reference no. 247299
    Working load limit [kg] 3500
    Thread length K [mm] 50
    pitch [mm] 3.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 250
    Tightening torque min [Nm] 250
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.2
    Thread diameter metric M M 33
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.5
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
  • 5000
    M 36
    247300
    ASW ENB SS.DSS-5T-M36X4-EL54MM
    Reference no. 247300
    Working load limit [kg] 5000
    Thread length K [mm] 54
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 320
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.2
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5
    Working load limit 3 or 4 leg asymmetrical [t] 5
  • 5000
    M 39
    247301
    ASW ENB SS.DSS-5T-M39X4-EL54MM
    Reference no. 247301
    Working load limit [kg] 5000
    Thread length K [mm] 54
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 320
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.4
    Thread diameter metric M M 39
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5
    Working load limit 3 or 4 leg asymmetrical [t] 5
  • 6000
    M 42
    247302
    ASW ENB SS.DSS-6T-M42X4.5-EL63MM
    Reference no. 247302
    Working load limit [kg] 6000
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 400
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.4
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 6
  • 6000
    M 45
    247303
    ASW ENB SS.DSS-6T-M45X4.5-EL63MM
    Reference no. 247303
    Working load limit [kg] 6000
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 400
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.7
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 9
    Working load limit 3 or 4 leg asymmetrical [t] 6
Working load limit [kg] 3500
Thread diameter metric M M 30
Reference no. 247298
  • Details
    ASW ENB SS.DSS-3.5T-M30X3.5-EL45MM
    Reference no. 247298
    Working load limit [kg] 3500
    Thread length K [mm] 45
    pitch [mm] 3.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 250
    Tightening torque min [Nm] 250
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.2
    Thread diameter metric M M 30
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.5
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
Working load limit [kg] 3500
Thread diameter metric M M 33
Reference no. 247299
  • Details
    SSDSS-3.5t-M33x3,5-GwLg.50mm
    Reference no. 247299
    Working load limit [kg] 3500
    Thread length K [mm] 50
    pitch [mm] 3.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 250
    Tightening torque min [Nm] 250
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.2
    Thread diameter metric M M 33
    Working load limit single-leg with cross bar 0° [t] 3.5
    Working load limit single-leg with cross bar 90° [t] 3.5
    Working load limit 2-leg with cross bar 0° [t] 7
    Working load limit 2-leg with cross bar 90° [t] 7
    Working load limit 2-leg symmetrical 0°–45° [t] 4.9
    Working load limit 2-leg symmetrical 45°–60° [t] 3.5
    Working load limit 2-leg asymmetrical [t] 3.5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 7.3
    Working load limit 3/4-leg symmetrical 45°–60° [t] 3.5
    Working load limit 3 or 4 leg asymmetrical [t] 3.5
Working load limit [kg] 5000
Thread diameter metric M M 36
Reference no. 247300
  • Details
    ASW ENB SS.DSS-5T-M36X4-EL54MM
    Reference no. 247300
    Working load limit [kg] 5000
    Thread length K [mm] 54
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 320
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.2
    Thread diameter metric M M 36
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5
    Working load limit 3 or 4 leg asymmetrical [t] 5
Working load limit [kg] 5000
Thread diameter metric M M 39
Reference no. 247301
  • Details
    ASW ENB SS.DSS-5T-M39X4-EL54MM
    Reference no. 247301
    Working load limit [kg] 5000
    Thread length K [mm] 54
    pitch [mm] 4
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 320
    Tightening torque min [Nm] 320
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.4
    Thread diameter metric M M 39
    Working load limit single-leg with cross bar 0° [t] 5
    Working load limit single-leg with cross bar 90° [t] 5
    Working load limit 2-leg with cross bar 0° [t] 10
    Working load limit 2-leg with cross bar 90° [t] 10
    Working load limit 2-leg symmetrical 0°–45° [t] 7
    Working load limit 2-leg symmetrical 45°–60° [t] 5
    Working load limit 2-leg asymmetrical [t] 5
    Working load limit 3/4-leg symmetrical 0°–45° [t] 10.5
    Working load limit 3/4-leg symmetrical 45°–60° [t] 5
    Working load limit 3 or 4 leg asymmetrical [t] 5
Working load limit [kg] 6000
Thread diameter metric M M 42
Reference no. 247302
  • Details
    ASW ENB SS.DSS-6T-M42X4.5-EL63MM
    Reference no. 247302
    Working load limit [kg] 6000
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 400
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.4
    Thread diameter metric M M 42
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 6
    Working load limit 3 or 4 leg asymmetrical [t] 6
Working load limit [kg] 6000
Thread diameter metric M M 45
Reference no. 247303
  • Details
    ASW ENB SS.DSS-6T-M45X4.5-EL63MM
    Reference no. 247303
    Working load limit [kg] 6000
    Thread length K [mm] 63
    pitch [mm] 4.5
    Inner wrench size AF2 [mm] 19
    Tightening torque MA [Nm] 400
    Tightening torque min [Nm] 400
    Body width B 149
    Ø of contact surface E 70
    Clear height T [mm] 104
    Clearance W [mm] 73
    Ring section diameter F 30
    Base height J [mm] 61
    Weight approx. [kg] 5.7
    Thread diameter metric M M 45
    Working load limit single-leg with cross bar 0° [t] 6
    Working load limit single-leg with cross bar 90° [t] 6
    Working load limit 2-leg with cross bar 0° [t] 12
    Working load limit 2-leg with cross bar 90° [t] 12
    Working load limit 2-leg symmetrical 0°–45° [t] 8.4
    Working load limit 2-leg symmetrical 45°–60° [t] 6
    Working load limit 2-leg asymmetrical [t] 6
    Working load limit 3/4-leg symmetrical 0°–45° [t] 12.6
    Working load limit 3/4-leg symmetrical 45°–60° [t] 9
    Working load limit 3 or 4 leg asymmetrical [t] 6
Downloads

Design / Engineering

CAD 3D

Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
