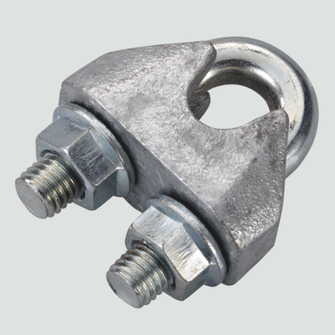

Wire rope clamps acc. to EN 13411-5

Wire rope clamps acc. to EN 13411-5
Wire rope clamps are manufactured to EN 13411-5 to the current state of the art. Wire rope clamps with U-shaped clamp stirrup are not suitable for use with spiral ropes. Corrosion protection thanks to a galvanised surface.
Advantages
  • Standardised – EN 13411-5
  • Uncomplicated – simple and fast fixing of rope ends
technical infos

Material clamping jaw

  • Cast steel

Surface clamping jaw

  • galvanised

Material clamp

  • steel

Surface clamp

  • yellow chromated

Material nut

  • steel

Surface nut

  • yellow chromated

Application area

  • Round strand ropes

Indication

  • The nominal size of the wire rope clamp corresponds to the maximum rope diameter. For intermediate sizes of the nominal rope diameter, the next larger clamp size is to be used. The nominal size 5 is valid only for nominal rope diameter 5 mm.
  • Please have a look about proper use according to BS EN 13411-5. Wire rope clamps with U-shaped clamp stirrups are not suitable for use with spiral ropes!
  • Dimensions correspond to nominal sizes without tolerance and without coating. Please contact us for exact measurements!
Product variants

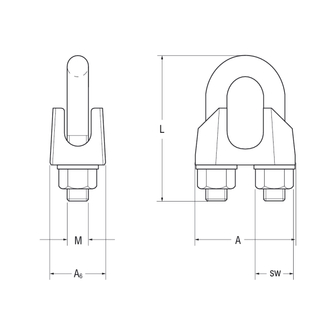

Length total L [mm]
Nominal size NG
Rope Ø ds [mm]
Reference no.
Details
  • 25
    5
    5
    280301
    Drahtseilklemme EN13411-5 Typ1 NG5 5,00-5,00 zn
    Reference no. 280301
    Length total L [mm] 25
    Nominal size NG 5
    Rope Ø ds [mm] 5
    Width total A [mm] 25
    Thread M 5
    Clamping jaw Width A6 [mm] 13
    nut Wrench size AF [mm] 8
    Weight approx. [kg] 0.021
  • 32
    6.5
    6.5
    280299
    Drahtseilklemme EN13411-5 Typ1 NG6,5 5,10-6,50 zn
    Reference no. 280299
    Length total L [mm] 32
    Nominal size NG 6.5
    Rope Ø ds [mm] 6.5
    Width total A [mm] 30
    Thread M 6
    Clamping jaw Width A6 [mm] 16
    nut Wrench size AF [mm] 10
    Weight m 4 [kg/100 St.]
    Weight approx. [kg] 0.04
  • 41
    8
    8
    280297
    Drahtseilklemme EN13411-5 Typ1 NG8 6,60-8,00 zn
    Reference no. 280297
    Length total L [mm] 41
    Nominal size NG 8
    Rope Ø ds [mm] 8
    Width total A [mm] 39
    Thread M 8
    Clamping jaw Width A6 [mm] 20
    nut Wrench size AF [mm] 13
    Weight approx. [kg] 0.082
  • 46
    10
    10
    280300
    Drahtseilklemme EN13411-5 Typ1 NG10 8,10-10,00 zn
    Reference no. 280300
    Length total L [mm] 46
    Nominal size NG 10
    Rope Ø ds [mm] 10
    Width total A [mm] 40
    Thread M 8
    Clamping jaw Width A6 [mm] 20
    nut Wrench size AF [mm] 13
    Weight m 9.2 [kg/100 St.]
    Weight approx. [kg] 0.092
  • 56
    12
    12
    280298
    Drahtseilklemme EN13411-5 Typ1 NG12 10,10-12,00 zn
    Reference no. 280298
    Length total L [mm] 56
    Nominal size NG 12
    Rope Ø ds [mm] 12
    Width total A [mm] 50
    Thread M 10
    Clamping jaw Width A6 [mm] 24
    nut Wrench size AF [mm] 16
    Weight approx. [kg] 0.173
  • 66
    14
    14
    280302
    Drahtseilklemme EN13411-5 Typ1 NG14 12,10-14,00 zn
    Reference no. 280302
    Length total L [mm] 66
    Nominal size NG 14
    Rope Ø ds [mm] 14
    Width total A [mm] 59
    Thread M 12
    Clamping jaw Width A6 [mm] 28
    nut Wrench size AF [mm] 18
    Weight approx. [kg] 0.276
  • 76
    16
    16
    280303
    Drahtseilklemme EN13411-5 Typ1 NG16 14,10-16,00 zn
    Reference no. 280303
    Length total L [mm] 76
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Width total A [mm] 64
    Thread M 14
    Clamping jaw Width A6 [mm] 32
    nut Wrench size AF [mm] 21
    Weight approx. [kg] 0.43
  • 83
    19
    19
    280305
    Drahtseilklemme EN13411-5 Typ1 NG19 16,10-19,00 zn
    Reference no. 280305
    Length total L [mm] 83
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Width total A [mm] 68
    Thread M 14
    Clamping jaw Width A6 [mm] 32
    nut Wrench size AF [mm] 21
    Weight m 49 [kg/100 St.]
    Weight approx. [kg] 0.49
  • 96
    22
    22
    280304
    Drahtseilklemme EN13411-5 Typ1 NG22 19,10-22,00 zn
    Reference no. 280304
    Length total L [mm] 96
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Width total A [mm] 74
    Thread M 16
    Clamping jaw Width A6 [mm] 34
    nut Wrench size AF [mm] 24
    Weight approx. [kg] 0.68
  • 118
    26
    26
    280308
    Drahtseilklemme EN13411-5 Typ1 NG26 22,10-26,00 zn
    Reference no. 280308
    Length total L [mm] 118
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Width total A [mm] 84
    Thread M 20
    Clamping jaw Width A6 [mm] 38
    nut Wrench size AF [mm] 30
    Weight approx. [kg] 1.17
  • 131
    30
    30
    280306
    Drahtseilklemme EN13411-5 Typ1 NG30 26,10-30,00 zn
    Reference no. 280306
    Length total L [mm] 131
    Nominal size NG 30
    Rope Ø ds [mm] 30
    Width total A [mm] 95
    Thread M 20
    Clamping jaw Width A6 [mm] 41
    nut Wrench size AF [mm] 30
    Weight approx. [kg] 1.4
  • 150
    34
    34
    280307
    Drahtseilklemme EN13411-5 Typ1 NG34 30,10-34,00 zn
    Reference no. 280307
    Length total L [mm] 150
    Nominal size NG 34
    Rope Ø ds [mm] 34
    Width total A [mm] 105
    Thread M 22
    Clamping jaw Width A6 [mm] 45
    nut Wrench size AF [mm] 34
    Weight approx. [kg] 2.13
  • 167
    40
    40
    280309
    Drahtseilklemme EN13411-5 Typ1 NG40 34,10-40,00 zn
    Reference no. 280309
    Length total L [mm] 167
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Width total A [mm] 117
    Thread M 24
    Clamping jaw Width A6 [mm] 49
    nut Wrench size AF [mm] 34
    Weight approx. [kg] 2.68
Length total L [mm] 25
Nominal size NG 5
Rope Ø ds [mm] 5
Reference no. 280301
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG5 5,00-5,00 zn
    Reference no. 280301
    Length total L [mm] 25
    Nominal size NG 5
    Rope Ø ds [mm] 5
    Width total A [mm] 25
    Thread M 5
    Clamping jaw Width A6 [mm] 13
    nut Wrench size AF [mm] 8
    Weight approx. [kg] 0.021
Length total L [mm] 32
Nominal size NG 6.5
Rope Ø ds [mm] 6.5
Reference no. 280299
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG6,5 5,10-6,50 zn
    Reference no. 280299
    Length total L [mm] 32
    Nominal size NG 6.5
    Rope Ø ds [mm] 6.5
    Width total A [mm] 30
    Thread M 6
    Clamping jaw Width A6 [mm] 16
    nut Wrench size AF [mm] 10
    Weight m 4 [kg/100 St.]
    Weight approx. [kg] 0.04
Length total L [mm] 41
Nominal size NG 8
Rope Ø ds [mm] 8
Reference no. 280297
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG8 6,60-8,00 zn
    Reference no. 280297
    Length total L [mm] 41
    Nominal size NG 8
    Rope Ø ds [mm] 8
    Width total A [mm] 39
    Thread M 8
    Clamping jaw Width A6 [mm] 20
    nut Wrench size AF [mm] 13
    Weight approx. [kg] 0.082
Length total L [mm] 46
Nominal size NG 10
Rope Ø ds [mm] 10
Reference no. 280300
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG10 8,10-10,00 zn
    Reference no. 280300
    Length total L [mm] 46
    Nominal size NG 10
    Rope Ø ds [mm] 10
    Width total A [mm] 40
    Thread M 8
    Clamping jaw Width A6 [mm] 20
    nut Wrench size AF [mm] 13
    Weight m 9.2 [kg/100 St.]
    Weight approx. [kg] 0.092
Length total L [mm] 56
Nominal size NG 12
Rope Ø ds [mm] 12
Reference no. 280298
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG12 10,10-12,00 zn
    Reference no. 280298
    Length total L [mm] 56
    Nominal size NG 12
    Rope Ø ds [mm] 12
    Width total A [mm] 50
    Thread M 10
    Clamping jaw Width A6 [mm] 24
    nut Wrench size AF [mm] 16
    Weight approx. [kg] 0.173
Length total L [mm] 66
Nominal size NG 14
Rope Ø ds [mm] 14
Reference no. 280302
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG14 12,10-14,00 zn
    Reference no. 280302
    Length total L [mm] 66
    Nominal size NG 14
    Rope Ø ds [mm] 14
    Width total A [mm] 59
    Thread M 12
    Clamping jaw Width A6 [mm] 28
    nut Wrench size AF [mm] 18
    Weight approx. [kg] 0.276
Length total L [mm] 76
Nominal size NG 16
Rope Ø ds [mm] 16
Reference no. 280303
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG16 14,10-16,00 zn
    Reference no. 280303
    Length total L [mm] 76
    Nominal size NG 16
    Rope Ø ds [mm] 16
    Width total A [mm] 64
    Thread M 14
    Clamping jaw Width A6 [mm] 32
    nut Wrench size AF [mm] 21
    Weight approx. [kg] 0.43
Length total L [mm] 83
Nominal size NG 19
Rope Ø ds [mm] 19
Reference no. 280305
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG19 16,10-19,00 zn
    Reference no. 280305
    Length total L [mm] 83
    Nominal size NG 19
    Rope Ø ds [mm] 19
    Width total A [mm] 68
    Thread M 14
    Clamping jaw Width A6 [mm] 32
    nut Wrench size AF [mm] 21
    Weight m 49 [kg/100 St.]
    Weight approx. [kg] 0.49
Length total L [mm] 96
Nominal size NG 22
Rope Ø ds [mm] 22
Reference no. 280304
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG22 19,10-22,00 zn
    Reference no. 280304
    Length total L [mm] 96
    Nominal size NG 22
    Rope Ø ds [mm] 22
    Width total A [mm] 74
    Thread M 16
    Clamping jaw Width A6 [mm] 34
    nut Wrench size AF [mm] 24
    Weight approx. [kg] 0.68
Length total L [mm] 118
Nominal size NG 26
Rope Ø ds [mm] 26
Reference no. 280308
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG26 22,10-26,00 zn
    Reference no. 280308
    Length total L [mm] 118
    Nominal size NG 26
    Rope Ø ds [mm] 26
    Width total A [mm] 84
    Thread M 20
    Clamping jaw Width A6 [mm] 38
    nut Wrench size AF [mm] 30
    Weight approx. [kg] 1.17
Length total L [mm] 131
Nominal size NG 30
Rope Ø ds [mm] 30
Reference no. 280306
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG30 26,10-30,00 zn
    Reference no. 280306
    Length total L [mm] 131
    Nominal size NG 30
    Rope Ø ds [mm] 30
    Width total A [mm] 95
    Thread M 20
    Clamping jaw Width A6 [mm] 41
    nut Wrench size AF [mm] 30
    Weight approx. [kg] 1.4
Length total L [mm] 150
Nominal size NG 34
Rope Ø ds [mm] 34
Reference no. 280307
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG34 30,10-34,00 zn
    Reference no. 280307
    Length total L [mm] 150
    Nominal size NG 34
    Rope Ø ds [mm] 34
    Width total A [mm] 105
    Thread M 22
    Clamping jaw Width A6 [mm] 45
    nut Wrench size AF [mm] 34
    Weight approx. [kg] 2.13
Length total L [mm] 167
Nominal size NG 40
Rope Ø ds [mm] 40
Reference no. 280309
  • Details
    Drahtseilklemme EN13411-5 Typ1 NG40 34,10-40,00 zn
    Reference no. 280309
    Length total L [mm] 167
    Nominal size NG 40
    Rope Ø ds [mm] 40
    Width total A [mm] 117
    Thread M 24
    Clamping jaw Width A6 [mm] 49
    nut Wrench size AF [mm] 34
    Weight approx. [kg] 2.68
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-301
Fax +49 8331 937-123
E-Mail wireropes@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Tel. +49 8331 937-181
Fax +49 8331 937-123
E-Mail seile@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Oktjaborskaja Nabereschnaja, No. 104, Korpus 23
RU-193079 St. Petersburg
Tel. +7 812 740 12-24
Fax +7 812 493 48-21
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Service centre
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
2023 Humble Westfield
US-Houston, TX 77037
Tel. +1 832 827 2923
Fax +1 281 784 2903
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
China
 PFEIFER Steel Wire Rope (Shanghai) Co., Ltd.
9th Floor, No. 2555 Jiayinyuan Road, Nanxiang Town, Jiading District
CN-Shanghai
Industrieseile/Industry ropes
Tel. +86 21 56 77 80 06
Fax +86 21 56 77 92 29
E-Mail info@pfeifer.com.cn
Web www.pfeifer.com.cn
 Sales subsidiary
Great Britain
 PFEIFER DRAKO Ltd.
Unit 1A1, Marchwood Industrial Park, North Road
GB-Southampton SO40 4BL
Tel. +44 23 8066-5470
Fax +44 23 8066-5471
E-Mail southampton@pfeifer.uk
Web www.pfeifer.co.uk
 Sales subsidiary
Hungary
 PFEIFER Garant Kft.
Gyömrői út 108-126
HU-1103 Budapest
Tel. +36 1 260 10 14
Fax +36 1 262 09 27
E-Mail info@pfeifer-garant.hu
Web www.pfeifer-garant.hu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Russia
 OOO PFEIFER Kanati & Podjömnie Tehnologii
Pyzhevskiy pereulok, h. 5, bld.1, office 108
RU-119017 Moskau
Tel. +7 495 363 01-27
Fax +7 495 363 01-28
E-Mail info@pfeiferrussia.ru
Web www.pfeiferrussia.ru
 Sales subsidiary
Spain
 PFEIFER Cables y Equipos de Elevación S.L.
Avda. de los Pirineos, 25 – Nave 20, San Sebastián de los Reyes
ES-28703 Madrid
Tel. +34 91 659-3185
Fax +34 91 659-3139
E-Mail p-es@pfeifer.es
Web www.pfeifer.es
 Sales subsidiary
USA
 PFEIFER Wire Rope & Lifting Technology Inc.
600 Industry Drive
US-Hampton, VA 23661
Tel. +1 757 825 2544
Fax +1 757 825 2546
E-Mail info@pfeifer.us.com
Web www.pfeifer.us.com
 Sales subsidiary
United Arab Emirates
 PFEIFER Middle East Wire Rope & Lifting Technology FZE
Jebel Ali Free Zone 1, RA08UA07, PO Box 263081
AE-Dubai
Tel. +971 4 883-8445
Fax +971 4 883-8446
E-Mail sales@pfeifer.ae
Web rope-lifting-ae.pfeifer.info
 Sales subsidiary
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Krönenbarg 92b
DE-21077 Hamburg
Tel. +49 40 78 04 63-0
Fax +49 40 78 70 13
E-Mail psh-hamburg@pfeifer.de
Web www.pfeifer.info
 Office
Switzerland
 pewag Suisse AG
Hasentalstrasse 8
CH-8934 Knonau
Tel. +41 44 768 55-55
Fax +41 44 768 55-30
E-Mail info@pewag-suisse.ch
Web www.pewag-suisse.ch
 Agency

Feel free to contact us

Tel.

+49 8331 937-301

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
